◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51127 - NKR85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#34871) — 19 parça
çizim 13905
13
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-933-0 01 1 0609- ●
13 04.685 PIPE; OIL,UNION TO UNION 8-98037-748-0 01 1 0609- ●

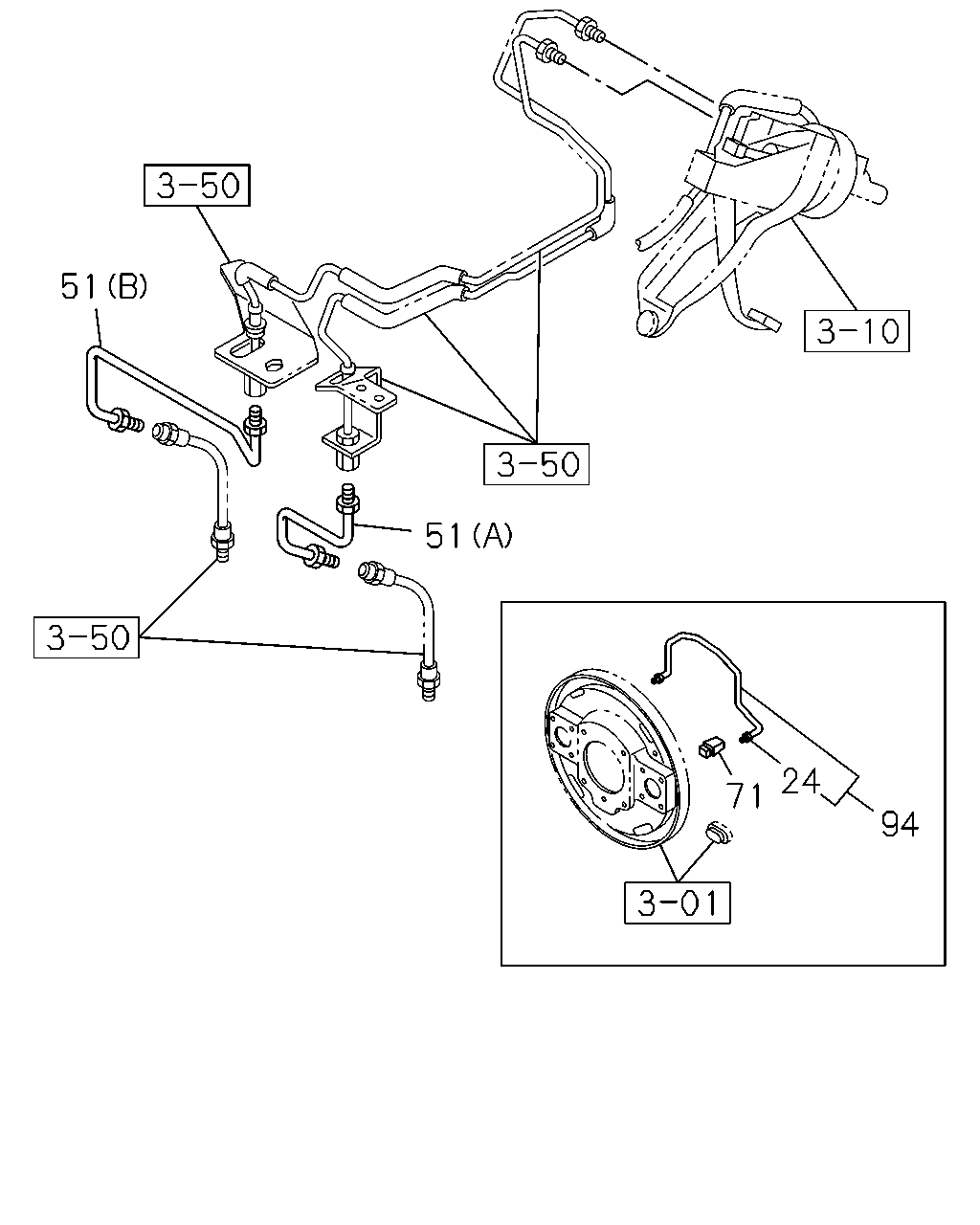

çizim 57214
51 51 24 71 94
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0609- ● ●
51 04.685 PIPE; BRK
(B) FRONT 		5-47411-763-0 01 1 0609- ● ●
51 04.685 PIPE; BRK
(A) REAR 		8-97070-296-2 01 1 0609- ● ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0609- ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0609- ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0609- ● ●

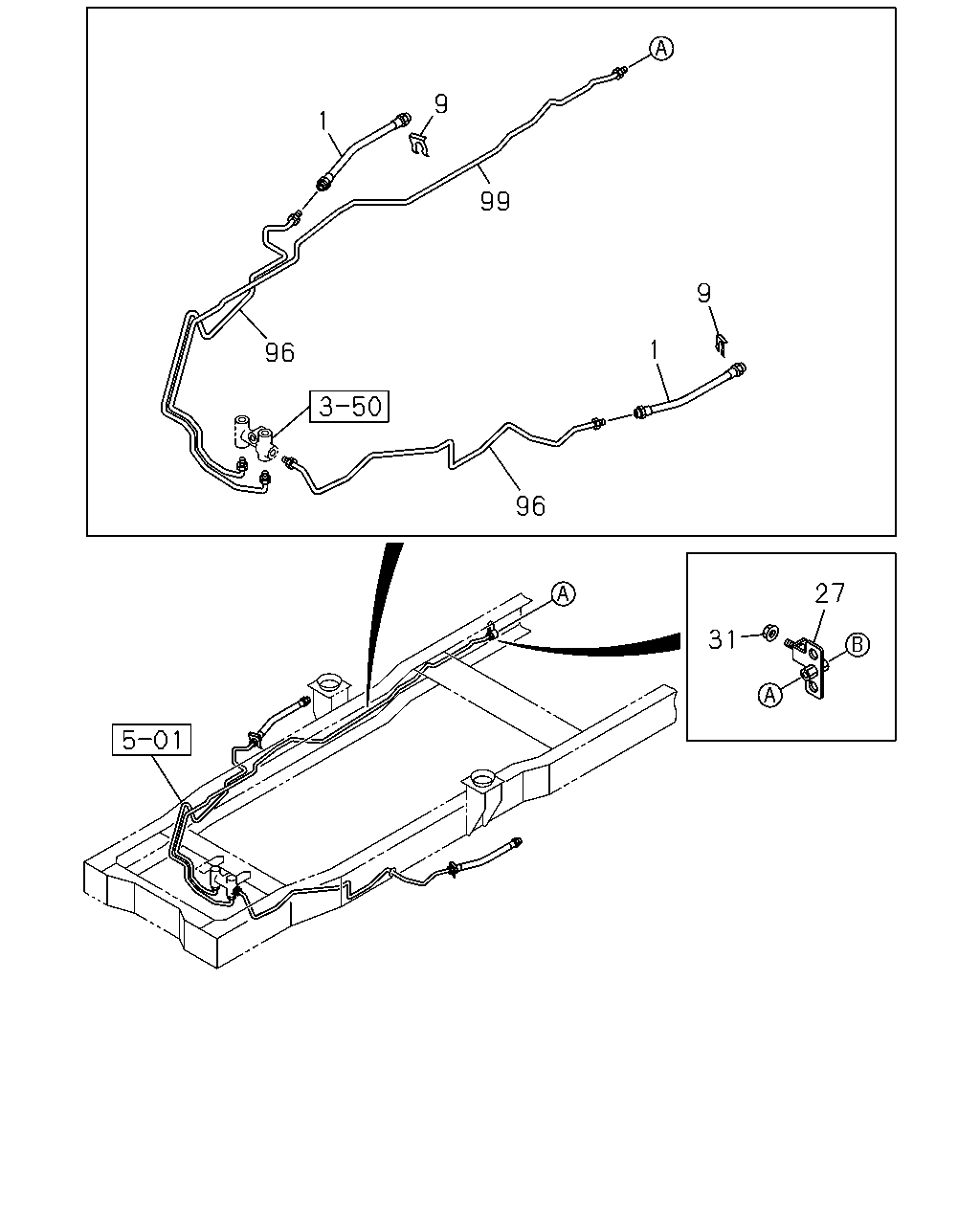

çizim 58066
9 1 99 9 1 96 96 27 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0609- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0609-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0609-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
27 04.686 UNION; BRK PIPE 8-97287-444-1 01 1 0609- ● ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0609- ● ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0609- ● ●
96 04.686 PIPE ASM; 6 WAY 8-98024-950-2 01 1 0609- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98025-365-0 01 1 0609- ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97363-974-0 01 1 0609- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
