3-11 — PARKING BRAKE CONTROL
(#34866) — 41 parça
Tümü
A - NKB6SC
B - NKC6SF
◀

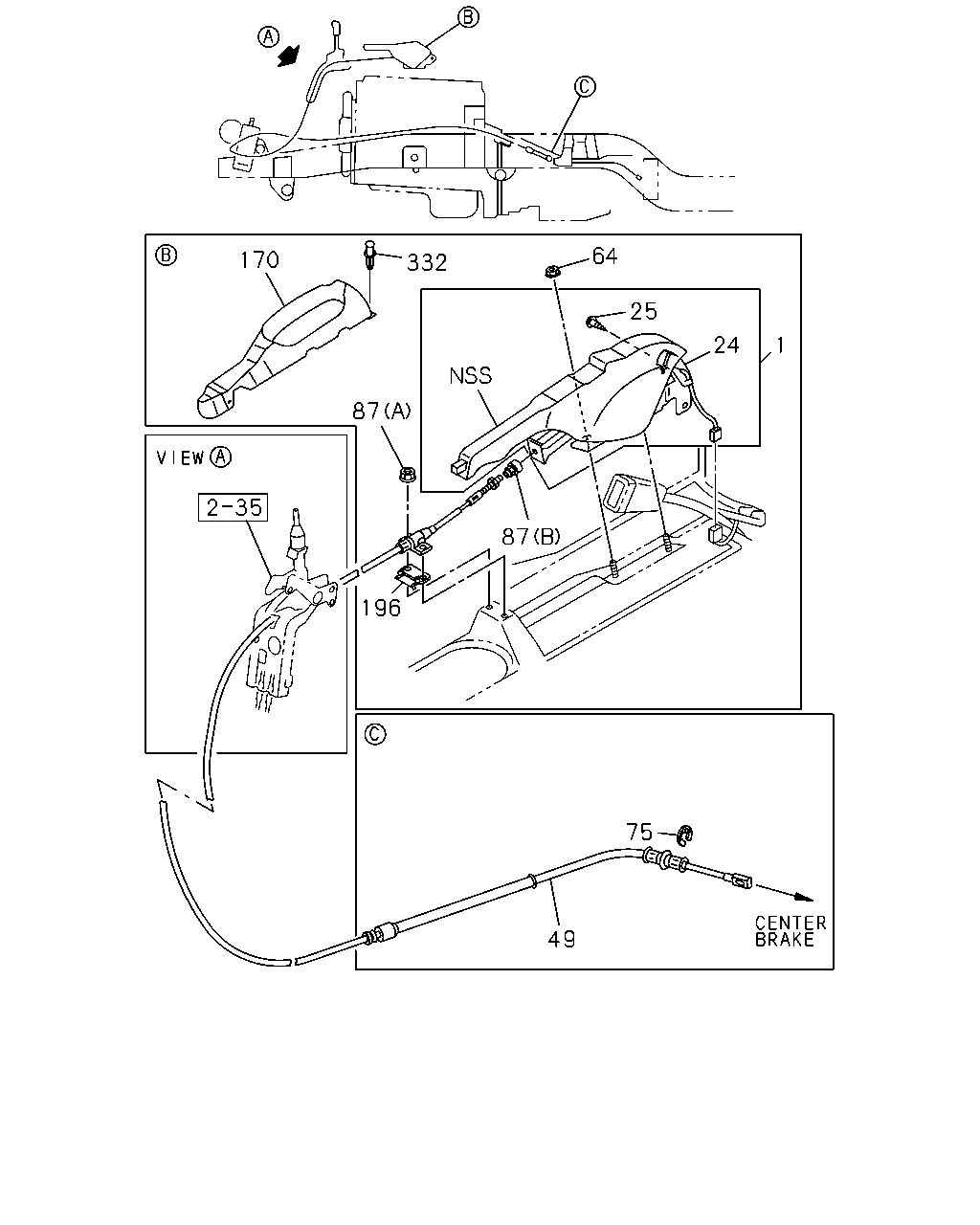

[311A] STEM AND CABLE (14 parça)

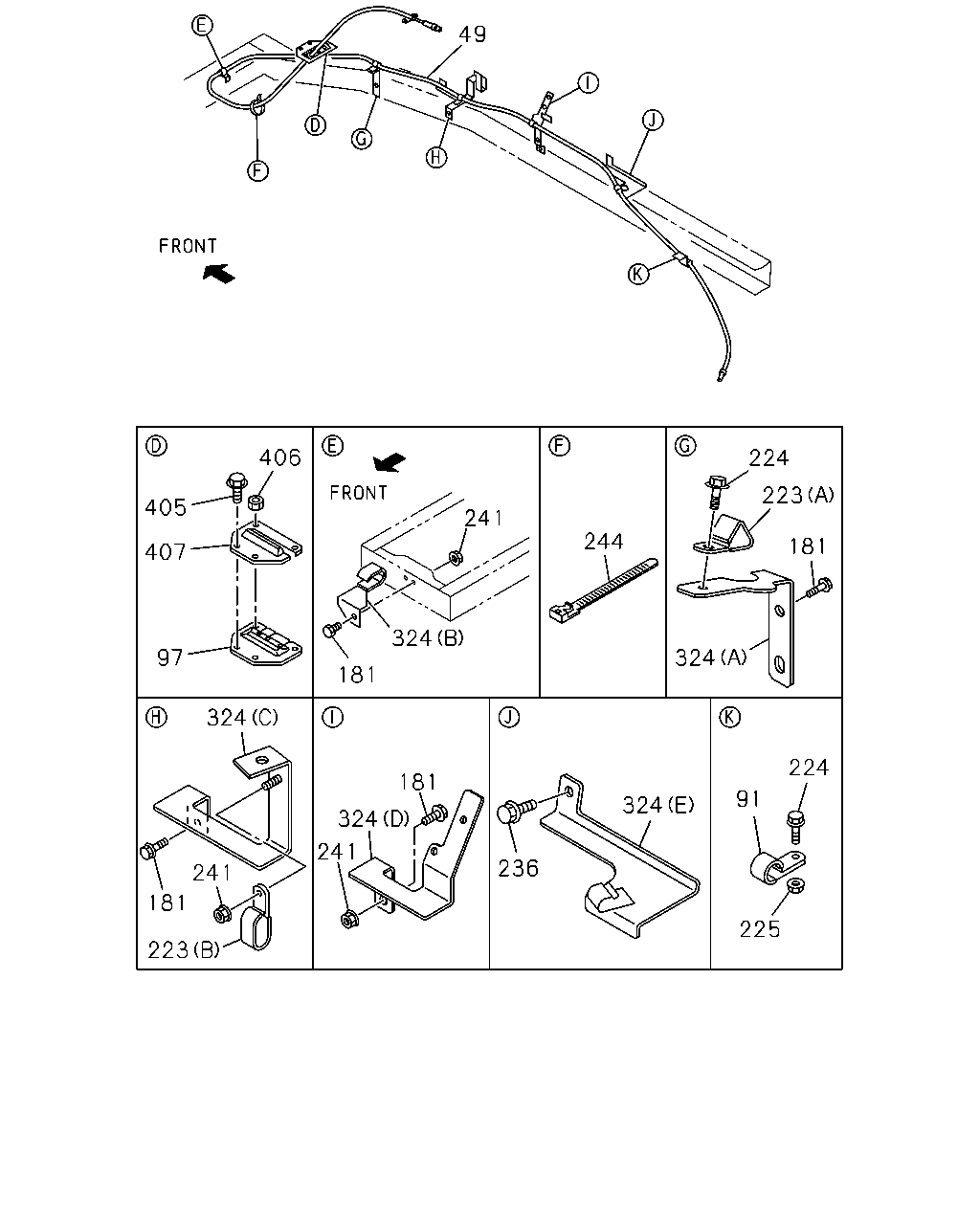

[311A] FIXING PARTS (27 parça)
▶
64
170
332
25
24
1
87
87
196
75
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97585-445-2
01
1
0609-0610
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-385-0
01
1
0611-
●
●
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0609-
●
●
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0609-
●
●
49
04.779 CABLE; PARKING BRK
8-98001-029-1
01
1
0609-
●
●
64
04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER
8-94327-073-0
02
1
0609-0610
●
●
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0611-
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0609-
●
●
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0609-
●
●
87
04.785 NUT
(B) M6
1-71996-312-0
01
1
0609-0611
●
●
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0612-
●
●
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97400-347-1
01
1
0609-
●
●
196
04.784 SPACER; CABLE TO LEVER
8-97095-464-2
01
1
0609-
●
●
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
0609-
●
●
49
406
224
223
405
241
244
181
407
324
324
97
181
324
224
181
91
324
324
241
236
241
181
225
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
49
04.779 CABLE; PARKING BRK
8-98001-029-1
01
1
0609-
●
●
91
04.785 CLIP; PARKING BRK CABLE
00.799 ID=13 L=20
1-09701-138-1
01
1
0609-
●
●
97
04.785 GROMMET; PARKING BRK CABLE
04.010
8-97089-851-0
01
1
0609-
●
●
181
04.785 BOLT; BRKT
00.685 M6X25 FLANGE
0-28650-625-0
01
1
0609-
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0609-
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0609-
●
●
181
04.785 BOLT; BRKT
00.029 M10X25 FLANGE
0-28651-025-0
02
1
0609-
●
●
223
04.785 CLIP; PARKING BRK CABLE
04.047 (A)
8-97036-333-1
01
1
0609-
●
●
223
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97137-589-0
01
1
0609-
●
●
224
04.785 BOLT; CABLE CLIP
03.162 M6X20 FLANGE
0-28650-620-0
01
1
0609-
●
●
224
04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE
0-28651-025-0
01
1
0609-
●
●
225
04.785 NUT; CABLE CLIP
03.162 M10 FLANGE
0-91180-110-0
01
1
0609-
●
●
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0609-
●
●
241
04.785 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
0609-
●
●
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0609-
●
●
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0609-
●
●
241
04.785 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
02
1
0609-
●
●
244
04.785 CLIP; BAND
03.162 L=140
5-09707-031-1
01
1
0609-
●
●
324
04.785 BRACKET
04.047 (A)
8-97101-709-1
01
1
0609-
●
●
324
04.785 BRACKET
(B)
8-97101-815-2
01
1
0609-
●
●
324
04.785 BRACKET
(C)
8-98001-270-0
01
1
0609-
●
●
324
04.785 BRACKET
(D)
8-98001-271-1
01
1
0609-
●
●
324
04.785 BRACKET
(E)
8-98019-522-1
01
1
0609-
●
●
405
04.785 BOLT; GROMMET
00.785 M6X20 FLANGE
0-28450-620-0
02
1
0609-
●
●
406
04.785 NUT; GROMMET
01.540 M6 FLANGE
0-91180-206-0
02
1
0609-0711
●
●
406
04.785 NUT; GROMMET
01.062 M6 FLANGE
0-91180-106-0
02
1
0712-
●
●
407
04.785 RETAINER; GROMMET
04.047
8-97048-319-1
01
1
0609-
●
●
