◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#34860) — 43 parça

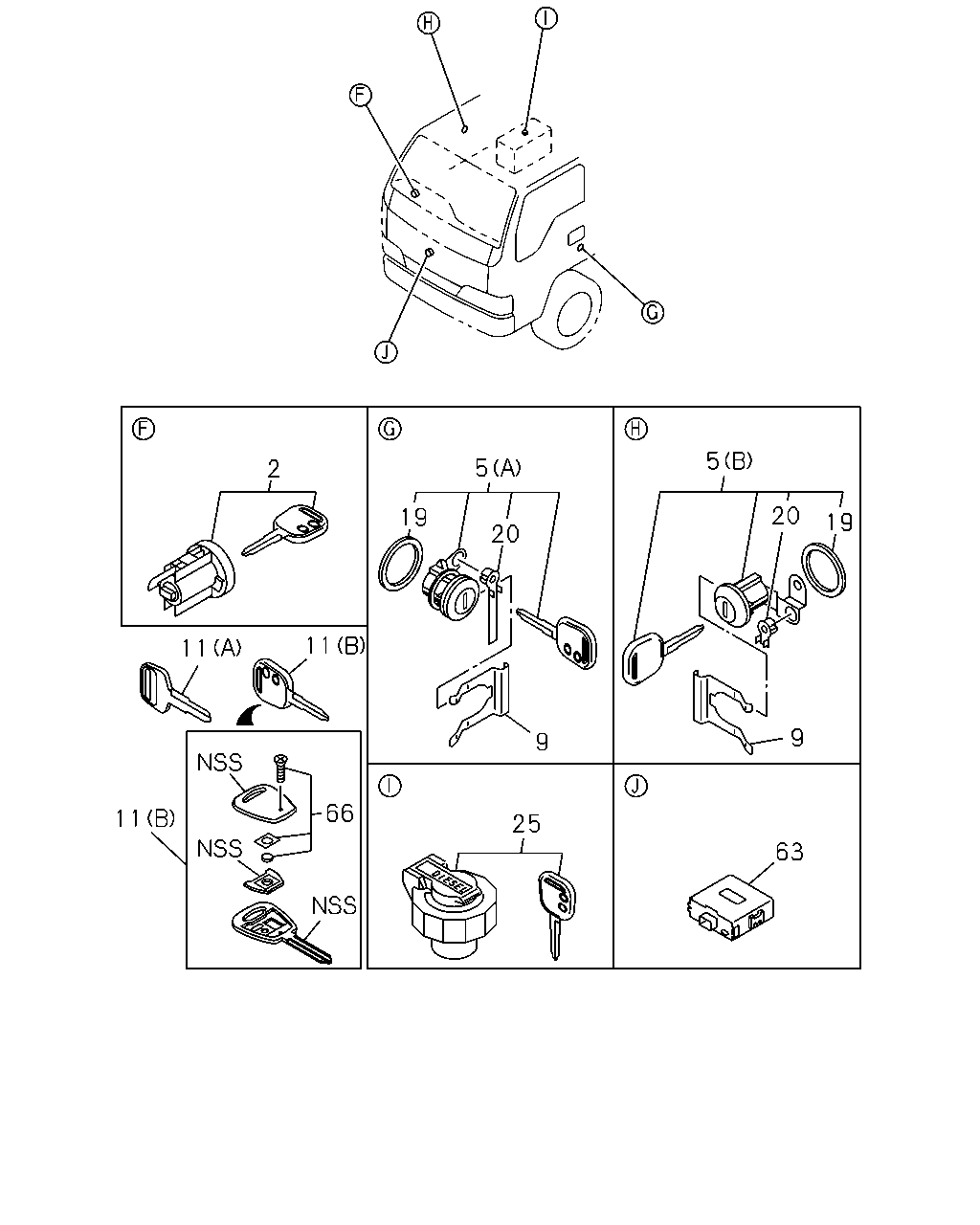

çizim 34461
5 5 2 20 19 19 20 11 11 9 9 66 11 25 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-97868-202-0 01 1 0211-0501 ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98007-235-0 01 1 0502- ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-97868-203-0 01 1 0211-0501 ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98007-236-0 01 1 0502- ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-97868-204-0 01 1 0211-0501 ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98007-237-0 01 1 0502- ● ● ● ● ●
9 16.328 CLIP; DOOR LOCK 8-97898-277-0 02 1 0211-0610 ● ● ● ● ●
9 16.328 CLIP; DOOR LOCK 8-97410-786-0 02 1 0611- ● ● ● ● ●
11 02.187 KEY; BLANK
(A) WO/NOTCH 		8-97076-337-0 AR 1 0211-0501 ● ● ● ● ●
11 02.187 KEY; BLANK
(A) WO/NOTCH 		8-97890-854-0 AR 1 0502- ● ● ● ● ●
11 02.187 KEY; BLANK
(B) WO/NOTCH 		8-97121-677-1 AR 1 0211-0501 ● ● ● ● ●
19 16.328 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0211- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0211- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0211- ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98007-238-0 01 1 0507- ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-97868-205-0 01 1 0211-0501 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. CUSTOM PACKAGE<YM8> 		8-97868-205-0 01 1 0211-0501 ●
63 02.195 CONTROLLER; LOCK CYL,24V 8-97119-185-0 01 1 0211- ● ● ● ● ●
66 02.195 BATTERY SET; TRANSMITTER KEY 8-97869-042-0 01 1 0211- ● ● ● ● ●

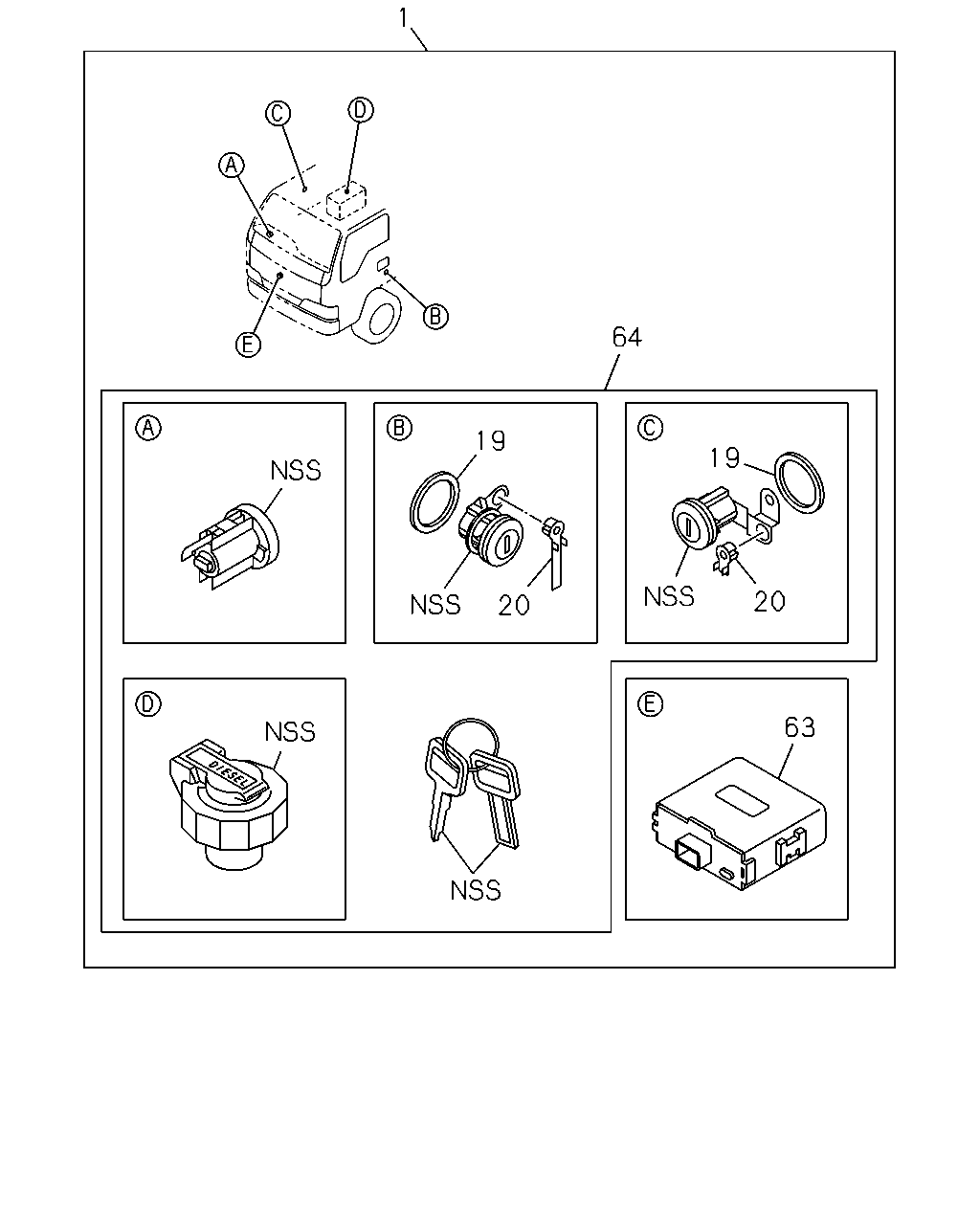

çizim 99487
1 64 19 19 20 20 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-97410-695-0 01 1 0507- ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-97119-181-1 01 1 0211-0501 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. CUSTOM PACKAGE<YM8> 		8-97119-181-1 01 1 0211-0501 ●
1 02.188 CYLINDER SET; CAR LOCK 8-97410-694-0 01 1 0502-0506 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97410-694-0 01 1 0507- ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-97410-694-0 01 1 0507- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97121-675-1 01 1 0211-0501 ●
1 02.188 CYLINDER SET; CAR LOCK
CUSTOM PACKAGE<YM8> 		8-97121-675-1 01 1 0211-0501 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,CUSTOM PACKAGE<YM8> 		8-97121-675-1 01 1 0211-0501 ●
1 02.188 CYLINDER SET; CAR LOCK 8-97121-675-1 01 1 0211-0501 ● ● ●
19 16.328 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0211- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0211- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0211- ● ● ● ● ●
63 02.195 CONTROLLER; LOCK CYL,24V 8-97119-185-0 01 1 0211- ● ● ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> 		8-98007-240-0 01 1 0507- ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> 		8-97868-215-0 01 1 0211-0501 ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> EXC. CUSTOM PACKAGE<YM8> 		8-97868-215-0 01 1 0211-0501 ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97868-214-0 01 1 0211-0501 ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
CUSTOM PACKAGE<YM8> 		8-97868-214-0 01 1 0211-0501 ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. FUEL TANK CAP W/LOCK<N05>,CUSTOM PACKAGE<YM8> 		8-97868-214-0 01 1 0211-0501 ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE 8-97868-214-0 01 1 0211-0501 ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE 8-98007-239-0 01 1 0502-0506 ● ● ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98007-239-0 01 1 0507- ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE 8-98007-239-0 01 1 0507- ● ● ●
