◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20B - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#3486) — 65 parça

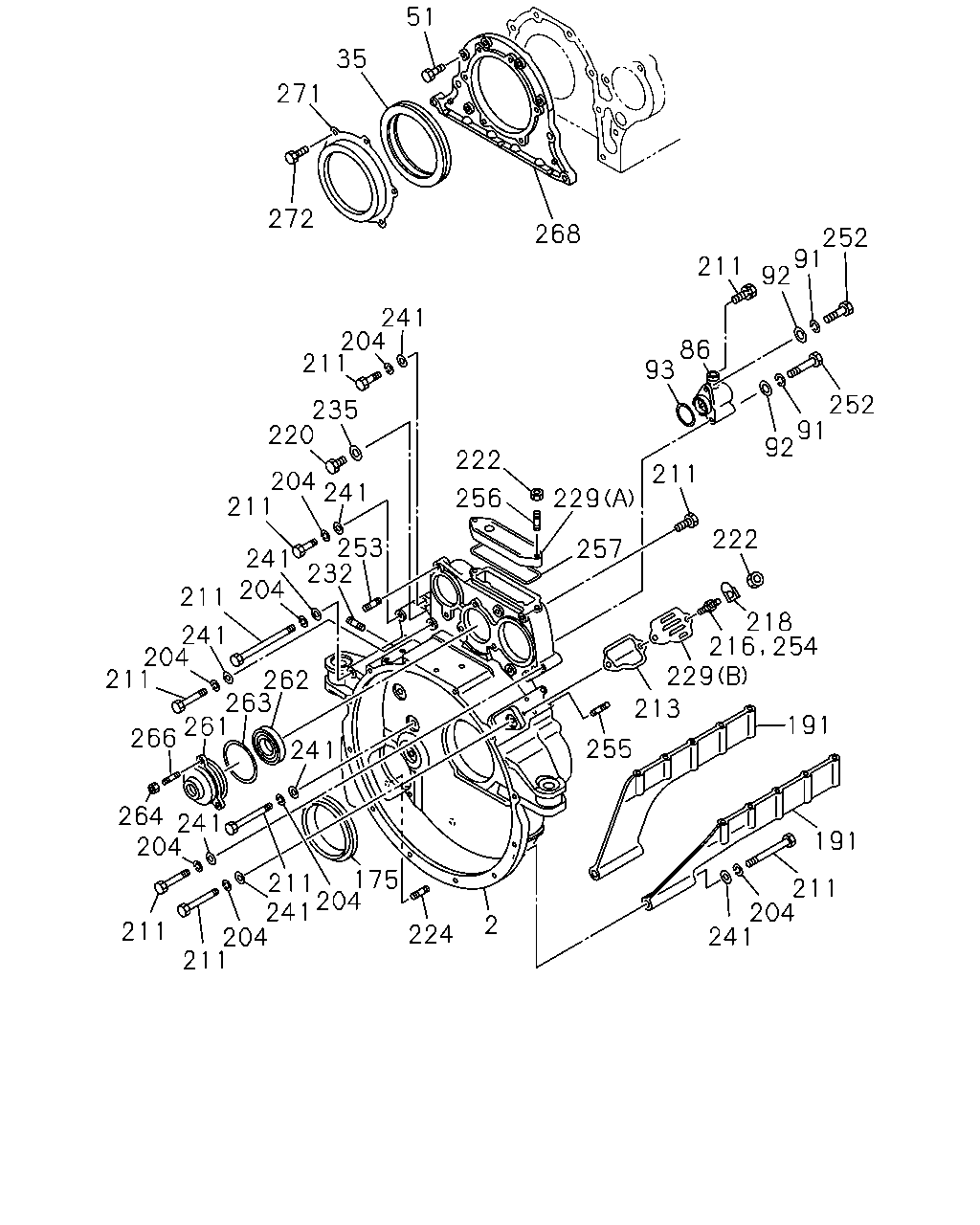

çizim 5277
51 35 271 272 268 252 91 92 211 241 204 211 86 93 252 91 92 235 220 222 211 204 241 211 256 229 253 232 222 257 241 204 211 218 229 241 204 211 262 263 261 266 213 191 255 241 264 241 204 191 211 175 204 241 204 211 211 204 241 2 211 224 216 254
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 1-11341-223-6 01 1 9002- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-506-0 01 1 9002-9302 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-3 01 1 9303- ● ●
51 BOLT; GEAR CASE COVER
M8X28 		0-28020-828-0 08 1 9002-9005 ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9006- ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-039-1 01 1 9002-9309 ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9310- ● ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9002- ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9002- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-507-1 01 1 9002-9302 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9303- ● ●
191 STAY; FLYWHEEL HSG
LH BANK 		1-11349-124-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
LH BANK 		1-11349-167-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
RH BANK 		1-11349-078-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
RH BANK 		1-11349-168-0 01 1 9107- ● ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9002- ● ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 15 1 9002- ● ●
211 BOLT; HSG
M10X25 		0-28121-025-0 02 1 9002-9002 ●
211 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 02 1 9003- ● ●
211 BOLT; HSG
M10X28 		0-28121-028-0 01 1 9002-9002 ●
211 BOLT; HSG
M10X28 FLANGE 		0-28181-028-0 01 1 9003- ● ●
211 BOLT; HSG
M14X55 		9-91656-455-0 01 1 9002-9005 ●
211 BOLT; HSG
M14X55 		0-16806-455-0 01 1 9006- ● ●
211 BOLT; HSG
M14X75 		9-91656-475-0 01 1 9002-9005 ●
211 BOLT; HSG
M14X75 		0-16806-475-0 01 1 9006- ● ●
211 BOLT; HSG
M14X95 		9-91656-495-0 01 1 9002-9005 ●
211 BOLT; HSG
M14X95 		0-16806-495-0 01 1 9006- ● ●
211 BOLT; HSG
M14X230 		1-09020-003-1 01 1 9002- ● ●
211 BOLT; HSG
M14X155 		1-09020-008-1 02 1 9002- ● ●
211 BOLT; HSG
M10X115 		9-09804-203-1 01 1 9002- ● ●
211 BOLT; HSG
M14X125 		9-09804-234-0 09 1 9002- ● ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9002- ● ●
216 STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9002- ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9002-9306 ● ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9307- ● ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9002- ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 9002- ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9307- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9002- ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9002- ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9002- ● ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9002- ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9002- ● ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ● ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 14 1 9002- ● ●
252 BOLT; GEAR BOX
M8X18 		0-28010-818-0 01 1 9002-9106 ●
252 BOLT; GEAR BOX
M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9107- ● ●
252 BOLT; GEAR BOX
M8X70 		9-01055-870-0 01 1 9002-9005 ●
252 BOLT; GEAR BOX
M8X70 		0-10805-870-0 01 1 9006- ● ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9002- ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9002- ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9002- ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9002- ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9002- ● ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9002- ● ●
262 BEARING 1-09810-126-0 01 1 9002- ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9002- ● ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9002- ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 03 1 9307- ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9002- ● ●
268 COVER; FRT 1-11320-056-1 01 1 9002- ● ●
271 COVER; DUST 1-11329-004-0 01 1 9002- ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28020-810-0 06 1 9002-9005 ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9006- ● ●
