◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#34856) — 17 parça

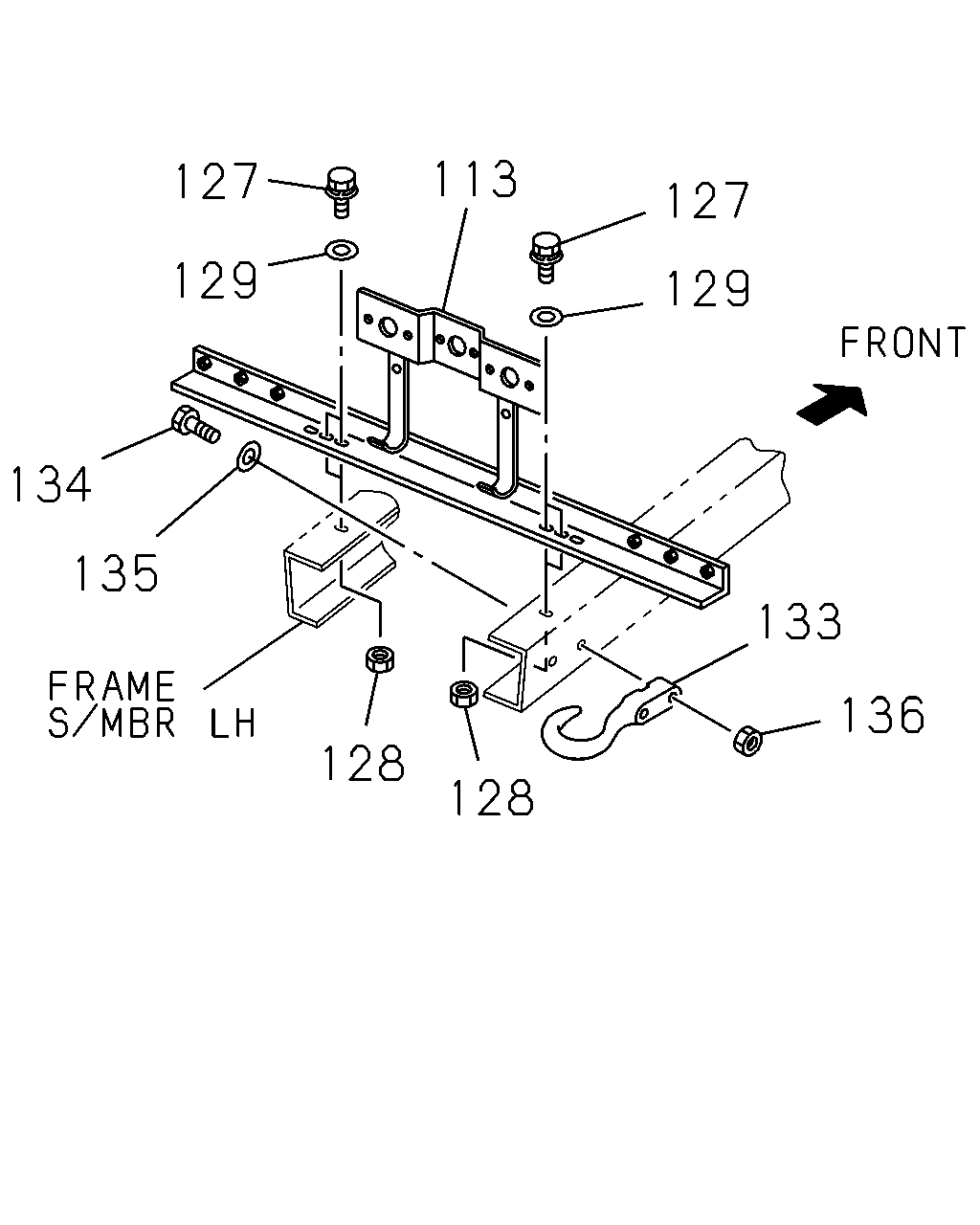

çizim 35003
113 127 127 129 129 134 135 133 136 128 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E
113 07.800 BRACKET; LICENSE PLATE
02.662 		8-97122-800-2 01 1 0211- ● ● ● ● ●
127 02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0211-0403 ● ● ● ● ●
127 02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0404-0512 ● ● ● ● ●
127 02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0601- ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
02.559 M8 		9-09110-408-0 02 1 0211-0512 ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
02.334 M8 		0-91110-508-0 02 1 0601-0709 ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 0211-0605 ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
03.706 ID=8.4 OD=26 		0-91614-808-0 02 1 0606-0709 ● ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 0211- ● ● ● ● ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10806-450-0 02 1 0211-0512 ● ● ● ● ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0601- ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0211-0603 ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0604-0610 ● ● ● ● ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0211-0512 ● ● ● ● ●
136 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 02 1 0601-0610 ● ● ● ● ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0611- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
