◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#34855) — 28 parça

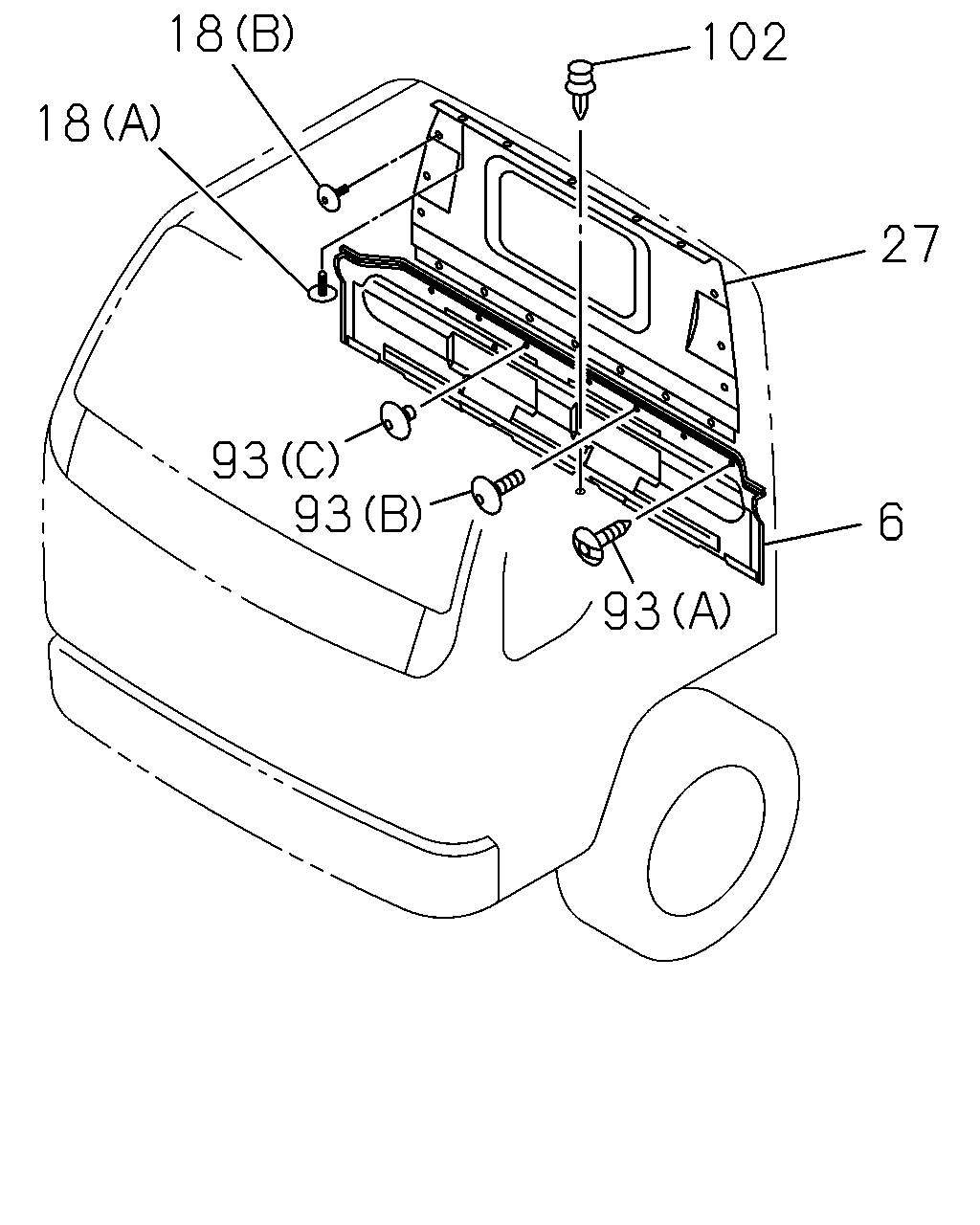

çizim 34707
18 102 18 27 93 93 6 93
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 16.592 MAT; SILENCER,CAB BACK
DARK GRAY 		8-97857-037-3 01 1 0211-0501 ● ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97857-037-3 01 1 0211-0501 ● ●
6 16.592 MAT; SILENCER,CAB BACK
GRAY 		8-97582-816-4 01 1 0502- ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
16.742 (A) LIGHT GRAY 		8-97153-166-0 07 1 0211-0501 ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.742 (A) LIGHT GRAY 		8-97153-166-0 07 1 0211-0501 ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
16.742 (A) LIGHT GRAY 		8-97153-166-0 07 1 0502-0511 ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
16.584 (A) GRAY 		8-97582-278-0 07 1 0512-0610 ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
(A) GRAY 		8-97406-432-0 07 1 0611- ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
(B) LIGHT GRAY 		8-97867-200-0 06 1 0211-0501 ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) LIGHT GRAY 		8-97867-200-0 06 1 0211-0501 ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
16.584 (B) GRAY 		8-97582-277-0 06 1 0502-0610 ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
(B) DARK GRAY 		8-97406-446-0 06 1 0611- ● ● ● ●
27 16.587 COVER; TRIM,BACK
LIGHT GRAY 		8-97867-617-5 01 1 0211-0501 ● ●
27 16.587 COVER; TRIM,BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY 		8-97867-617-5 01 1 0211-0501 ● ●
27 16.587 COVER; TRIM,BACK
GRAY 		8-97582-819-5 01 1 0502- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(B) DARK GRAY 		8-97857-054-0 07 1 0211-0501 ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) DARK GRAY 		8-97857-054-0 07 1 0211-0501 ● ●
93 16.584 CLIP; SILENCER MATTERESS
(A) GRAY 		8-97582-259-0 02 1 0502-0610 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
16.166 (A) GRAY 		8-97405-295-0 02 1 0611- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(C) ID=7X14 		8-97857-564-0 02 1 0211-0501 ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (C) ID=7X14 		8-97857-564-0 02 1 0211-0501 ● ●
93 16.584 CLIP; SILENCER MATTERESS
(C) GRAY 		8-97582-277-0 02 1 0502-0706 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
16.587 (B) DARK GRAY 		8-97406-446-0 02 1 0707- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(A) DARK GRAY 		8-97866-675-0 02 1 0211-0501 ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97866-675-0 02 1 0211-0501 ● ●
93 16.584 CLIP; SILENCER MATTERESS
(B) GRAY 		8-97582-278-0 07 1 0502-0610 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
16.587 (B) GRAY 		8-97406-432-0 07 1 0611- ● ● ● ●
102 16.584 CLIP; TRAY,BACK PANEL
16.165 OD=7.9 BLACK 		8-94279-974-1 02 1 0211- ● ● ● ●
