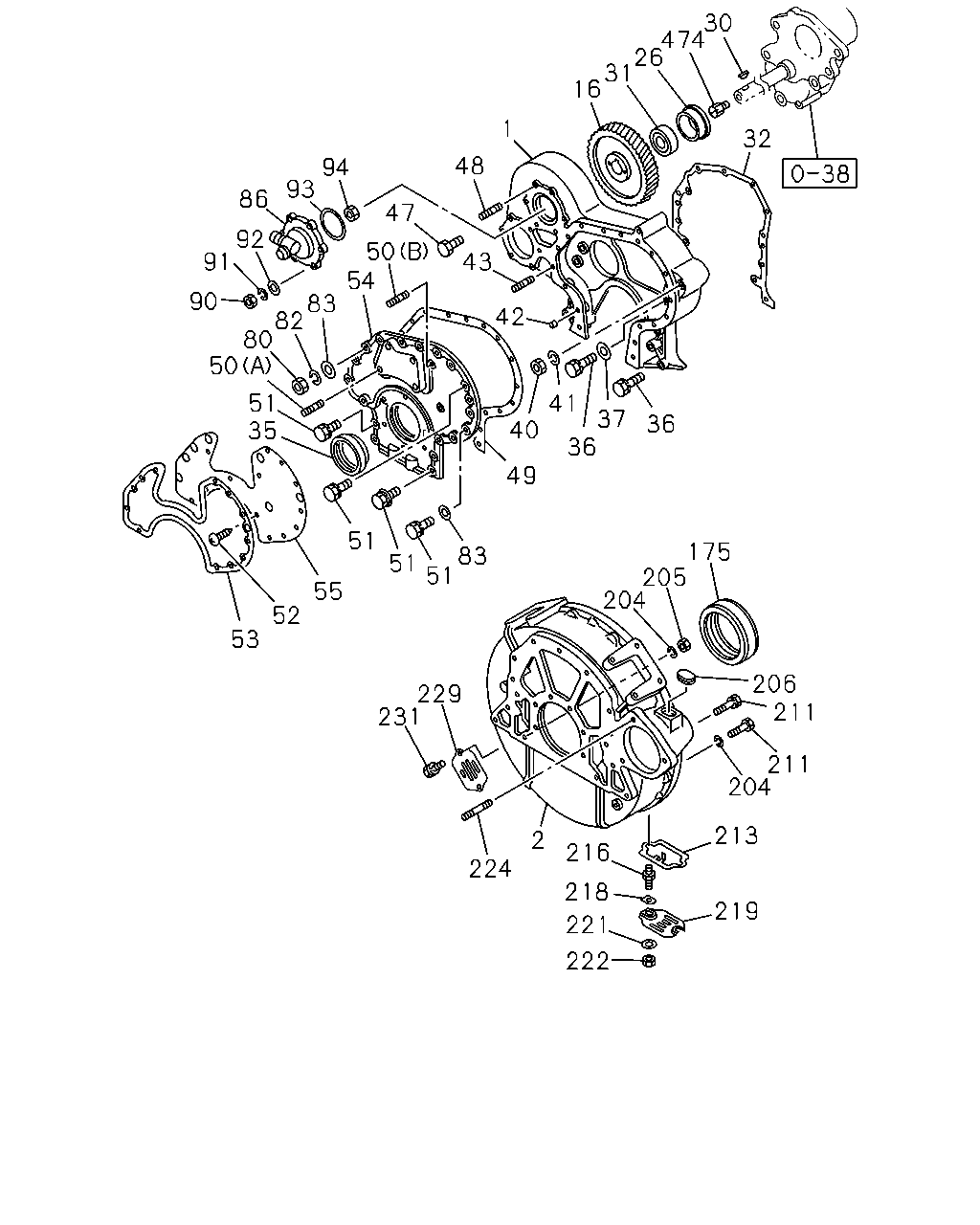

0-20A — TIMING GEAR CASE AND FLYWHEEL HOUSING (#3485) — 80 parça

30 474 26 31 16 1 32 48 94 93 86 47 92 91 50 54 43 90 83 82 80 50 42 51 35 41 40 37 36 36 49 51 175 205 204 83 51 51 55 52 53 206 211 229 231 211 204 213 2 216 224 218 219 221 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	1-11311-034-0	01	1	9002-	●	●
2	HOUSING; FLYWHEEL	1-11341-270-1	01	1	9002-	●	●
16	GEAR; INJ PUMP DRIVE Z=64	1-12524-013-1	01	1	9002-	●	●
26	ADAPTER	1-11329-008-0	01	1	9002-	●	●
30	KEY; DRIVE GEAR	9-08055-519-0	01	1	9002-	●	●
31	BEARING; DRIVE SHAFT	9-00090-230-0	01	1	9002-	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-015-0	01	1	9002-9502	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-016-0	01	1	9503-	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-442-0	01	1	9002-	●	●
36	BOLT; GEAR CASE M8X35	9-01055-835-0	01	1	9002-9005	●
36	BOLT; GEAR CASE M8X35	0-10805-835-0	01	1	9006-9006	●
36	BOLT; GEAR CASE M12X30 W/LK WASHER	9-01931-230-0	06	1	9002-9005	●
36	BOLT; GEAR CASE M12X30 W/LK WASHER	0-50051-230-0	06	1	9006-	●	●
36	BOLT; GEAR CASE M10X28	9-02361-028-0	01	1	9002-	●	●
36	BOLT; GEAR CASE M8X35	0-10810-835-0	01	1	9007-	●	●
37	WASHER; PL,GEAR CASE D=20 T=4.0	1-09503-183-1	01	1	9002-	●	●
37	WASHER; PL,GEAR CASE ID=10.5	9-09851-950-0	01	1	9002-	●	●
40	NUT; GEAR CASE M12	9-99110-412-0	06	1	9002-	●	●
41	WASHER; LK,GEAR CASE ID=12.2	9-09150-512-0	06	1	9002-	●	●
42	DOWEL; GEAR CASE COVER OD=14 L=10	9-11319-065-2	02	1	9002-	●	●
43	STUD; BRG COVER M10X35 L=50	1-09302-048-1	04	1	9002-	●	●
47	BOLT; BRG COVER M12X77 L=95	9-09831-161-0	06	1	9002-9306	●	●
48	STUD; COVER,ELBOW,P/S M8X25 L=36	1-09300-050-0	12	1	9002-	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-029-0	01	1	9002-	●	●
50	STUD (B) M10X25 L=45	9-04311-025-0	03	1	9002-	●	●
50	STUD (A) M10X30 L=45	9-04411-030-0	04	1	9002-	●	●
51	BOLT; GEAR CASE COVER M10X30	9-01991-030-0	03	1	9002-9002	●
51	BOLT; GEAR CASE COVER M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9003-	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK WASHER	9-01991-035-0	09	1	9002-9002	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	09	1	9003-9306	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	09	1	9307-9308	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	07	1	9309-	●
51	BOLT; GEAR CASE COVER M10X40	9-01991-040-0	01	1	9002-9002	●
51	BOLT; GEAR CASE COVER M10X40 W/LK&PL WASHER	0-50151-040-0	01	1	9003-9306	●	●
51	BOLT; GEAR CASE COVER M10X40 W/LK&PL WASHER	0-50151-040-0	01	1	9307-	●
51	BOLT; GEAR CASE COVER M10X45	9-01991-045-0	01	1	9002-9002	●
51	BOLT; GEAR CASE COVER M10X45 W/LK&PL WASHER	0-50151-045-0	01	1	9003-9306	●	●
51	BOLT; GEAR CASE COVER M10X45 W/LK&PL WASHER	0-50151-045-0	01	1	9307-	●
51	BOLT; GEAR CASE COVER M10X35	0-23801-035-0	02	1	9309-	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK WASHER	0-50051-035-0	07	1	9307-9308		●
51	BOLT; GEAR CASE COVER M10X35 W/LK WASHER	0-50051-035-0	05	1	9309-		●
51	BOLT; GEAR CASE COVER M10X45 W/LK WASHER	0-50051-045-0	01	1	9307-		●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9307-		●
52	SCREW; NOISE SHIELD COVER M4X12 TAPPING	9-07077-412-0	06	1	9307-		●
53	FLANGE; NOISE SHIELD	1-19389-089-0	01	1	9307-		●
54	COVER; GEAR CASE	1-11321-086-1	01	1	9002-	●	●
55	COVER; NOISE SHIELD	1-19381-249-0	01	1	9307-		●
80	NUT; COVER M10	9-09110-410-0	04	1	9002-	●	●
82	WASHER; LK,COVER ID=10.2	9-09150-510-0	04	1	9002-	●	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	04	1	9002-9308	●	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	06	1	9309-	●	●
86	ELBOW; TACHOMETER DRIVE	1-85860-040-1	01	1	9002-	●	●
90	NUT; ELBOW M8	9-09110-408-0	06	1	9002-	●	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	06	1	9002-	●	●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	06	1	9002-	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	9002-	●	●
94	NUT; GEAR M24 FLANGE	1-09440-027-0	01	1	9002-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-441-0	01	1	9002-	●	●
204	WASHER; LK,HSG ID=14.2	9-09150-514-0	01	1	9002-9306	●	●
204	WASHER; LK,HSG ID=14.2	9-09150-514-0	02	1	9307-	●	●
205	NUT; HSG M14	9-99110-414-0	01	1	9002-	●	●
206	COVER; STARTER CHECK HOLE	9-11349-049-0	01	1	9002-	●	●
211	BOLT; HSG M8X40	9-01970-840-0	06	1	9002-9005	●
211	BOLT; HSG M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	9006-	●	●
211	BOLT; HSG M14X50 W/LK WASHER	1-09033-002-0	10	1	9002-	●	●
211	BOLT; HSG M14X55 W/LK WASHER	1-09033-003-0	02	1	9002-	●	●
213	POINTER; FLYWHEEL HSG	1-11327-025-2	01	1	9002-	●	●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9002-	●	●
218	WASHER; PL,COVER	1-11349-127-0	01	1	9002-9306	●	●
218	WASHER; PL,COVER	1-11349-127-0	01	1	9307-	●	●
219	COVER; POINTER	1-11349-131-0	01	1	9002-	●	●
221	WASHER; PL,POINTER ID=8.4 OD=18	9-09160-608-0	01	1	9002-9306	●	●
221	WASHER; PL,POINTER ID=8.4 OD=18	9-09160-608-0	02	1	9307-	●	●
222	NUT; COVER,TIMING CHECK HOLE M8	9-09110-408-0	02	1	9002-	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9002-	●	●
229	COVER; TIMING CHECK HOLE	1-11349-073-0	01	1	9002-9303	●	●
229	COVER; TIMING CHECK HOLE	1-11349-122-0	01	1	9304-	●	●
231	BOLT; COVER M8X12 W/LK WASHER	9-01900-812-0	02	1	9002-9204	●	●
231	BOLT; COVER M8X12 W/LK WASHER	0-50040-812-0	02	1	9205-	●	●
474	ADAPTER; ELBOW DRIVE	1-12539-012-1	01	1	9002-	●	●
