6-66 — HEAD LINING AND TRIM (#34847) — 103 parça

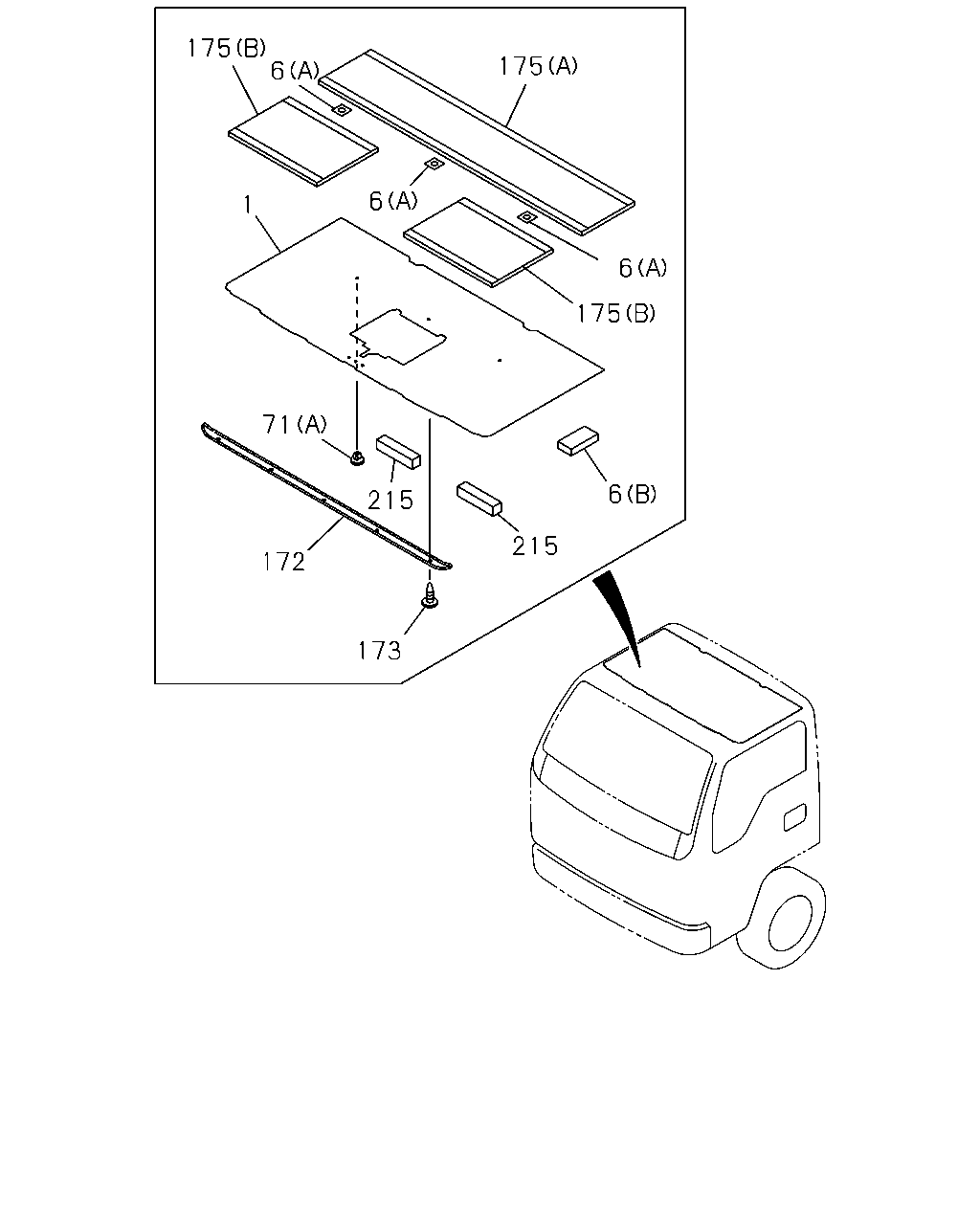

175 6 175 6 1 6 175 71 6 215 215 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-431-3	01	1	0502-	●
1	16.742 LINING; HD LIGHT GRAY	8-97867-522-6	01	1	0211-0501		●	●
1	16.742 LINING; HD INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97867-522-6	01	1	0211-0501				●	●
1	16.742 LINING; HD LIGHT GRAY	8-97867-522-7	01	1	0502-		●	●	●	●
1	16.742 LINING; HD EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97868-426-1	01	1	0211-0501				●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-429-4	01	1	0502-	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-3	01	1	0211-0501	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-4	01	1	0502-	●
1	16.742 LINING; HD EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-2	01	1	0211-0501	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-3	01	1	0502-	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A)	8-94353-014-0	03	1	0211-0501				●	●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	06	1	0211-	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.588 (B) H=10 L=55	8-97857-444-0	02	1	0211-0410				●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.588 (B) H=10 L=55	8-97410-832-0	02	1	0411-0501				●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	05	1	0211-0501		●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) D5.8X20	8-97857-353-0	05	1	0211-0501				●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	05	1	0502-		●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	0211-0610		●	●	●	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	03	1	0611-		●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	06	1	0211-0610	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	06	1	0611-	●
172	16.742 RETAINER; HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97867-611-4	01	1	0211-0501				●	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-611-4	01	1	0211-0501	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-611-4	01	1	0502-	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0211-0501				●	●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0211-0501	●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0502-0708	●
173	16.742 CLIP; RETAINER,HEAD LINING DARK GRAY	8-97406-299-0	05	1	0709-	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A)	8-97859-105-1	01	1	0211-0501				●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B)	8-97856-524-3	02	1	0211-0501				●	●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-524-3	02	1	0211-0501	●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-524-5	02	1	0502-	●
175	16.742 CUSHION; HEAD LINING (C)	8-97856-529-5	01	1	0211-	●
175	16.742 CUSHION; HEAD LINING (D)	8-97856-530-5	02	1	0211-	●
215	16.592 CUSHION; TRAY BACK PANEL EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.587 L=100	8-97866-625-0	02	1	0211-0501				●	●

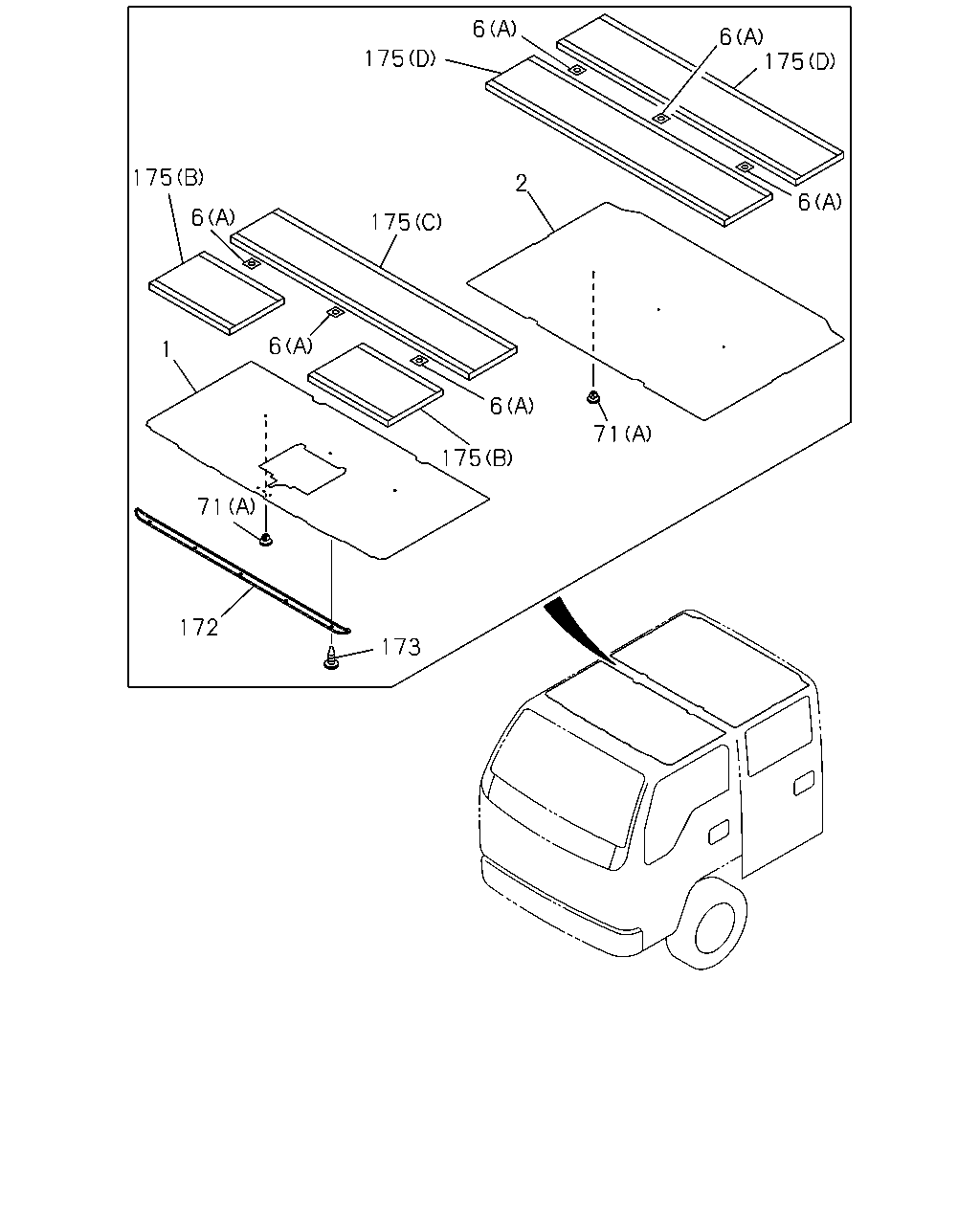

6 6 175 175 175 2 6 6 175 6 1 6 71 175 71 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-431-3	01	1	0502-	●
1	16.742 LINING; HD LIGHT GRAY	8-97867-522-6	01	1	0211-0501		●	●
1	16.742 LINING; HD INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97867-522-6	01	1	0211-0501				●	●
1	16.742 LINING; HD LIGHT GRAY	8-97867-522-7	01	1	0502-		●	●	●	●
1	16.742 LINING; HD EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97868-426-1	01	1	0211-0501				●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-429-4	01	1	0502-	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-3	01	1	0211-0501	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-4	01	1	0502-	●
1	16.742 LINING; HD EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-2	01	1	0211-0501	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-3	01	1	0502-	●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY	8-97867-610-4	01	1	0211-	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A)	8-94353-014-0	03	1	0211-0501				●	●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	06	1	0211-	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.588 (B) H=10 L=55	8-97857-444-0	02	1	0211-0410				●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.588 (B) H=10 L=55	8-97410-832-0	02	1	0411-0501				●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	05	1	0211-0501		●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) D5.8X20	8-97857-353-0	05	1	0211-0501				●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	05	1	0502-		●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	0211-0610		●	●	●	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	03	1	0611-		●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	06	1	0211-0610	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	06	1	0611-	●
172	16.742 RETAINER; HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97867-611-4	01	1	0211-0501				●	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-611-4	01	1	0211-0501	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-611-4	01	1	0502-	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0211-0501				●	●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0211-0501	●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0502-0708	●
173	16.742 CLIP; RETAINER,HEAD LINING DARK GRAY	8-97406-299-0	05	1	0709-	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A)	8-97859-105-1	01	1	0211-0501				●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B)	8-97856-524-3	02	1	0211-0501				●	●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-524-3	02	1	0211-0501	●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-524-5	02	1	0502-	●
175	16.742 CUSHION; HEAD LINING (C)	8-97856-529-5	01	1	0211-	●
175	16.742 CUSHION; HEAD LINING (D)	8-97856-530-5	02	1	0211-	●

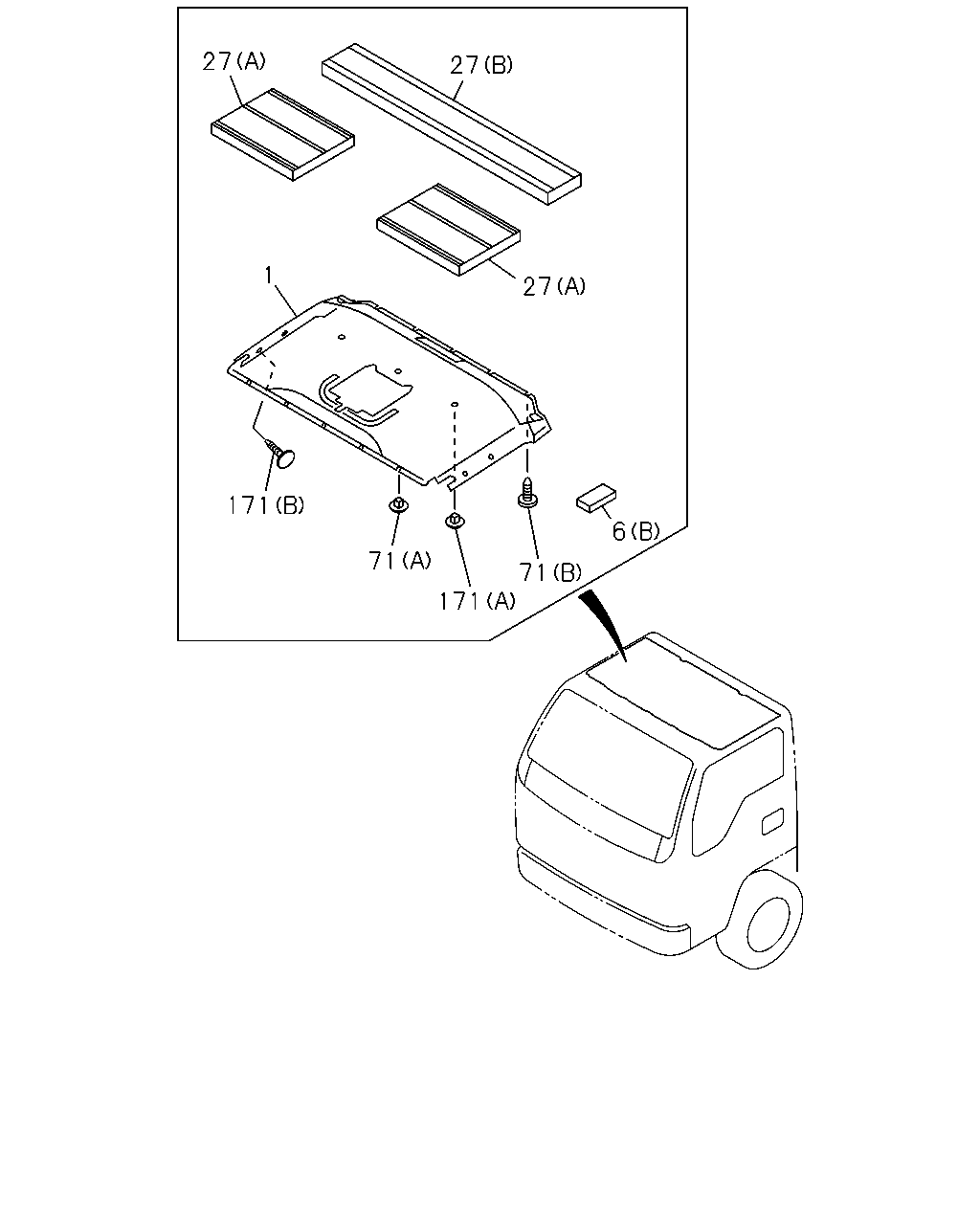

27 27 1 27 171 6 71 71 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-431-3	01	1	0502-	●
1	16.742 LINING; HD LIGHT GRAY	8-97867-522-6	01	1	0211-0501		●	●
1	16.742 LINING; HD INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97867-522-6	01	1	0211-0501				●	●
1	16.742 LINING; HD LIGHT GRAY	8-97867-522-7	01	1	0502-		●	●	●	●
1	16.742 LINING; HD EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> LIGHT GRAY	8-97868-426-1	01	1	0211-0501				●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-429-4	01	1	0502-	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-3	01	1	0211-0501	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-4	01	1	0502-	●
1	16.742 LINING; HD EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-2	01	1	0211-0501	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-3	01	1	0502-	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A)	8-94353-014-0	03	1	0211-0501				●	●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	06	1	0211-	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.588 (B) H=10 L=55	8-97857-444-0	02	1	0211-0410				●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.588 (B) H=10 L=55	8-97410-832-0	02	1	0411-0501				●	●
27	16.165 INSULATION; ROOF (A)	8-97856-989-5	02	1	0211-0501		●	●
27	16.165 INSULATION; ROOF INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A)	8-97856-989-5	02	1	0211-0501				●	●
27	16.165 INSULATION; ROOF (A)	8-97856-989-6	02	1	0502-		●	●	●	●
27	16.165 INSULATION; ROOF (B)	8-97859-504-1	01	1	0211-0501		●	●
27	16.165 INSULATION; ROOF INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B)	8-97859-504-1	01	1	0211-0501				●	●
27	16.165 INSULATION; ROOF (B)	8-97859-504-2	01	1	0502-		●	●	●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	05	1	0211-0501		●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) D5.8X20	8-97857-353-0	05	1	0211-0501				●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	05	1	0502-		●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	0211-0610		●	●	●	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	03	1	0611-		●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	06	1	0211-0610	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	06	1	0611-	●
171	16.742 CLIP; HEAD LINING (A) LIGHT GRAY	8-97859-865-0	02	1	0211-0501		●	●
171	16.742 CLIP; HEAD LINING INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) LIGHT GRAY	8-97859-865-0	02	1	0211-0501				●	●
171	16.742 CLIP; HEAD LINING (A) LIGHT GRAY	8-97859-865-0	02	1	0502-		●	●	●	●
171	16.742 CLIP; HEAD LINING (B) LIGHT GRAY	8-97859-866-0	07	1	0211-0501		●	●
171	16.742 CLIP; HEAD LINING INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) LIGHT GRAY	8-97859-866-0	07	1	0211-0501				●	●
171	16.742 CLIP; HEAD LINING (B) LIGHT GRAY	8-97859-866-0	07	1	0502-		●	●	●	●
