Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#34846) — 23 parça
Tümü
A - NPC5WF
B - NPC5SC
C - NPC5SF
D - NPC5SK
E - NPC5SN
◀

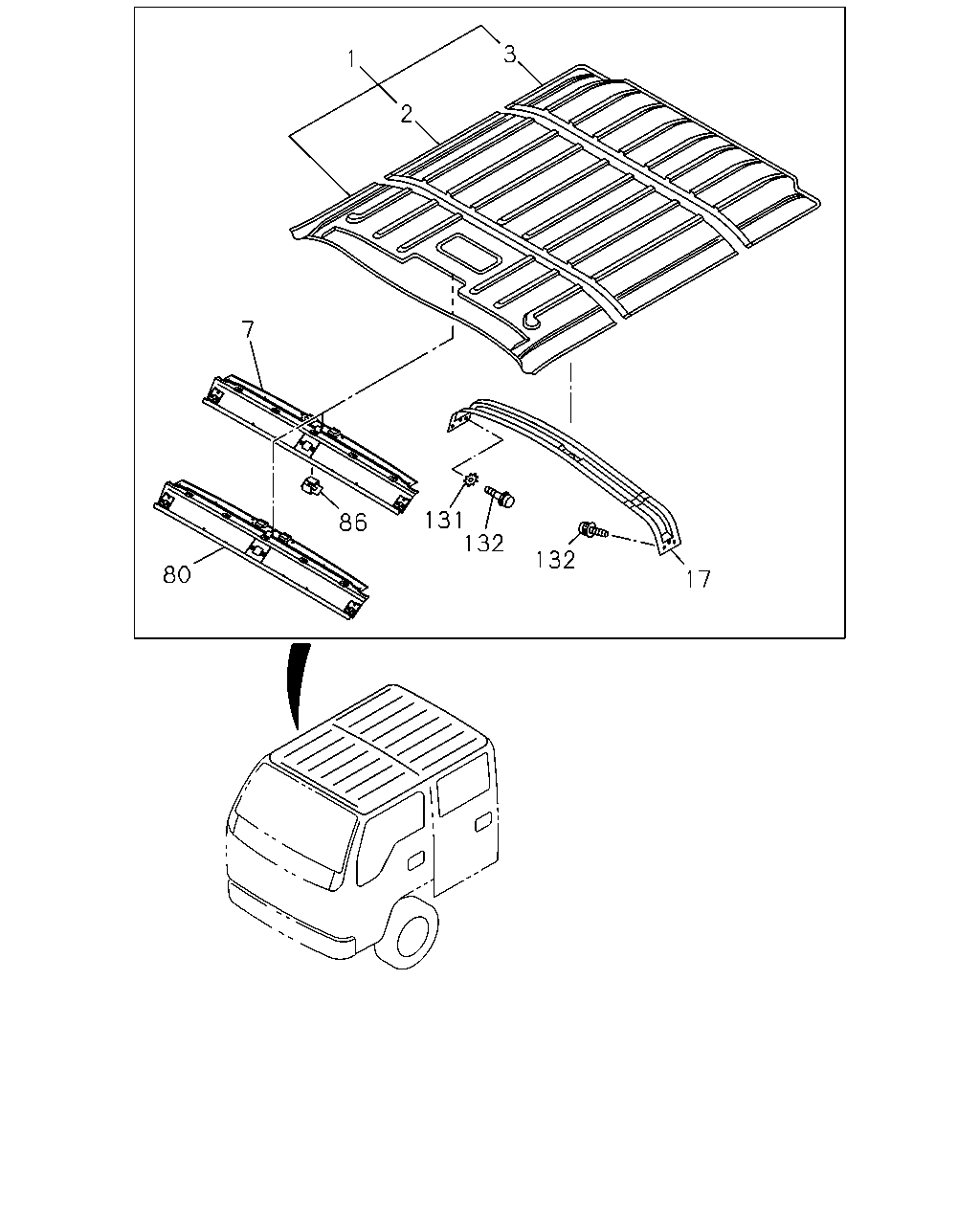

[660A] DBL CAB (15 parça)

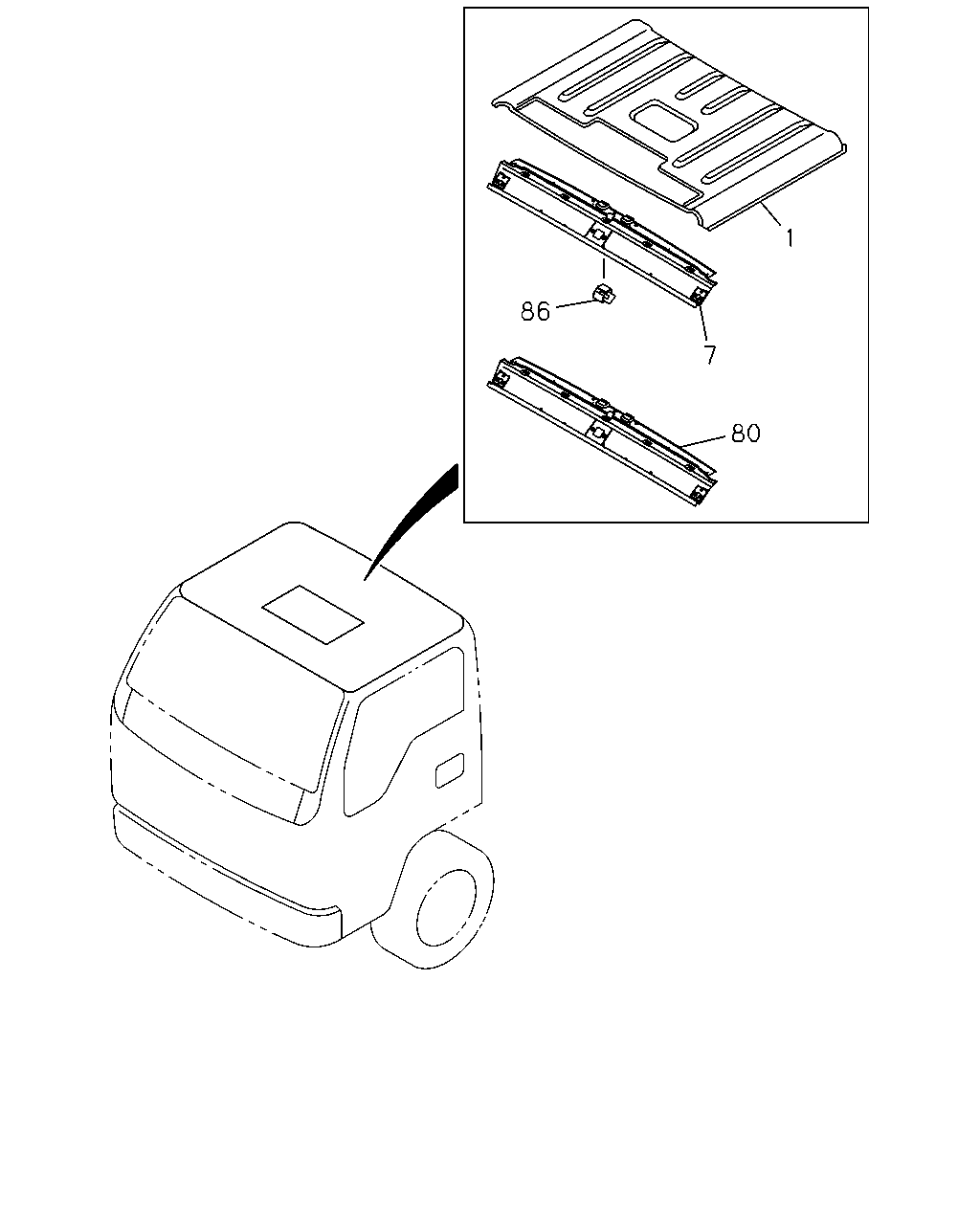

[660A] SGL CAB (8 parça)
▶
3
1
2
7
131
132
86
132
80
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97899-001-4
01
1
0502-
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-999-4
01
1
0502-
●
1
16.585 PANEL; ROOF
8-97898-995-1
01
1
0211-
●
●
●
●
1
16.585 PANEL; ROOF
8-97898-998-2
01
1
0211-0501
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-998-4
01
1
0502-
●
2
16.585 PANEL; ROOF,CENTER
8-97851-256-3
01
1
0211-
●
3
16.585 PANEL; ROOF,RR
8-97851-257-5
01
1
0211-
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97892-143-1
01
1
0211-0405
●
●
●
●
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97899-081-0
01
1
0211-
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0406-
●
●
●
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
0211-0405
●
●
●
●
●
131
16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT
9-09152-206-0
01
1
0211-0603
●
131
16.585 WASHER; LOCK,ROOF REINF
ID=6.4 TOOTH LK INT-EXT
0-91542-206-0
01
1
0604-
●
132
16.585 FASTENER; HEADER SHELF
16.742
8-97892-737-0
04
1
0211-0612
●
132
16.585 FASTENER; HEADER SHELF
16.742 M6X16 W/TORQUES
8-98064-273-0
04
1
0701-
●
1
86
7
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97899-001-4
01
1
0502-
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-999-4
01
1
0502-
●
1
16.585 PANEL; ROOF
8-97898-995-1
01
1
0211-
●
●
●
●
1
16.585 PANEL; ROOF
8-97898-998-2
01
1
0211-0501
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-998-4
01
1
0502-
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97892-143-1
01
1
0211-0405
●
●
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0406-
●
●
●
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
0211-0405
●
●
●
●
●
