Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-55 - REAR DOOR TRIM
▶

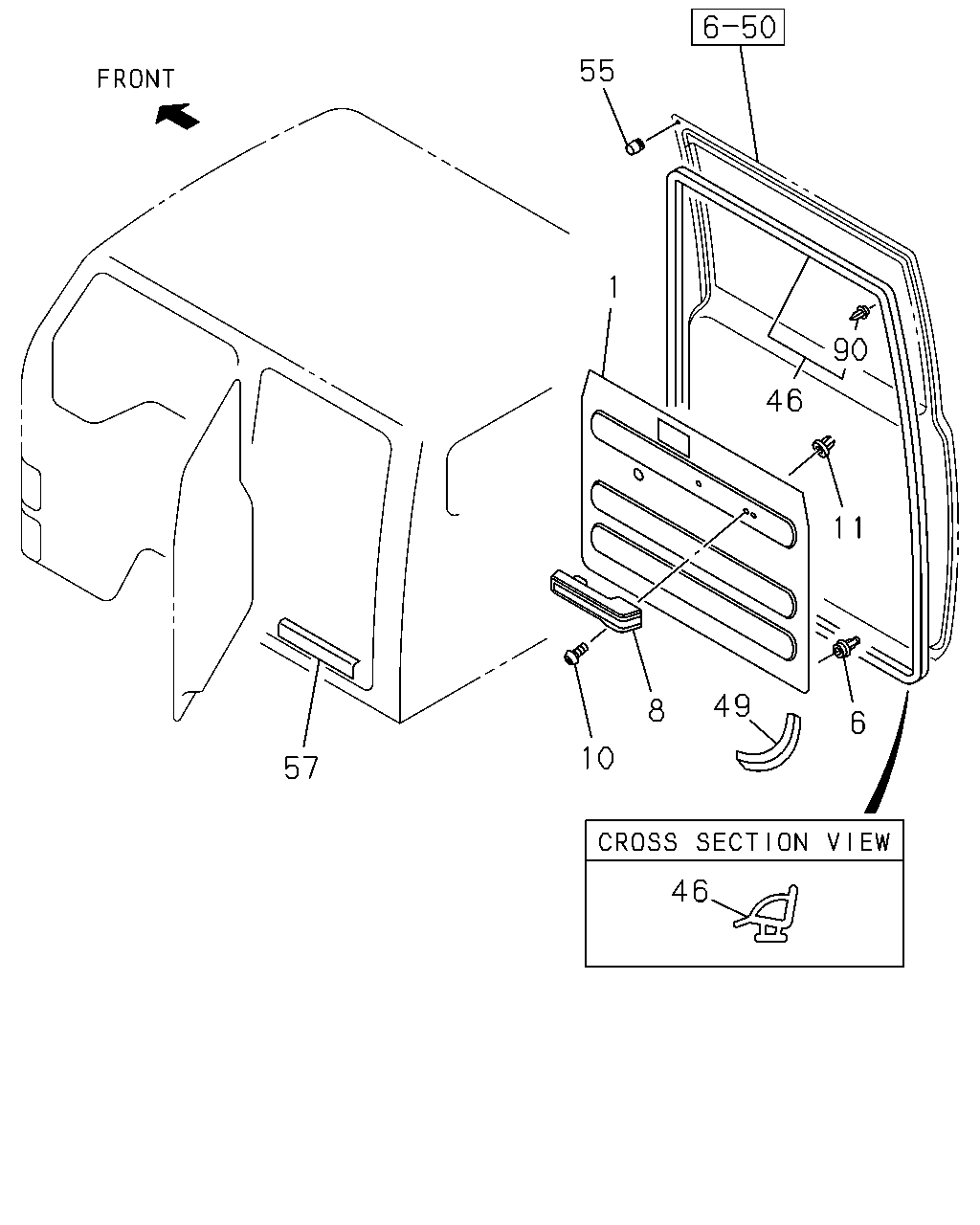

6-55 — REAR DOOR TRIM
(#34845) — 22 parça
55
1
90
46
11
49
8
6
10
57
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.165 PAD; TRIM,RR DOOR
DARK GRAY
8-97867-202-5
01
1
0211-0501
1
16.165 PAD; TRIM,RR DOOR
GRAY
8-97582-315-6
01
1
0502-
1
16.165 PAD; TRIM,RR DOOR
DARK GRAY
8-97867-203-5
01
1
0211-0501
1
16.165 PAD; TRIM,RR DOOR
GRAY
8-97582-316-6
01
1
0502-
6
16.165 CLIP; DOOR PAD
16.166
8-94226-492-0
22
1
0211-
8
16.155 REST; ARM,RR DOOR
DARK GRAY
8-97867-206-0
01
1
0211-0501
8
16.155 REST; ARM,RR DOOR
GRAY
8-97582-327-1
01
1
0502-0708
8
16.155 REST; ARM,RR DOOR
GRAY
8-97405-328-1
01
1
0709-
8
16.155 REST; ARM,RR DOOR
DARK GRAY
8-97867-207-0
01
1
0211-0501
8
16.155 REST; ARM,RR DOOR
GRAY
8-97582-328-1
01
1
0502-0708
8
16.155 REST; ARM,RR DOOR
GRAY
8-97405-329-1
01
1
0709-
10
16.155 SCREW; ARM REST
02.483 M6X30 TAPPING
9-07066-630-0
04
1
0211-0603
10
16.155 SCREW; ARM REST
M6X30 TAPPING
0-71040-630-0
04
1
0604-0612
10
16.155 SCREW; ARM REST
M6X30 TAPPING
8-98059-872-0
04
1
0701-
11
16.155 NUT; ARM REST
14.686 SCREW GROMMET
8-06698-938-1
04
1
0211-
46
16.225 SEAL; DOOR,UPR,CAB SIDE
8-97852-364-9
02
1
0211-0604
46
16.225 SEAL; DOOR,UPR,CAB SIDE
8-98039-384-1
02
1
0605-
49
16.165 SEAL; DOOR
8-97583-053-0
02
1
0308-
55
16.165 RUBBER; STOPPER,DOOR INNER
16.225
8-97852-022-1
04
1
0211-
57
16.445 PROTECTOR; STEP RR
8-97852-871-0
02
1
0211-0511
57
16.445 PROTECTOR; STEP RR
8-98027-817-0
02
1
0512-
90
16.165 CLIP; SEAL
8-98070-193-0
66
1
0612-
