6-47 — MUD GUARD AND INSULATOR (#34841) — 128 parça

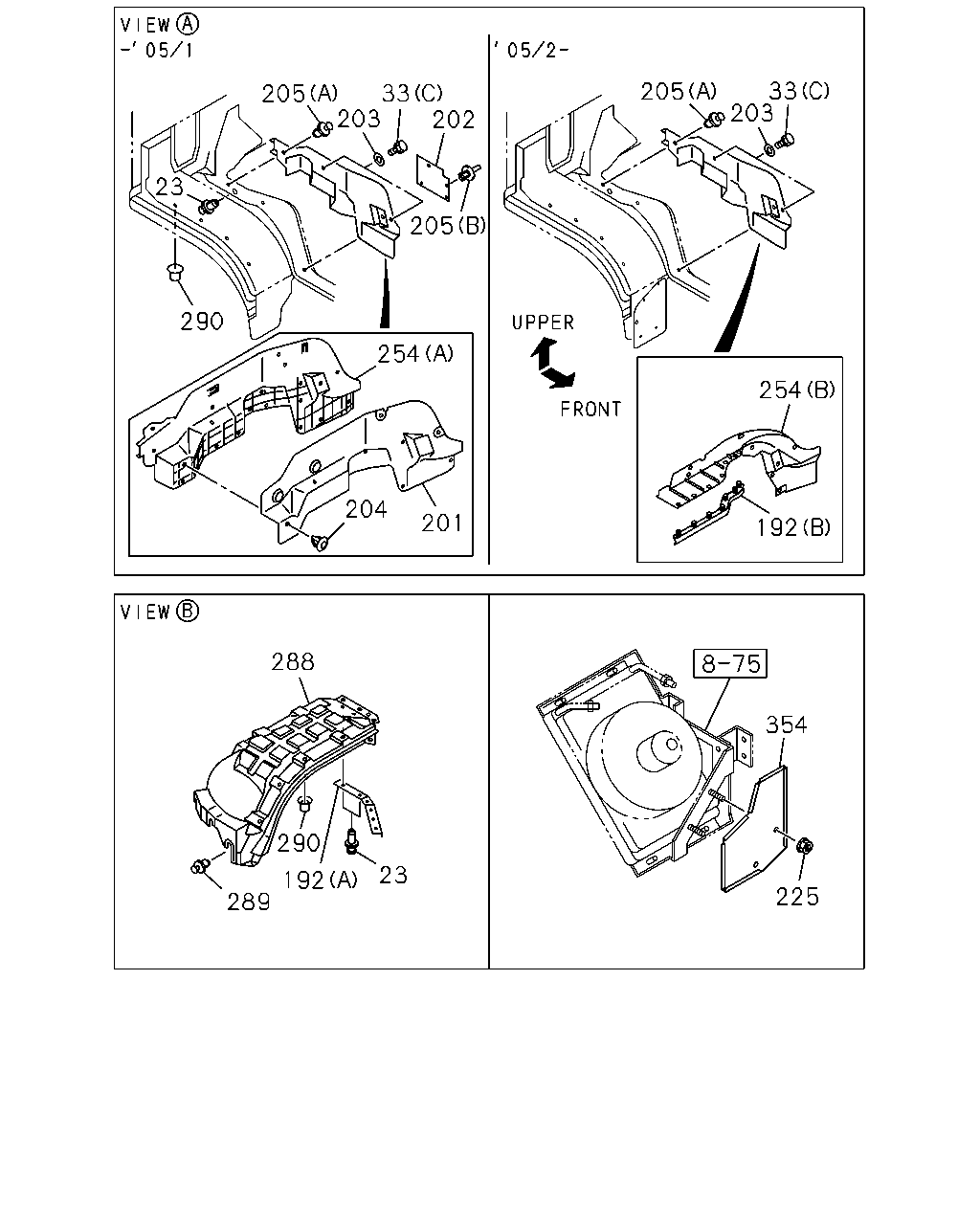

33 203 205 33 203 202 205 23 205 290 254 254 204 201 192 288 354 290 23 192 225 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0211-0501	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	10	1	0502-	●	●	●	●	●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 00.738 (D) M6X16 FLANGE	0-28080-616-0	10	1	0502-0512		●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	10	1	0502-0512				●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 09.242 (D) M6X16 FLANGE	0-28050-616-0	10	1	0601-		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	10	1	0601-				●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512	●		●		●
33	08.155 BOLT; MUD COVER EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●		●		●
33	08.155 BOLT; MUD COVER EXC. VEHICLE CATEGORY NQR<7NQ> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512	●	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0512	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-97857-297-3	02	1	0211-0501	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-97896-994-1	02	1	0502-1106	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98192-033-0	02	1	1107-	●	●	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-97581-413-1	01	1	0502-	●	●	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-97581-414-1	01	1	0502-	●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY)	8-97853-631-3	01	1	0211-0501	●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY)	8-97892-184-1	01	1	0211-0501	●	●	●	●	●
202	08.155 RUBBER; MUD,VALANCE PANEL	8-97892-185-0	01	1	0211-0501	●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0211-0604	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	0211-0308	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-0501	●	●	●	●	●
205	08.155 FASTENER; MUD COVER (B)	5-09989-002-0	04	1	0211-0506	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0211-	●	●	●	●	●
225	08.155 NUT; MUD GUARD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●	●
225	08.155 NUT; MUD GUARD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-359-3	01	1	0211-0501	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE (B)	8-97899-214-4	01	1	0502-	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) (A)	8-97892-183-0	01	1	0211-0501	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE (B)	8-97899-213-4	01	1	0502-	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	0211-0212	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	0211-0212	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	0211-0212	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0211-	●	●	●	●	●
354	08.155 PLATE; MUD GUARD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97377-737-0	01	1	0502-	●	●	●	●	●

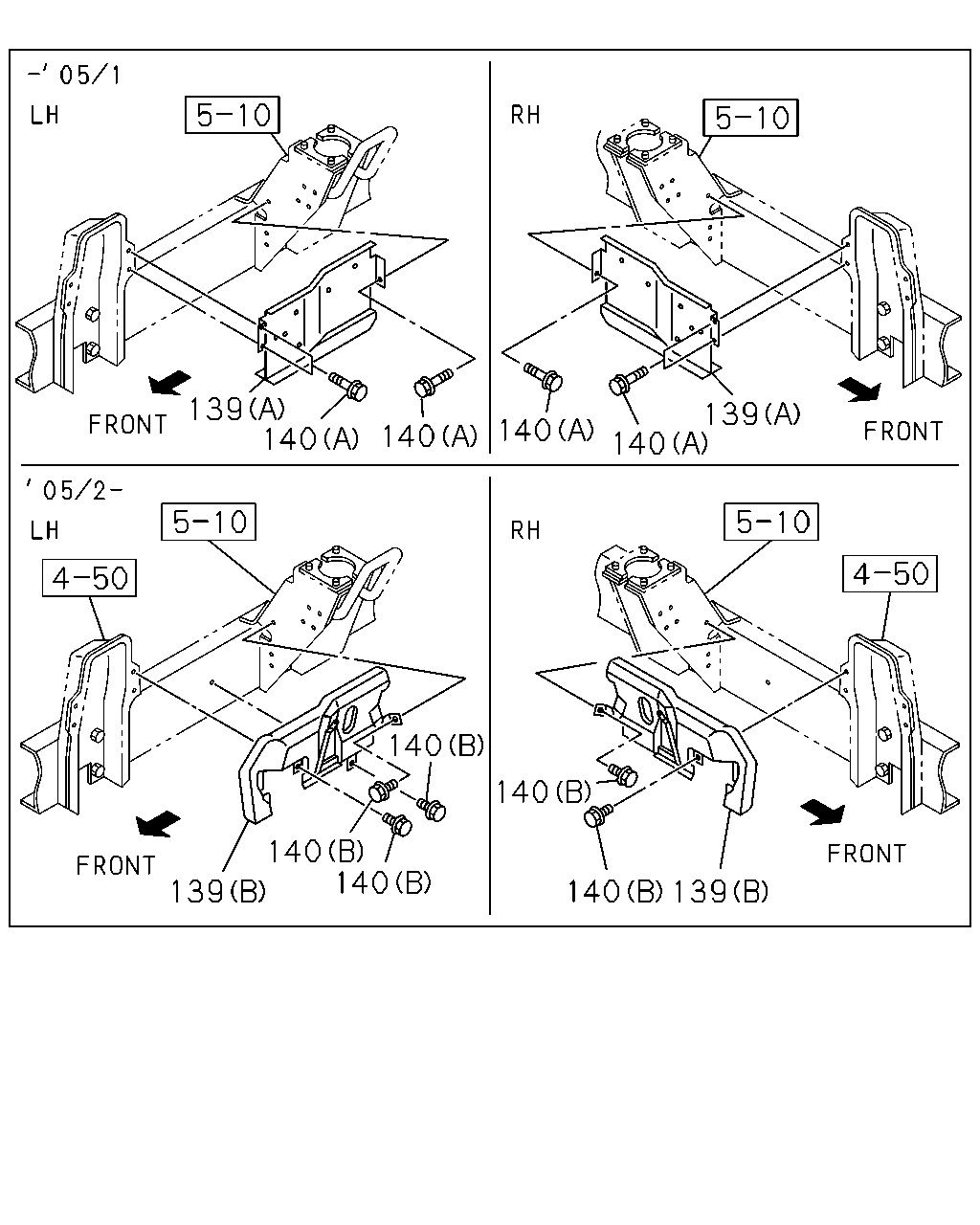

139 140 140 139 140 140 140 140 140 140 139 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
139	08.153 PANEL; SIDE (A)	8-97171-996-0	01	1	0211-0501	●	●	●	●	●
139	08.153 PANEL; SIDE (B)	8-97352-124-1	01	1	0502-	●	●	●	●	●
139	08.153 PANEL; SIDE (A)	8-97188-736-0	01	1	0211-0501	●	●	●	●	●
139	08.153 PANEL; SIDE (B)	8-97352-125-2	01	1	0502-	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 04.595 (A) M8X20 FLANGE	0-28480-820-0	06	1	0211-0501	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 01.219 (B) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0502-0611	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0612-	●	●	●	●	●

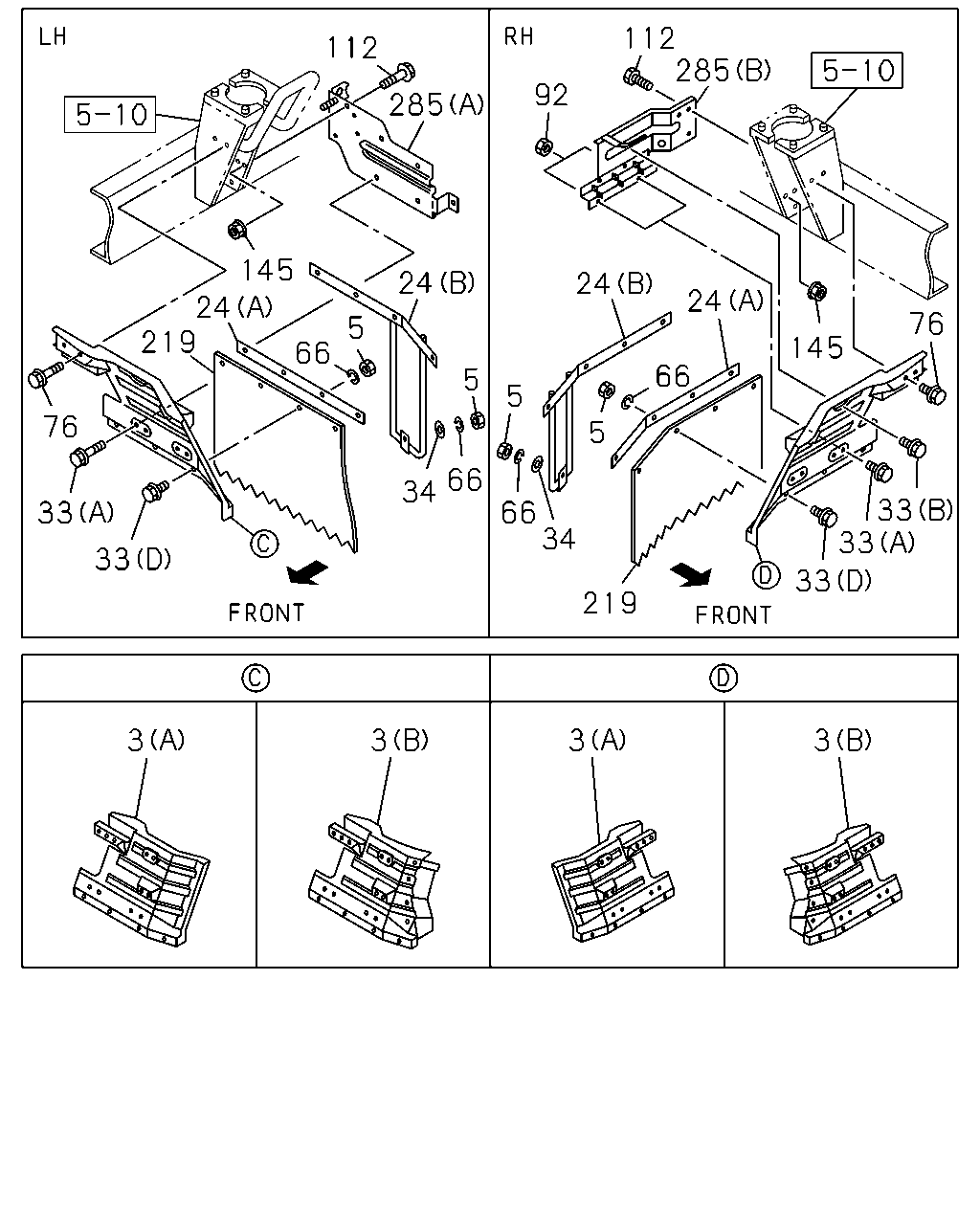

112 285 112 92 285 145 24 24 24 24 219 76 5 145 66 66 5 5 76 5 66 34 33 33 66 34 33 33 33 219 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0211-0501	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0502-	●		●	●
3	08.153 GUARD; MUD,RR FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (A)	8-97048-728-3	01	1	0502-		●
3	08.153 GUARD; MUD,RR EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97048-728-3	01	1	0502-		●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	0211-					●
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0211-0312	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-0501	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0502-	●		●	●
3	08.153 GUARD; MUD,RR FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (A)	8-97366-988-1	01	1	0502-		●
3	08.153 GUARD; MUD,RR EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97366-988-1	01	1	0502-		●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	0211-0312					●
3	08.153 GUARD; MUD,RR (B)	8-97366-989-1	01	1	0401-					●
5	08.155 NUT; FLAP RUBBER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 08.915 M6	9-09111-406-0	10	1	0502-0512		●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	10	1	0502-0512				●
5	08.155 NUT; FLAP RUBBER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) M6	0-91111-506-0	10	1	0601-		●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	10	1	0601-				●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0211-0501	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0502-0512	●		●		●
5	08.155 NUT; FLAP RUBBER EXC. VEHICLE CATEGORY NQR<7NQ> 08.915 M6	9-09111-406-0	08	1	0502-0512		●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●		●		●
5	08.155 NUT; FLAP RUBBER EXC. VEHICLE CATEGORY NQR<7NQ> M6	0-91111-506-0	08	1	0601-		●
24	08.155 PLATE; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B)	8-97183-159-0	01	1	0502-		●
24	08.155 PLATE; MUD COVER (B)	8-97183-159-0	01	1	0502-				●
24	08.155 PLATE; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B)	8-97212-726-0	01	1	0502-		●
24	08.155 PLATE; MUD COVER (B)	8-97212-726-0	01	1	0502-				●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0211-0501	●	●	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0502-	●		●		●
24	08.155 PLATE; MUD COVER EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97095-186-0	02	1	0502-		●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 00.738 (D) M6X16 FLANGE	0-28080-616-0	10	1	0502-0512		●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	10	1	0502-0512				●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 09.242 (D) M6X16 FLANGE	0-28050-616-0	10	1	0601-		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	10	1	0601-				●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512	●		●		●
33	08.155 BOLT; MUD COVER EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●		●		●
33	08.155 BOLT; MUD COVER EXC. VEHICLE CATEGORY NQR<7NQ> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512	●	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0512	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●	●
34	08.155 WASHER; PL,MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	0502-0605		●
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	0502-0605				●
34	08.155 WASHER; PL,MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	0606-		●
34	08.155 WASHER; PL,MUD COVER 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	0606-				●
66	08.155 WASHER; LK FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 00.206 ID=6.1	9-09150-506-0	10	1	0502-0603		●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	10	1	0502-0603				●
66	08.155 WASHER; LK FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ID=6.1	0-91510-506-0	10	1	0604-		●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	10	1	0604-				●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0211-0501	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0502-0603	●		●		●
66	08.155 WASHER; LK EXC. VEHICLE CATEGORY NQR<7NQ> 00.206 ID=6.1	9-09150-506-0	08	1	0502-0603		●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●		●		●
66	08.155 WASHER; LK EXC. VEHICLE CATEGORY NQR<7NQ> ID=6.1	0-91510-506-0	08	1	0604-		●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0211-0512	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●	●	●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0512	●	●	●	●	●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0602	●	●	●	●	●
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●	●
219	08.155 FLAP; MUD GUARD FRT&RR 225/70R19.5 19.5X6.00-127(CRR)	8-97218-085-0	01	1	0502-		●
219	08.155 FLAP; MUD GUARD	8-97218-085-0	01	1	0502-				●
219	08.155 FLAP; MUD GUARD FRT&RR 225/70R19.5 19.5X6.00-127(CRR)	8-97218-086-0	01	1	0502-		●
219	08.155 FLAP; MUD GUARD	8-97218-086-0	01	1	0502-				●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0211-0501	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0502-	●		●		●
219	08.155 FLAP; MUD GUARD EXC. VEHICLE CATEGORY NQR<7NQ>	8-97218-080-0	02	1	0502-		●
285	08.155 BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0211-	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0211-	●	●	●	●	●

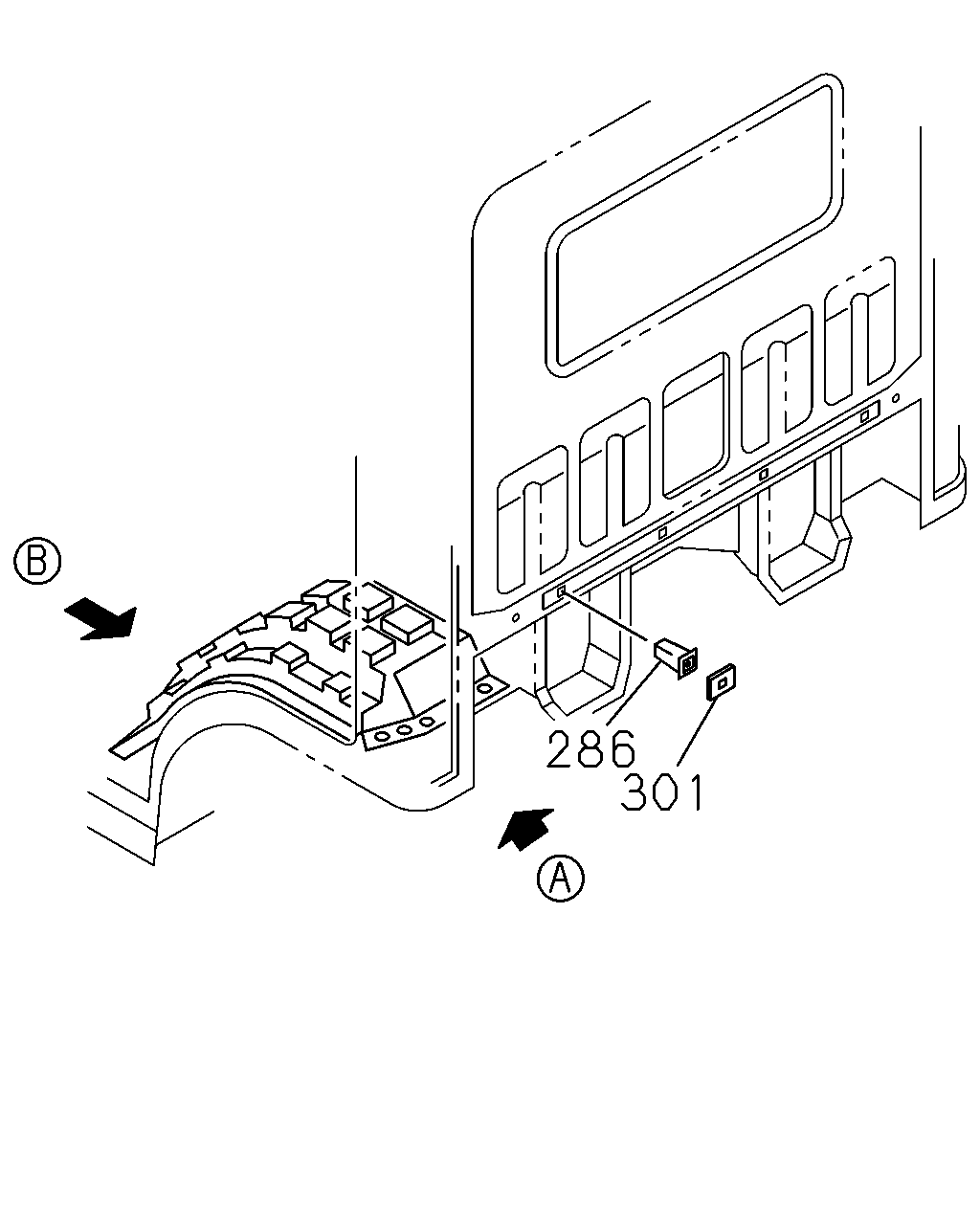

286 301

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0211-	●	●	●	●
	301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0211-	●	●	●	●
