Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

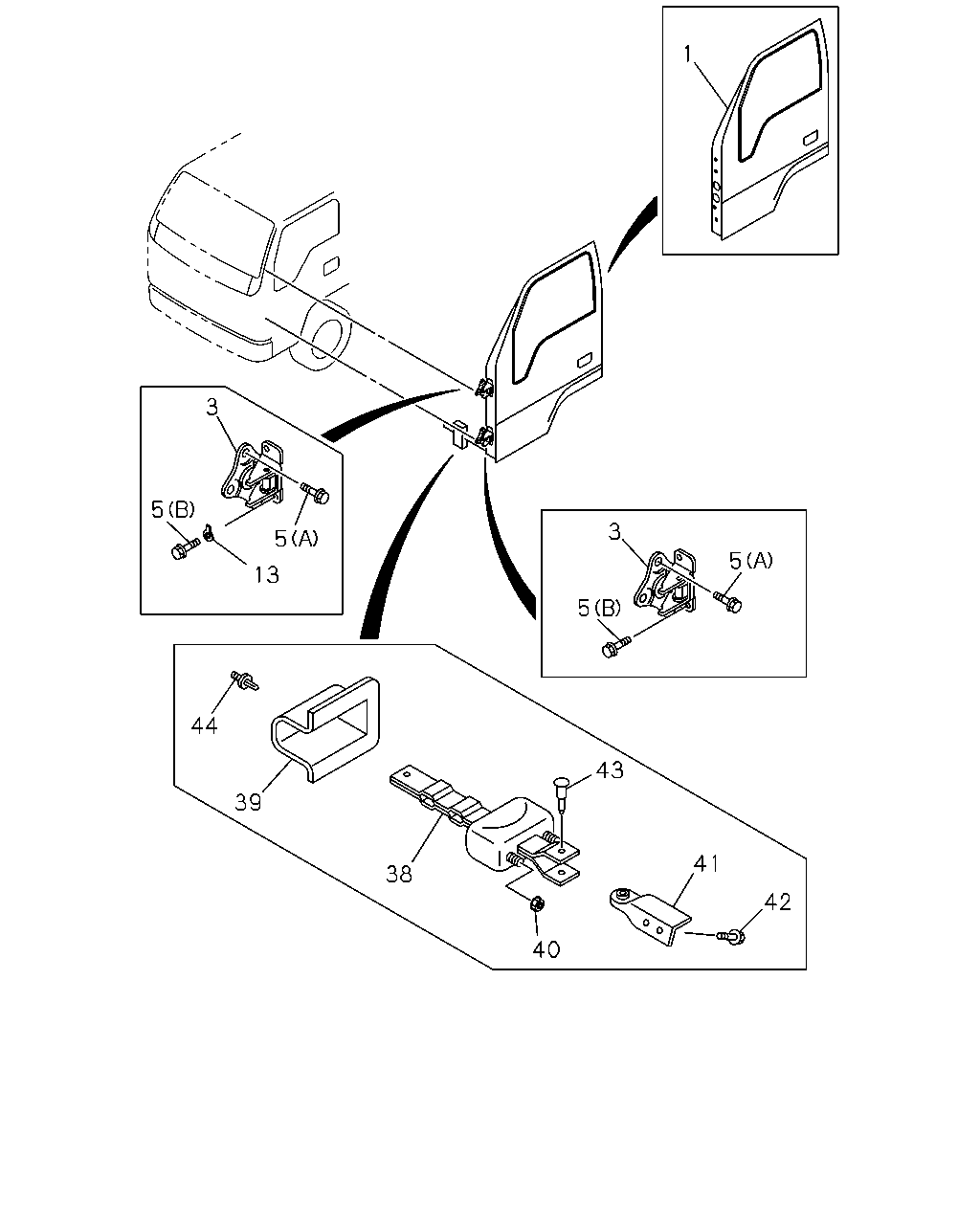

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#34836) — 29 parça
Tümü
A - NPC5SC
B - NPC5SF
C - NPC5SK
D - NPC5SN
E - NPC5WF
1
3
5
3
5
5
13
5
44
43
39
41
38
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
16.150 DOOR ASM; FRT,WO/TRIM
AIR BAG DRIVER<AJ3>
8-97581-433-1
01
1
0502-
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
AIR BAG DRIVER<AJ3>
8-97581-434-2
01
1
0502-
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97863-849-1
01
1
0211-0302
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-430-0
01
1
0303-0303
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97863-849-1
01
1
0304-0404
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-430-1
01
1
0405-0501
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. AIR BAG DRIVER<AJ3>
8-97581-430-1
01
1
0502-
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97863-850-1
01
1
0211-0302
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-431-0
01
1
0303-0303
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97863-850-1
01
1
0304-0404
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-431-1
01
1
0405-0501
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. AIR BAG DRIVER<AJ3>
8-97581-431-2
01
1
0502-
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
8-97852-007-5
04
1
0211-
●
●
●
●
●
5
16.320 BOLT; HINGE
(B) M8X22 FLANGE
8-94279-098-1
08
1
0211-
●
●
●
●
5
16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
0211-
●
●
●
●
●
5
16.320 BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER
8-94279-217-0
08
1
0211-
●
13
16.320 WASHER; HINGE
ID=8.1 W/SEAL
8-97890-584-1
04
1
0211-
●
●
●
●
38
16.320 CHECKER ASM; DOOR
8-97867-841-1
02
1
0211-0301
●
●
●
●
●
38
16.320 CHECKER ASM; DOOR
8-97581-681-2
02
1
0302-
●
●
●
●
●
39
16.320 COVER; CHECKER
8-97852-365-5
02
1
0211-
●
●
●
●
●
40
16.320 NUT; CHECKER
07.633 M8 FLANGE
0-91150-108-0
04
1
0211-0602
●
●
●
●
●
40
16.320 NUT; CHECKER
01.062 M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
●
●
●
41
16.320 BRACKET; CHECKER
8-97852-402-1
01
1
0211-
●
●
●
●
●
41
16.320 BRACKET; CHECKER
8-97852-403-1
01
1
0211-
●
●
●
●
●
42
16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0211-0808
●
●
●
●
●
42
16.320 BOLT; BRKT
06.514 M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0809-1201
●
●
●
●
●
42
16.320 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1202-
●
●
●
●
●
43
16.320 PIN
8-97852-057-1
02
1
0211-
●
●
●
●
●
44
16.320 FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
0211-
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
