◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#34835) — 425 parça

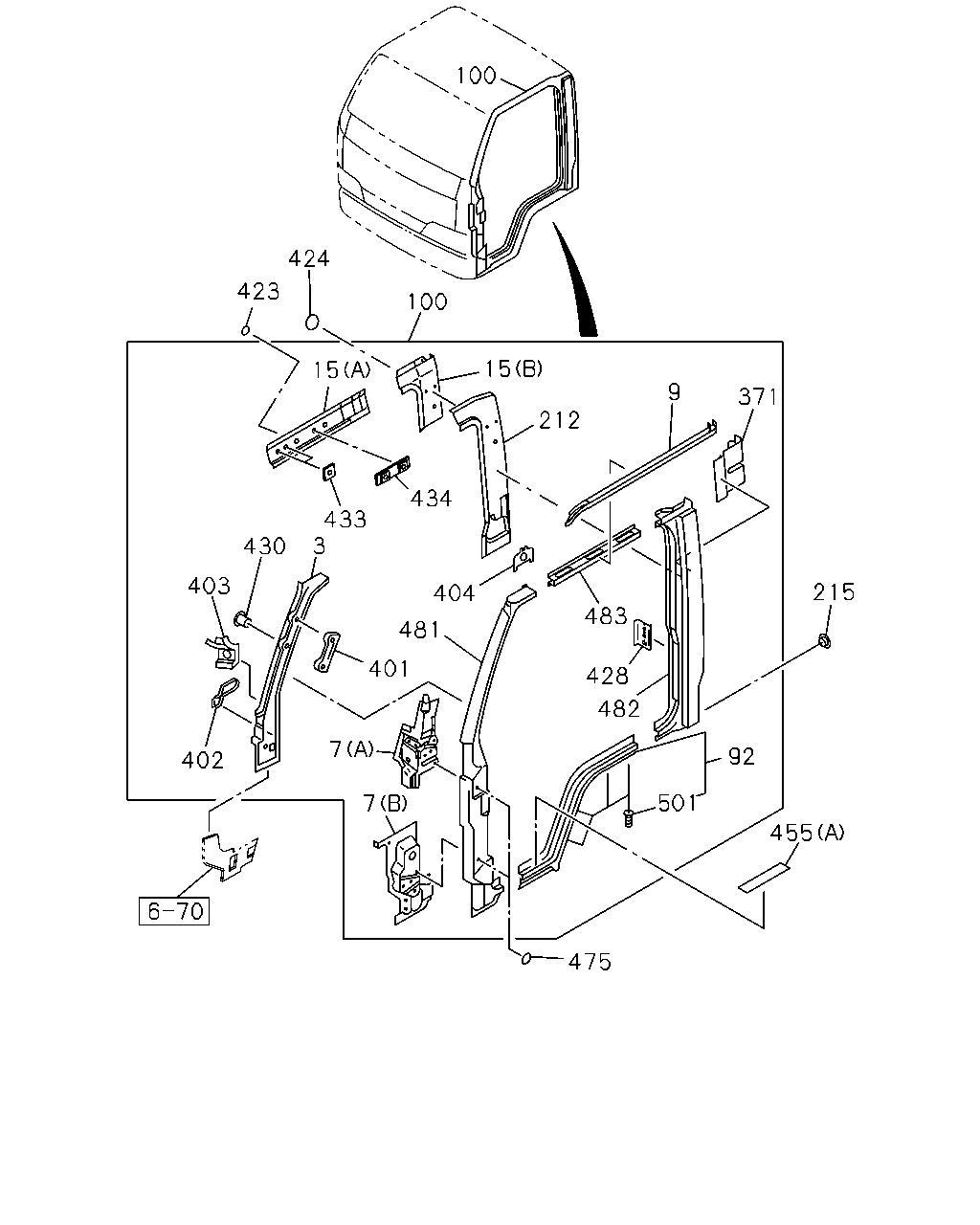

çizim 33597
100 424 423 100 15 15 9 371 212 434 433 3 430 403 215 404 483 481 401 428 482 7 92 402 501 7 455 475
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 0211- ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-625-0 01 1 1107- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-626-0 01 1 1107- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211- ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211- ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0211- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-456-4 01 1 0211- ● ● ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0211- ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211- ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502- ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0211- ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0211- ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0805 ● ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211- ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-97851-502-0 01 1 0211- ●
455 08.228 PROTECTOR; STEP
(B) 		8-97892-736-4 01 1 0211-0212 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501 ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0211- ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0211- ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0211- ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0211- ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●

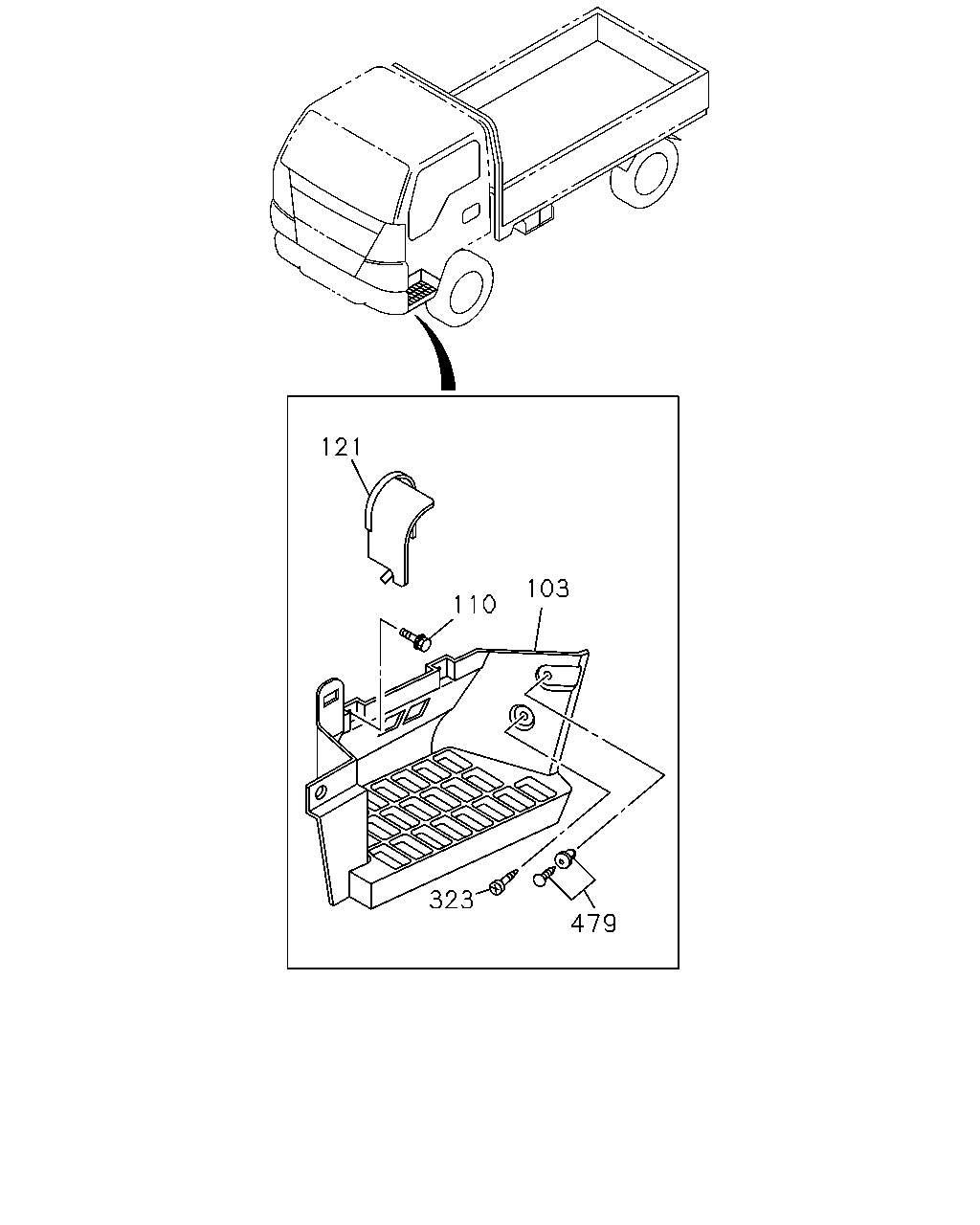

çizim 33661
121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502- ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0502- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0502- ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211- ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211- ● ● ● ● ●

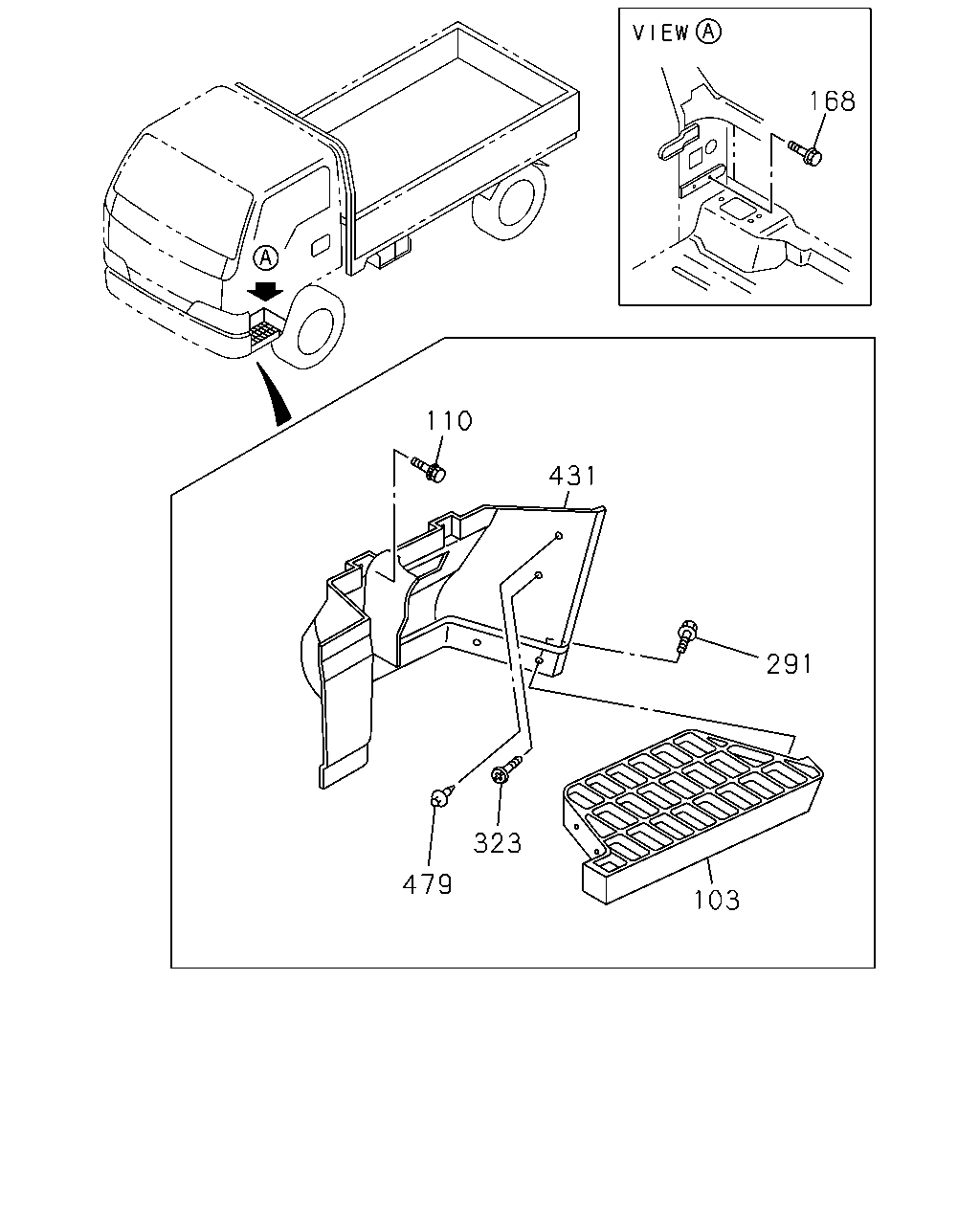

çizim 33694
168 110 431 291 323 479 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502- ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211- ● ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0211-0501 ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211- ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0211-0501 ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0211-0501 ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211- ● ● ● ● ●

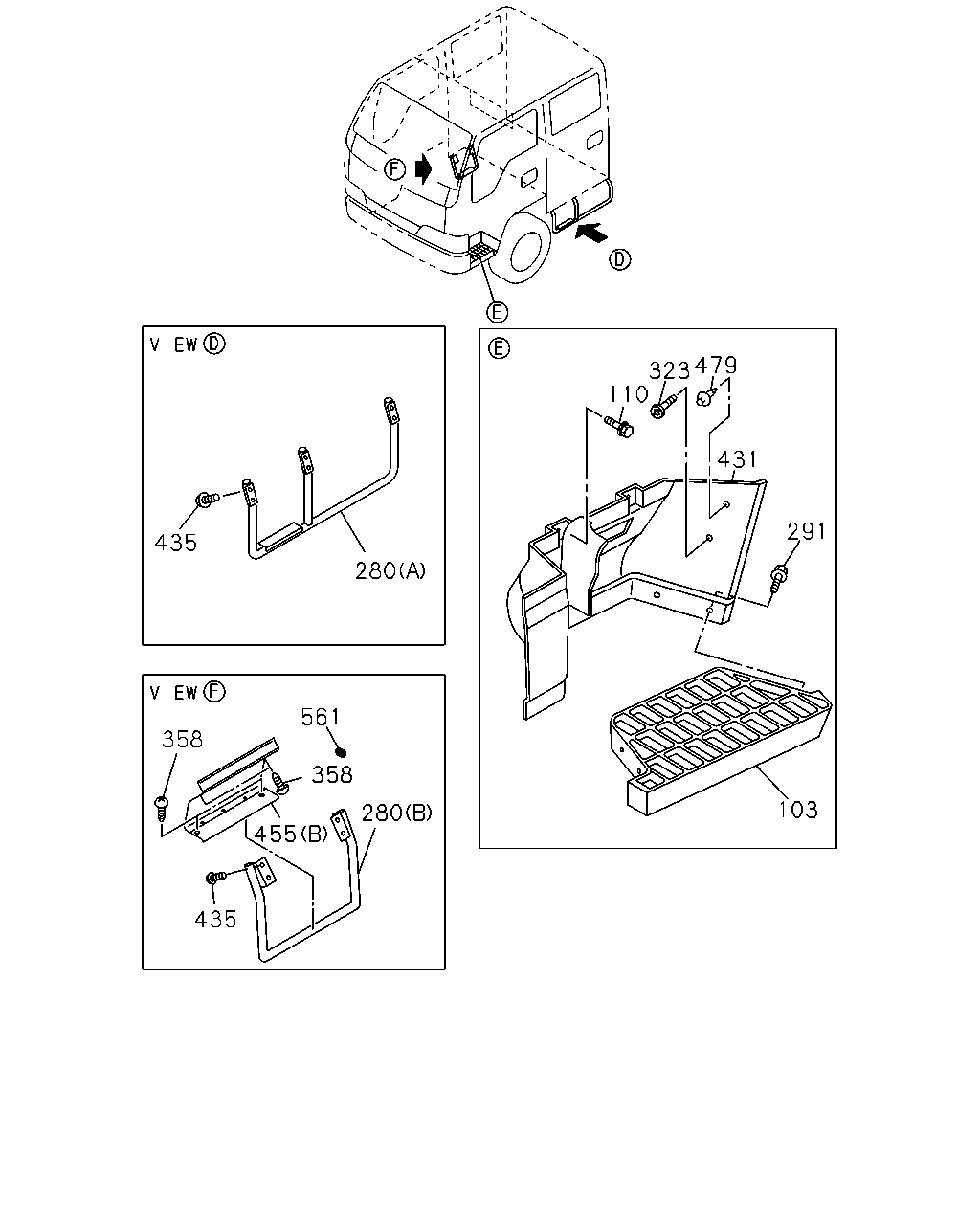

çizim 33786
479 323 110 431 291 435 280 561 358 358 103 280 455 435
BalonParca AdiParca NoAdetTipApplied Date A B C D E
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502- ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0211-0212 ●
280 08.225 STEP ASM; RR
(B) 		8-97892-735-2 01 1 0211-0212 ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0211-0501 ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211- ● ● ● ● ●
358 08.228 SCREW; PROTECTOR
01.269 M8X16.5 		1-09104-027-1 04 1 0211-0212 ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0211-0501 ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0211-0501 ● ● ● ● ●
435 08.225 BOLT; RR STEP
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 10 1 0211-0212 ●
455 08.228 PROTECTOR; STEP
(B) 		8-97892-736-4 01 1 0211-0212 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211- ● ● ● ● ●
561 08.154 SEAL; HOLE,STEP
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0212 ●

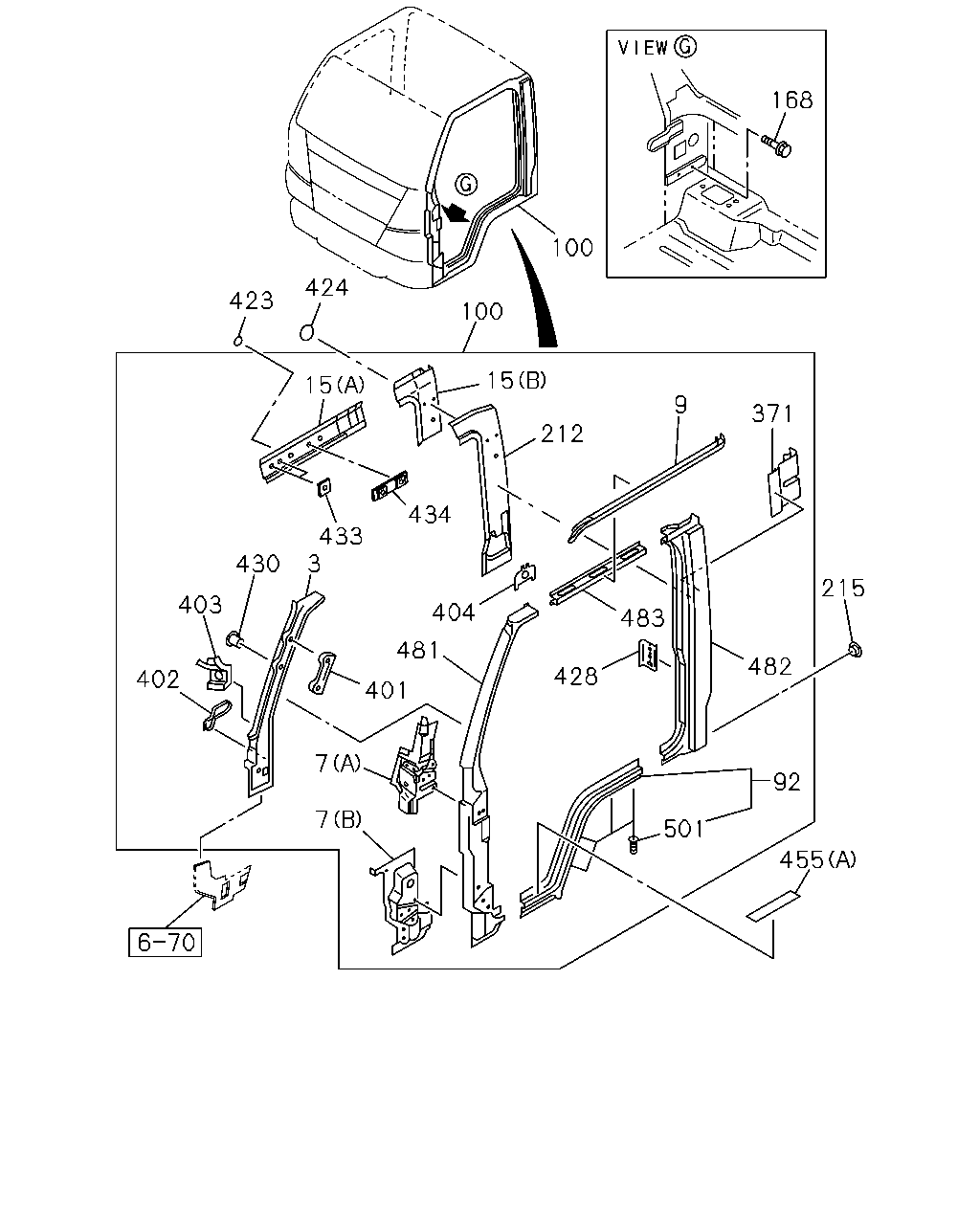

çizim 34186
168 100 424 423 100 15 15 9 371 212 434 433 3 430 215 403 404 483 481 482 428 402 401 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 0211- ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-625-0 01 1 1107- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-626-0 01 1 1107- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211- ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211- ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0211- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-456-4 01 1 0211- ● ● ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0211- ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211- ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502- ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0211- ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0211- ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0805 ● ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211- ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-97851-502-0 01 1 0211- ●
455 08.228 PROTECTOR; STEP
(B) 		8-97892-736-4 01 1 0211-0212 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0211- ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0211- ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0211- ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0211- ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●

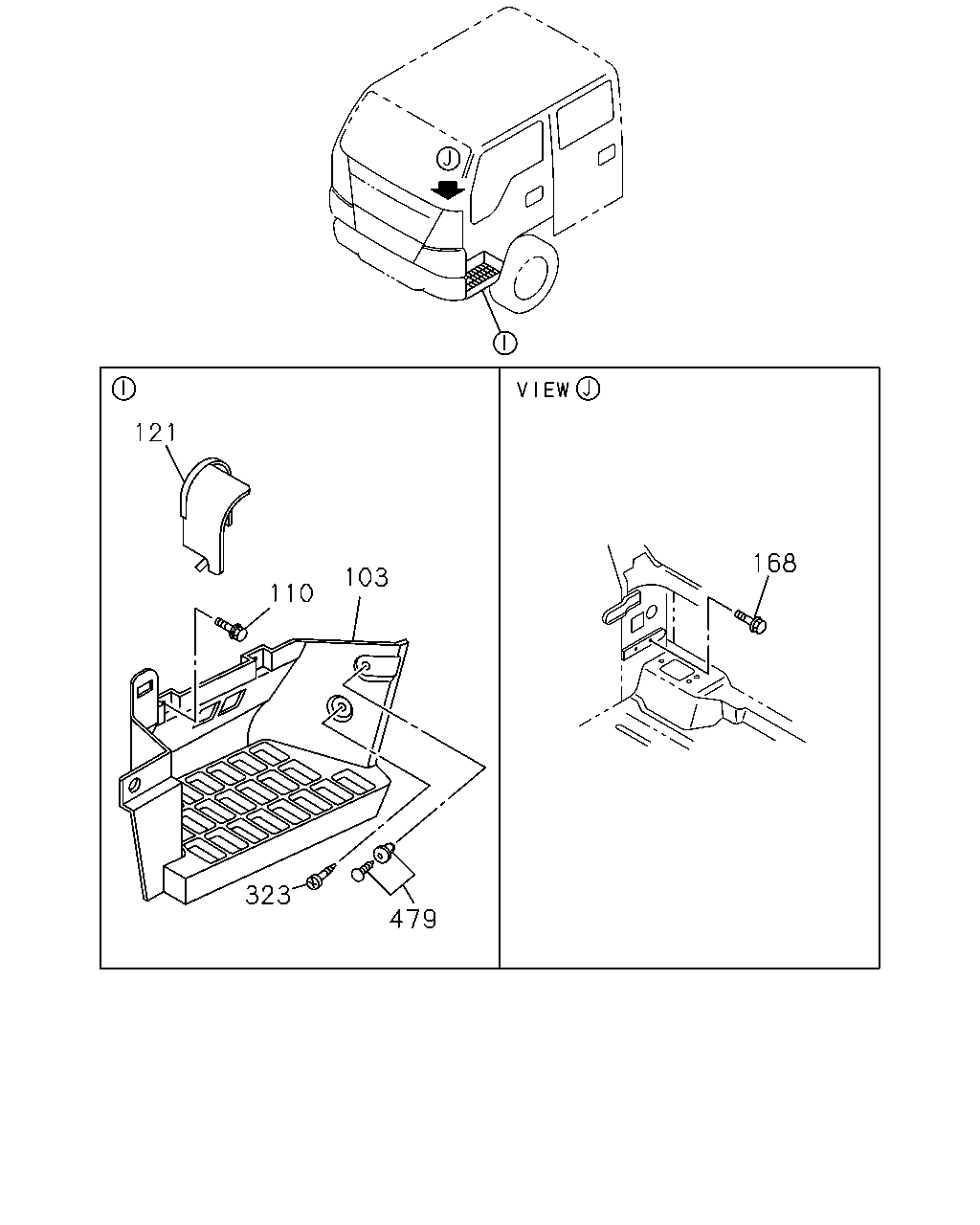

çizim 34221
121 168 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0211-0501 ● ● ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502- ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0502- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0502- ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211- ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211- ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211- ● ● ● ● ●

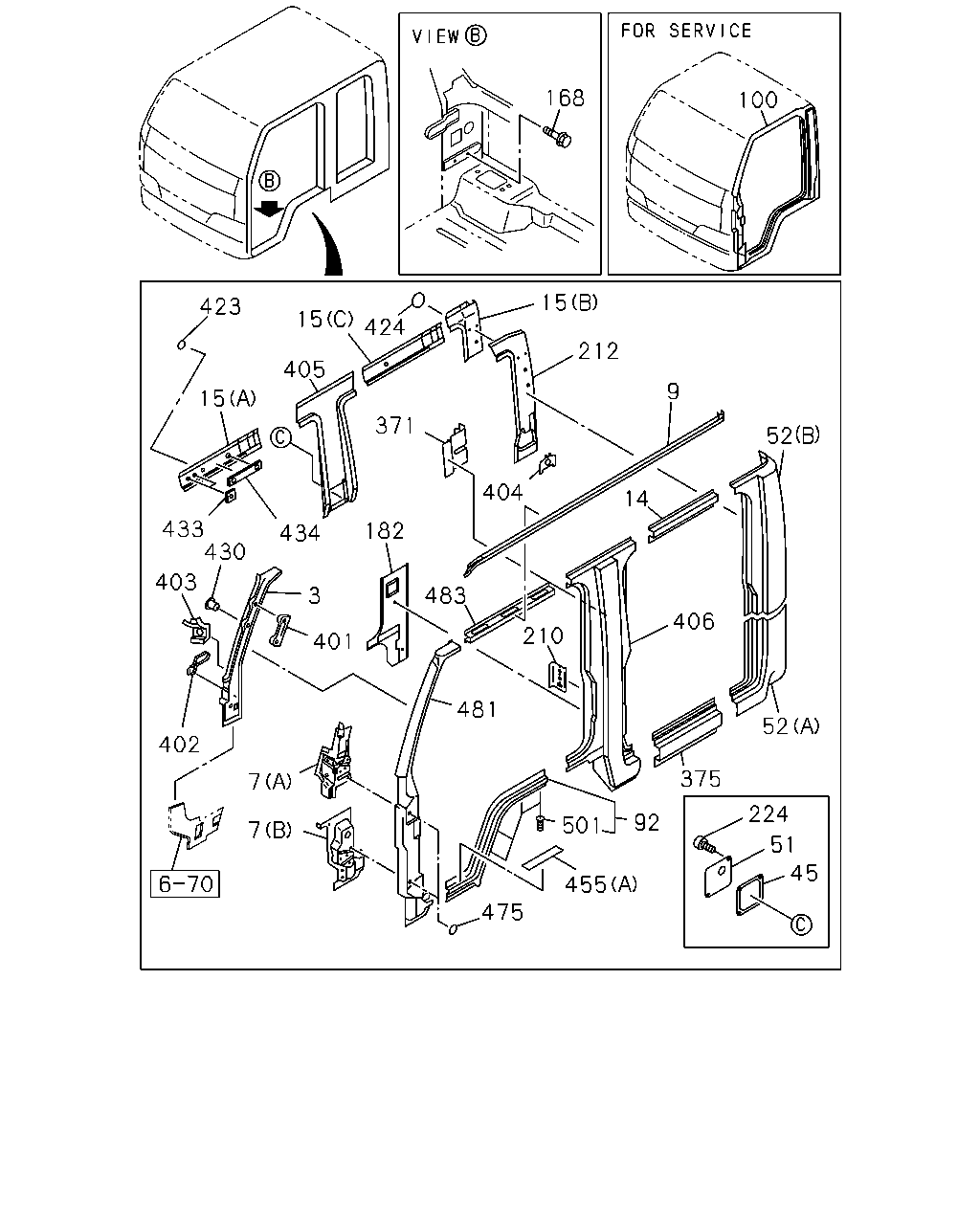

çizim 99370
100 168 15 423 15 424 212 405 9 15 371 52 404 14 433 430 182 434 403 483 3 406 210 401 481 52 402 375 7 224 92 501 7 51 45 455 475
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 0211- ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-625-0 01 1 1107- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-626-0 01 1 1107- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-222-1 01 1 0211- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-223-1 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 0211- ●
51 16.570 COVER; HOLE,B-C POST 8-94262-078-0 02 1 0211- ●
52 16.588 PANEL; D-POST UPR
(A) LOWER 		8-97851-174-8 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(B) UPPER 		8-97851-227-7 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(B) UPPER 		8-97892-721-2 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(A) LOWER 		8-97892-722-2 01 1 0211- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211- ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211- ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211- ● ● ● ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-176-7 01 1 0211- ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-177-7 01 1 0211- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-445-1 02 1 0211- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-446-1 02 1 0211- ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0211- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-456-4 01 1 0211- ● ● ● ● ●
224 16.570 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0211-0604 ●
224 16.570 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ●
224 16.570 SCREW; COVER
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1012 ●
224 16.570 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1101- ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211- ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211- ● ● ● ● ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 01 1 0211- ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 01 1 0211- ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-314-3 01 1 0211- ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-420-3 01 1 0211- ●
406 16.570 PILLAR; CENTER 8-97851-239-8 01 1 0211- ●
406 16.570 PILLAR; CENTER 8-97851-240-8 01 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502- ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0805 ● ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211- ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-97851-502-0 01 1 0211- ●
455 08.228 PROTECTOR; STEP
(B) 		8-97892-736-4 01 1 0211-0212 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501 ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0211- ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●

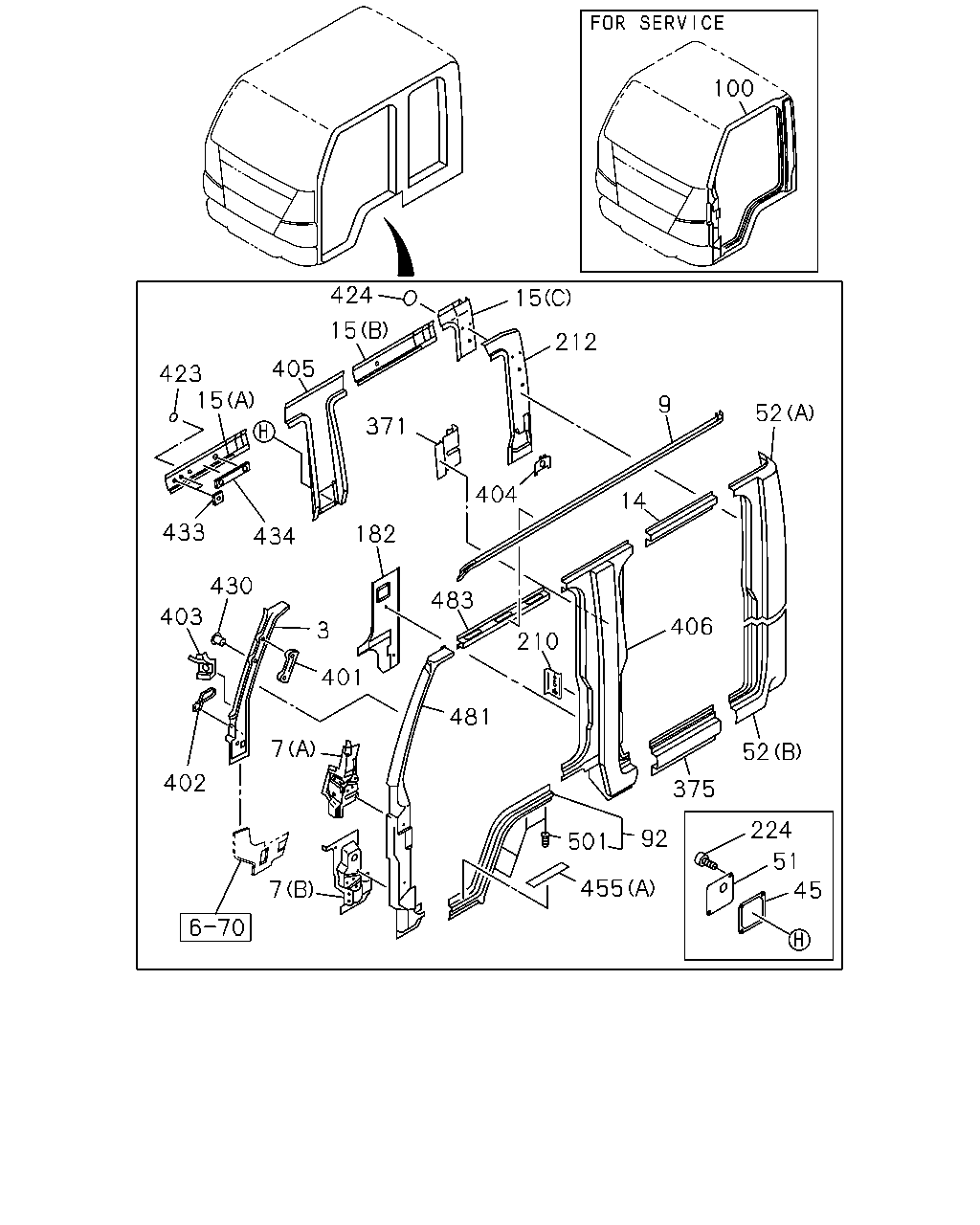

çizim 99486
100 424 15 15 212 405 423 15 9 52 371 404 14 433 182 434 430 483 403 406 3 210 401 481 7 52 402 375 224 92 501 51 455 7 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 0211- ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0211- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-625-0 01 1 1107- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-626-0 01 1 1107- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-222-1 01 1 0211- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-223-1 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0211- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0211- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 0211- ●
51 16.570 COVER; HOLE,B-C POST 8-94262-078-0 02 1 0211- ●
52 16.588 PANEL; D-POST UPR
(A) LOWER 		8-97851-174-8 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(B) UPPER 		8-97851-227-7 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(B) UPPER 		8-97892-721-2 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(A) LOWER 		8-97892-722-2 01 1 0211- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211- ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211- ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0211- ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-409-1 01 1 0211- ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-176-7 01 1 0211- ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-177-7 01 1 0211- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-445-1 02 1 0211- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-446-1 02 1 0211- ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0211- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-456-4 01 1 0211- ● ● ● ● ●
224 16.570 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0211-0604 ●
224 16.570 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ●
224 16.570 SCREW; COVER
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1012 ●
224 16.570 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1101- ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211- ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211- ● ● ● ● ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 01 1 0211- ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 01 1 0211- ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211- ● ● ● ● ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-314-3 01 1 0211- ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-420-3 01 1 0211- ●
406 16.570 PILLAR; CENTER 8-97851-239-8 01 1 0211- ●
406 16.570 PILLAR; CENTER 8-97851-240-8 01 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502- ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0805 ● ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211- ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-97851-502-0 01 1 0211- ●
455 08.228 PROTECTOR; STEP
(B) 		8-97892-736-4 01 1 0211-0212 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0211- ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
