Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

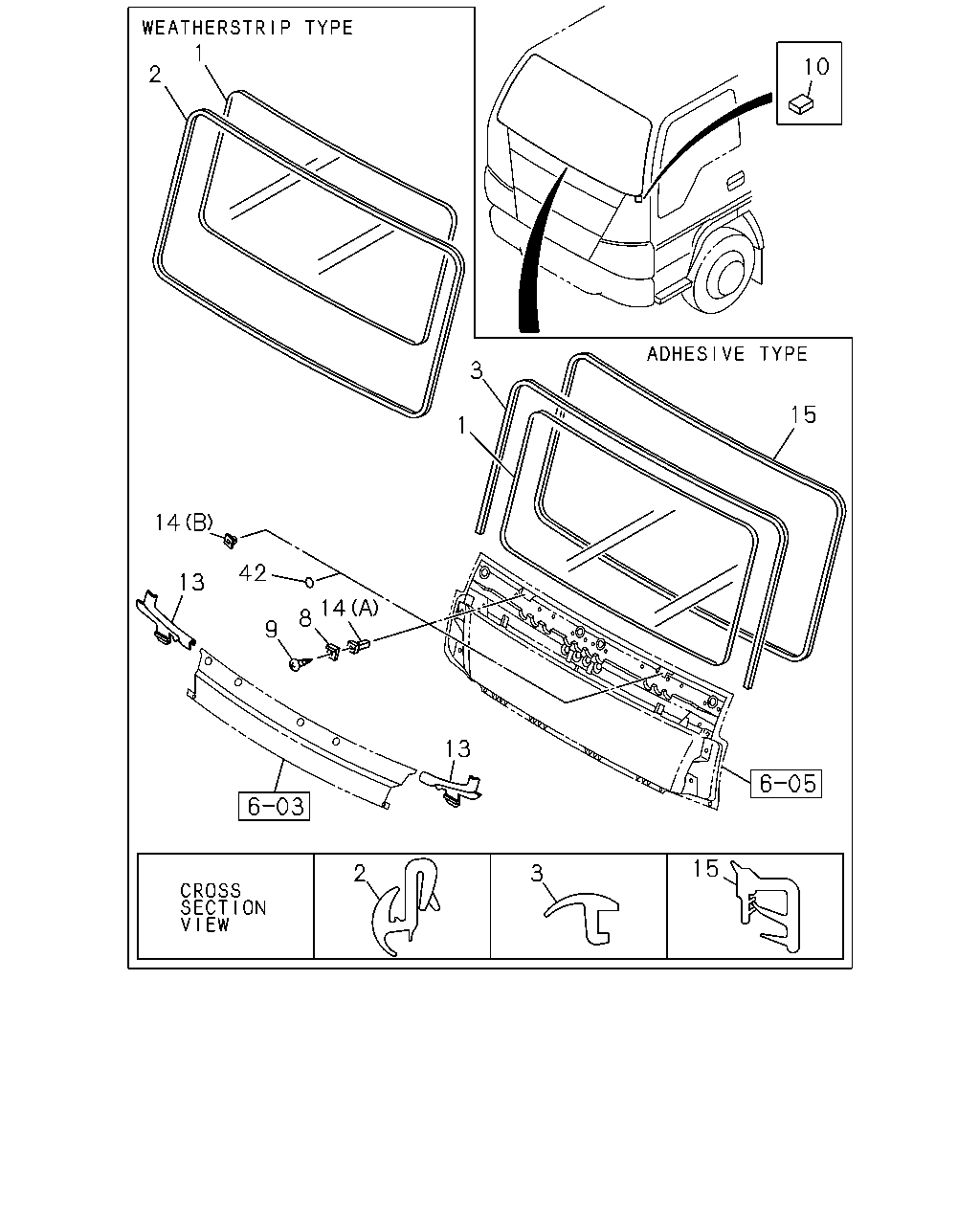

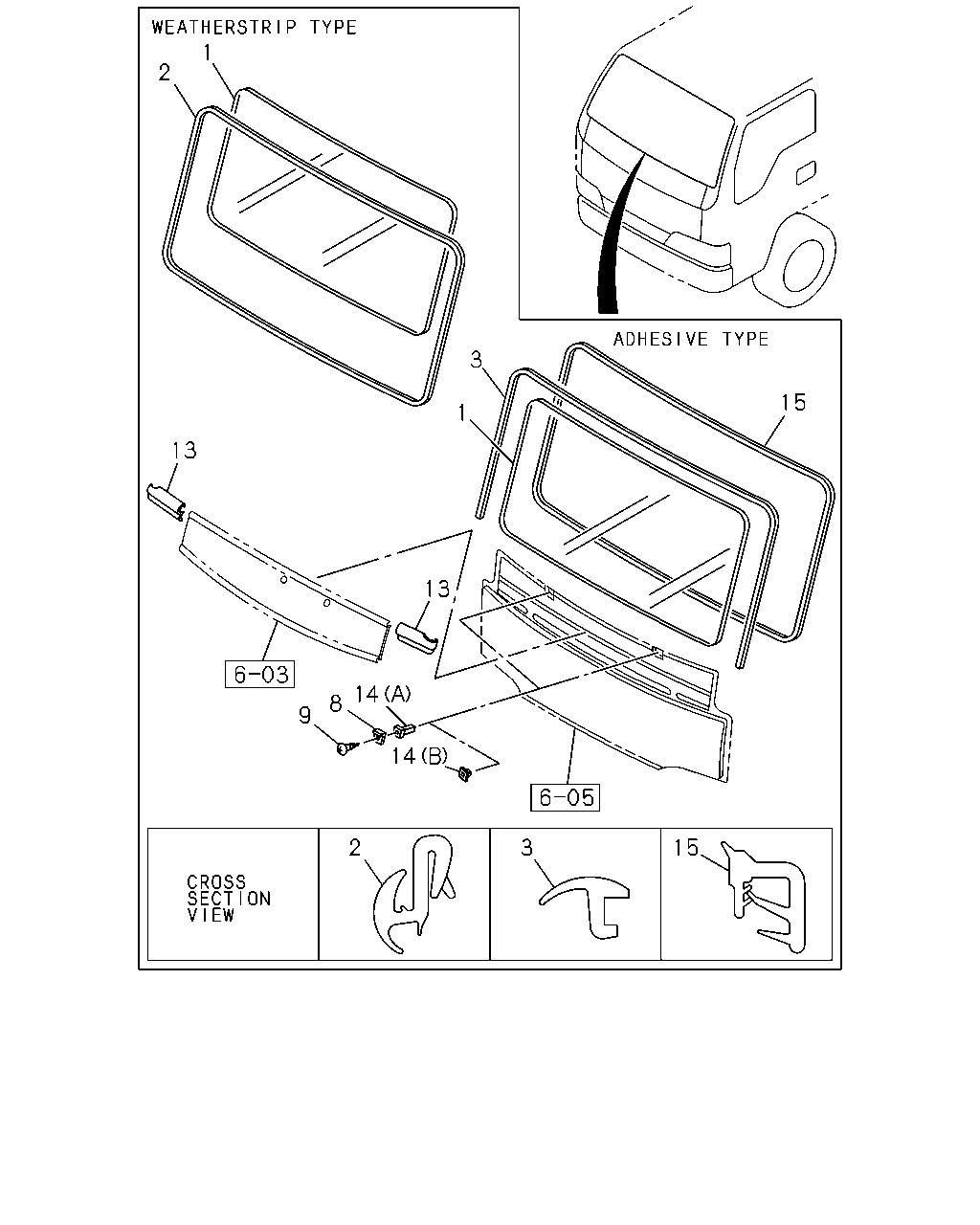

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#34834) — 44 parça
Tümü
A - NPC5SC
B - NPC5SF
C - NPC5SK
D - NPC5SN
E - NPC5WF
◀
[607A] '05/2- (23 parça)
[607A] -'05/1 (21 parça)
▶
1
10
2
3
15
1
14
42
13
14
8
9
13
15
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
16.005 GLASS; WINDSHIELD
T=6.3
8-97869-127-1
01
1
0211-0805
●
●
●
●
●
1
16.005 GLASS; WINDSHIELD
T=6.3
8-97997-945-2
01
1
0806-
●
●
●
●
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-350-4
01
1
0211-
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-215-2
01
1
0211-0501
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-624-3
01
1
0502-
●
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
0211-0305
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-0
02
1
0211-0305
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0306-1208
●
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1209-
●
●
●
●
●
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
0211-1208
●
●
●
●
●
9
16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
1209-
●
●
●
●
●
10
08.160 SPACER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 10.027 10X10
8-94174-466-0
01
1
0509-
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
0211-0501
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0502-
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
0211-0501
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0502-
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (B) 14.5X14.5 BLACK
8-94279-714-0
04
1
0211-
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0211-0305
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0306-1208
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1209-
●
●
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97857-048-5
01
1
0211-0501
●
●
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-815-7
01
1
0502-
●
●
●
●
●
42
16.041 SEAL; HOLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> ,KD PREPARATORY PACK VAR.4<7TV> 16.165 OD=20 T=0.05 BLACK
5-76777-036-0
02
1
1209-
●
●
●
●
●
1
2
3
15
1
13
13
14
8
9
14
2
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
16.005 GLASS; WINDSHIELD
T=6.3
8-97869-127-1
01
1
0211-0805
●
●
●
●
●
1
16.005 GLASS; WINDSHIELD
T=6.3
8-97997-945-2
01
1
0806-
●
●
●
●
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-350-4
01
1
0211-
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-215-2
01
1
0211-0501
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-624-3
01
1
0502-
●
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
0211-0305
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-0
02
1
0211-0305
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0306-1208
●
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1209-
●
●
●
●
●
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
0211-1208
●
●
●
●
●
9
16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
1209-
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
0211-0501
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0502-
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
0211-0501
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0502-
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (B) 14.5X14.5 BLACK
8-94279-714-0
04
1
0211-
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0211-0305
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0306-1208
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1209-
●
●
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97857-048-5
01
1
0211-0501
●
●
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-815-7
01
1
0502-
●
●
●
●
●
