2 |

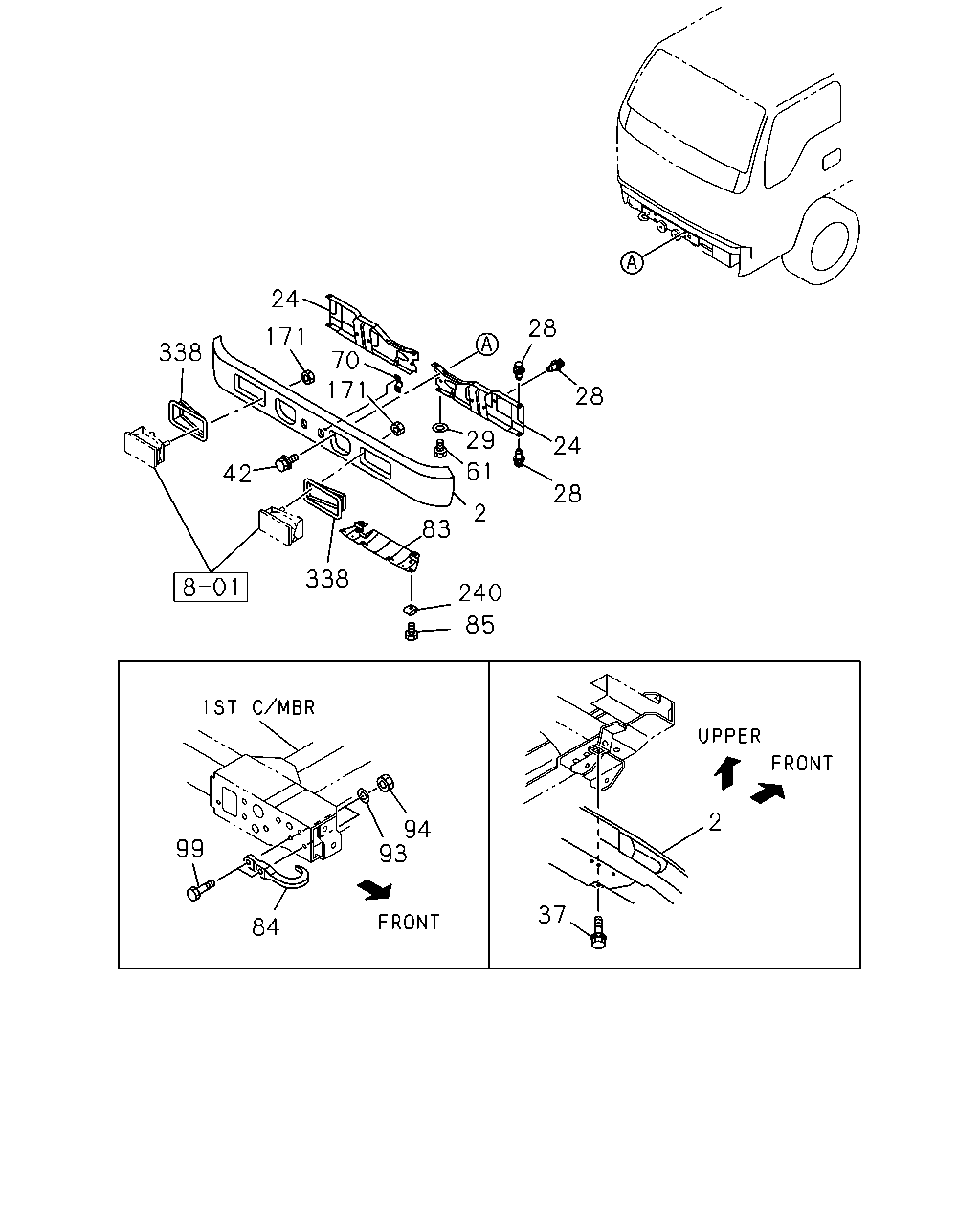

07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
WHITE
|
8-97999-014-0 |
01 |
1 |
0211-0301 |
● |
● |
|
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
EXC. FOG LAMP<T96>
WHITE
|
8-97999-014-0 |
01 |
1 |
0211-0301 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
WHITE
|
8-97999-014-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
WHITE
|
8-97999-014-0 |
01 |
1 |
0302-0501 |
● |
● |
|
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
EXC. FOG LAMP<T96>
WHITE
|
8-97999-014-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
WHITE
|
8-97999-014-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-014-0 |
01 |
1 |
0502-0506 |
|
|
|
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
WHITE
|
8-97999-014-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR
POLAR SILVER MET(845),BODY COLOR
MARINEBLUE(890)
EXC. COLOR KEYED BUMPER<S4H>
DARK GRAY
|
8-97999-013-0 |
01 |
1 |
0211-0301 |
● |
● |
|
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR
POLAR SILVER MET(845),BODY COLOR
MARINEBLUE(890)
EXC. COLOR KEYED BUMPER<S4H>,FOG
LAMP<T96>
DARK GRAY
|
8-97999-013-0 |
01 |
1 |
0211-0301 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>
DARK GRAY
|
8-97999-013-0 |
01 |
1 |
0302-0501 |
● |
● |
|
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>,FOG
LAMP<T96>
DARK GRAY
|
8-97999-013-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
EXC. COLOR KEYED BUMPER<S4H>
DARK GRAY
|
8-97999-013-0 |
01 |
1 |
0302-0501 |
|
|
|
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97583-043-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845)
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97583-043-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
DARK GRAY
|
8-97583-043-0 |
01 |
1 |
0502-0506 |
|
|
|
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845)
DARK GRAY
|
8-97583-043-0 |
01 |
1 |
0502-0506 |
|
|
|
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97583-043-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845)
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97583-043-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0211-0301 |
● |
● |
|
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
EXC. FOG LAMP<T96>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0211-0301 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
PRIMER
|
8-97998-075-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0302-0501 |
● |
● |
|
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
EXC. FOG LAMP<T96>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
EXC. FRT BUMPER DARK GRAY<EQ9>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0502-0506 |
|
|
|
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
PRIMER
|
8-97998-075-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>
WHITE
|
8-97999-733-0 |
01 |
1 |
0211-0301 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
FOG LAMP<T96>
WHITE
|
8-97999-733-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-733-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-733-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>
EXC. COLOR KEYED BUMPER<S4H>
DARK GRAY
|
8-97999-026-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97583-042-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845)
FOG LAMP<T96>
DARK GRAY
|
8-97583-042-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97583-042-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845)
FOG LAMP<T96>
DARK GRAY
|
8-97583-042-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
FOG LAMP<T96>
BLUE
|
8-97581-580-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97581-580-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97581-580-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
|
8-97039-796-5 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97039-796-5 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97039-796-5 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
|
8-97039-796-5 |
01 |
1 |
0502-0506 |
|
|
|
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97039-796-5 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
|
8-97039-797-5 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97039-797-5 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97039-797-5 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
|
8-97039-797-5 |
01 |
1 |
0502-0506 |
|
|
|
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97039-797-5 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97073-671-4 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97073-671-4 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97073-671-4 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97194-750-2 |
01 |
1 |
0211-0308 |
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97073-672-4 |
01 |
1 |
0309-0501 |
|
|
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97073-672-4 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97073-672-4 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
28 |
07.833 FASTENER; BACK BAR
12.934
D=5.8 SCREW & GROMMET NYLON
|
8-94242-150-0 |
08 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
29 |
07.833 WASHER; FRT BUMPER
ID=8.5
|
8-94167-476-0 |
02 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
37 |
01.263 BOLT; BRKT TO BUMPER LWR
16.320
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
42 |
07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER
|
8-97101-865-0 |
04 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
61 |
07.832 BOLT; BACK BAR
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
0211-0909 |
● |
● |
● |
● |
● |
| |
61 |
07.832 BOLT; BACK BAR
09.171
M8X18 W/LK WASHER
|
0-50540-818-0 |
02 |
1 |
0910- |
● |
● |
● |
● |
● |
| |
70 |
07.800 BRACKET; LICENSE PLATE,FRT
|
8-94151-164-1 |
02 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
83 |
07.833 GUIDE; AIR,FRT BUMPER
|
8-97076-719-2 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
84 |
07.068 HOOK
07.112
|
8-97122-535-0 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
85 |
07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER
|
8-97012-072-0 |
04 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
93 |
07.068 WASHER; LK,HOOK
05.422
ID=14.2
|
9-09150-814-0 |
02 |
1 |
0211-0603 |
● |
● |
● |
● |
● |
| |
93 |
07.068 WASHER; LK,HOOK
06.174
ID=14.2
|
0-91510-814-0 |
02 |
1 |
0604- |
● |
● |
● |
● |
● |
| |
94 |
07.068 NUT; HOOK
07.529
M14
|
9-99110-514-0 |
02 |
1 |
0211-0512 |
● |
● |
● |
● |
● |
| |
94 |
07.068 NUT; HOOK
07.833
M14
|
0-91110-514-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
99 |
07.039 BOLT; HOOK
M14X50
|
0-10806-450-0 |
02 |
1 |
0211-0512 |
● |
● |
● |
● |
● |
| |
99 |
07.039 BOLT; HOOK
M14X50
|
0-10856-450-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
171 |
07.869 NUT; BACK BAR
04.012
M8 FLANGE
|
1-09464-018-1 |
02 |
1 |
0211-0501 |
● |
● |
|
|
● |
| |
171 |
07.869 NUT; BACK BAR
EXC. FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
02 |
1 |
0211-0501 |
|
|
● |
● |
|
| |
171 |
07.869 NUT; BACK BAR
FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
06 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
171 |
07.869 NUT; BACK BAR
FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
06 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
171 |
07.869 NUT; BACK BAR
FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
06 |
1 |
0211-0501 |
|
|
● |
● |
|
| |
171 |
07.869 NUT; BACK BAR
EXC. FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
02 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
171 |
07.869 NUT; BACK BAR
04.012
M8 FLANGE
|
1-09464-018-1 |
02 |
1 |
0502-0506 |
|
|
|
● |
|
| |
171 |
07.869 NUT; BACK BAR
EXC. FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
02 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
240 |
07.833 NUT; AIR GUIDE,FRT BUMPER
16.085
M6 SPIRE NUT
|
8-97210-973-1 |
04 |
1 |
0211- |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FOG LAMP<T96>
WHITE
|
8-97999-734-0 |
01 |
1 |
0211-0301 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
FOG LAMP<T96>
WHITE
|
8-97999-734-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-734-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-734-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FOG LAMP<T96>
WHITE
|
8-97999-735-0 |
01 |
1 |
0211-0301 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
COLOR KEYED BUMPER<S4H>
FOG LAMP<T96>
WHITE
|
8-97999-735-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-735-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97999-735-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FOG LAMP<T96>
EXC. COLOR KEYED BUMPER<S4H>
DARK GRAY
|
8-97195-640-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97583-044-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845)
FOG LAMP<T96>
DARK GRAY
|
8-97583-044-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97583-044-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845)
FOG LAMP<T96>
DARK GRAY
|
8-97583-044-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
FOG LAMP<T96>
EXC. COLOR KEYED BUMPER<S4H>
DARK GRAY
|
8-97195-641-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97583-045-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845)
FOG LAMP<T96>
DARK GRAY
|
8-97583-045-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLOR
ARC WHITE(729),BODY COLOR MARINE
BLUE(890)
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97583-045-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845)
FOG LAMP<T96>
DARK GRAY
|
8-97583-045-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
FOG LAMP<T96>
BLUE
|
8-97581-581-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97581-581-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97581-581-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
COLOR KEYED BUMPER<S4H>
FOG LAMP<T96>
BLUE
|
8-97581-582-0 |
01 |
1 |
0302-0501 |
|
|
● |
● |
|
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97581-582-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97581-582-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
● |
