Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

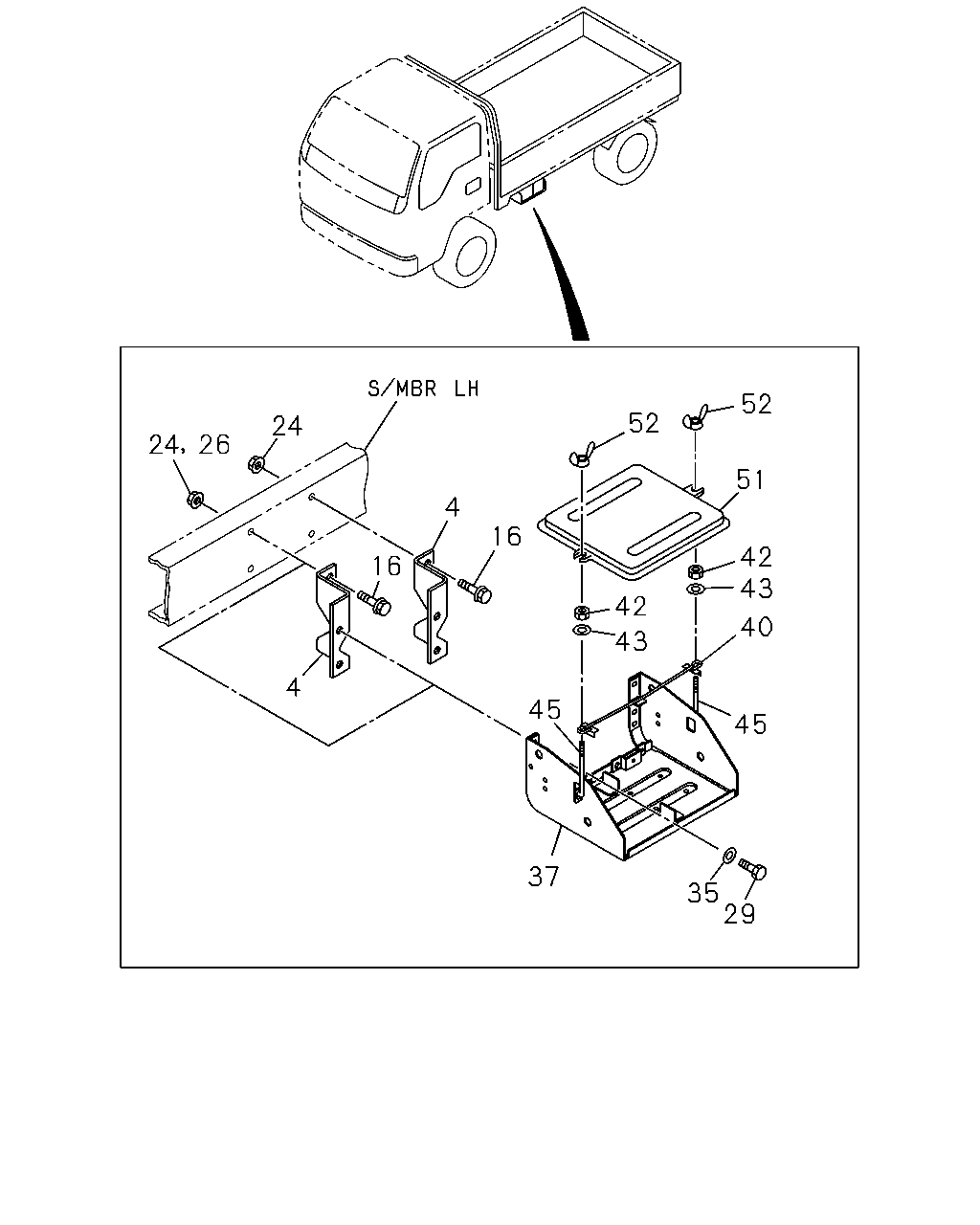

5-20 — BATTERY CARRIER
(#34828) — 26 parça
Tümü
A - NPC5WF
B - NPC5SC
C - NPC5SF
D - NPC5SK
E - NPC5SN
52
52
24
26
24
51
4
16
42
43
16
42
40
43
4
45
45
37
35
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
4
02.333 BRACKET; BATTERY CARRIER
8-97075-610-0
02
1
0507-
●
16
02.334 BOLT; BRKT TO FRAME
06.168 M10X35 FLANGE
0-28691-035-0
04
1
0507-0512
●
16
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
0601-
●
24
02.334 NUT; BRKT TO FRAME
08.917 M10 FLANGE
0-91150-210-0
02
1
0507-0602
●
24
02.334 NUT; BRKT TO FRAME
04.085 M10 FLANGE
0-91180-210-0
02
1
0603-
●
26
02.334 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
02
1
0211-0501
●
●
●
●
26
02.334 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
02
1
0502-0602
●
●
●
●
●
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
●
●
●
26
02.334 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
04
1
0211-0602
●
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
04
1
0603-
●
29
02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER
0-50041-030-0
04
1
0211-0512
●
●
●
●
●
29
02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER
0-50541-030-0
04
1
0601-
●
●
●
●
●
35
02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22
9-09160-610-0
04
1
0211-0605
●
●
●
●
●
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0606-
●
●
●
●
●
37
02.333 BRACKET; BATTERY
8-97356-174-0
01
1
0211-0610
●
●
●
●
●
37
02.333 BRACKET; BATTERY
8-97384-068-2
01
1
0611-0612
●
●
●
●
●
37
02.333 BRACKET; BATTERY
8-97384-067-2
01
1
0701-
●
●
●
●
●
40
02.335 CLAMP; BATTERY
5-53615-004-1
01
1
0211-
●
●
●
●
●
42
02.334 NUT; CLAMP
02.559 M8
9-09110-408-0
02
1
0211-0512
●
●
●
●
●
42
02.334 NUT; CLAMP
M8
0-91110-508-0
02
1
0601-
●
●
●
●
●
43
02.334 WASHER; PL,CLAMP
07.633 ID=8.4 OD=22
9-09164-708-0
02
1
0211-0605
●
●
●
●
●
43
02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0606-
●
●
●
●
●
45
02.334 ROD; TENSION,BATTERY
9-53616-615-0
02
1
0211-
●
●
●
●
●
51
02.335 COVER; BATTERY
8-97120-747-0
01
1
0211-
●
●
●
●
●
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
9-09118-408-0
02
1
0211-0512
●
●
●
●
●
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0601-
●
●
●
●
●
