Sayfa 5-10 - Isuzu EPC

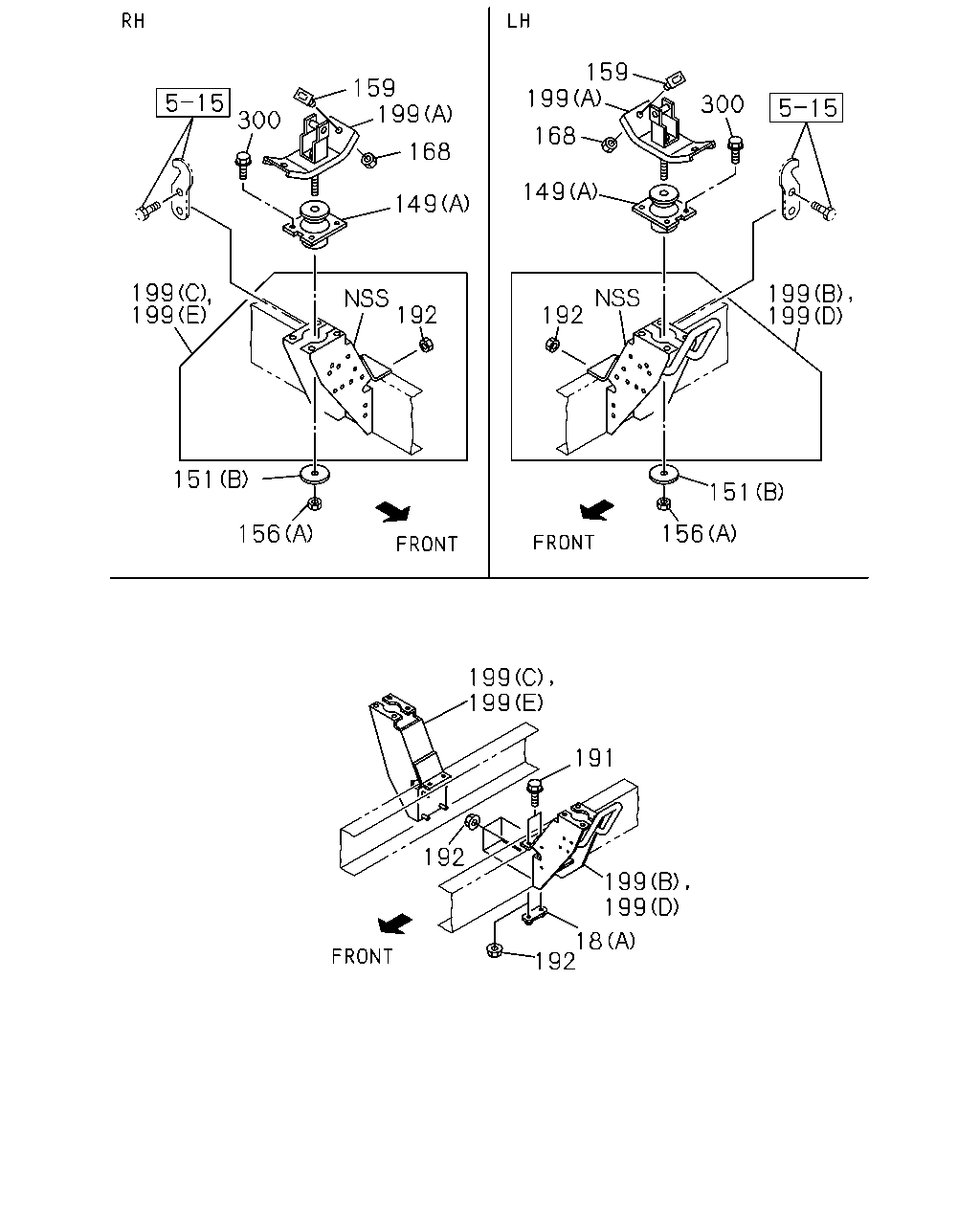

5-10 — CAB MOUNTING; FRAME SIDE (#34826) — 190 parça

156 151 300 149 199 199 199 199 192 150 157 149 149 151 151 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	0211-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	0211-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-440-2	02	1	0211-0501		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D)	8-97086-440-2	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-440-3	02	1	0502-0612		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D)	8-97086-440-3	02	1	0502-0612	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B)	8-98038-868-0	02	1	0701-	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-2	02	1	0211-0501		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0502-0804		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-		●	●	●	●
150	09.011 BOLT; CAB MTG RR M12X122	8-97256-724-0	02	1	0211-0501	●
150	09.011 BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	0502-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=12.6 OD=33	8-97256-725-0	02	1	0211-0501	●
151	09.011 WASHER; CAB MTG,RR UPR 08.929 (C) ID=15 OD=36	9-09164-714-0	02	1	0502-0605	●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	0606-	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	0211-0501		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	0502-0611		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=17 OD=62	8-97359-042-1	02	1	0612-		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97256-726-0	02	1	0211-0701	●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	0702-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501		●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610		●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0611-		●	●	●	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 04.681 (A) M16	9-99111-416-0	02	1	0211-0501		●	●	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 04.681 (A) M16	9-99111-416-0	02	1	0502-0512		●	●	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0601-		●	●	●	●
156	07.529 NUT; CAB MTG RR 05.816 (D) M12	9-99110-412-0	02	1	0211-0501	●
156	07.529 NUT; CAB MTG RR (D) M14	9-99110-514-0	02	1	0502-0506	●
156	07.529 NUT; CAB MTG RR (D) M14	9-99110-514-0	04	1	0507-0512	●
156	07.529 NUT; CAB MTG RR 07.833 (D) M14	0-91110-514-0	04	1	0601-	●
156	07.529 NUT; CAB MTG RR 05.586 (C) M12 FLANGE	0-91150-112-0	02	1	0211-0501	●
157	09.023 RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	0211-	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0602	●	●	●	●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0211-		●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0211-0501		●	●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97330-163-1	01	1	0502-		●	●	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97326-510-0	01	1	0211-0501	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (E)	8-97330-165-1	01	1	0502-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0211-0501		●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97326-509-0	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97330-164-1	01	1	0502-	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0211-0512	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●	●	●

159 199 159 199 300 300 168 168 149 149 199 199 199 199 192 192 151 151 156 156 199 199 191 192 199 199 18 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
18	09.003 PLATE; MTG BRKT FIX AIR BAG DRIVER<AJ3> MANUAL TILT CAB<RWZ> (F)	8-97351-393-0	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0502-0504		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3> (E)	8-97388-371-0	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0211-0504		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3> (D)	8-97130-348-1	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0211-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0211-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0211-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	0211-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	0211-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-440-2	02	1	0211-0501		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D)	8-97086-440-2	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-440-3	02	1	0502-0612		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D)	8-97086-440-3	02	1	0502-0612	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B)	8-98038-868-0	02	1	0701-	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-2	02	1	0211-0501		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0502-0804		●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=12.6 OD=33	8-97256-725-0	02	1	0211-0501	●
151	09.011 WASHER; CAB MTG,RR UPR 08.929 (C) ID=15 OD=36	9-09164-714-0	02	1	0502-0605	●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	0606-	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	0211-0501		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	0502-0611		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=17 OD=62	8-97359-042-1	02	1	0612-		●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97256-726-0	02	1	0211-0701	●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	0702-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501		●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610		●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0611-		●	●	●	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 04.681 (A) M16	9-99111-416-0	02	1	0211-0501		●	●	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 04.681 (A) M16	9-99111-416-0	02	1	0502-0512		●	●	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0601-		●	●	●	●
156	07.529 NUT; CAB MTG RR 05.816 (D) M12	9-99110-412-0	02	1	0211-0501	●
156	07.529 NUT; CAB MTG RR (D) M14	9-99110-514-0	02	1	0502-0506	●
156	07.529 NUT; CAB MTG RR (D) M14	9-99110-514-0	04	1	0507-0512	●
156	07.529 NUT; CAB MTG RR 07.833 (D) M14	0-91110-514-0	04	1	0601-	●
156	07.529 NUT; CAB MTG RR 05.586 (C) M12 FLANGE	0-91150-112-0	02	1	0211-0501	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0211-		●	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0602		●	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-		●	●	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0211-0512	●	●	●	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0602	●	●	●	●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0211-		●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0211-0501		●	●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97330-163-1	01	1	0502-		●	●	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97326-510-0	01	1	0211-0501	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (E)	8-97330-165-1	01	1	0502-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0211-0501		●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97326-509-0	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97330-164-1	01	1	0502-	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0211-0512	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●	●	●

7 1 20 7 1 20 104 72 105 7 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0502-0608		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97332-205-0	01	1	0609-		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0502-0608		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97332-206-0	01	1	0609-		●	●	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0502-		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97331-637-1	01	1	0502-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0502-		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97331-636-1	01	1	0502-	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0211-0512	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX AIR BAG DRIVER<AJ3> MANUAL TILT CAB<RWZ> (F)	8-97351-393-0	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0502-0504		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3> (E)	8-97388-371-0	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0211-0504		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3> (D)	8-97130-348-1	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0211-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0211-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0211-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0211-0608		●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97201-839-3	02	1	0609-		●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0211-		●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	02	1	0211-	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> 08.929 ID=15 OD=36	9-09164-714-0	01	1	0502-0605		●	●	●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0606-		●	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0211-0501		●	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97164-690-3	01	1	0502-		●	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0211-0501		●	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> 00.669 M14X35 FLANGE	0-28681-435-0	01	1	0502-0512		●	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0601-		●	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0502-0608		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97332-205-0	01	1	0609-		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0502-0608		●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97332-206-0	01	1	0609-		●	●	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0502-		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97331-637-1	01	1	0502-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0211-0501		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0502-		●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97331-636-1	01	1	0502-	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0211-		●	●	●	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	0211-	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0211-0512	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX AIR BAG DRIVER<AJ3> MANUAL TILT CAB<RWZ> (F)	8-97351-393-0	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0502-0504		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3> (E)	8-97388-371-0	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0211-0504		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3> (D)	8-97130-348-1	01	1	0505-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0211-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0211-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0211-		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0211-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0211-0608		●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97201-839-3	02	1	0609-		●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0211-		●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	02	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
