4-65B — REAR LEAF SPRING (#34822) — 17 parça

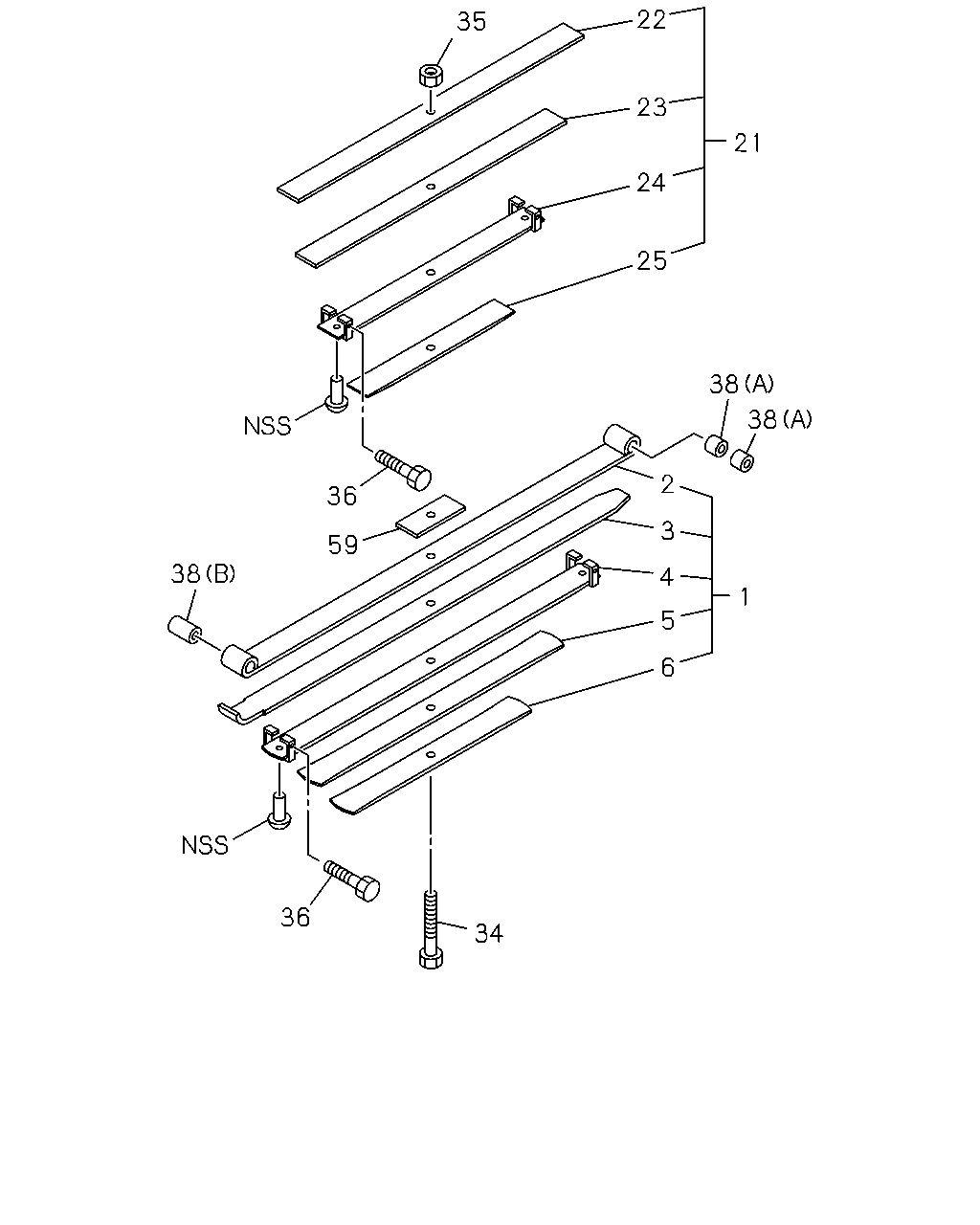

çizim 33959
22 35 23 21 24 25 38 38 2 36 3 59 38 4 1 5 6 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-150-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-151-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-152-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-154-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-155-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-156-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-157-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-158-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-159-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-160-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97174-306-0, 97174306 		8-97192-161-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=115 ASM PART: A = 8-97174-306-0, 97174306 		8-94165-309-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97174-306-0, 97174306 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97174-306-0, 97174306 		8-94407-133-0 03 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97174-306-0, 97174306 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97174-306-0, 97174306 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-97174-306-0, 97174306 		1-51377-061-0 01 1 -
