Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-14B - CAMSHAFT AND VALVE
▶
0-14B — CAMSHAFT AND VALVE
(#3482) — 173 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
◀

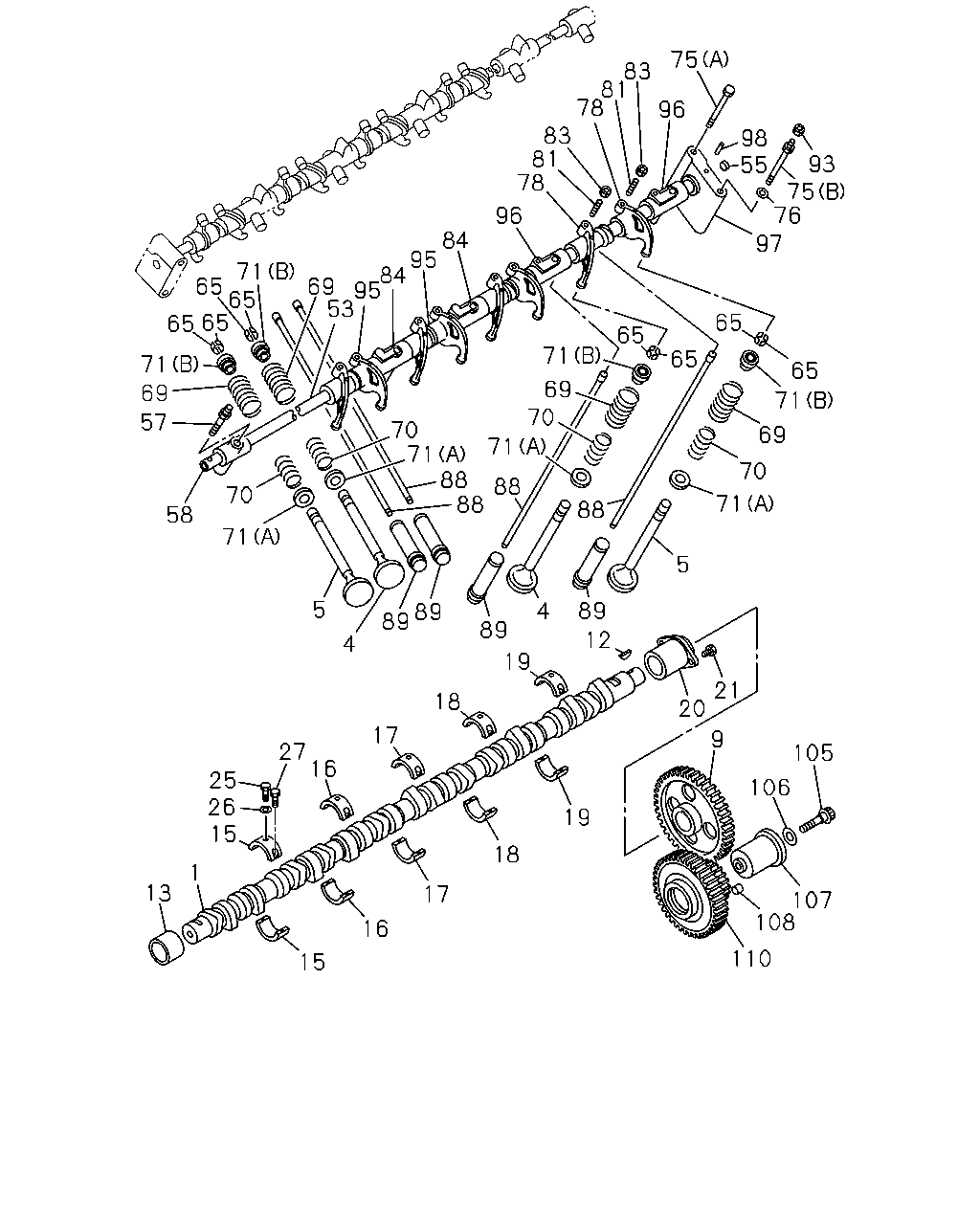

[014B] 10PD1 (86 parça)

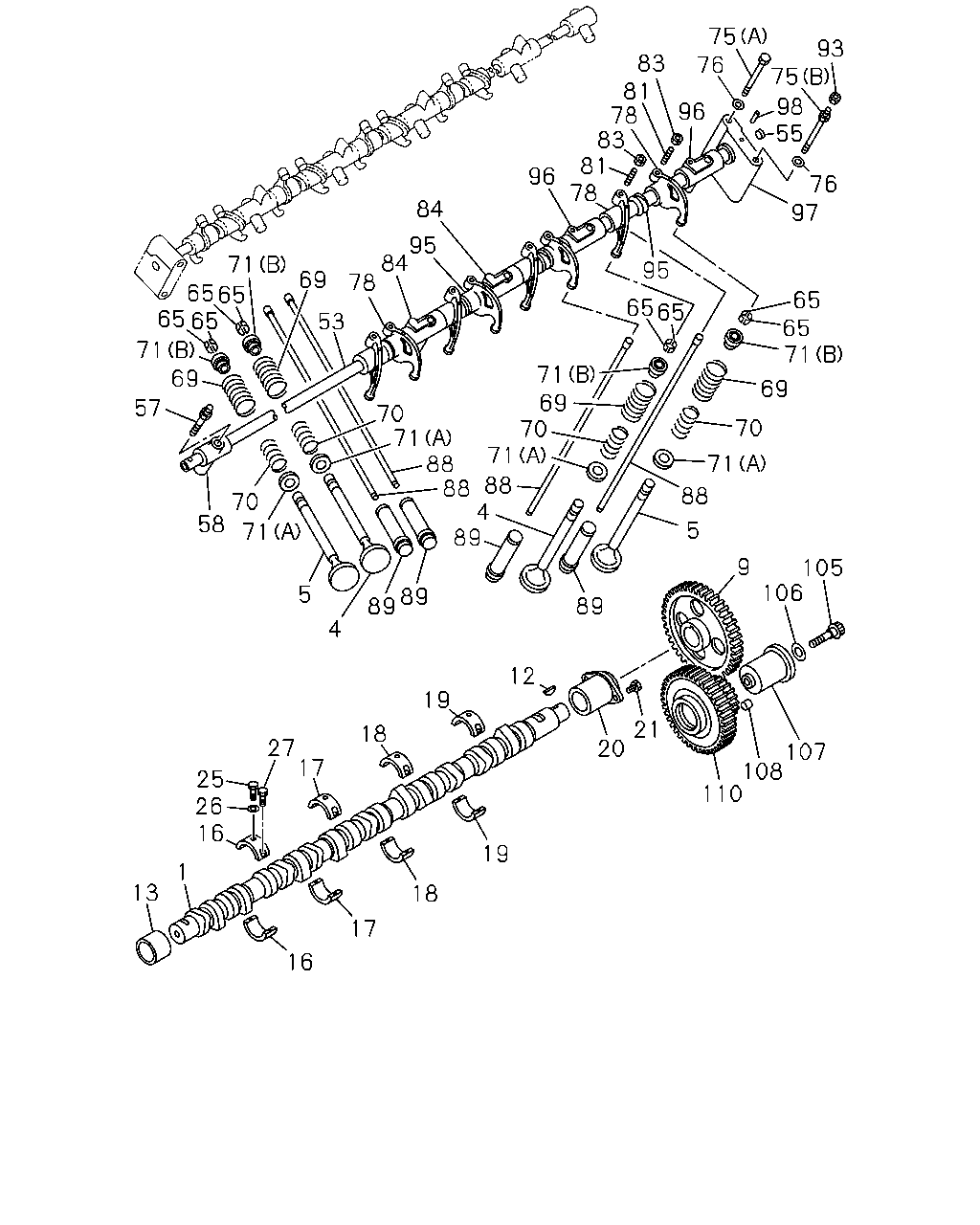

[014B] 12PD1 (87 parça)
▶
75
93
75
83
81
78
83
81
78
76
98
55
96
76
97
96
84
95
84
78
71
95
69
65
65
65
65
71
65
65
53
71
69
71
69
70
71
69
57
70
71
88
88
88
4
89
70
71
88
70
58
5
71
9
105
106
5
89
89
89
4
12
19
21
20
18
27
17
107
108
110
25
26
16
19
1
13
18
17
16
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAMSHAFT
1-12511-189-3
01
1
9002-
●
1
CAMSHAFT
1-12511-190-2
01
1
9307-
●
4
VALVE; INL
1-12551-127-0
10
1
9002-9405
●
4
VALVE; INL
1-12551-136-1
10
1
9406-
●
4
VALVE; INL
1-12551-127-0
12
1
9307-9405
●
4
VALVE; INL
1-12551-136-1
12
1
9406-
●
5
VALVE; EXH
1-12552-064-0
10
1
9002-9408
●
5
VALVE; EXH
1-12552-092-0
10
1
9409-9601
●
5
VALVE; EXH
1-12552-097-0
10
1
9602-
●
5
VALVE; EXH
1-12552-064-0
12
1
9307-9408
●
5
VALVE; EXH
1-12552-092-0
12
1
9409-9601
●
5
VALVE; EXH
1-12552-097-0
12
1
9602-
●
9
GEAR; CM/SHF
1-12522-019-1
01
1
9002-
●
●
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
9002-
●
●
13
METAL; CM/SHF,NO 1
1-11611-003-2
01
1
9002-
●
●
16
METAL; CM/SHF,NO 3
1-11617-007-1
01
1
9002-
●
●
17
METAL; CM/SHF,NO 4
1-11618-006-1
01
1
9002-
●
●
18
METAL; CM/SHF,NO 5
1-11619-015-1
01
1
9002-
●
●
19
METAL; CM/SHF,NO 6
1-11619-018-1
01
1
9002-
●
●
20
METAL; CM/SHF,NO 7
1-11619-059-1
01
1
9002-
●
●
21
BOLT; CM/SHF METAL,NO 7
M10X22
0-28121-022-0
02
1
9002-9002
●
21
BOLT; CM/SHF METAL,NO 7
M10X22 FLANGE
0-28181-022-0
02
1
9003-
●
●
25
SCREW; CM/SHF METAL
M8X31
1-09129-004-2
05
1
9002-
●
25
SCREW; CM/SHF METAL
M8X31
1-09129-004-2
06
1
9307-
●
26
GASKET; SET SCREW
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
05
1
9002-
●
26
GASKET; SET SCREW
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
06
1
9307-
●
27
SCREW; CM/SHF METAL
M4X14 W/LK WASHER
9-03910-414-0
08
1
9002-
●
27
SCREW; CM/SHF METAL
M4X14 W/LK WASHER
9-03910-414-0
10
1
9307-
●
53
SHAFT; ROCKER ARM
1-12621-011-1
02
1
9002-
●
53
SHAFT; ROCKER ARM
1-12621-012-1
02
1
9307-
●
55
PLUG; ROCKER SHAFT END
OD=16
9-11129-081-0
04
1
9002-
●
●
57
BOLT; ROCKER ARM BRKT
M8X13,M10X70 L=90
1-09029-024-2
08
1
9002-
●
57
BOLT; ROCKER ARM BRKT
M8X13,M10X70 L=90
1-09029-024-2
10
1
9307-
●
58
BRACKET; ROCKER SHAFT,FRT
1-12628-048-0
02
1
9002-
●
●
65
COLLAR; SPLIT
1-12565-007-0
40
1
9002-
●
65
COLLAR; SPLIT
1-12565-007-0
48
1
9307-
●
69
SPRING; VLV,OUTER
EXHAUST
1-12561-074-0
10
1
9002-
●
69
SPRING; VLV,OUTER
INLET
1-12561-075-0
10
1
9002-
●
69
SPRING; VLV,OUTER
EXHAUST
1-12561-074-0
12
1
9307-
●
69
SPRING; VLV,OUTER
INLET
1-12561-075-0
12
1
9307-
●
70
SPRING; VLV,INNER
EXHAUST
1-12562-046-0
10
1
9002-
●
70
SPRING; VLV,INNER
INLET
1-12562-047-0
10
1
9002-
●
70
SPRING; VLV,INNER
EXHAUST
1-12562-046-0
12
1
9307-
●
70
SPRING; VLV,INNER
INLET
1-12562-047-0
12
1
9307-
●
71
SEAT; SPR
(A) INLET
1-12563-027-0
10
1
9002-
●
71
SEAT; SPR
(A) EXHAUST
1-12563-034-1
10
1
9002-
●
71
SEAT; SPR
(B)
1-12563-049-0
20
1
9002-
●
71
SEAT; SPR
(A) INLET
1-12563-027-0
12
1
9307-
●
71
SEAT; SPR
(A) EXHAUST
1-12563-034-1
12
1
9307-
●
71
SEAT; SPR
(B)
1-12563-049-0
24
1
9307-
●
75
BOLT; BRKT
(B) M8X13,M10X70 L=90
1-09029-024-2
02
1
9002-
●
●
75
BOLT; BRKT
(A) M10X70
9-01661-070-0
02
1
9002-
●
●
76
WASHER; PL,BRKT
ID=10
1-09503-033-1
12
1
9002-
●
76
WASHER; PL,BRKT
ID=10
1-09503-033-1
14
1
9307-
●
78
ARM; ROCKER
INLET
1-12611-184-0
10
1
9002-9401
●
78
ARM; ROCKER
INLET
1-12611-266-0
10
1
9402-
●
78
ARM; ROCKER
EXHAUST
1-12611-186-0
10
1
9002-9401
●
78
ARM; ROCKER
EXHAUST
1-12611-267-0
10
1
9402-
●
78
ARM; ROCKER
INLET
1-12611-184-0
12
1
9307-9401
●
78
ARM; ROCKER
INLET
1-12611-266-0
12
1
9402-
●
78
ARM; ROCKER
EXHAUST
1-12611-186-0
12
1
9307-9401
●
78
ARM; ROCKER
EXHAUST
1-12611-267-0
12
1
9402-
●
81
SCREW; ADJ,ROCKER ARM
1-12616-001-0
20
1
9002-
●
81
SCREW; ADJ,ROCKER ARM
1-12616-001-0
24
1
9307-
●
83
NUT; ADJ SCREW,LK
M10
9-09840-310-0
20
1
9002-
●
83
NUT; ADJ SCREW,LK
M10
9-09840-310-0
24
1
9307-
●
84
BRACKET; ROCKER SHAFT,INTER
1-12628-012-1
04
1
9002-
●
●
88
ROD; PUSH
1-12575-048-1
20
1
9002-
●
88
ROD; PUSH
1-12575-048-1
24
1
9307-
●
89
TAPPET; VLV
1-12571-221-0
20
1
9002-9505
●
89
TAPPET; VLV
1-12571-228-4
20
1
9506-
●
89
TAPPET; VLV
1-12571-221-0
24
1
9307-9505
●
89
TAPPET; VLV
1-12571-228-4
24
1
9506-
●
93
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
9002-
●
●
95
SPRING; ROCKER SHAFT
9-09941-218-0
10
1
9002-
●
95
SPRING; ROCKER SHAFT
9-09941-218-0
12
1
9307-
●
96
BRACKET; ROCKER ARM SHAFT
1-12628-011-1
04
1
9002-
●
96
BRACKET; ROCKER ARM SHAFT
1-12628-011-1
06
1
9307-
●
97
BRACKET; ROCKER SHAFT,RR
1-12628-006-2
02
1
9002-
●
●
98
PIN; SHAFT SET
9-08160-430-0
02
1
9002-
●
●
105
BOLT; IDLE GEAR SHAFT
M16X94 FLANGE
1-09070-031-1
01
1
9002-
●
●
106
WASHER; IDLE GEAR SHAFT
ID=16.2
1-09503-022-1
01
1
9002-9306
●
●
106
WASHER; IDLE GEAR SHAFT
ID=16.2
1-09503-022-1
01
1
9307-
●
●
107
SHAFT; IDLE GEAR
1-12531-015-1
01
1
9002-
●
●
108
DOWEL; SHAFT
9-12539-079-0
01
1
9002-
●
●
110
GEAR ASM; IDLE
1-12523-123-0
01
1
9002-
●
●
75
83
81
78
83
81
78
96
98
55
93
75
76
97
96
84
95
84
69
95
53
71
65
65
65
65
71
65
71
65
69
70
69
71
57
70
71
88
88
69
71
70
88
70
71
88
58
71
5
5
89
4
89
89
89
12
4
19
21
20
18
17
9
27
16
105
25
26
15
106
19
18
1
13
17
107
108
16
110
15
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAMSHAFT
1-12511-189-3
01
1
9002-
●
1
CAMSHAFT
1-12511-190-2
01
1
9307-
●
4
VALVE; INL
1-12551-127-0
10
1
9002-9405
●
4
VALVE; INL
1-12551-136-1
10
1
9406-
●
4
VALVE; INL
1-12551-127-0
12
1
9307-9405
●
4
VALVE; INL
1-12551-136-1
12
1
9406-
●
5
VALVE; EXH
1-12552-064-0
10
1
9002-9408
●
5
VALVE; EXH
1-12552-092-0
10
1
9409-9601
●
5
VALVE; EXH
1-12552-097-0
10
1
9602-
●
5
VALVE; EXH
1-12552-064-0
12
1
9307-9408
●
5
VALVE; EXH
1-12552-092-0
12
1
9409-9601
●
5
VALVE; EXH
1-12552-097-0
12
1
9602-
●
9
GEAR; CM/SHF
1-12522-019-1
01
1
9002-
●
●
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
9002-
●
●
13
METAL; CM/SHF,NO 1
1-11611-003-2
01
1
9002-
●
●
15
METAL; CM/SHF,NO 2
1-11616-006-0
01
1
9307-
●
16
METAL; CM/SHF,NO 3
1-11617-007-1
01
1
9002-
●
●
17
METAL; CM/SHF,NO 4
1-11618-006-1
01
1
9002-
●
●
18
METAL; CM/SHF,NO 5
1-11619-015-1
01
1
9002-
●
●
19
METAL; CM/SHF,NO 6
1-11619-018-1
01
1
9002-
●
●
20
METAL; CM/SHF,NO 7
1-11619-059-1
01
1
9002-
●
●
21
BOLT; CM/SHF METAL,NO 7
M10X22
0-28121-022-0
02
1
9002-9002
●
21
BOLT; CM/SHF METAL,NO 7
M10X22 FLANGE
0-28181-022-0
02
1
9003-
●
●
25
SCREW; CM/SHF METAL
M8X31
1-09129-004-2
05
1
9002-
●
25
SCREW; CM/SHF METAL
M8X31
1-09129-004-2
06
1
9307-
●
26
GASKET; SET SCREW
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
05
1
9002-
●
26
GASKET; SET SCREW
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
06
1
9307-
●
27
SCREW; CM/SHF METAL
M4X14 W/LK WASHER
9-03910-414-0
08
1
9002-
●
27
SCREW; CM/SHF METAL
M4X14 W/LK WASHER
9-03910-414-0
10
1
9307-
●
53
SHAFT; ROCKER ARM
1-12621-011-1
02
1
9002-
●
53
SHAFT; ROCKER ARM
1-12621-012-1
02
1
9307-
●
55
PLUG; ROCKER SHAFT END
OD=16
9-11129-081-0
04
1
9002-
●
●
57
BOLT; ROCKER ARM BRKT
M8X13,M10X70 L=90
1-09029-024-2
08
1
9002-
●
57
BOLT; ROCKER ARM BRKT
M8X13,M10X70 L=90
1-09029-024-2
10
1
9307-
●
58
BRACKET; ROCKER SHAFT,FRT
1-12628-048-0
02
1
9002-
●
●
65
COLLAR; SPLIT
1-12565-007-0
40
1
9002-
●
65
COLLAR; SPLIT
1-12565-007-0
48
1
9307-
●
69
SPRING; VLV,OUTER
EXHAUST
1-12561-074-0
10
1
9002-
●
69
SPRING; VLV,OUTER
INLET
1-12561-075-0
10
1
9002-
●
69
SPRING; VLV,OUTER
EXHAUST
1-12561-074-0
12
1
9307-
●
69
SPRING; VLV,OUTER
INLET
1-12561-075-0
12
1
9307-
●
70
SPRING; VLV,INNER
EXHAUST
1-12562-046-0
10
1
9002-
●
70
SPRING; VLV,INNER
INLET
1-12562-047-0
10
1
9002-
●
70
SPRING; VLV,INNER
EXHAUST
1-12562-046-0
12
1
9307-
●
70
SPRING; VLV,INNER
INLET
1-12562-047-0
12
1
9307-
●
71
SEAT; SPR
(A) INLET
1-12563-027-0
10
1
9002-
●
71
SEAT; SPR
(A) EXHAUST
1-12563-034-1
10
1
9002-
●
71
SEAT; SPR
(B)
1-12563-049-0
20
1
9002-
●
71
SEAT; SPR
(A) INLET
1-12563-027-0
12
1
9307-
●
71
SEAT; SPR
(A) EXHAUST
1-12563-034-1
12
1
9307-
●
71
SEAT; SPR
(B)
1-12563-049-0
24
1
9307-
●
75
BOLT; BRKT
(B) M8X13,M10X70 L=90
1-09029-024-2
02
1
9002-
●
●
75
BOLT; BRKT
(A) M10X70
9-01661-070-0
02
1
9002-
●
●
76
WASHER; PL,BRKT
ID=10
1-09503-033-1
12
1
9002-
●
76
WASHER; PL,BRKT
ID=10
1-09503-033-1
14
1
9307-
●
78
ARM; ROCKER
INLET
1-12611-184-0
10
1
9002-9401
●
78
ARM; ROCKER
INLET
1-12611-266-0
10
1
9402-
●
78
ARM; ROCKER
EXHAUST
1-12611-186-0
10
1
9002-9401
●
78
ARM; ROCKER
EXHAUST
1-12611-267-0
10
1
9402-
●
78
ARM; ROCKER
INLET
1-12611-184-0
12
1
9307-9401
●
78
ARM; ROCKER
INLET
1-12611-266-0
12
1
9402-
●
78
ARM; ROCKER
EXHAUST
1-12611-186-0
12
1
9307-9401
●
78
ARM; ROCKER
EXHAUST
1-12611-267-0
12
1
9402-
●
81
SCREW; ADJ,ROCKER ARM
1-12616-001-0
20
1
9002-
●
81
SCREW; ADJ,ROCKER ARM
1-12616-001-0
24
1
9307-
●
83
NUT; ADJ SCREW,LK
M10
9-09840-310-0
20
1
9002-
●
83
NUT; ADJ SCREW,LK
M10
9-09840-310-0
24
1
9307-
●
84
BRACKET; ROCKER SHAFT,INTER
1-12628-012-1
04
1
9002-
●
●
88
ROD; PUSH
1-12575-048-1
20
1
9002-
●
88
ROD; PUSH
1-12575-048-1
24
1
9307-
●
89
TAPPET; VLV
1-12571-221-0
20
1
9002-9505
●
89
TAPPET; VLV
1-12571-228-4
20
1
9506-
●
89
TAPPET; VLV
1-12571-221-0
24
1
9307-9505
●
89
TAPPET; VLV
1-12571-228-4
24
1
9506-
●
93
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
9002-
●
●
95
SPRING; ROCKER SHAFT
9-09941-218-0
10
1
9002-
●
95
SPRING; ROCKER SHAFT
9-09941-218-0
12
1
9307-
●
96
BRACKET; ROCKER ARM SHAFT
1-12628-011-1
04
1
9002-
●
96
BRACKET; ROCKER ARM SHAFT
1-12628-011-1
06
1
9307-
●
97
BRACKET; ROCKER SHAFT,RR
1-12628-006-2
02
1
9002-
●
●
98
PIN; SHAFT SET
9-08160-430-0
02
1
9002-
●
●
105
BOLT; IDLE GEAR SHAFT
M16X94 FLANGE
1-09070-031-1
01
1
9002-
●
●
106
WASHER; IDLE GEAR SHAFT
ID=16.2
1-09503-022-1
01
1
9002-9306
●
●
106
WASHER; IDLE GEAR SHAFT
ID=16.2
1-09503-022-1
01
1
9307-
●
●
107
SHAFT; IDLE GEAR
1-12531-015-1
01
1
9002-
●
●
108
DOWEL; SHAFT
9-12539-079-0
01
1
9002-
●
●
110
GEAR ASM; IDLE
1-12523-123-0
01
1
9002-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
