4-60 — REAR SUSPENSION (#34819) — 113 parça

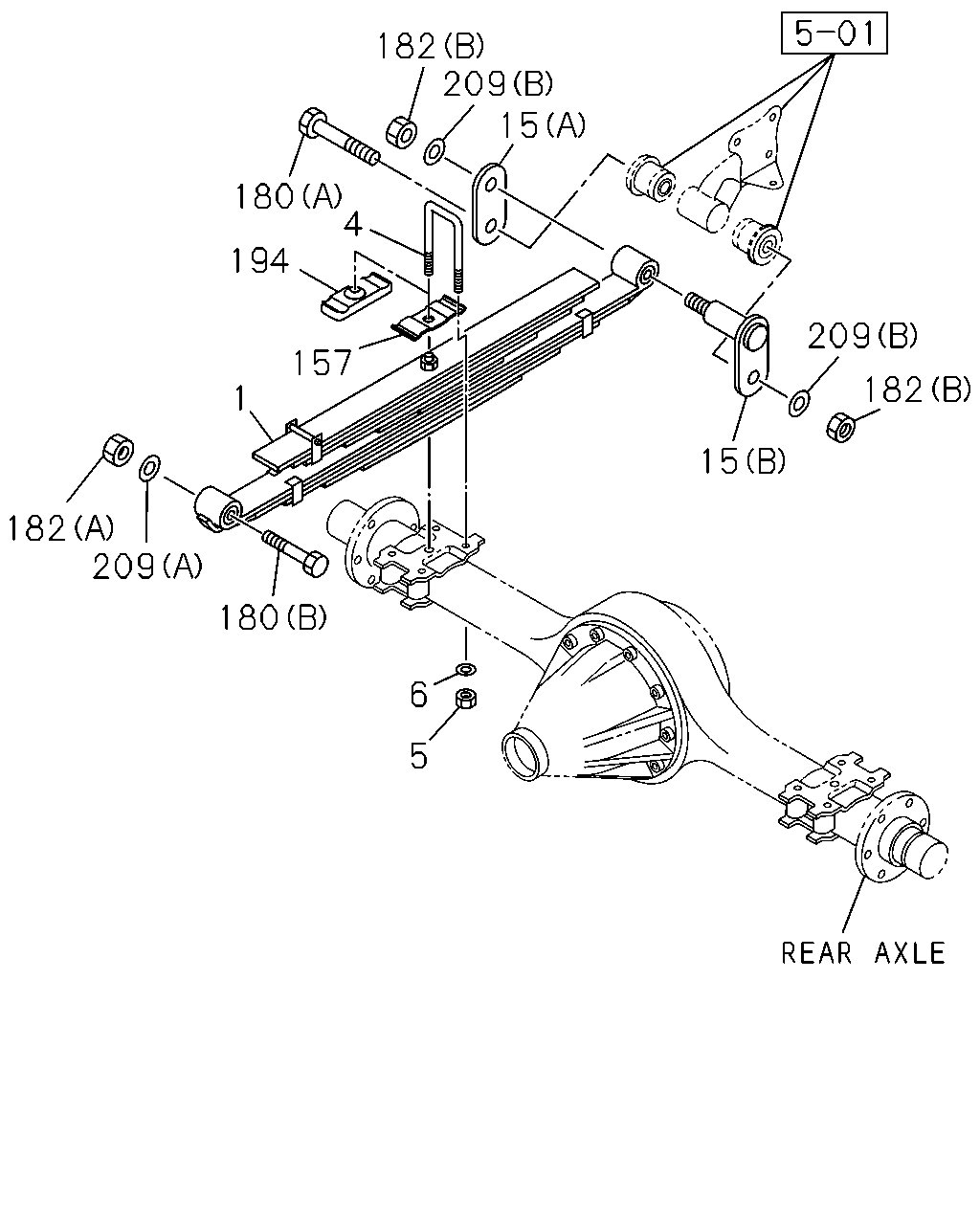

çizim 33562
182 209 15 180 4 194 209 157 182 1 15 182 209 180 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97174-306-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 9-LEAF 		8-97174-306-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97349-300-0 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-97349-300-0 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 12-LEAF 		8-97225-581-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) 12-LEAF 		8-97287-992-0 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		8-97287-992-0 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 12-LEAF 		8-97174-307-0 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> 12-LEAF 		8-97122-382-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		8-97122-382-0 02 1 0211-0501 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> 12-LEAF 		8-97122-382-0 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		8-97122-382-0 02 1 0502- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) EXC. STABILIZER REAR<GN1> 12-LEAF 		8-97096-576-0 02 1 0211- ●
4 07.516 U-BOLT; RR SPR
L=285 		8-97141-874-0 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) L=285 		8-97141-874-0 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
L=315 		1-51371-194-2 04 1 0502- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) L=315 		1-51371-194-2 04 1 0502- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) L=295 		8-94132-358-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) L=305 		8-94412-505-0 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
L=305 		8-94412-505-0 04 1 0211-0501 ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) L=345 		1-51371-195-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) L=345 		1-51371-195-2 04 1 0502- ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 0502- ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) M18 FLANGE 		1-09440-039-1 08 1 0211-0501 ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0211-0501 ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0502- ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0211-0501 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) 07.516 M16 		8-94107-767-0 08 1 0211-0501 ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0211-0501 ● ● ●
6 07.516 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 292MM(G73) ID=16.4 		8-94137-482-1 08 1 0211-0501 ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0211- ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 0211-0611 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0612- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 0211-0501 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) L=140 T=4.5 		8-94118-509-1 02 1 0211-0501 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0211-0610 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0611- ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0211-0610 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0611- ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0211-0611 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0612- ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0211-0611 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0612- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (B) M16 		9-99110-516-0 04 1 0211-0512 ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (A) M18 		9-99110-518-0 02 1 0211-0512 ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M18 		0-91110-518-0 02 1 0601- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE 		8-97147-389-0 04 1 0211-0610 ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (B) M16 FLANGE 		8-97360-125-0 04 1 0611- ● ● ● ● ●
194 07.158 PAD; CONTACT
REAR AXLE HEAVY DUTY 320MM(6CP) 07.518 		1-51372-059-0 02 1 0211-0501 ●
194 07.158 PAD; CONTACT
07.518 		1-51372-059-0 02 1 0211-0501 ●
194 07.158 PAD; CONTACT
07.518 		1-51372-059-0 02 1 0502- ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5 		8-97070-925-1 04 1 0211-0611 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 0612- ● ● ● ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97073-435-1 02 1 0211-0611 ● ● ● ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97360-119-0 02 1 0612- ● ● ● ● ●
çizim 33659
227 230 225 317 323 62 25 318 323 314 274 294 308 320 285 285 318 308 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97225-578-0 01 1 0211-0912 ●
25 07.241 BAR ASM; STAB,RR SUSP 8-97225-578-0 01 1 0211-0912 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1001- ●
25 07.241 BAR ASM; STAB,RR SUSP 8-98067-239-0 01 1 1001- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 0211- ●
62 07.243 BUSHING; LINK ROD 8-97239-911-0 02 1 0211- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0211-1103 ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104- ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0602 ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ● ● ●
230 07.518 SPACER; CUSHION RUBBER
STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) 		8-97136-852-0 02 1 0211- ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0211- ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 0211- ●
274 07.243 BUSHING; RR STAB BAR TO LINK 8-94440-793-0 02 1 0211- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 0211- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
L=18 		8-97089-556-0 02 1 0211- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 0211- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
L=29 		8-97089-557-0 02 1 0211- ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 0211-0610 ●
294 07.242 BOLT; STAB BAR TO RR AXLE
04.686 		8-94342-082-0 02 1 0211-0610 ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 		8-97360-120-0 02 1 0611- ●
294 07.242 BOLT; STAB BAR TO RR AXLE 8-97360-120-0 02 1 0611- ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 0211-0610 ●
308 07.243 PLATE; END,RUBBER BUSHING
07.242 		8-94342-084-0 04 1 0211-0610 ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-97360-055-0 04 1 0611- ●
308 07.243 PLATE; END,RUBBER BUSHING
07.242 		8-97360-055-0 04 1 0611- ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 0211-0603 ●
314 07.242 WASHER; LK,STAB TO BRKT
00.796 ID=14.2 		9-09150-514-0 02 1 0211-0603 ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 05.605 ID=14.2 		0-91510-514-0 02 1 0604- ●
314 07.242 WASHER; LK,STAB TO BRKT
05.605 ID=14.2 		0-91510-514-0 02 1 0604- ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 0211- ●
317 07.240 ROD LINK ASM; STABILIZER,RR 8-97239-907-0 02 1 0211- ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ●
318 07.242 BOLT; LINK ROD
03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 00.029 (B) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
318 07.242 BOLT; LINK ROD
00.029 (B) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 0211-0512 ●
318 07.242 BOLT; LINK ROD
(A) M14X70 FLANGE 		0-28881-470-0 02 1 0211-0512 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28851-470-0 02 1 0601- ●
318 07.242 BOLT; LINK ROD
(A) M14X70 FLANGE 		0-28851-470-0 02 1 0601- ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 0211- ●
320 07.242 CAP; LINK ROD 8-94178-430-2 02 1 0211- ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 0211-0306 ●
323 07.242 NUT; LINK ROD
03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 0211-0306 ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 07.417 (A) M14 FLANGE 		8-94137-483-0 02 1 0307-0610 ●
323 07.242 NUT; LINK ROD
07.417 (A) M14 FLANGE 		8-94137-483-0 02 1 0307-0610 ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 06.174 (A) M14 FLANGE 		8-97360-124-0 02 1 0611- ●
323 07.242 NUT; LINK ROD
06.174 (A) M14 FLANGE 		8-97360-124-0 02 1 0611- ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
323 07.242 NUT; LINK ROD
08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
323 07.242 NUT; LINK ROD
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 0211-0603 ●
330 07.242 NUT; STAB
08.917 M12 LOCK NUT 		9-09131-512-0 02 1 0211-0603 ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 0604- ●
330 07.242 NUT; STAB
M12 LOCK NUT 		0-91370-012-0 02 1 0604- ●
