4-55A — FRONT LEAF SPRING (#34817) — 13 parça

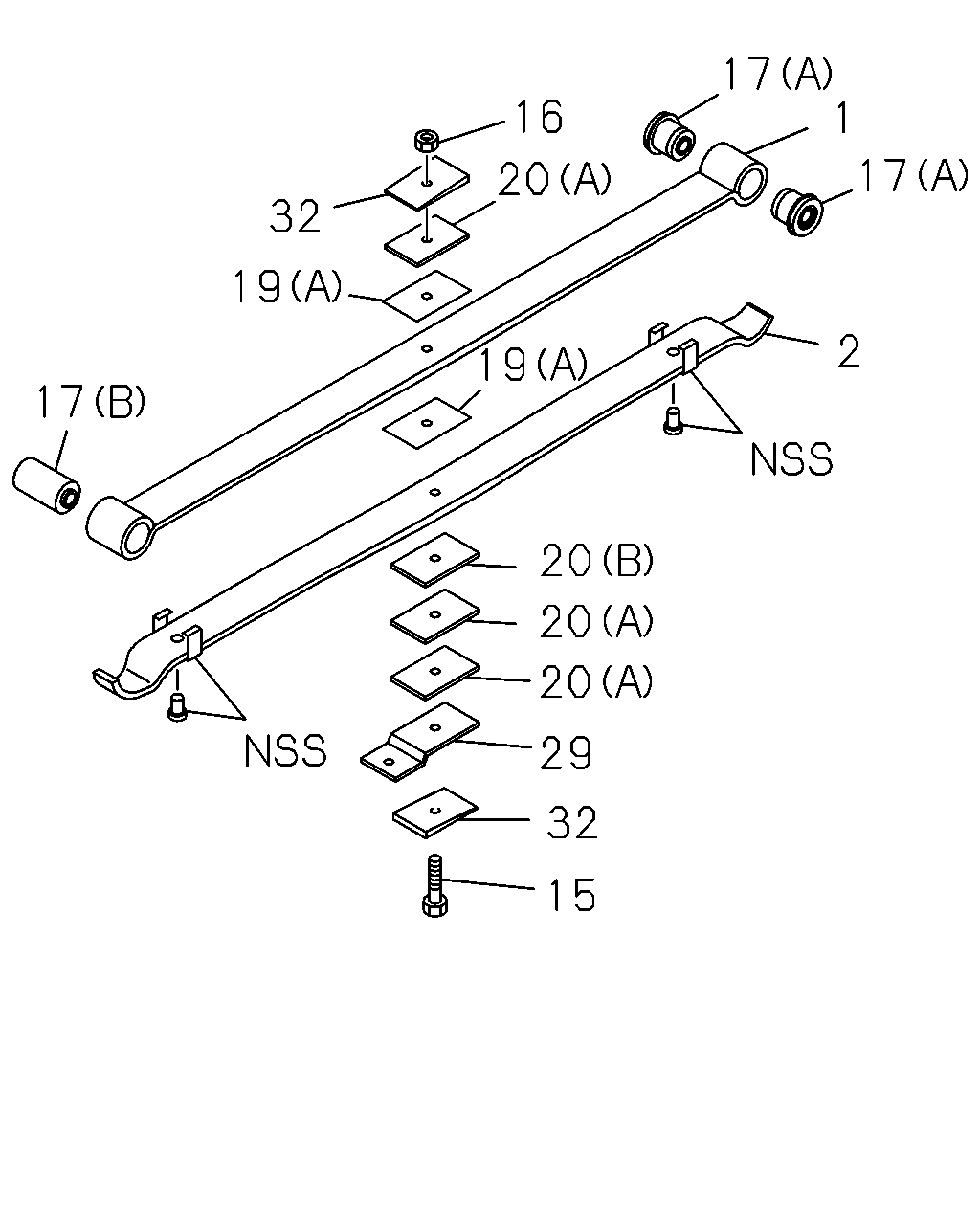

çizim 33833
17 1 16 17 20 32 19 2 19 17 20 20 20 29 32 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97333-819-0, 97333819 		8-97373-688-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97333-820-0, 97333820 		8-97373-690-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97333-819-0, 97333819 		8-97373-689-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97333-820-0, 97333820 		8-97373-691-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-94165-284-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-97084-845-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-97353-792-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-97353-793-0 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-97141-927-1 01 1 -
32 07.425 PLATE; CASTER
ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820 		8-97164-386-2 02 1 -
