4-50 — FRONT SUSPENSION (#34816) — 82 parça

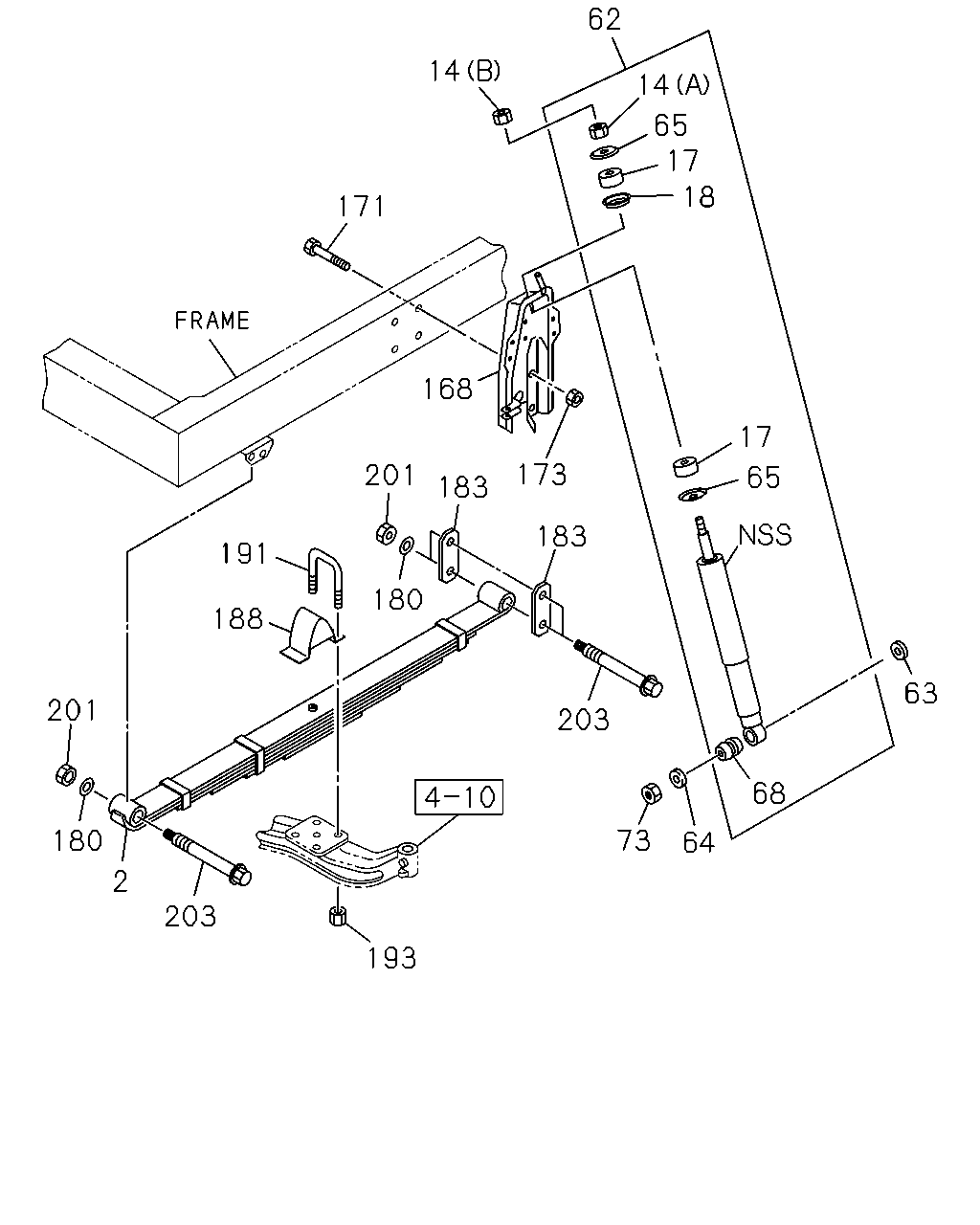

çizim 33561
62 14 14 65 17 18 171 168 17 173 201 65 183 183 191 180 188 63 201 203 68 73 180 64 2 203 193
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97333-819-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 2-LEAF 		8-97333-819-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97333-820-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 2-LEAF 		8-97333-820-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97202-806-0 01 1 0211-0301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-97202-806-0 01 1 0211-0301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97202-806-0 01 1 0302-0501 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-97202-806-0 01 1 0302-0501 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-97202-806-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97202-806-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97351-338-1 01 1 0211-0301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-97351-338-1 01 1 0211-0301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97351-338-1 01 1 0302-0501 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-97351-338-1 01 1 0302-0501 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-97351-338-1 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97351-338-1 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 6-LEAF 		8-97287-990-0 01 1 0211-0301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-990-0 01 1 0211-0301 ● ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 6-LEAF 		8-97287-990-0 01 1 0302-0501 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-990-0 01 1 0302-0501 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 6-LEAF 		8-97287-990-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-990-0 01 1 0502- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 6-LEAF 		8-97287-991-0 01 1 0211-0301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-991-0 01 1 0211-0301 ● ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 6-LEAF 		8-97287-991-0 01 1 0302-0501 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-991-0 01 1 0302-0501 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 6-LEAF 		8-97287-991-0 01 1 0502- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-991-0 01 1 0502- ● ●
14 07.389 NUT; S/ABS,UPR
(B) M10 T=6 		9-09640-021-0 02 1 0211-0306 ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
(A) M10 T=8 		9-09640-020-0 02 1 0211- ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0211- ● ● ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
ID=13 OD=38 		9-51631-063-0 02 1 0211-0307 ● ● ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0308- ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97287-995-0 02 1 0211-0307 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97367-351-0 02 1 0308-0501 ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97376-928-0 02 1 0502- ● ● ● ● ●
63 07.347 WASHER; PL,S/ABS,LWR
08.929 ID=21 OD=40 		9-09164-620-0 02 1 0211-0605 ● ● ● ● ●
63 07.347 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		0-91614-620-0 02 1 0606- ● ● ● ● ●
64 07.347 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 0211-0611 ● ● ● ● ●
64 07.347 WASHER; S/ABS,LWR
ID=15 		8-97360-056-0 02 1 0612- ● ● ● ● ●
65 07.347 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0211- ● ● ● ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0211- ● ● ● ● ●
73 07.347 NUT; BRKT,SHOCK
06.232 M14 		9-99110-414-0 02 1 0211-0512 ● ● ● ● ●
73 07.347 NUT; BRKT,SHOCK
07.833 M14 		0-91110-514-0 02 1 0601- ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97102-611-2 01 1 0211-0501 ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97365-363-0 01 1 0502- ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97240-796-1 01 1 0211-0501 ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97365-362-0 01 1 0502- ● ● ● ● ●
171 07.395 BOLT; S/ABS BRKT
07.632 M12X35 FLANGE 		0-28681-235-0 08 1 0211-0512 ● ● ● ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ● ● ● ●
173 07.395 NUT; S/ABS
06.606 M12 		8-94139-015-0 08 1 0211-0610 ● ● ● ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 0611- ● ● ● ● ●
180 07.347 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 06 1 0211-0611 ● ● ● ● ●
180 07.347 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> 07.427 ID=16.5 		8-98011-489-0 06 1 0612- ● ● ● ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0211- ● ● ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94422-380-4 02 1 0211- ● ● ● ● ●
191 07.417 U-BOLT; FRT SPR
L=125 		8-94119-671-4 04 1 0211-0501 ● ● ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) L=125 		8-94119-671-4 04 1 0211-0501 ●
191 07.417 U-BOLT; FRT SPR
L=125 		8-94119-671-5 04 1 0502- ● ● ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=125 		8-94119-671-5 04 1 0502- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ) L=135 		9-51171-073-2 04 1 0211- ●
191 07.417 U-BOLT; FRT SPR
L=135 		9-51171-073-2 04 1 0211- ●
193 07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ) M16 		1-09440-028-1 08 1 0211-0502 ●
193 07.417 NUT; U BOLT
M16 		1-09440-028-1 08 1 0211-0502 ●
193 07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ) 07.516 M16 		8-94107-767-0 08 1 0503-0611 ●
193 07.417 NUT; U BOLT
07.516 M16 		8-94107-767-0 08 1 0503-0611 ●
193 07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ) M16 		8-97360-121-0 08 1 0612- ●
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 0612- ●
193 07.417 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0211-0501 ● ● ●
193 07.417 NUT; U BOLT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M14 FLANGE 		8-94137-483-0 08 1 0211-0501 ●
193 07.417 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0502-0610 ● ● ●
193 07.417 NUT; U BOLT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M14 FLANGE 		8-94137-483-0 08 1 0502-0610 ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 0611- ● ● ●
193 07.417 NUT; U BOLT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 06.174 M14 FLANGE 		8-97360-124-0 08 1 0611- ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 06 1 0211-0512 ● ● ● ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 0601- ● ● ● ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE 		8-97147-389-0 06 1 0211-0610 ● ● ● ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 0611- ● ● ● ● ●
203 07.427 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> 07.529 M16X122 FLANGE 		8-97076-850-2 06 1 0211-0610 ● ● ● ● ●
203 07.427 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 0611- ● ● ● ● ●
203 07.427 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		9-51361-602-2 06 1 0211-0611 ● ● ● ● ●
203 07.427 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 0612- ● ● ● ● ●
