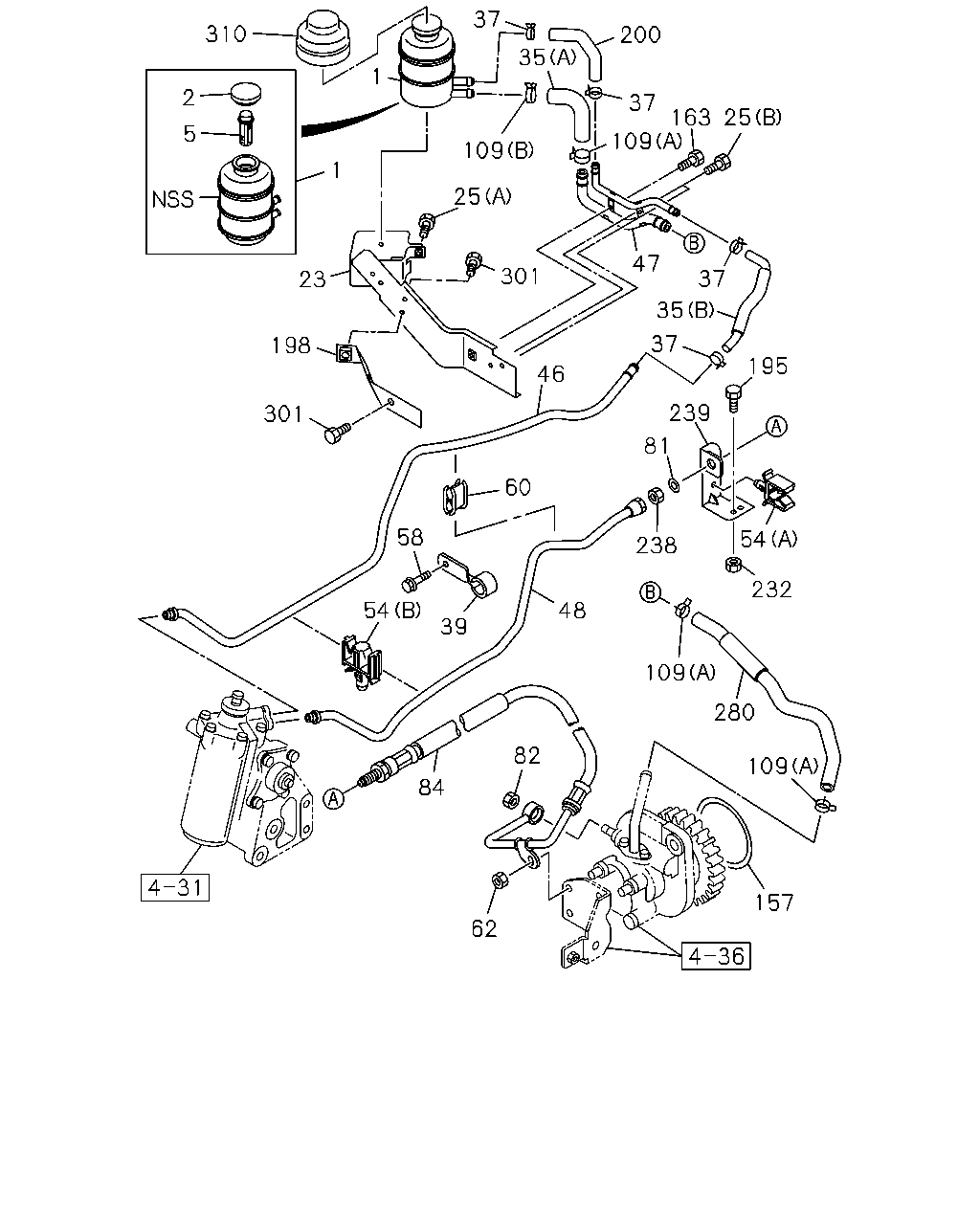

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#34812) — 71 parça

37 310 200 35 1 2 37 163 25 5 109 109 1 25 47 301 37 23 35 37 198 195 46 239 301 81 60 58 54 238 232 54 48 39 109 280 82 109 84 157 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0211-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0211-	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0211-	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0211-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0211-0512	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97080-108-1	01	1	0211-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-97096-949-1	01	1	0211-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 ID=16	8-94238-568-0	04	1	0211-0911	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 ID=16	8-98008-098-0	04	1	0912-	●	●	●	●	●
39	06.672 CLIP; FLEX HOSE 02.559 ID=28 L=60	1-09700-585-1	01	1	0211-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97262-194-0	01	1	0211-0501	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97386-419-0	01	1	0502-0510	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98025-821-0	01	1	0511-	●	●	●	●	●
47	06.671 PIPE; RETURN	8-97040-001-2	01	1	0211-0402	●	●	●	●	●
47	06.671 PIPE; RETURN	8-97378-860-0	01	1	0403-	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97257-458-0	01	1	0211-0501	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97386-420-0	01	1	0502-	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-0501	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0502-	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0502-	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0211-	●	●	●	●	●
58	06.672 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●
62	06.670 NUT; CLIP FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●
62	06.670 NUT; CLIP FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0211-0603	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0211-	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY)	8-97218-728-0	01	1	0211-0301	●		●		●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97218-728-0	01	1	0211-0301		●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY)	8-97358-337-0	01	1	0302-0501	●		●		●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97358-337-0	01	1	0302-0501		●
84	06.670 HOSE; FLEX,P/S 4HK1-TCN ENG(RDQ)	8-97358-337-2	01	1	0502-	●
84	06.670 HOSE; FLEX,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97358-337-2	01	1	0502-		●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97330-041-1	01	1	0211-0301		●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY)	8-97330-041-1	01	1	0211-0301				●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97358-387-0	01	1	0302-0501		●
84	06.670 HOSE; FLEX,P/S 4HE1 ENG(RLY)	8-97358-387-0	01	1	0302-0501				●
84	06.670 HOSE; FLEX,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ>	8-97358-387-2	01	1	0502-		●
84	06.670 HOSE; FLEX,P/S 4HK1-TCN ENG(RDQ)	8-97358-387-2	01	1	0502-			●		●
84	06.670 HOSE; FLEX,P/S 4HK1-TCS ENG(RJS)	8-97358-387-2	01	1	0502-				●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	0211-0911	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	03	1	0912-	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0211-1003	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0211-	●	●	●	●	●
163	06.671 BOLT; OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
195	06.635 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0211-	●	●	●	●	●
200	06.670 HOSE; RUBBER,RETURN	8-97080-109-0	01	1	0211-	●	●	●	●	●
232	06.672 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0211-	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-97033-926-2	01	1	0211-	●	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-97218-730-0	01	1	0211-0501	●		●		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97218-730-0	01	1	0211-0501		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-97218-730-0	01	1	0502-	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97218-730-0	01	1	0502-		●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER<7QQ>	8-97218-729-0	01	1	0211-0501		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-97218-729-0	01	1	0211-0501				●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER<7QQ>	8-97218-729-0	01	1	0502-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-97218-729-0	01	1	0502-			●	●	●
301	06.672 BOLT; STAY,OIL TANK 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0211-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
