Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#34808) — 13 parça
◀

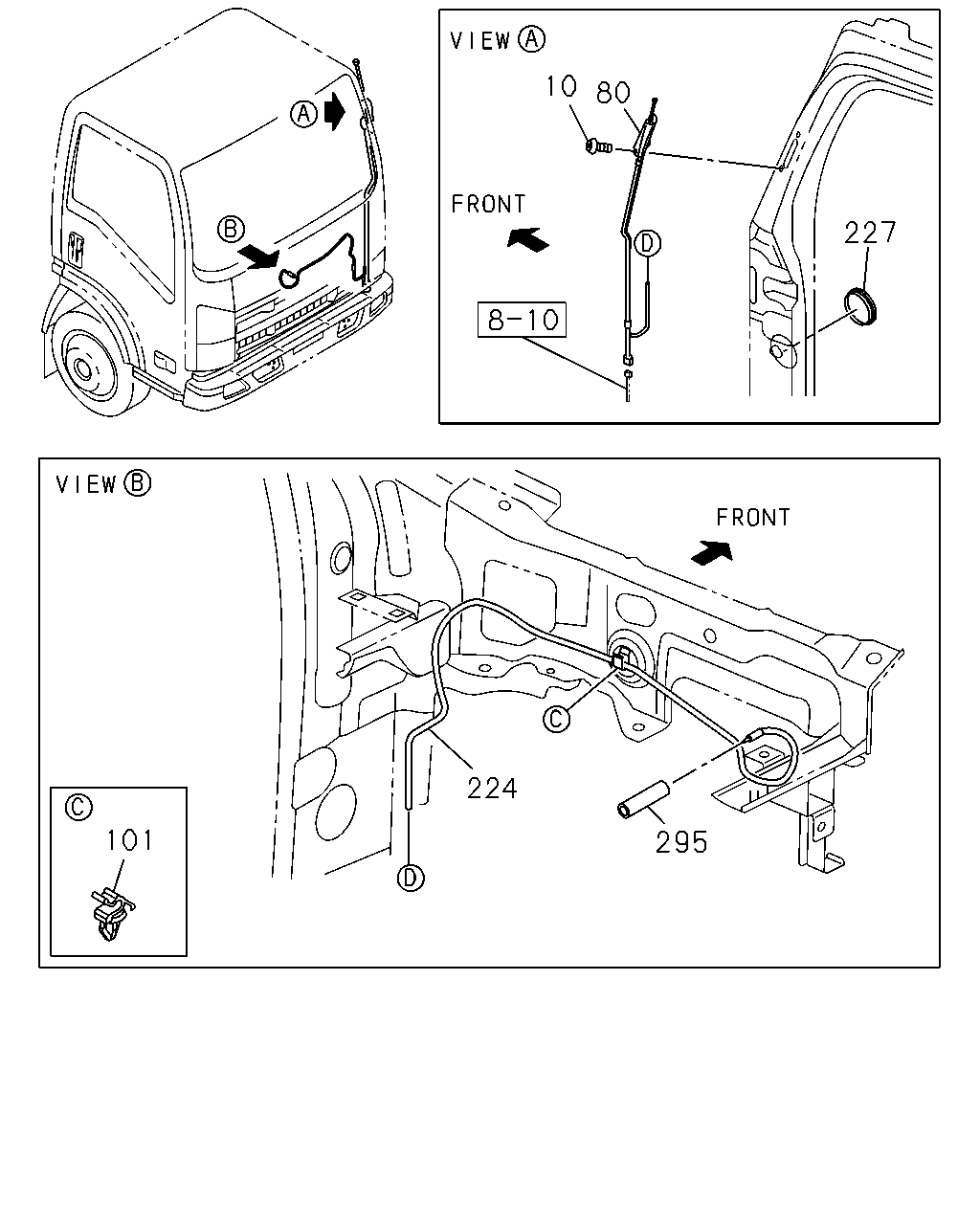

[890A] NO.1 (7 parça)
[890A] NO.2 (6 parça)
▶
10
80
227
224
101
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
0803-
80
09.645 ANTENNA
8-97387-265-3
01
1
0803-
101
09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.342 ID=6.5
5-09709-117-0
01
1
0803-
101
09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.647 ID=4.8
8-94128-483-0
01
1
0803-
224
09.647 CABLE; EXT,FEEDER
8-98029-970-1
01
1
0808-
227
09.647 PROTECTOR; EDGE
8-98053-117-0
01
1
0803-
295
09.665 INSULATOR; ANTENNA
8-98095-617-1
01
1
0803-
36
226
6
36
33
6
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
09.645 BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
0808-
33
09.650 COVER; RADIO
BLACK
8-97407-896-2
01
1
0808-
36
09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
0808-
226
09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
0808-1101
226
09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET
8-98177-743-0
02
1
1102-1212
226
09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1301-
