◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#34801) — 45 parça

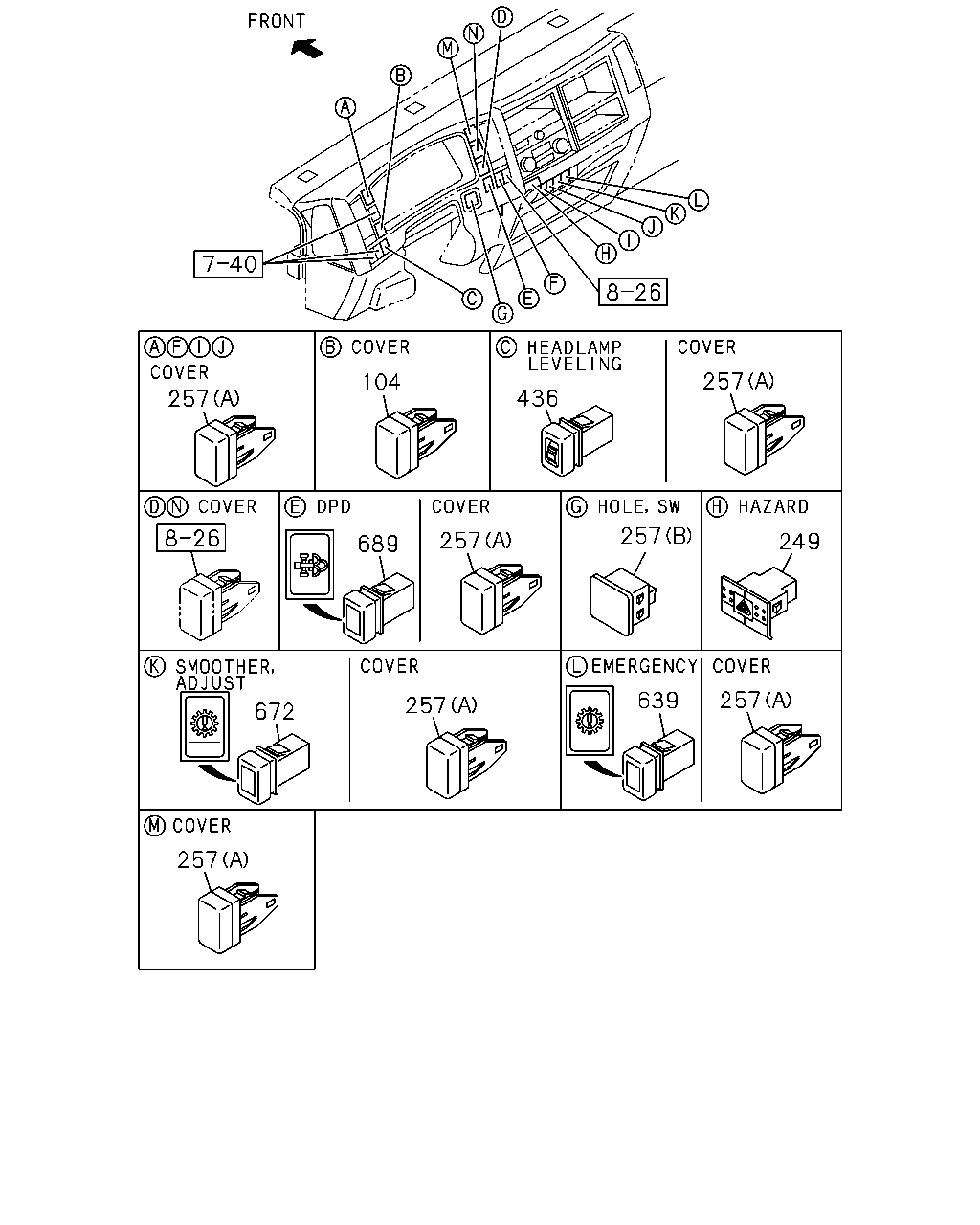

çizim 120698
257 257 104 436 257 257 249 689 257 639 257 672 257
BalonParca AdiParca NoAdetTipApplied Date
104 09.778 COVER; SW HOLE,FOG LAMP
16.081 		8-98025-954-1 01 1 0803-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0803-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0803-0906
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0803-
257 16.081 COVER; HOLE,SW
(A) 		8-98029-917-0 02 1 0803-0807
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0803-0906
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907-
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 0803-
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0803-0806
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807-
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-971-2 01 1 0803-0806
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0807-
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 0803-
çizim 120702
608 315
BalonParca AdiParca NoAdetTipApplied Date
315 09.277 RELAY; EXH BRAKE CONT
EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITUBA 		8-97238-540-0 01 1 0803-1402
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-

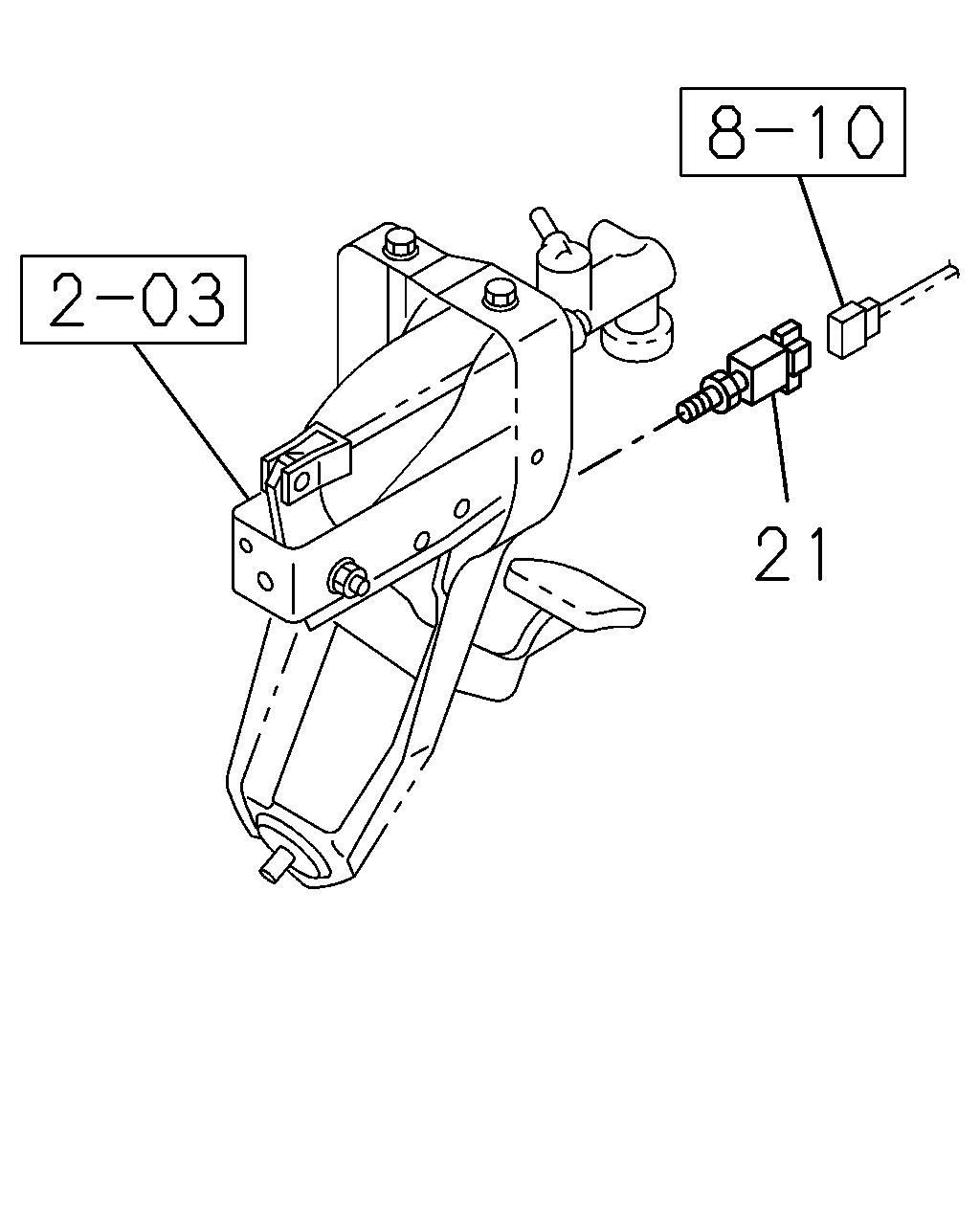

çizim 120712
21
BalonParca AdiParca NoAdetTipApplied Date
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0803-

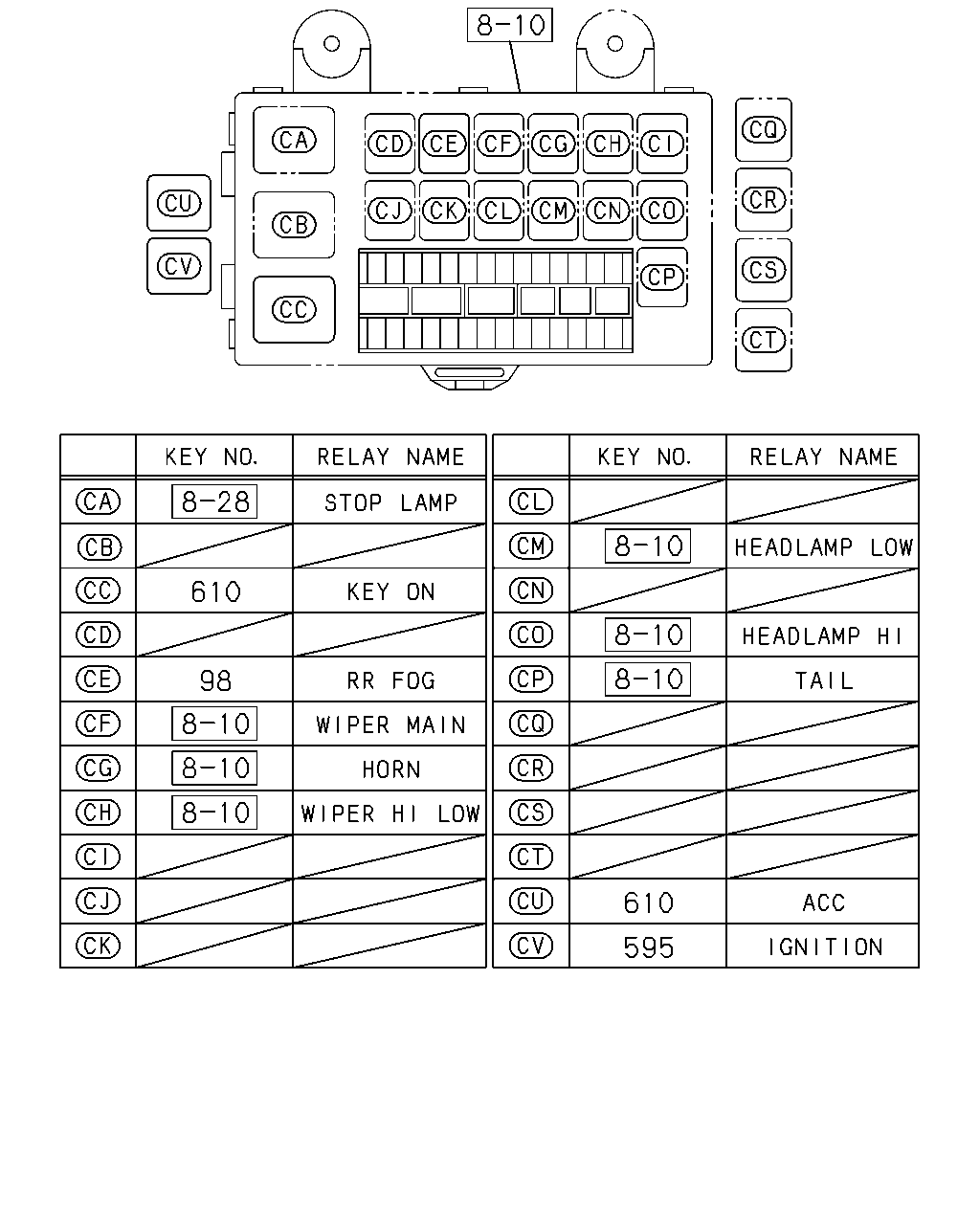

çizim 120714
610 98 610 595
BalonParca AdiParca NoAdetTipApplied Date
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
595 02.510 RELAY; IGNITION
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-1204
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-

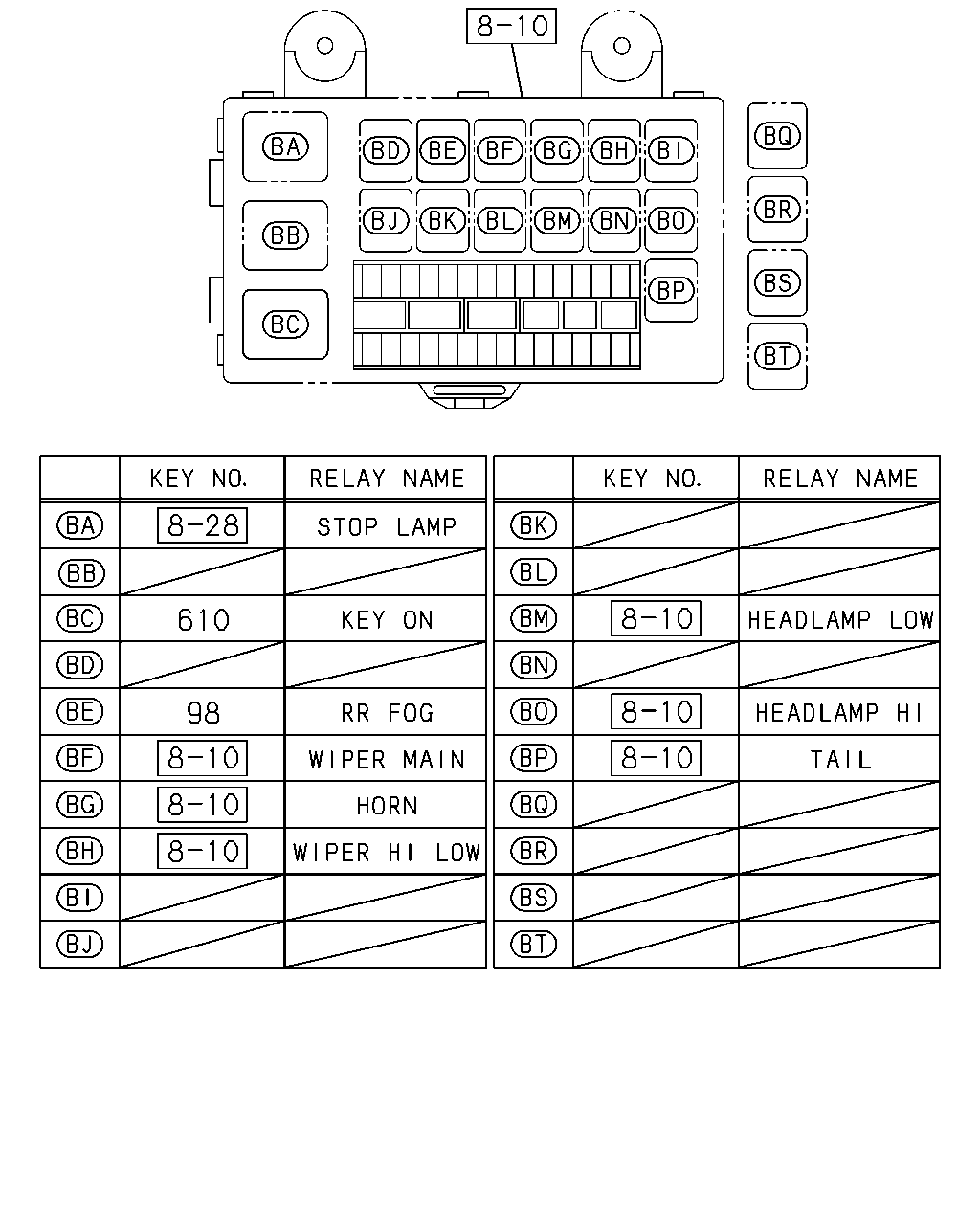

çizim 120737
610 98
BalonParca AdiParca NoAdetTipApplied Date
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-1204
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-

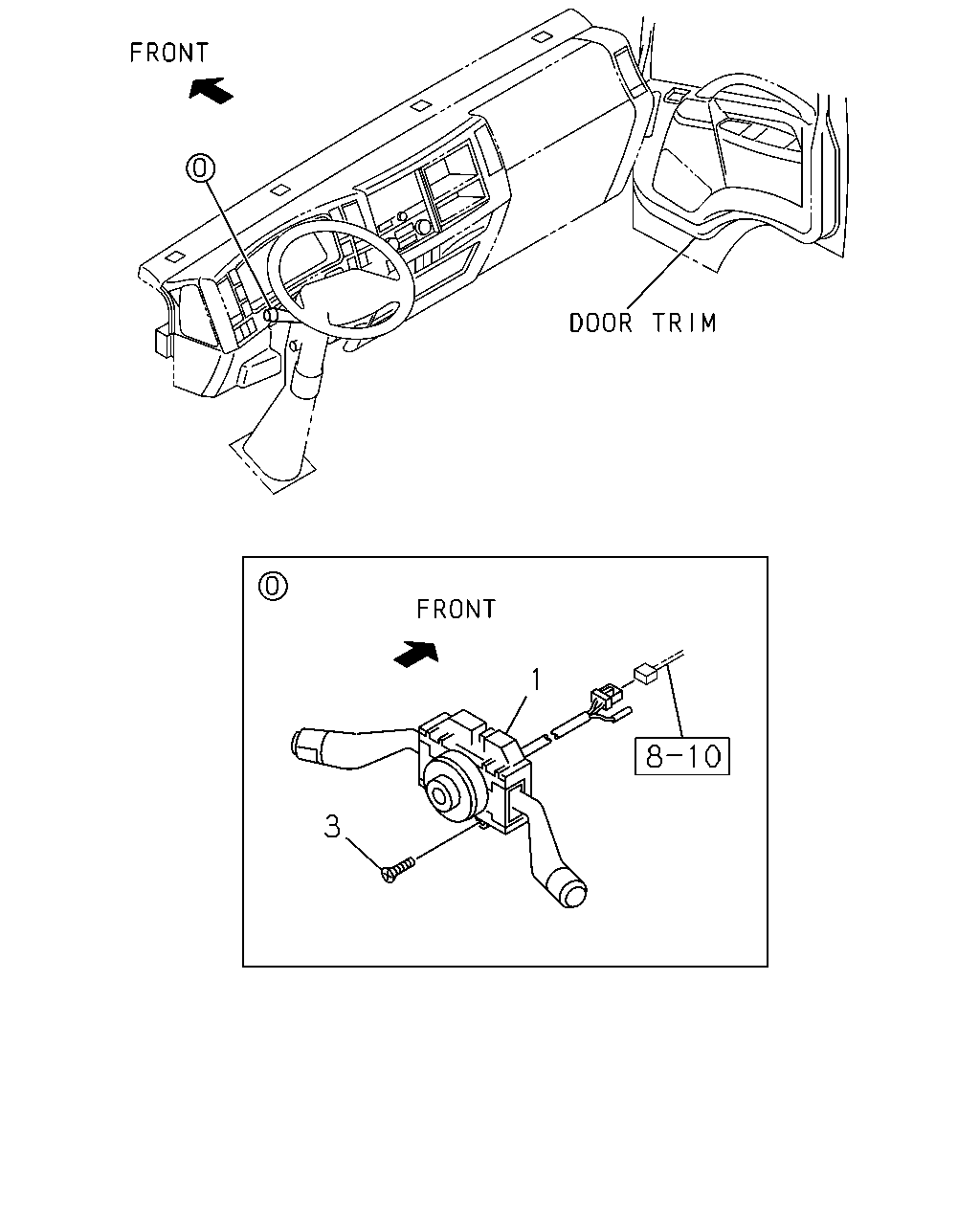

çizim 283383
1 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> 		8-98070-007-2 01 1 0803-1310
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> 		8-98243-750-0 01 1 1311-
1 02.895 SWITCH; COMB
EXC. RR FOG LAMP<T79> 		8-98070-008-2 01 1 0803-1310
1 02.895 SWITCH; COMB
EXC. RR FOG LAMP<T79> 		8-98243-748-0 01 1 1311-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0803-
