◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#34800) — 45 parça

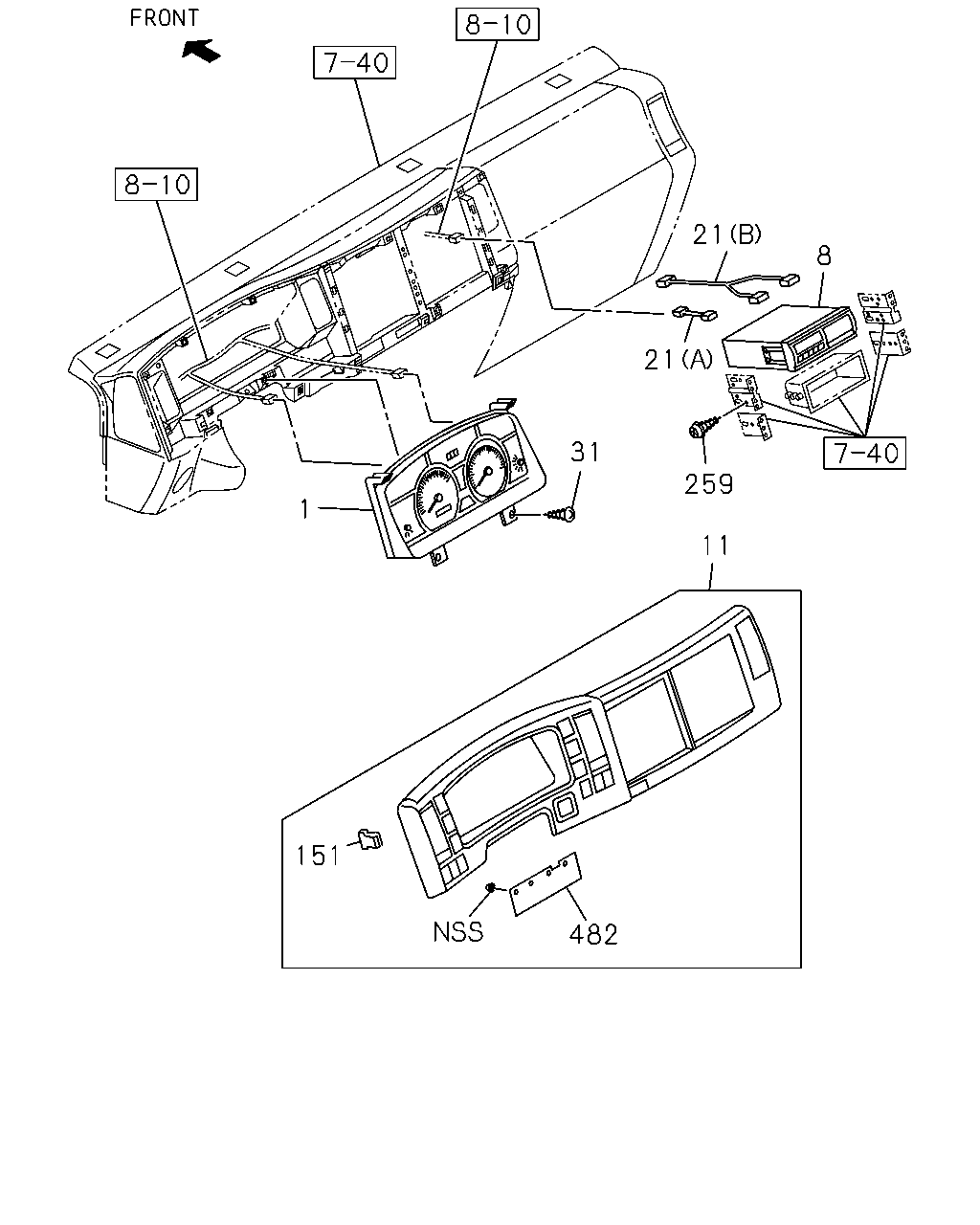

çizim 120703
482 151 11 259 21 31 1 8 21
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-255-1 01 1 0803-0809
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-675-3 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 0803-
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98021-251-4 01 1 0803-
1 09.735 METER COMPL; CLUSTER
EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-256-1 01 1 0803-0809
1 09.735 METER COMPL; CLUSTER
EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-677-0 01 1 0810-0904
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-677-3 01 1 0905-
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 0803-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 0803-
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> (A) 		8-98074-077-0 01 1 0803-1204
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98201-154-0 01 1 1205-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803-1101
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 0803-
259 09.772 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0803-
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 0806-

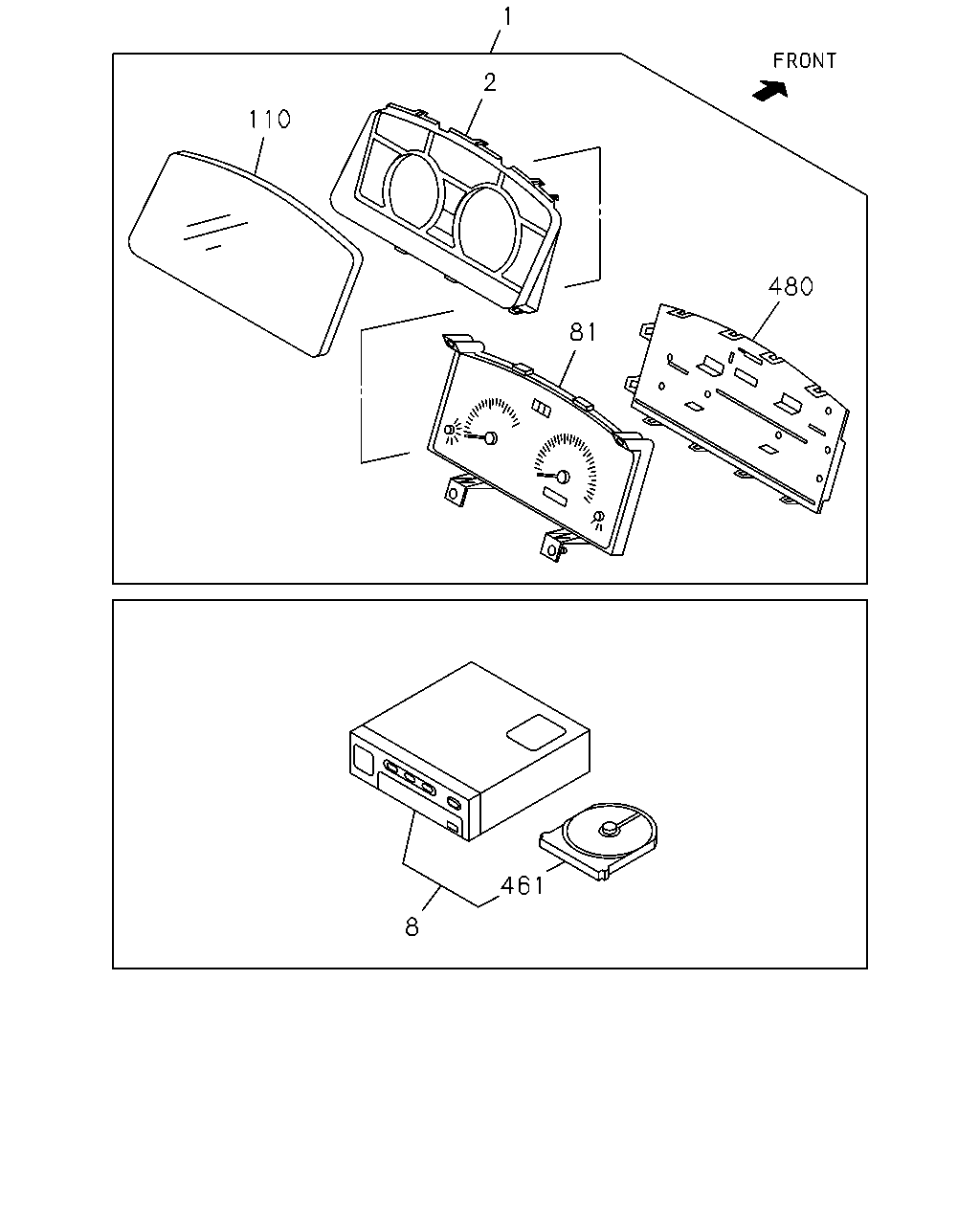

çizim 120725
1 2 110 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-255-1 01 1 0803-0809
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-675-3 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 0803-
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98021-251-4 01 1 0803-
1 09.735 METER COMPL; CLUSTER
EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-256-1 01 1 0803-0809
1 09.735 METER COMPL; CLUSTER
EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-677-0 01 1 0810-0904
1 09.735 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-677-3 01 1 0905-
2 09.735 PANEL; CLUSTER
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98054-432-0 01 1 0803-0904
2 09.735 PANEL; CLUSTER
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-432-0 01 1 0803-0904
2 09.735 PANEL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-432-0 01 1 0803-0904
2 09.735 PANEL; CLUSTER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-432-0 01 1 0905-
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 0803-
81 09.735 METER SUB ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-682-0 01 1 0803-0809
81 09.735 METER SUB ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-832-0 01 1 0810-
81 09.735 METER SUB ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98073-677-0 01 1 0803-
81 09.735 METER SUB ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98073-680-0 01 1 0803-
81 09.735 METER SUB ASM
EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98073-683-0 01 1 0803-0809
81 09.735 METER SUB ASM
EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-834-0 01 1 0810-0904
81 09.735 METER SUB ASM
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-834-0 01 1 0905-
110 09.748 GLASS; CLUSTER METER
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 0803-0904
110 09.748 GLASS; CLUSTER METER
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-431-0 01 1 0803-0904
110 09.748 GLASS; CLUSTER METER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-431-0 01 1 0803-0904
110 09.748 GLASS; CLUSTER METER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-431-0 01 1 0905-
461 09.750 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		1-83129-433-0 01 1 0803-
480 09.748 COVER; METER
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> BLACK 		8-98054-433-0 01 1 0803-0904
480 09.748 COVER; METER
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98054-433-0 01 1 0803-0904
480 09.748 COVER; METER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 		8-98054-433-0 01 1 0803-0904
480 09.748 COVER; METER
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 		8-98054-433-0 01 1 0905-
