◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13B - OIL PAN AND LEVEL GAUGE ▶
0-13B — OIL PAN AND LEVEL GAUGE (#3480) — 33 parça

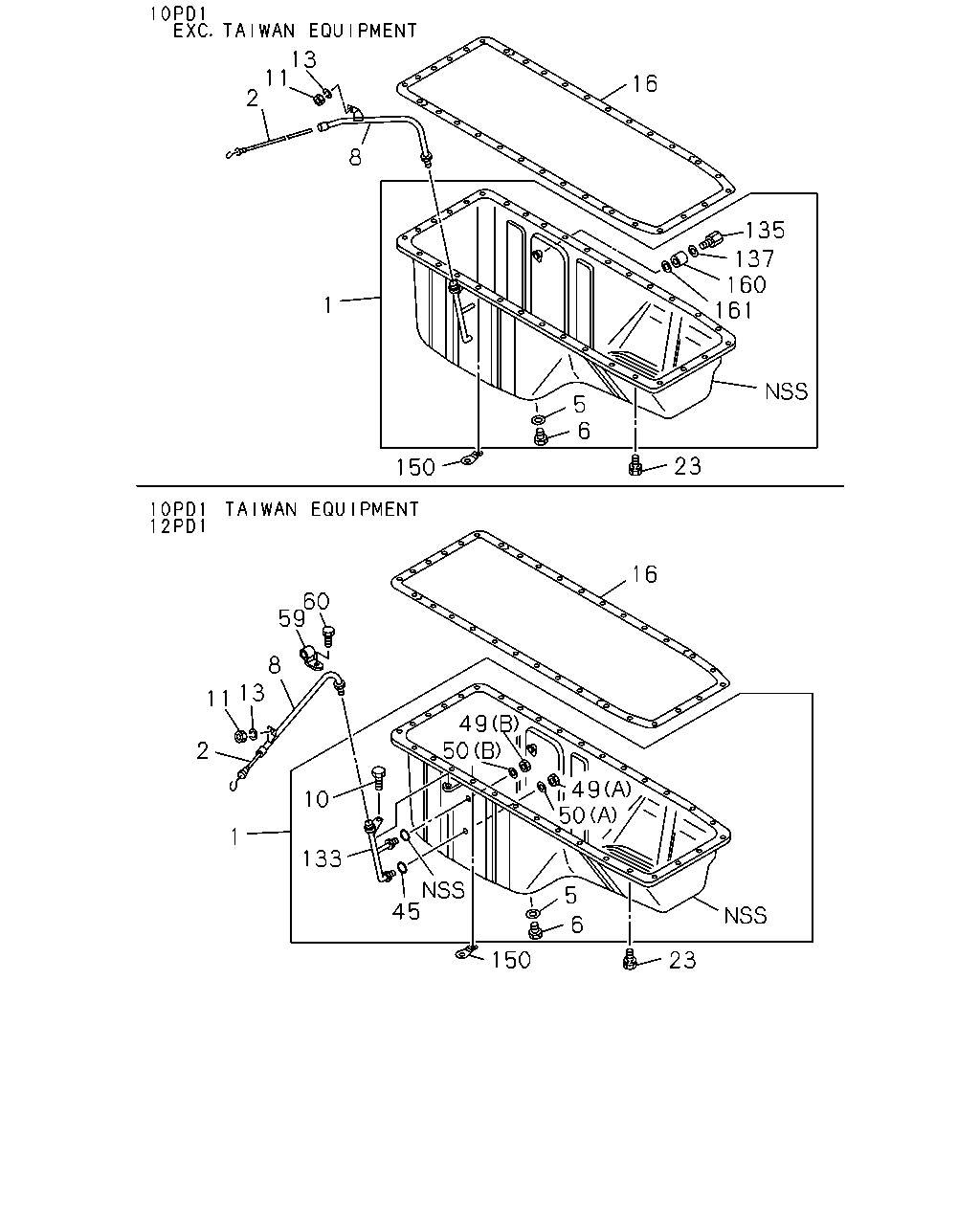

çizim 38391
13 11 2 16 8 135 137 160 161 1 5 6 23 150 16 60 59 8 13 11 49 50 49 50 2 10 1 133 45 5 6 23 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
TAIWAN EQUIPMENT(WW5) 		1-11360-694-4 01 1 9002- ●
1 PAN ASM; OIL
EXC. TAIWAN EQUIPMENT(WW5) 		1-11360-715-4 01 1 9002- ●
1 PAN ASM; OIL 1-11360-692-4 01 1 9307- ●
2 GAUGE; OIL LEVEL 1-11760-300-2 01 1 9002- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9002- ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9002- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 1-11766-293-1 01 1 9002- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 1-11766-320-1 01 1 9307-9307 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 1-11766-295-2 01 1 9308- ●
10 BOLT; GUIDE TUBE
TAIWAN EQUIPMENT(WW5) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9308- ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9002- ● ●
13 WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE
ID=8.4 OD=18 		9-09164-608-0 01 1 9002-9306 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-091-1 01 1 9002-9504 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9505- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-092-1 01 1 9307-9504 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-104-0 01 1 9505- ●
23 BOLT; OIL PAN
M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9002- ●
23 BOLT; OIL PAN
M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9002- ● ●
23 BOLT; OIL PAN
M8X18 W/LK&PL WASHER 		1-09030-004-0 26 1 9307- ●
45 GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5) ID=10.8 		1-09623-274-0 01 1 9308- ● ●
49 NUT; GUIDE TUBE
TAIWAN EQUIPMENT(WW5) (A) M22 		9-09111-422-0 01 1 9308- ● ●
49 NUT; GUIDE TUBE
TAIWAN EQUIPMENT(WW5) (B) M14 		9-99111-414-0 01 1 9308- ● ●
50 WASHER; PL,GUIDE TUBE
TAIWAN EQUIPMENT(WW5) (B) ID=15 OD=30 		9-09160-614-0 01 1 9308- ● ●
50 WASHER; PL,GUIDE TUBE
TAIWAN EQUIPMENT(WW5) (A) ID=23 OD=44 		9-09160-622-0 01 1 9308- ● ●
59 CLIP; HARNESS
ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9307- ●
60 BOLT; CLIP HARNESS
M10X16 W/LK WASHER 		1-09033-012-0 04 1 9307- ●
133 TUBE ASM; OIL PAN
TAIWAN EQUIPMENT(WW5) 		1-11766-300-0 01 1 9308- ● ●
135 ADAPTER; GUIDE TUBE
EXC. TAIWAN EQUIPMENT(WW5) 		1-11369-126-0 01 1 9308- ●
137 GASKET; ADAPTER
EXC. TAIWAN EQUIPMENT(WW5) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9308- ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9002- ● ●
160 ADAPTER
EXC. TAIWAN EQUIPMENT(WW5) 		1-11369-126-0 01 1 9002- ●
161 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(WW5) 		1-09623-185-0 01 1 9002-9203 ●
161 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(WW5) 		1-09623-588-0 01 1 9204- ●
