Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#348) — 525 parça

322 37 38 39 28 345 298 286 172 70 342 24 56 57 58 59 56 60 74 23 124 121 11 13 14 15 75 80 22 47 46 45 43 17 27 27 37 30 34 42 82 34 50 36 2 84 93 96 7 16 7 3 22 97 104 1 94 105 94 94 94 110 8 9 10 11 12 128 18 135 131 132 129 130 129 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-733-0	01	1	9202-9309	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-844-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-		●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-			●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9202-9501	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-		●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9202-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-		●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-		●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9202-	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-		●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-		●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-		●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308			●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-			●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-		●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-		●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-		●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-		●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9202-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-		●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9202-	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9202-	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9202-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-		●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9202-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-		●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9202-9309	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-		●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308			●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-		●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9202-9301	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308		●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-		●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-		●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-		●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-		●	●
39	HUB; CLU,LOW & 2ND	1-33261-197-0	01	1	9202-9412		●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-		●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9202-9209	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-		●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-198-1	01	1	9202-9412		●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-		●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9202-9209	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209		●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-		●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-		●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-		●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9202-9301	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308		●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-		●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9202-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9202-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-		●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-		●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-		●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9202-9309	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308		●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-		●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-		●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9202-9309	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308		●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-		●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9202-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-		●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9202-	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9202-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-		●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-		●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9202-	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) Z=7	1-33371-040-2	01	1	9202-		●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) RR TIRE 10.00-20<96X> Z=7	1-33371-040-2	01	1	9202-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) RR TIRE 9.00-20<94X> Z=5	1-33371-041-2	01	1	9202-			●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9202-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308			●
82	SHAFT; MAIN,TRANS Z=37-34-26-20-19	1-33231-271-0	01	1	9309-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9202-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-		●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9202-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-		●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-		●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9202-9309	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308		●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-			●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-		●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308			●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9202-9309	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9202-9309	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203		●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-		●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9202-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-		●
108	SHAFT; COUNTER Z=19-13	1-33311-182-0	01	1	9202-9308			●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9202-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-		●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-		●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-		●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-		●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9202-	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-		●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-		●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9202-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9202-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-		●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-		●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-		●	●
132	SHAFT; REV	1-33351-013-0	01	1	9202-	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-		●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9202-9309	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308		●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-		●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-		●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9202-		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9202-		●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-		●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-176-3	01	1	9202-		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-048-1	04	1	9202-9412		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	9501-		●	●

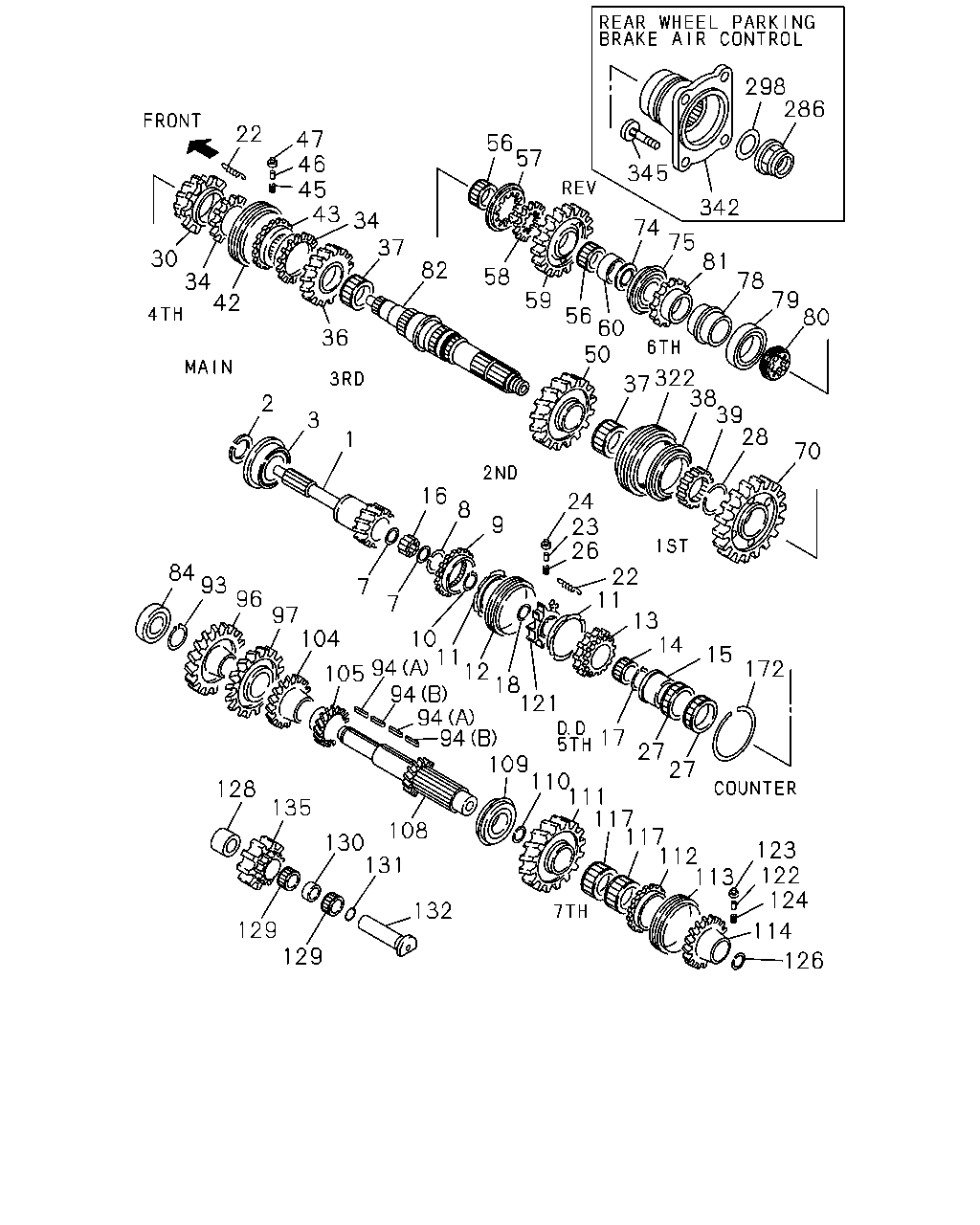

298 286 22 47 46 45 43 56 57 345 342 34 37 74 75 81 30 34 42 82 58 78 79 80 59 56 60 50 36 322 37 38 39 28 2 3 1 70 16 24 23 26 8 9 84 93 96 22 11 7 7 97 104 13 14 10 11 94 105 12 18 94 121 94 94 109 110 111 117 117 112 113 15 172 17 27 27 128 135 108 130 131 123 122 124 132 129 129 114 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-733-0	01	1	9202-9309	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-844-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-		●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-			●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9202-9501	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-		●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9202-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-		●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-		●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9202-	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-		●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-		●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-		●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308			●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-			●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-		●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-		●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-		●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-		●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9202-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-		●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-			●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9202-	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9202-	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9202-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-		●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9202-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-		●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9202-9309	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-		●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308			●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-		●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9202-9301	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308		●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-		●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-		●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-		●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-		●	●
39	HUB; CLU,LOW & 2ND	1-33261-197-0	01	1	9202-9412		●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-		●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9202-9209	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-		●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-198-1	01	1	9202-9412		●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-		●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9202-9209	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209		●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-		●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-		●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-		●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9202-9301	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308		●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-		●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9202-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9202-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-		●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-		●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-		●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9202-9309	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308		●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-		●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-		●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9202-9309	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308		●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-		●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9202-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-		●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9202-	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9202-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-		●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-		●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9202-			●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-150-0	01	1	9202-			●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9202-			●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9202-	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) Z=7	1-33371-040-2	01	1	9202-		●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) RR TIRE 10.00-20<96X> Z=7	1-33371-040-2	01	1	9202-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) RR TIRE 9.00-20<94X> Z=5	1-33371-041-2	01	1	9202-			●
81	GEAR; 7TH,MAIN Z=19	1-33254-002-1	01	1	9202-9308			●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9309-			●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9202-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308			●
82	SHAFT; MAIN,TRANS Z=37-34-26-20-19	1-33231-271-0	01	1	9309-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9202-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-		●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9202-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-		●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-		●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9202-9309	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308		●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-			●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-		●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308			●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9202-9309	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9202-9309	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203		●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-		●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9202-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-		●
108	SHAFT; COUNTER Z=19-13	1-33311-182-0	01	1	9202-9308			●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9202-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-		●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-		●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-		●	●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-228-2	01	1	9202-9301			●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-309-1	01	1	9302-9308			●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9309-			●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9202-			●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9202-			●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9202-			●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9202-			●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-		●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-			●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-			●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-		●	●
126	RING; SNAP,CLU HUB OD=121.2 T=2.5	1-09587-031-0	01	1	9202-			●
126	RING; SNAP,CLU HUB OD=157.2 T=4.0	1-09588-043-0	01	1	9202-			●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9202-	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-		●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-		●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9202-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9202-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-		●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-		●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-		●	●
132	SHAFT; REV	1-33351-013-0	01	1	9202-	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-		●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9202-9309	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308		●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-		●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-		●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9202-		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9202-		●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-		●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-176-3	01	1	9202-		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-048-1	04	1	9202-9412		●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	9501-		●	●

47 46 45 48 45 44 54 49 54 55 46 47 70 45 46 56 47 50 2 3 83 82 1 73 7 16 7 10 18 59 56 19 24 23 22 74 20 24 23 84 93 96 104 105 13 75 27 28 29 36 33 48 42 24 21 23 94 19 106 80 94 94 107 108 127 109 128 135 132 131 129 129 140 128 138 139 30 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-733-0	01	1	9202-9309	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-844-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-		●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-			●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9202-9501	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-		●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9202-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-		●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9202-	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-		●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308			●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-			●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9202-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-		●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9202-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-		●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9202-9212	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-	●
20	SLEEVE	1-33262-094-1	01	1	9202-	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9202-	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9202-	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9202-	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9202-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-		●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9202-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-		●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9202-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9202-9309	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-		●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308			●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-			●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9202-	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9202-	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9202-9301	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308		●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-		●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9202-9209	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-		●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9202-9405	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9202-9209	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209		●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-		●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-		●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-		●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9202-9205	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9202-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9202-9301	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308		●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-		●	●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9202-	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9202-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9202-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9202-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-		●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9202-9309	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308		●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-		●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9202-9309	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308		●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-		●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9202-	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9202-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-		●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9202-	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9202-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-		●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-		●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9202-	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) Z=7	1-33371-040-2	01	1	9202-		●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) RR TIRE 10.00-20<96X> Z=7	1-33371-040-2	01	1	9202-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) RR TIRE 9.00-20<94X> Z=5	1-33371-041-2	01	1	9202-			●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9202-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308			●
82	SHAFT; MAIN,TRANS Z=37-34-26-20-19	1-33231-271-0	01	1	9309-			●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9202-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-		●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9202-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-		●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9202-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-		●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-		●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9202-9309	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308		●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9202-9309	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9202-9309	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203		●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-		●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9202-9309	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9202-	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9202-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-		●
108	SHAFT; COUNTER Z=19-13	1-33311-182-0	01	1	9202-9308			●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9202-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-		●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-		●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9202-	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9202-	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-		●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-		●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9202-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9202-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-		●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-		●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-		●	●
132	SHAFT; REV	1-33351-013-0	01	1	9202-	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-		●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9202-9309	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308		●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-		●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9202-	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9202-9205	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9202-9205	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
