Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#34799) — 202 parça

22 14 14 102 22 617 22 102 483 488 48 48 48 48 48 483 483 483 483 2 22 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0803-0810
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0907-
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0803-0809
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (D) L=250	5-09707-030-1	01	1	0803-
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0803-0902
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 08.852 (E) L=350	8-94152-256-1	02	1	0903-
22	02.559 CLIP; ENG HARNESS 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	02	1	0803-
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0803-0804
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (B) T=6.0	5-09709-012-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.240 (F) T=5.5	5-09709-047-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0803-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (G) T=5.5	8-97371-951-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (G) T=5.5	8-97371-951-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) (G) T=5.5	8-97371-951-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=6.0	5-09709-024-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	06	1	0803-1110
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	07	1	1111-
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) (B) L=250	5-09707-030-1	01	1	0803-
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	04	1	0803-1202
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	1203-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (I) ID=12	8-97329-630-0	01	1	1111-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (H) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 01.152 (E) L=36	8-94224-891-1	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0803-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0803-
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106
617	02.559 STRAP; BAND M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108

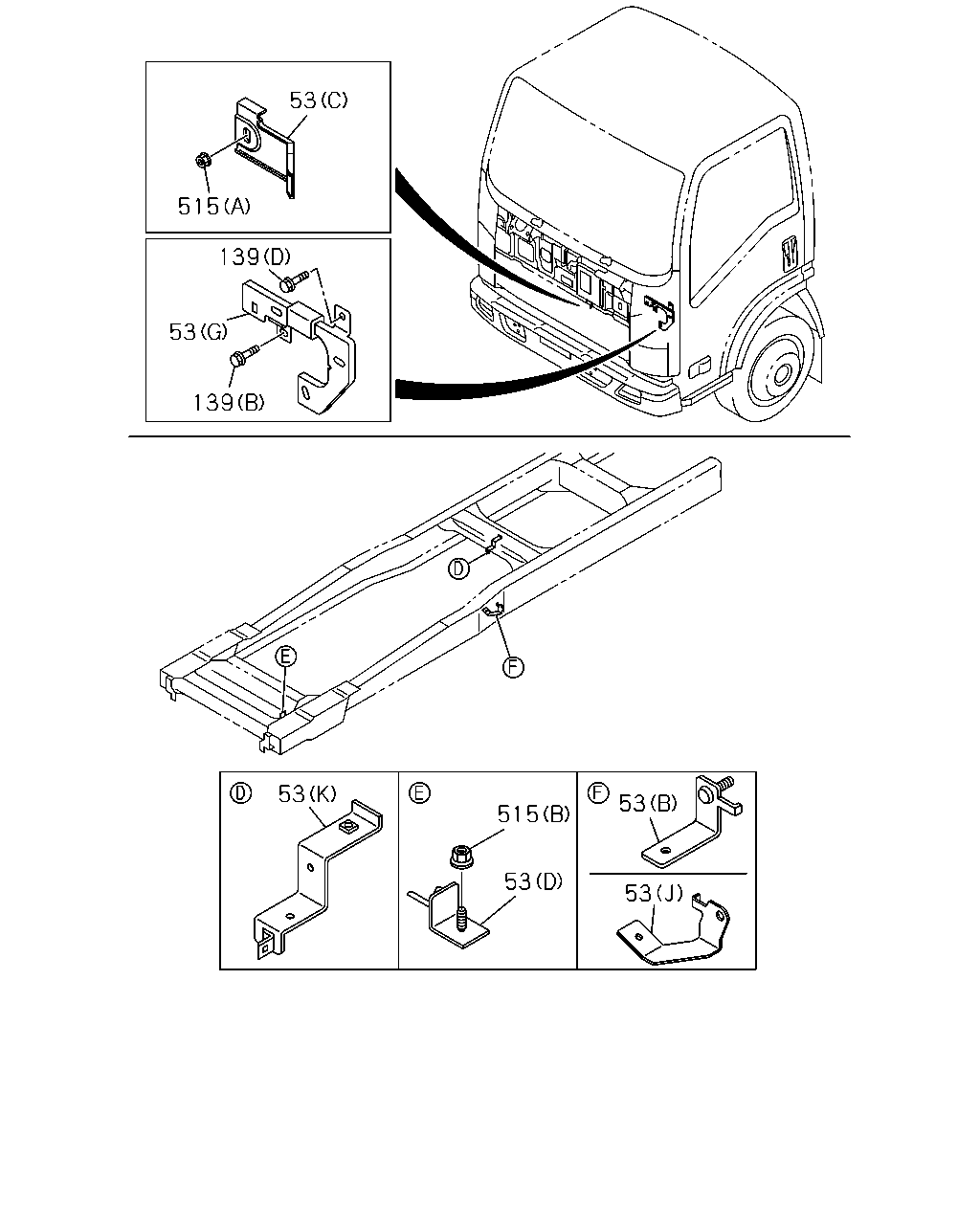

53 515 139 53 139 53 53 515 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

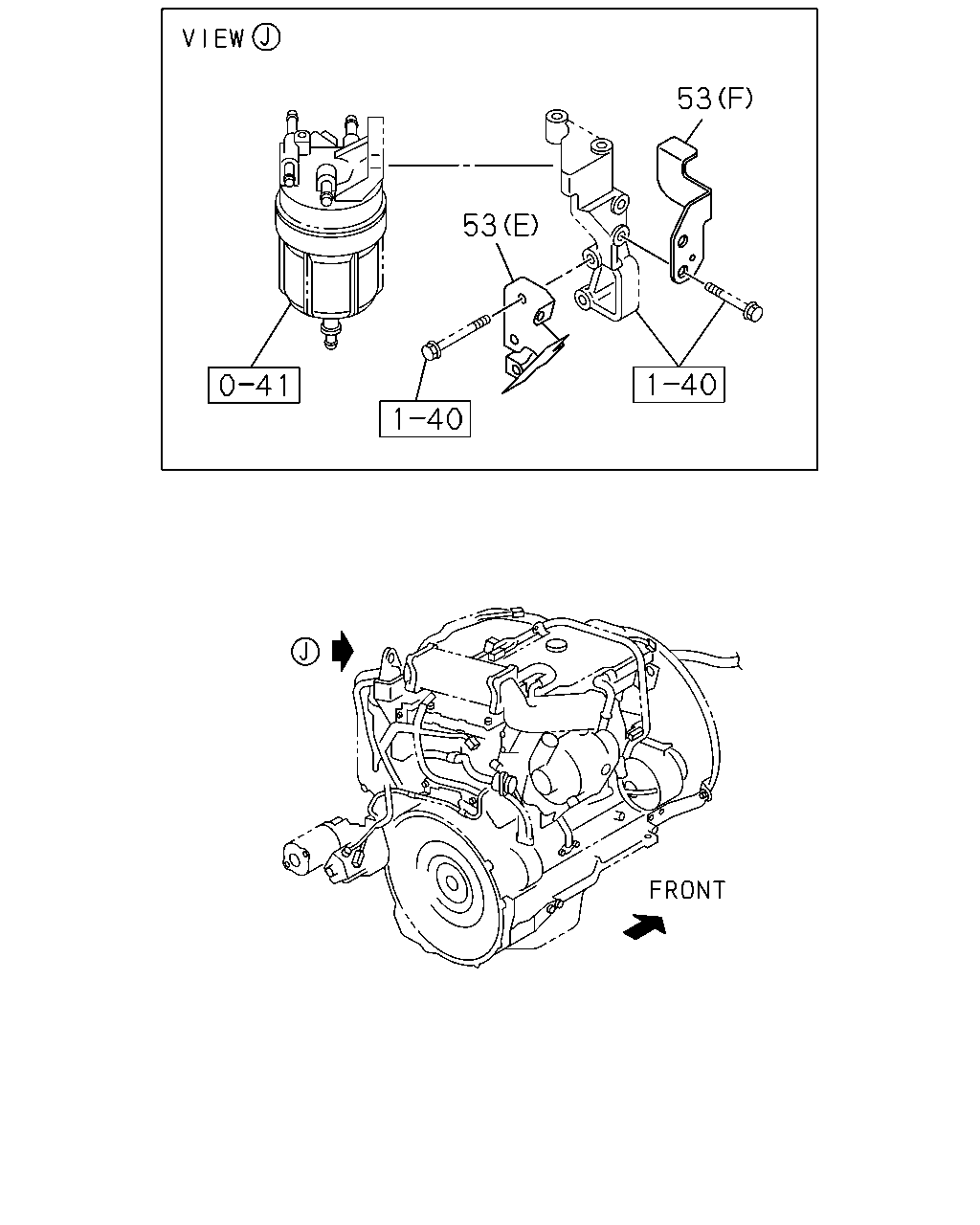

53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0803-
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0803-
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	0803-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0803-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	0803-1303
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98083-225-1	01	1	0803-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0809
139	02.559 BOLT; BRKT 03.604 (E) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-

516 150 139 139 313 480 139 150 150 139 242 529 304 480 377 377 377 386 377 386 386 377 386 139 24 515 552 219 294 515 552 24 515 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
24	02.559 NUT; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0809
139	02.559 BOLT; BRKT 03.604 (E) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0907-
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	03	1	0803-0906
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	04	1	0907-
150	02.343 BOLT; CLIP EURO4 SPECIFICATION(NT4) (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0803-
294	02.559 NUT 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0803-0904
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0904
304	02.483 BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION(NT4) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0803-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0803-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0803-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-1004
377	02.559 BOLT; CAB EARTH (E) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0803-1004
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0803-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0803-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0803-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0907
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0803-

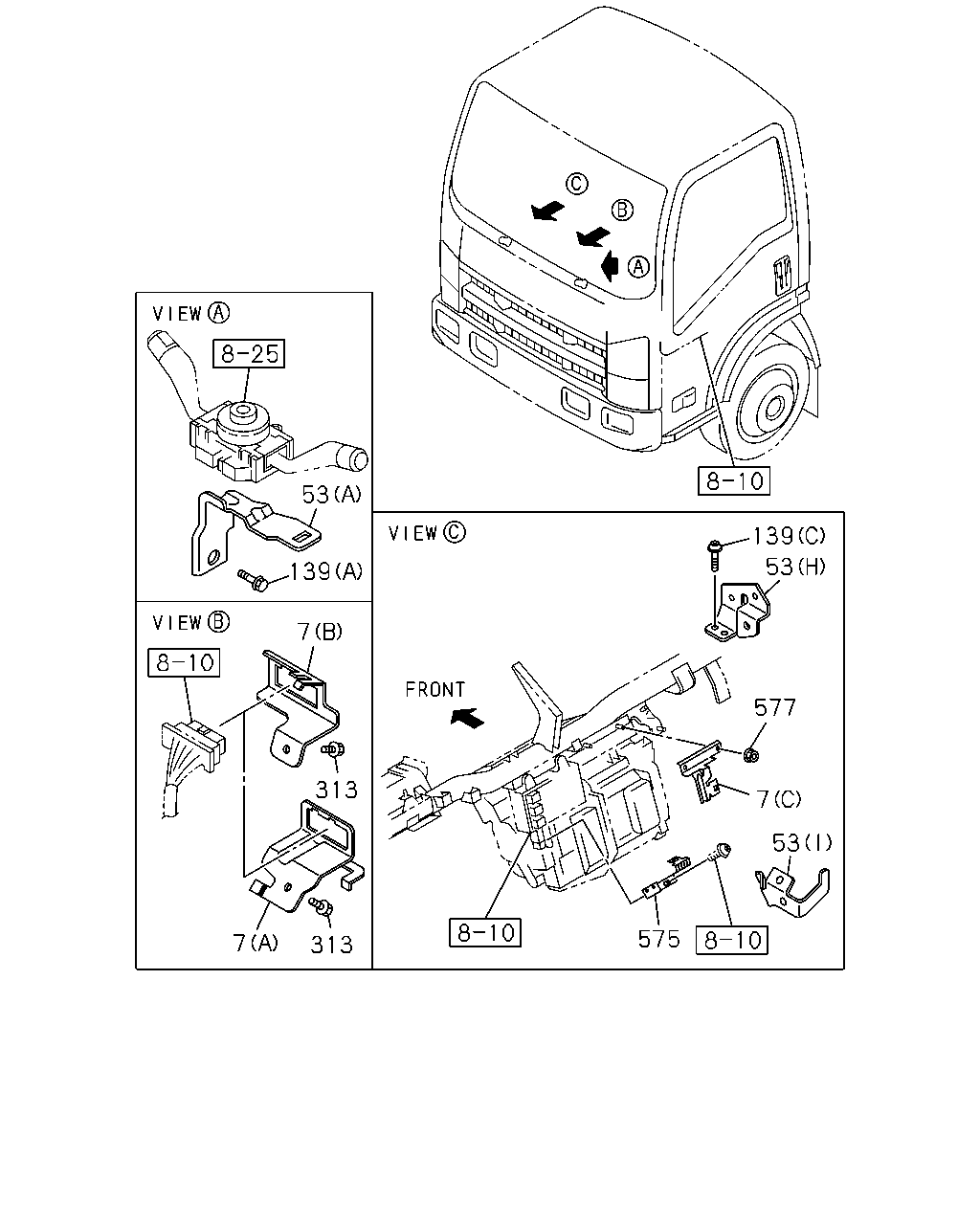

53 139 53 139 7 577 313 7 53 575 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (C)	8-98056-073-3	01	1	0803-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0803-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-069-1	01	1	0803-0803
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0803-
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0803-
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	0803-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0803-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	0803-1303
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98083-225-1	01	1	0803-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0809
139	02.559 BOLT; BRKT 03.604 (E) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0803-
575	02.559 BRACKET; FUSE BOX	8-98054-320-1	01	1	0803-0808
575	02.559 BRACKET; FUSE BOX	8-98132-932-1	01	1	0809-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0803-

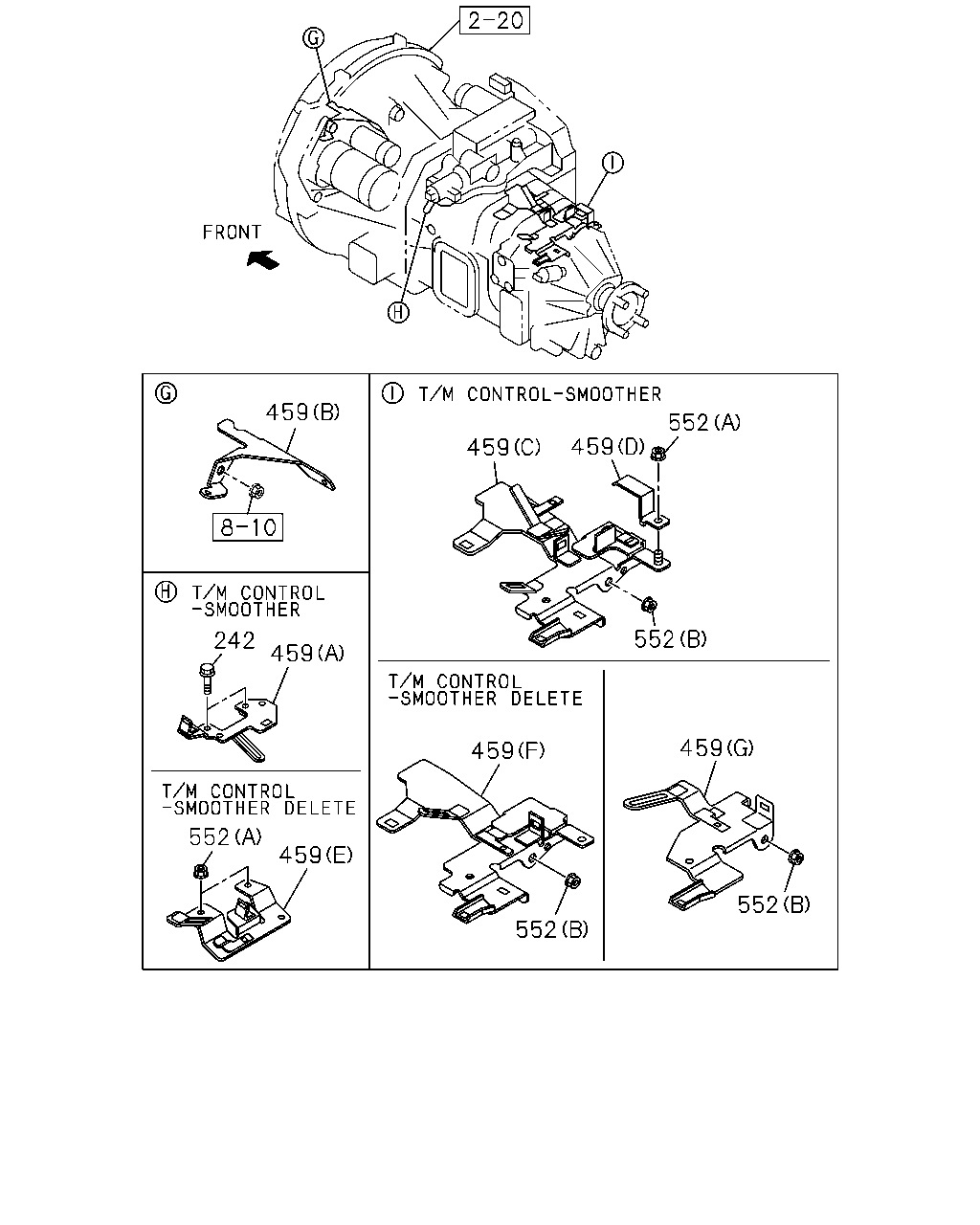

459 552 459 459 552 242 459 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0803-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0803-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0803-1109
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0803-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0803-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0803-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0803-0907
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	0908-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0907
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-

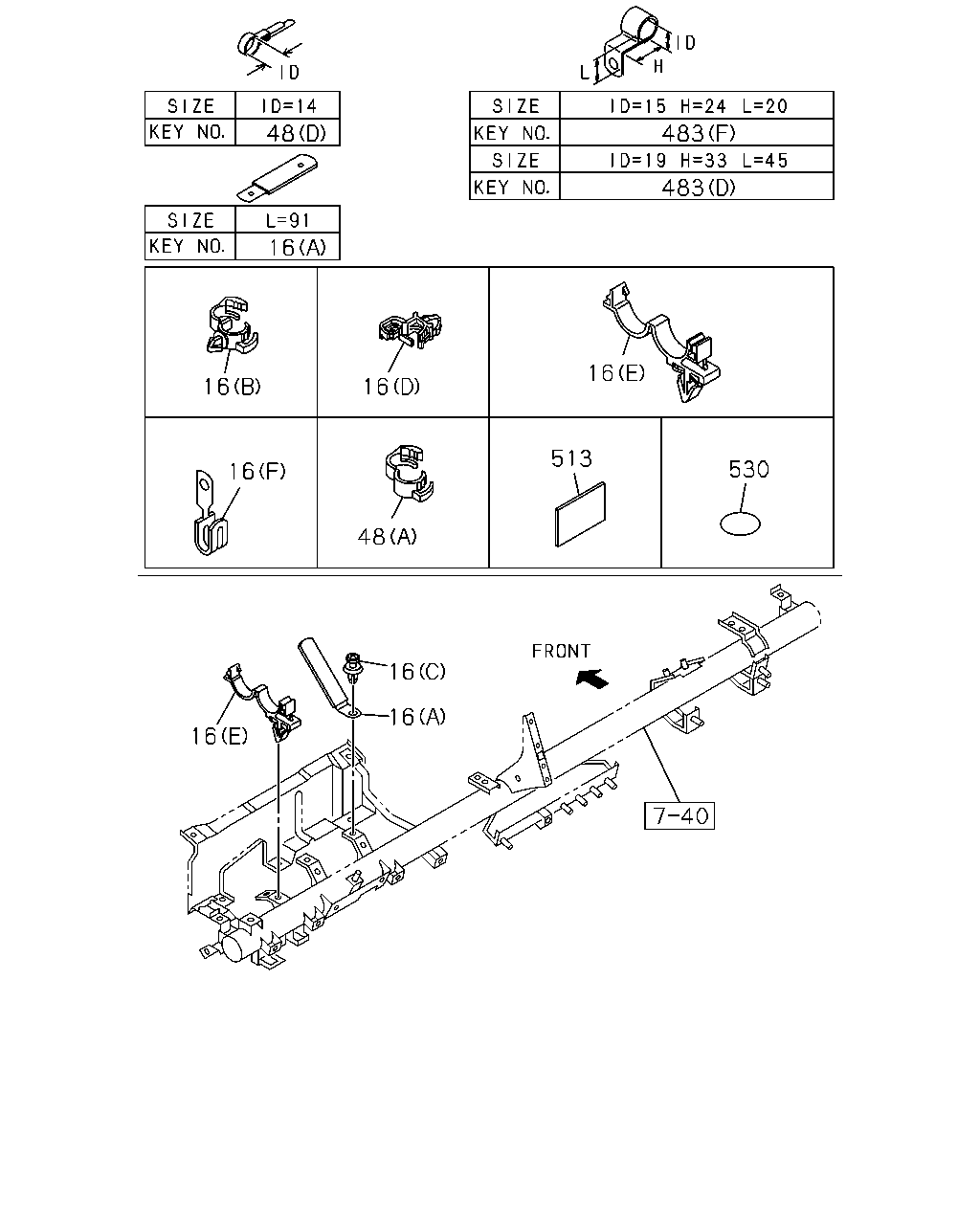

48 483 483 16 16 16 16 513 530 16 48 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0803-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (F)	8-97101-436-0	01	1	0803-
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (E) ID=28	8-94362-106-0	01	1	0803-
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0803-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (B) T=6.0	5-09709-012-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.240 (F) T=5.5	5-09709-047-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0803-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (G) T=5.5	8-97371-951-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (G) T=5.5	8-97371-951-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) (G) T=5.5	8-97371-951-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=6.0	5-09709-024-0	01	1	0803-0804
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (I) ID=12	8-97329-630-0	01	1	1111-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (H) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 01.152 (E) L=36	8-94224-891-1	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0803-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	0808-1204
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1205-
513	02.559 TAPE; SOFT,HARNESS TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 130X80	8-97304-373-0	01	1	1205-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0803-0808

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0803-
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0803-
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	0803-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0803-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	0803-1303
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98083-225-1	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
