Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#34798) — 161 parça

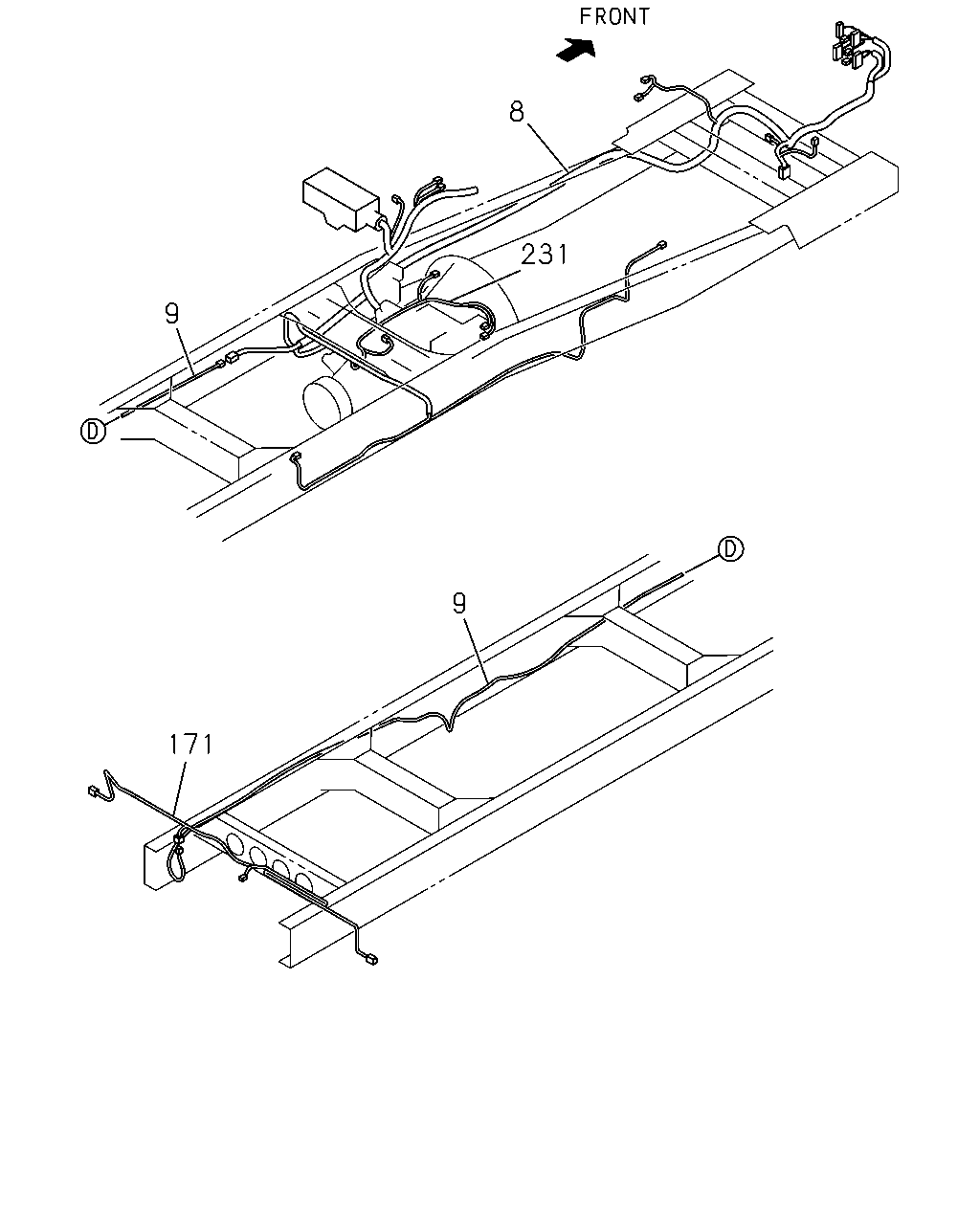

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98115-313-4	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-280-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98095-886-6	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-272-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-561-6	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-273-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-247-9	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-267-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98100-562-5	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-274-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-563-6	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-275-0	01	1	1410-
9	02.480 HARNESS; FRAME,RR FRAME STRAIGHT TYPE<7KJ>	8-98067-971-1	01	1	0803-0805
9	02.480 HARNESS; FRAME,RR FRAME STRAIGHT TYPE<7KJ>	8-98117-249-0	01	1	0806-
9	02.480 HARNESS; FRAME,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-009-2	01	1	0803-
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04) EXC. RR FOG LAMP<T79>	8-98156-027-0	01	1	1007-
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04)	8-98070-319-1	01	1	0803-1006
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04) RR FOG LAMP<T79>	8-98070-319-1	01	1	1007-1009
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04) RR FOG LAMP<T79>	8-98156-025-0	01	1	1010-
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. TAIWAN EQUIPMENT(B04)	8-98008-095-2	01	1	0803-0911
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. TAIWAN EQUIPMENT(B04)	8-98156-028-0	01	1	0912-
231	02.480 HARNESS; TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	0803-
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98029-598-1	01	1	0803-

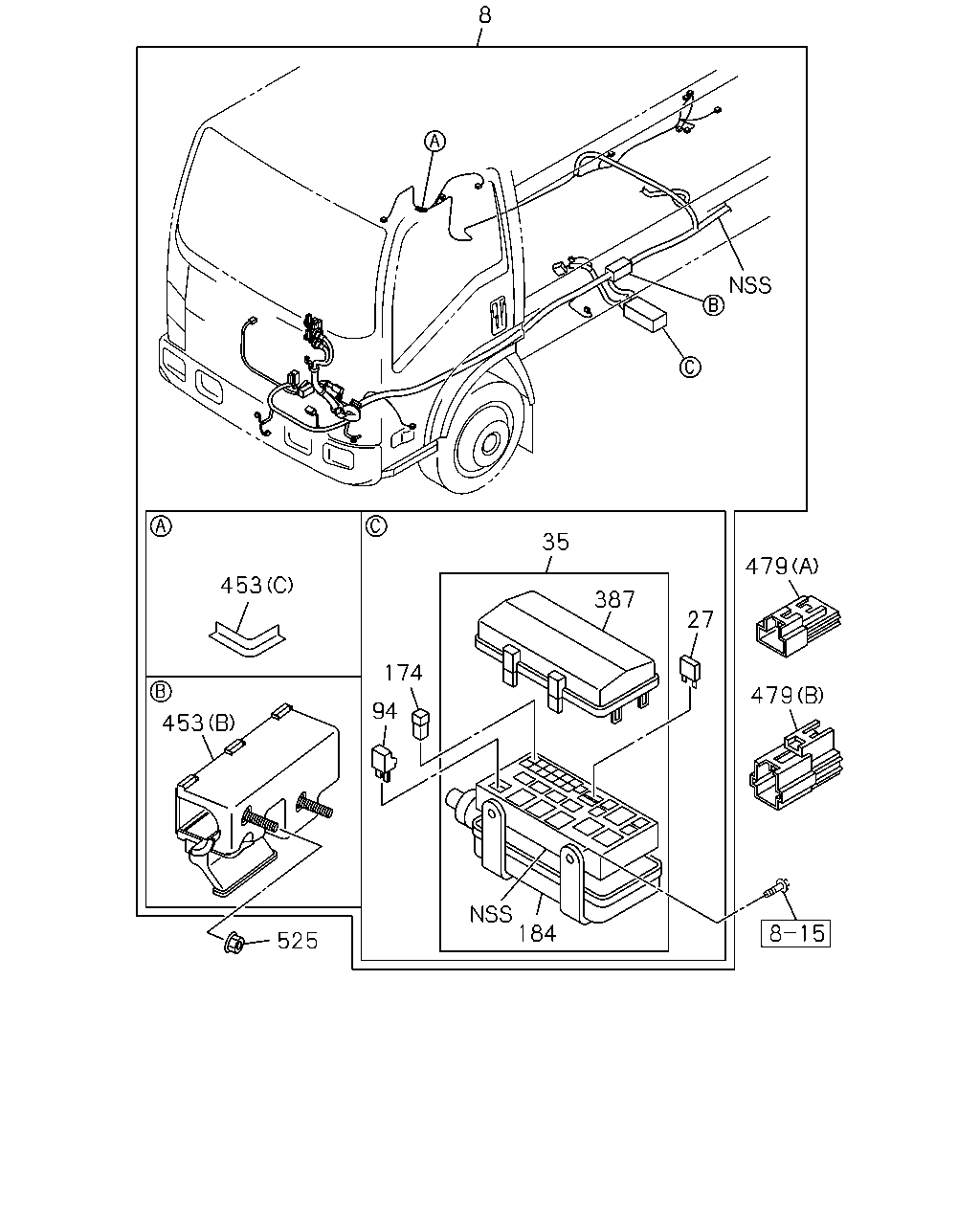

8 35 479 453 387 27 174 479 94 453 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98115-313-4	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-280-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98095-886-6	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-272-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-561-6	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-273-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-247-9	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-267-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98100-562-5	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-274-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-563-6	01	1	0803-1409
8	02.480 HARNESS; FRAME,FRT M/T MZZ6F(RSR) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-275-0	01	1	1410-
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0803-
35	02.530 BOX; RELAY & FUSE EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-763-0	01	1	0803-
35	02.530 BOX; RELAY & FUSE TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ>	8-98030-763-0	01	1	0803-
94	02.483 DIODE; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 2P-1.5A	8-94422-639-1	01	1	0803-
94	02.483 DIODE; FRAME HARNESS TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> BLACK 2P-1.5A	8-94422-639-1	01	1	0803-
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0803-
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0803-
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0803-
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0803-
184	02.559 COVER; RELAY & FUSE BOX EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-766-0	01	1	0803-
184	02.559 COVER; RELAY & FUSE BOX TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ>	8-98030-766-0	01	1	0803-
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0803-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0803-
453	02.483 PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-94417-716-0	02	1	0803-
453	02.483 PROTECTOR; HARNESS TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	02	1	0803-
453	02.483 PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98031-620-1	01	1	0803-
453	02.483 PROTECTOR; HARNESS TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (B)	8-98031-620-1	01	1	0803-
479	02.530 CAP; CONNECTOR (A)	8-98108-678-0	01	1	0803-
479	02.530 CAP; CONNECTOR (B)	8-98108-679-0	01	1	0803-
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-

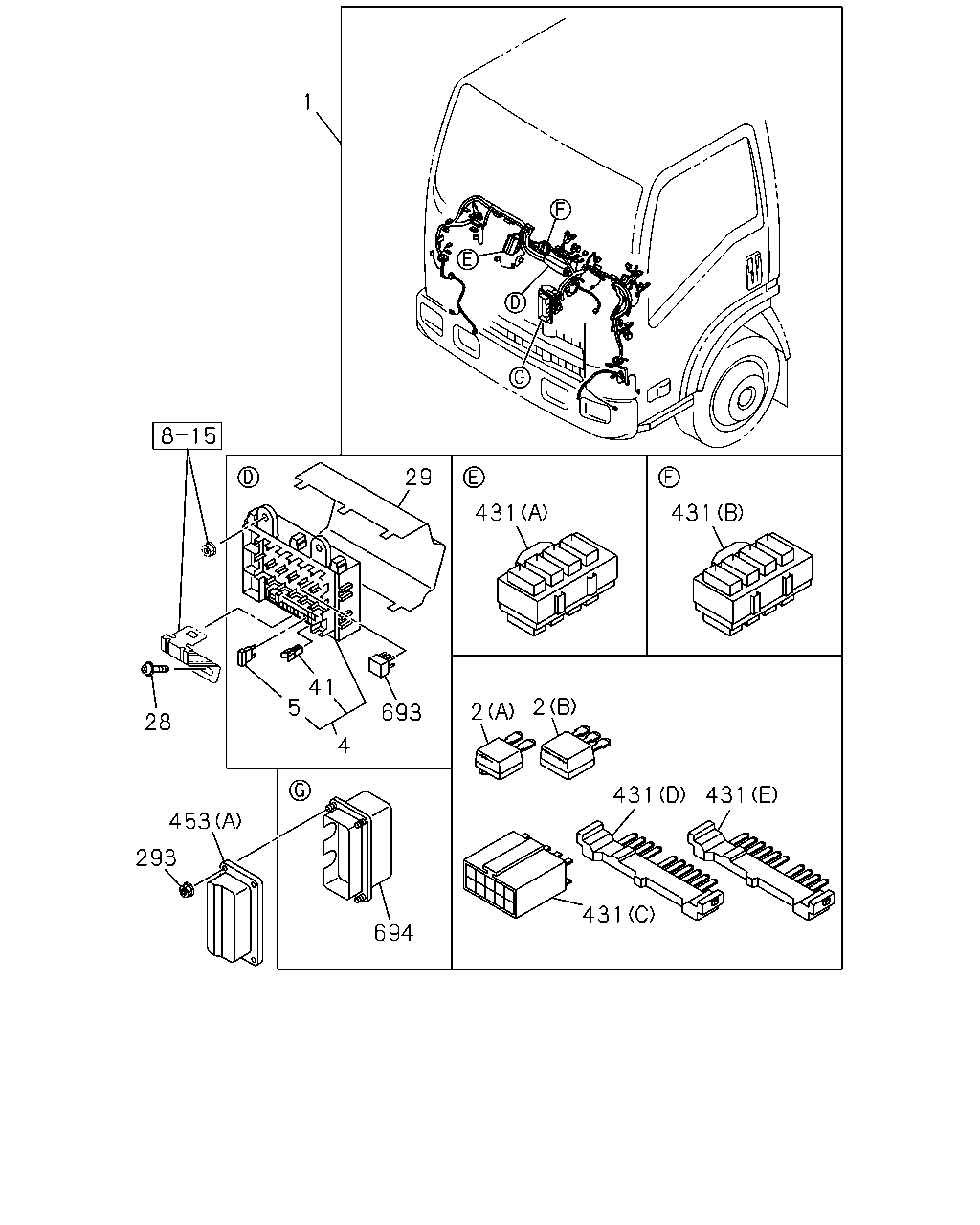

1 29 431 431 41 5 2 2 693 28 4 431 431 453 293 431 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,CATALYSIS CONTROL WITH DPD(8JM)	8-98158-765-1	01	1	1006-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,CATALYSIS CONTROL WITH DPD(8JM)	8-98200-871-0	01	1	1205-
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,CATALYSIS CONTROL WITH DPD(8JM)	8-98140-033-1	01	1	1002-1005
1	02.480 HARNESS; CAB HEADLAMP LEVELING MANUAL CONTROL<TR6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,CATALYSIS CONTROL WITH DPD(8JM)	8-98158-766-1	01	1	1006-1204
1	02.480 HARNESS; CAB HEADLAMP LEVELING MANUAL CONTROL<TR6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,CATALYSIS CONTROL WITH DPD(8JM)	8-98200-872-0	01	1	1205-
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-725-7	01	1	0808-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98201-652-0	01	1	1205-
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-713-4	01	1	0808-1001
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-713-4	01	1	1002-1005
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98158-767-1	01	1	1006-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-639-0	01	1	1205-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0808-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0808-
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0808-
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0808-
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0808-
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0808-
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0808-
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0808-
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0803-
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0808-1204
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	0808-1005
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1006-1204
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0808-1204
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0808-
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0808-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0803-
453	02.483 PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-94417-716-0	02	1	0803-
453	02.483 PROTECTOR; HARNESS TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	02	1	0803-
453	02.483 PROTECTOR; HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98031-620-1	01	1	0803-
453	02.483 PROTECTOR; HARNESS TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (B)	8-98031-620-1	01	1	0803-
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0808-
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-772-0	01	1	1101-1204
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1205-
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	0808-1012
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-640-0	01	1	1101-1204

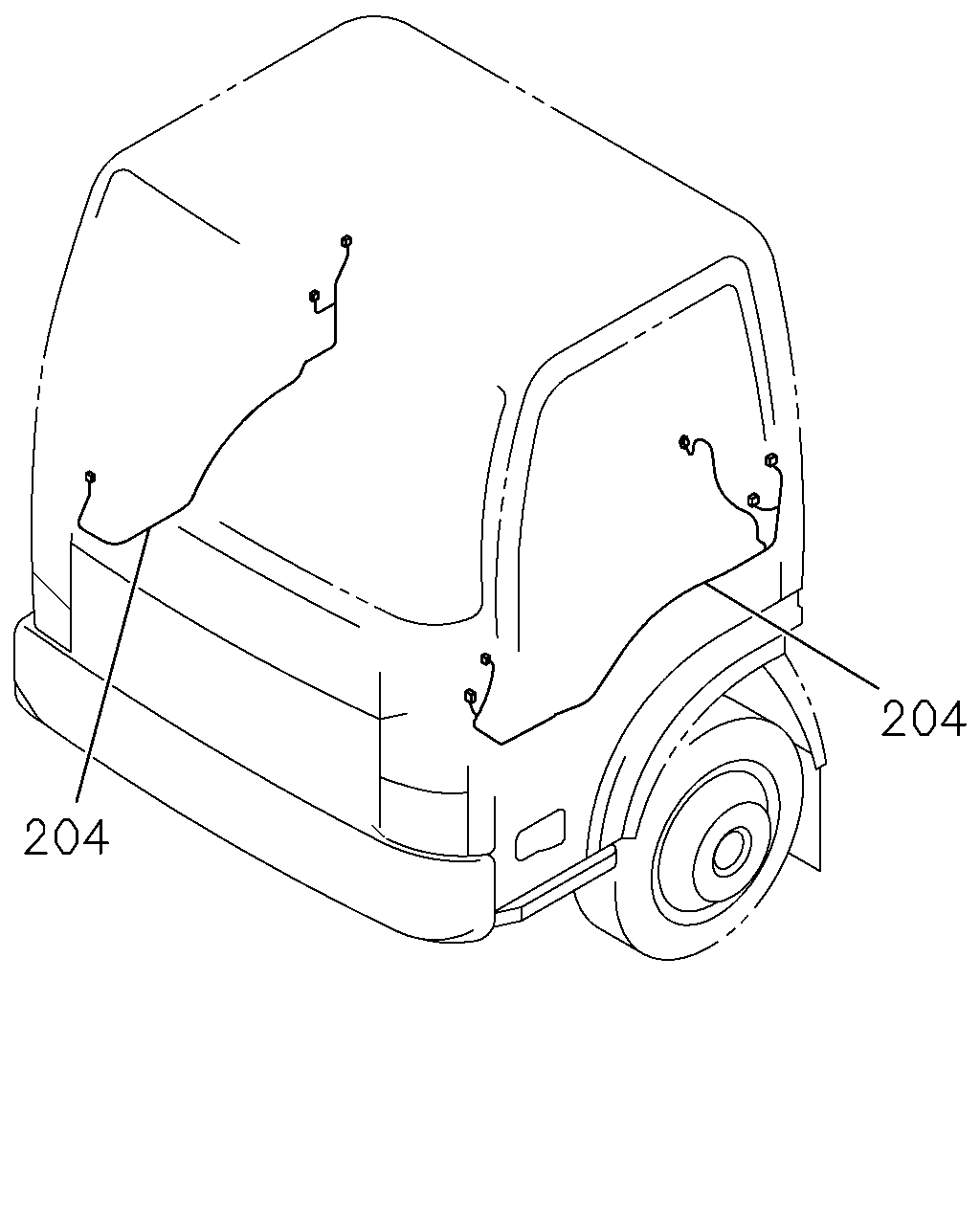

204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-799-5	01	1	0803-
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-801-5	01	1	0803-
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	0803-

267 666 267 290 101 101 57 1 290 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,CATALYSIS CONTROL WITH DPD(8JM)	8-98158-765-1	01	1	1006-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,CATALYSIS CONTROL WITH DPD(8JM)	8-98200-871-0	01	1	1205-
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,CATALYSIS CONTROL WITH DPD(8JM)	8-98140-033-1	01	1	1002-1005
1	02.480 HARNESS; CAB HEADLAMP LEVELING MANUAL CONTROL<TR6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,CATALYSIS CONTROL WITH DPD(8JM)	8-98158-766-1	01	1	1006-1204
1	02.480 HARNESS; CAB HEADLAMP LEVELING MANUAL CONTROL<TR6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH 140KM/H<SM8>,CATALYSIS CONTROL WITH DPD(8JM)	8-98200-872-0	01	1	1205-
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-725-7	01	1	0808-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98201-652-0	01	1	1205-
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-713-4	01	1	0808-1001
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-713-4	01	1	1002-1005
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98158-767-1	01	1	1006-1204
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-639-0	01	1	1205-
57	02.483 FILTER; FUSE BOX TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98211-338-0	01	1	1205-
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98052-805-0	01	1	0803-
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (A)	8-98094-483-1	01	1	0803-
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0803-
267	02.483 BOLT; BRKT 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0803-
267	02.483 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	0803-
267	02.483 BOLT; BRKT EURO4 SPECIFICATION(NT4) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0803-
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0803-
290	02.483 NUT; BRKT EURO2 SPECIFICATION(NT2) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0803-
666	02.483 BRACKET; CLIP EURO2 SPECIFICATION(NT2) (B)	8-98110-213-0	01	1	0803-
666	02.483 BRACKET; CLIP EURO4 SPECIFICATION(NT4) (A)	8-98098-185-0	01	1	0803-

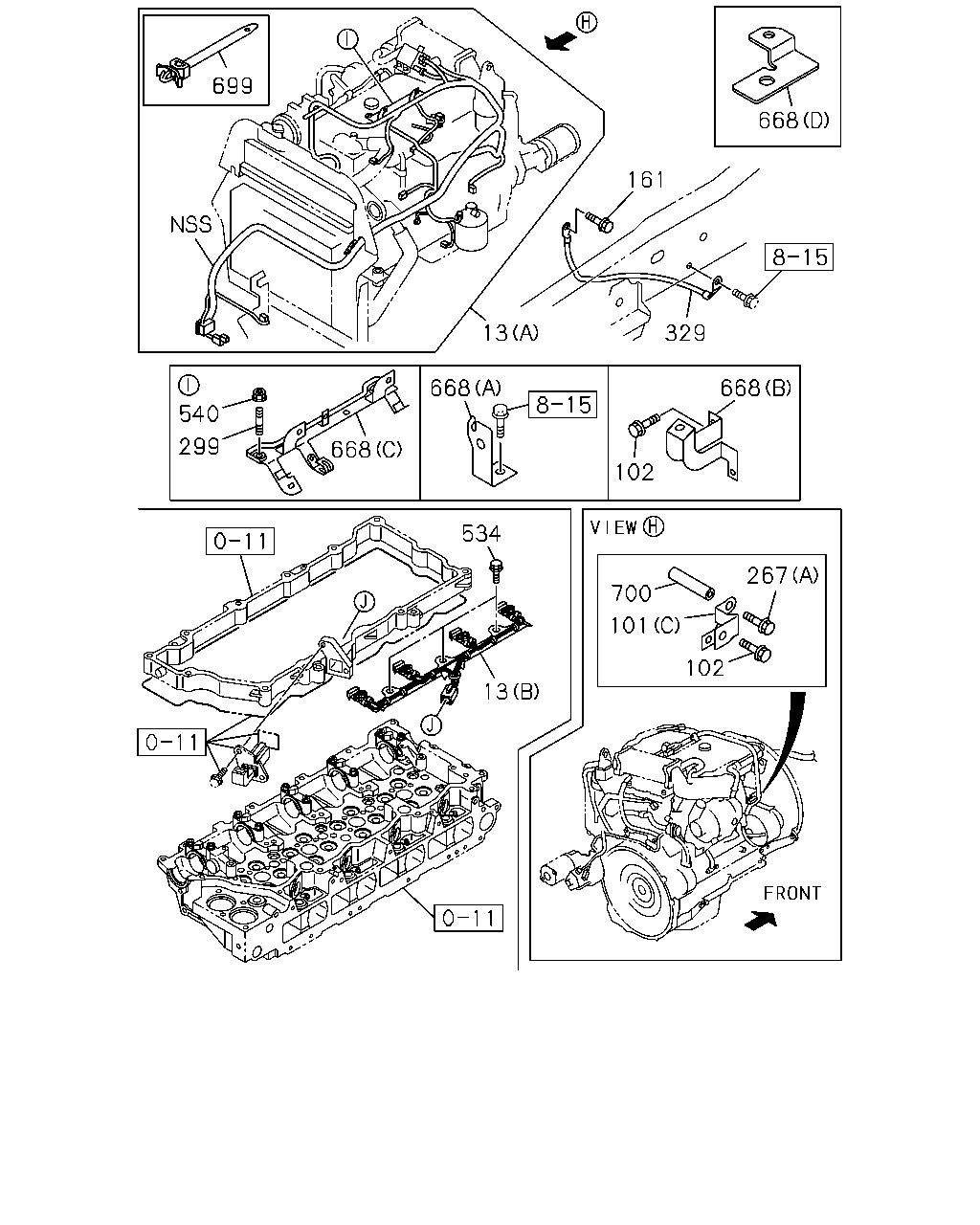

699 161 13 329 540 299 668 668 668 534 102 668 700 267 101 102 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG (B)	8-97332-133-3	01	1	0803-1007
13	02.525 HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98076-299-7	01	1	0803-0906
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	0907-1012
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98178-534-0	01	1	1101-1202
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1203-
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98076-298-7	01	1	0803-0906
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	0907-1012
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98178-535-0	01	1	1101-1202
13	02.525 HARNESS; ENG EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1203-
13	02.525 HARNESS; ENG EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN) (A)	8-98090-070-2	01	1	0803-
13	02.525 HARNESS; ENG EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) (A)	8-98090-071-2	01	1	0803-
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98052-805-0	01	1	0803-
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (A)	8-98094-483-1	01	1	0803-
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0803-
102	08.900 BOLT; BRKT,HARNESS CONNECTOR EURO2 SPECIFICATION(NT2) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0803-
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0803-
267	02.483 BOLT; BRKT 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0803-
267	02.483 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	0803-
267	02.483 BOLT; BRKT EURO4 SPECIFICATION(NT4) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0803-
299	02.559 STUD; BRKT EURO2 SPECIFICATION(NT2) 01.062 M6X18 L=27	0-41010-618-0	02	1	0907-1202
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98039-304-2	01	1	0803-0804
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-98039-304-2	01	1	0803-0804
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98039-304-2	01	1	0803-0804
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MINI BUS CHASSIS(V4B)	8-98039-304-2	01	1	0803-0804
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-465-0	01	1	0803-0804
329	02.480 CABLE; ENG TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	0805-
534	02.483 BOLT 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0803-0805
534	02.483 BOLT 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-
540	02.483 NUT; BRKT FIX EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-1202
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (C)	8-98061-805-1	02	1	0907-1004
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (C)	8-98061-805-2	01	1	1005-1202
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (D)	8-98205-089-0	01	1	1203-
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (B)	8-98011-484-0	01	1	0803-
668	02.559 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) (A)	8-98001-095-0	01	1	0803-
699	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 04.128 L=213.5	8-98000-506-1	01	1	0907-
699	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) L=146.2	8-98052-677-0	01	1	0907-
700	02.483 TUBE; DISTANCE L=105	8-98084-726-0	01	1	0803-

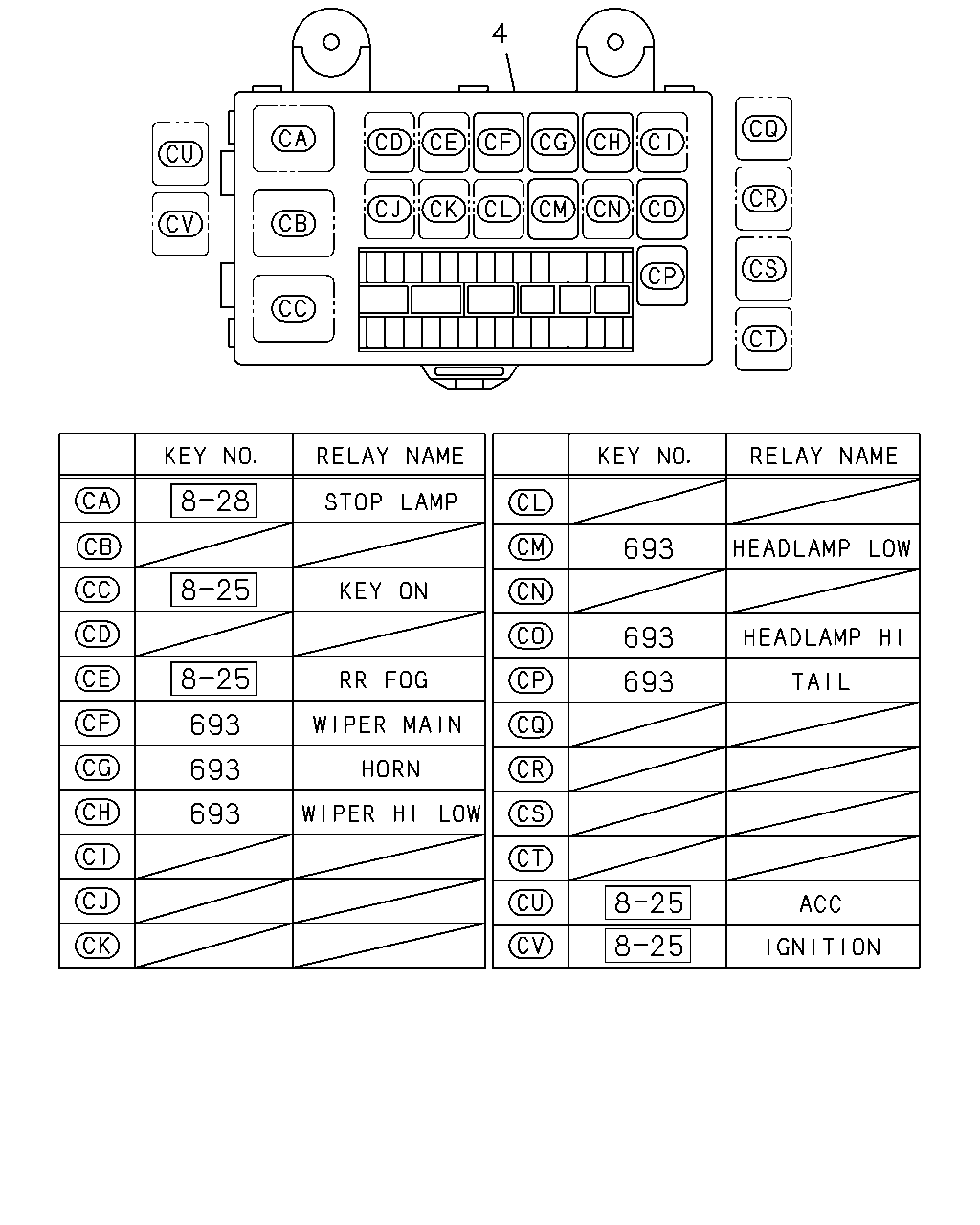

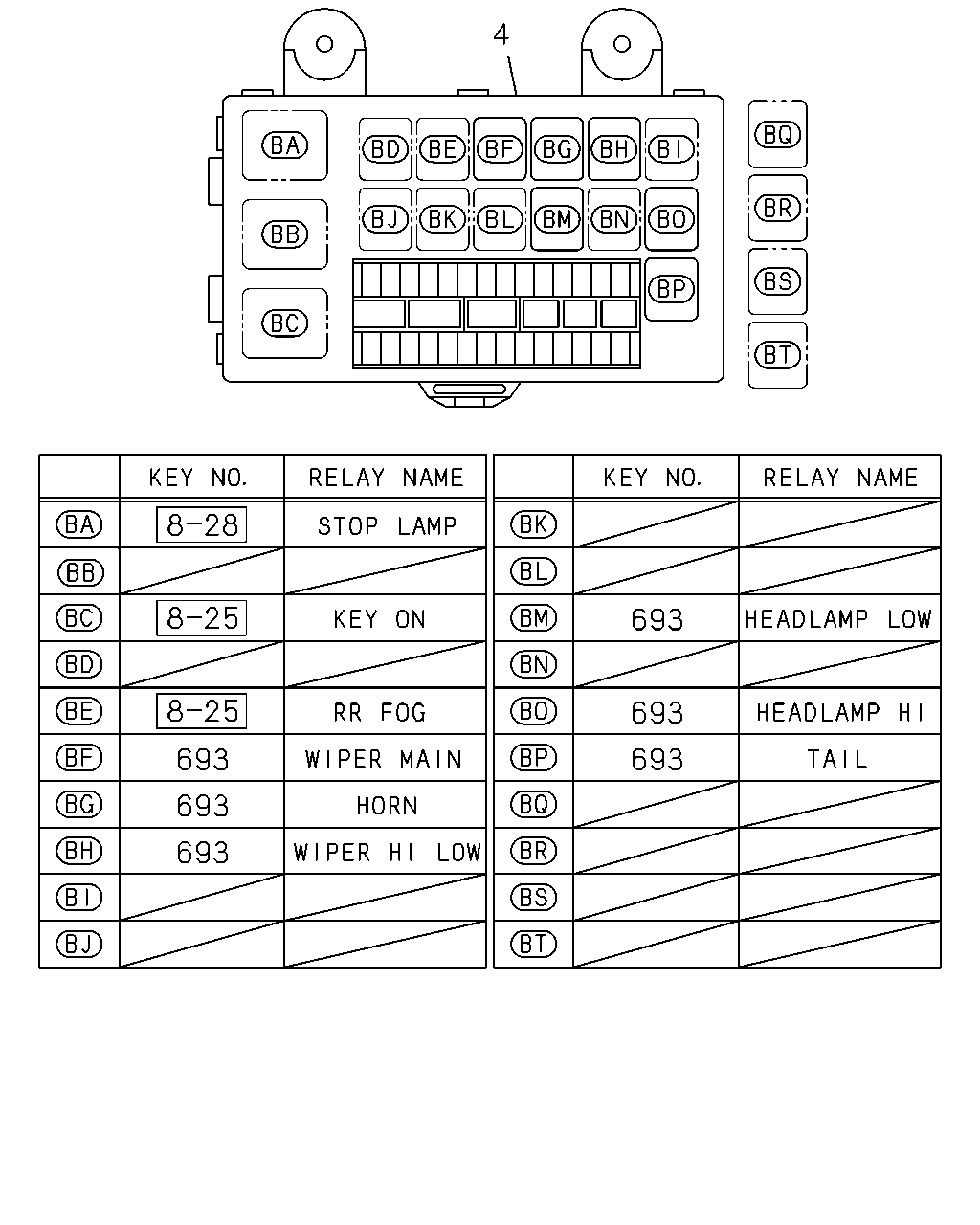

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0808-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0808-

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0808-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0808-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
