8-01 — LAMP; FRONT AND FRONT SIDE (#34796) — 80 parça
çizim 120681
1 338 339 408 420 4 20 23 5 5 382 382 457 256 82 292 83 80 86
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-482-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-598-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-639-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-324-0 01 1 1306-
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-481-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-597-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-638-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-323-0 01 1 1306-
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-484-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-602-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-643-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-328-0 01 1 1306-
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-483-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-601-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-642-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-327-0 01 1 1306-
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-405-0 01 1 0803-1301
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-185-0 01 1 1302-
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-404-0 01 1 0803-1301
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-184-0 01 1 1302-
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-407-0 01 1 0803-1301
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-189-0 01 1 1302-
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-406-0 01 1 0803-1301
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-188-0 01 1 1302-
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0803-
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0803-
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0803-
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0803-
80 08.991 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 0803-
82 02.587 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0803-
83 02.589 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 0803-
86 02.587 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0803-
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-597-4 01 1 0803-
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-596-4 01 1 0803-
292 02.587 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0803-
338 02.727 LEVELING; HEADLAMP
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98010-256-0 02 1 1209-
339 02.587 GASKET; LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		1-86830-158-0 02 1 1209-
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-98069-364-0 02 1 0803-1208
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-98225-685-0 02 1 1209-
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0803-
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0803-1301
420 02.737 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302-
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

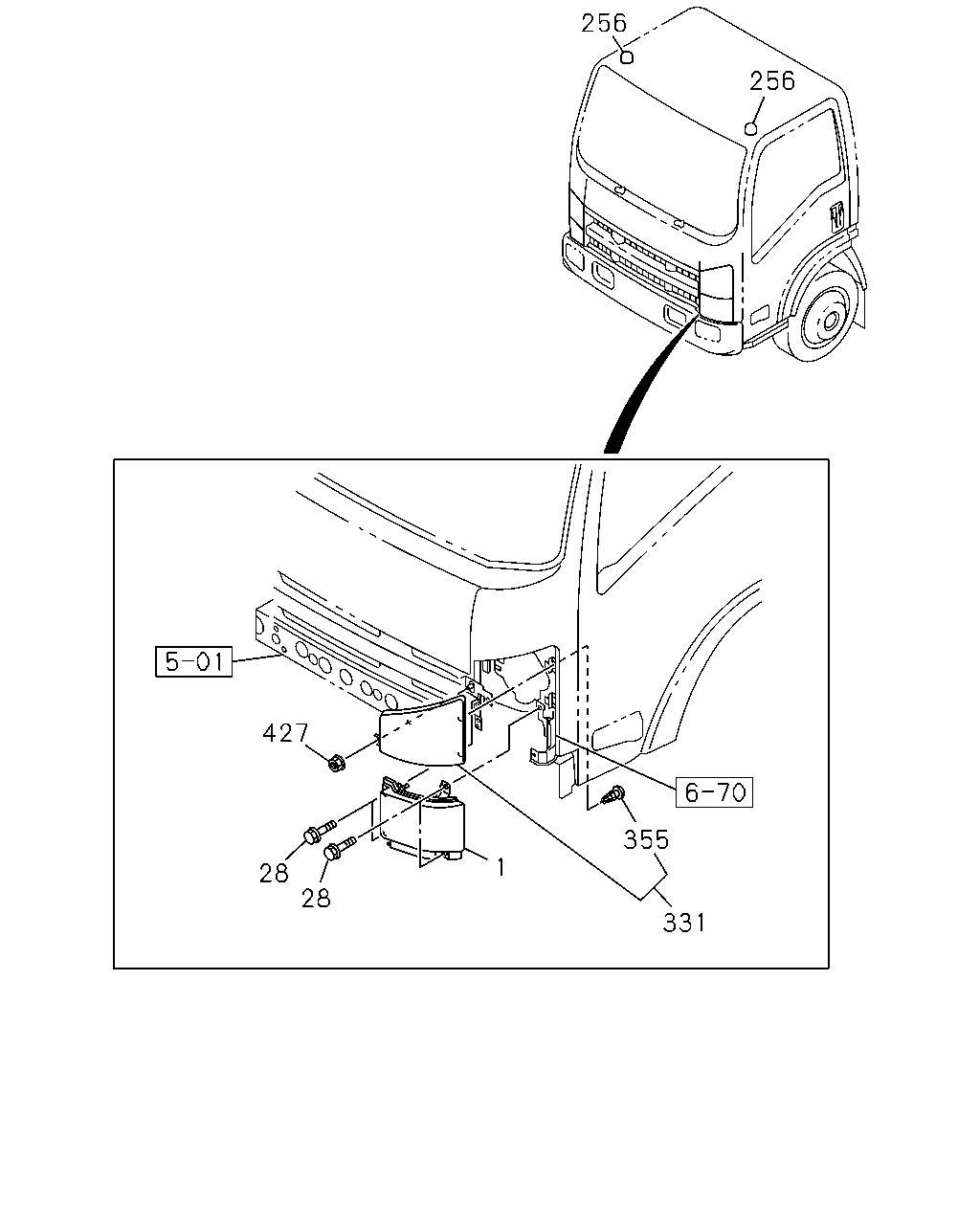

çizim 120683
256 256 427 355 1 28 28 331
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-482-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-598-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-639-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-324-0 01 1 1306-
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-481-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-597-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-638-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-323-0 01 1 1306-
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-484-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-602-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-643-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-328-0 01 1 1306-
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-483-2 01 1 0803-1208
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-601-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-642-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-327-0 01 1 1306-
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0803-1005
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-597-4 01 1 0803-
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-596-4 01 1 0803-
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0803-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0803-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0803-
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-
çizim 120697
331 431 357 399 355 432
BalonParca AdiParca NoAdetTipApplied Date
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0803-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0803-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0803-
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0803-
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0803-
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0803-
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0803-

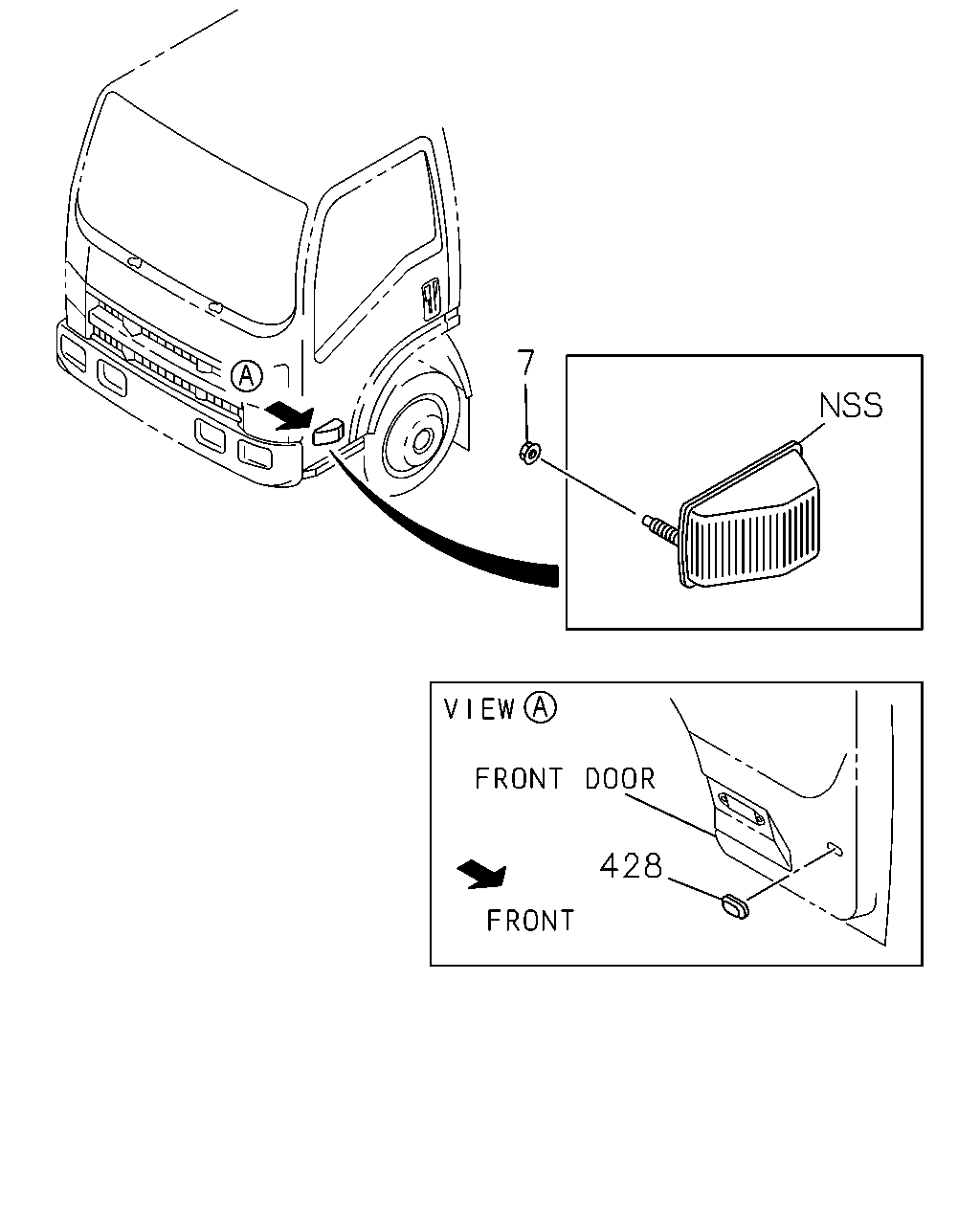

çizim 120709
7 428
BalonParca AdiParca NoAdetTipApplied Date
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-0807
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0803-0807
