◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#34785) — 21 parça

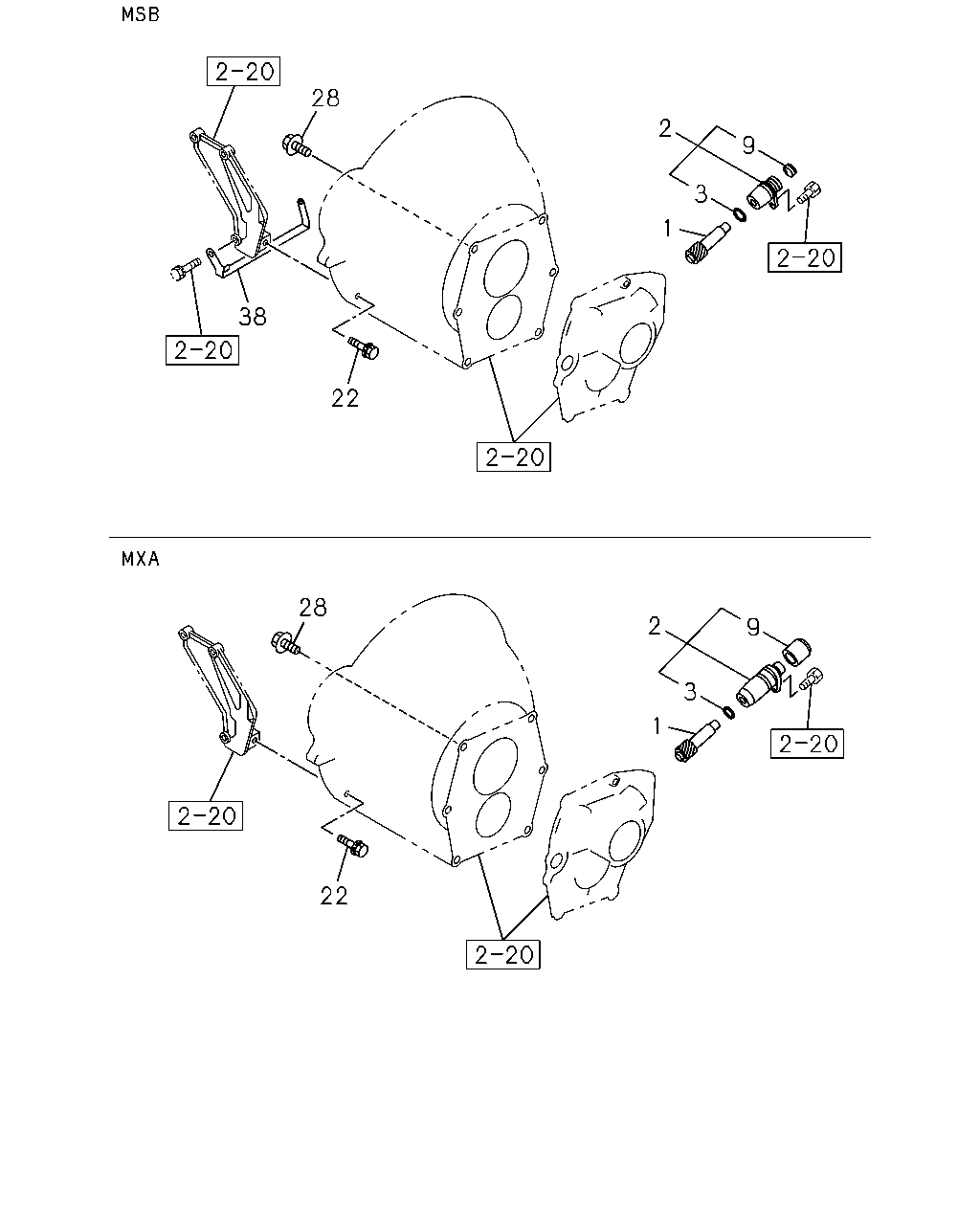

çizim 46022
28 2 9 3 1 38 22 28 2 3 1 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) Z=15 		8-94249-063-0 01 1 9812-0105 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) Z=15 		8-94249-063-0 01 1 0106- ● ●
1 04.337 GEAR; DRIVEN,SPD
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) Z=13 		8-94119-854-0 01 1 0106- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) Z=14 		8-94249-062-0 01 1 0106- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 9812-0105 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 0106- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 0106- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0106- ● ●
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) 		9-09920-852-0 01 1 9812-0105 ●
3 04.338 GASKET; BUSHING
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) 		9-09920-852-0 01 1 0106- ●
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 		9-09920-852-0 01 1 0106- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) NOK 		8-97080-507-0 01 1 9812-0105 ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) NOK 		8-97080-507-0 01 1 0106- ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) NOK 		8-97080-507-0 01 1 0106- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9812-0105 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JH1 ENG(RJX) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106- ● ● ●
28 00.685 BOLT; TRANS CASE TO HSG
4JG2 ENG(RJC),4JB1 ENG(RLF) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 9812-0105 ●
28 00.685 BOLT; TRANS CASE TO HSG
4JH1 ENG(RJX) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 0106- ● ● ●
38 00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC) 		8-97095-937-1 01 1 9812-9905 ●
38 00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC) 		8-97095-937-1 01 1 9906-0105 ●
38 00.679 BRACKET; SPACE RUBBER
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97095-937-1 01 1 9906-0105 ●
