Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#34784) — 197 parça

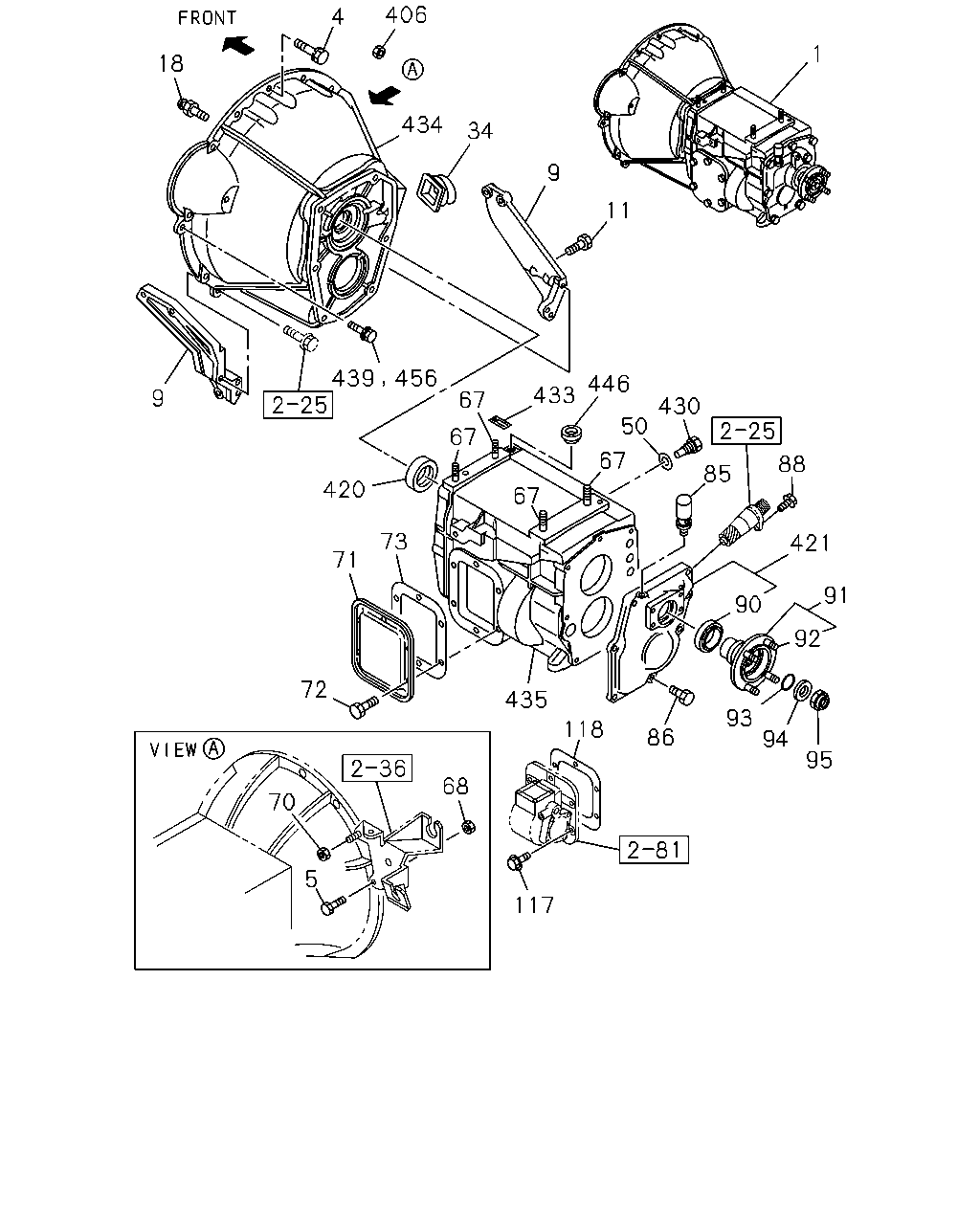

406 4 1 18 434 34 9 11 439 446 433 9 67 430 50 67 67 88 85 420 67 73 421 71 91 90 92 72 435 93 118 86 94 95 68 70 5 117 456

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97090-013-1	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97204-444-0	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>	8-97186-635-1	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-97090-011-1	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97106-340-0	01	1	9812-9905	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97204-113-0	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-97108-782-0	01	1	9812-9905	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-97204-115-0	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JH1 ENG(RJX)	8-97260-325-0	01	1	0106-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97205-047-1	01	1	9906-0105			●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-0105	●		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-0105	●		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-0105			●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9812-0105	●		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9906-0105	●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X140 FLANGE	0-28186-014-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M14X60 FLANGE	0-28981-460-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) M10X130 FLANGE	0-28186-013-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE	0-28186-012-0	02	1	0106-		●
5	00.683 BOLT; REAR PLATE 4JG2 ENG(RJC) 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-9905	●
5	00.683 BOLT; REAR PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9906-0105	●		●
9	04.083 STIFFENER; C/BL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97074-108-3	01	1	9812-0105	●		●
9	04.083 STIFFENER; C/BL 4JH1 ENG(RJX)	8-97240-036-0	01	1	0106-		●
9	04.083 STIFFENER; C/BL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97084-390-2	01	1	9812-0105	●		●
9	04.083 STIFFENER; C/BL 4JH1 ENG(RJX)	8-97240-035-0	01	1	0106-		●
11	04.085 BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9812-0105	●		●
11	04.085 BOLT; BRKT 4JG2 ENG(RJC) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9812-0105	●
18	00.683 SUPPORT; DRAW LEVER 4JG2 ENG(RJC) 00.796 L=47.5	5-31345-002-1	01	1	9812-9903	●
18	00.683 SUPPORT; DRAW LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) L=47.5	8-97225-469-1	01	1	9904-0105	●		●
18	00.683 SUPPORT; DRAW LEVER 4JH1 ENG(RJX) L=47.5	8-97225-469-1	01	1	0106-		●
34	00.686 COVER; DUST,SHIFT FORK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-880-0	01	1	9812-0105	●		●
34	00.686 COVER; DUST,SHIFT FORK 4JH1 ENG(RJX)	8-97017-333-0	01	1	0106-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3	8-94336-511-0	01	1	9812-0105	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3	8-94336-511-0	01	1	0106-		●
67	04.105 STUD; CASE TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09631-004-0	06	1	9812-0105	●		●
67	04.105 STUD; CASE TRANS 4JH1 ENG(RJX)	5-09302-011-0	04	1	0106-		●
68	00.683 NUT; REAR PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-0105	●		●
70	00.683 NUT; REAMER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-0105	●		●
71	04.439 COVER; SIDE,TRANS CASE 4JG2 ENG(RJC)	8-97106-371-0	01	1	9812-9903	●
71	04.439 COVER; SIDE,TRANS CASE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33141-601-2	01	1	9904-0105	●		●
71	04.439 COVER; SIDE,TRANS CASE 4JH1 ENG(RJX)	9-33141-601-2	01	1	0106-		●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9906-0105	●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9906-0105	●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) TURBOCHARGER<K51> 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9906-0105			●
72	04.439 BOLT; SIDE COVER 4JH1 ENG(RJX) 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0106-		●
72	04.439 BOLT; SIDE COVER 4JG2 ENG(RJC) 09.008 M10X20 FLANGE	0-28081-020-0	06	1	9812-9903	●
72	04.439 BOLT; SIDE COVER 4JG2 ENG(RJC) 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9904-9905	●
72	04.439 BOLT; SIDE COVER 4JG2 ENG(RJC) 09.008 M10X20 FLANGE	0-28081-020-0	06	1	9906-0105	●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 09.008 M10X20 FLANGE	0-28081-020-0	06	1	9906-0105	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33142-601-0	01	1	9812-0105	●		●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX)	9-33142-601-0	01	1	0106-		●
85	04.104 BREATHER; RR COVER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-939-0	01	1	9812-0105	●		●
85	04.104 BREATHER; RR COVER 4JH1 ENG(RJX)	8-97165-939-0	01	1	0106-		●
86	04.317 BOLT; RR COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.105 M8X25	8-94128-786-0	07	1	9812-0105	●		●
86	04.317 BOLT; RR COVER 4JH1 ENG(RJX) 04.104 M10X50	8-94318-782-0	01	1	0106-		●
86	04.317 BOLT; RR COVER 4JH1 ENG(RJX) M10X30 FLANGE	8-94482-338-0	06	1	0106-		●
88	04.338 SCREW; SPEEDOMETER BUSHING 4JG2 ENG(RJC),4JB1 ENG(RLF) M8X12	8-94128-785-0	01	1	9812-0105	●		●
88	04.338 SCREW; SPEEDOMETER BUSHING 4JH1 ENG(RJX) M8X12	8-94128-785-0	01	1	0106-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK	8-97074-651-0	01	1	9812-0008	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK	8-97257-296-0	01	1	0009-0105	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK	8-97257-296-0	01	1	0106-		●
91	05.605 DRIVER; COUPLING 4JG2 ENG(RJC)	8-97011-346-2	01	1	9812-9905	●
91	05.605 DRIVER; COUPLING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-215-0	01	1	9906-0105	●		●
91	05.605 DRIVER; COUPLING 4JH1 ENG(RJX)	8-97212-108-0	01	1	0106-		●
92	05.605 BOLT; COUPLING DRIVER 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X33	8-97109-696-1	04	1	9812-0105	●		●
92	05.605 BOLT; COUPLING DRIVER 4JH1 ENG(RJX)	8-97109-697-1	04	1	0106-		●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC)	8-94421-576-0	01	1	9812-9905	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94178-725-0	01	1	9906-0105	●		●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX)	8-94178-725-0	01	1	0106-		●
94	05.595 WASHER; COUPLING DRIVER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94249-240-0	01	1	9812-0105	●		●
94	05.595 WASHER; COUPLING DRIVER 4JH1 ENG(RJX)	8-94249-240-0	01	1	0106-		●
95	05.595 NUT; MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.162 M24 FLANGE	8-97087-750-0	01	1	9812-0105	●		●
95	05.595 NUT; MAINSHAFT 4JH1 ENG(RJX) 04.162 M24 FLANGE	8-97087-750-0	01	1	0106-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9812-0105	●		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	0106-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9812-0105	●		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0106-		●
118	04.439 GASKET; PTO TO TRANS PTO TRANSMISSION SIDE(V66)	9-38113-603-0	01	1	9812-0105	●		●
406	04.510 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●		●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK	8-94326-441-0	01	1	9812-0105	●		●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK	8-97017-350-0	01	1	0106-		●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97112-986-2	01	1	9812-0105	●		●
421	04.317 COVER; RR,TRANS 4JH1 ENG(RJX)	8-97249-001-1	01	1	0106-		●
430	04.105 PLUG; OIL DRAIN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94336-512-1	01	1	9812-0105	●		●
430	04.105 PLUG; OIL DRAIN 4JH1 ENG(RJX)	8-94336-512-1	01	1	0106-		●
433	04.105 LABEL; TRANS	8-97076-909-0	01	1	9812-0105	●
434	00.683 HOUSING; CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97100-489-0	01	1	9906-0105	●
434	00.683 HOUSING; CLU 4JG2 ENG(RJC)	8-97034-879-2	01	1	9812-9905	●
434	00.683 HOUSING; CLU 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97034-879-2	01	1	9906-0105	●		●
434	00.683 HOUSING; CLU 4JG2 ENG(RJC)	8-97034-879-2	01	1	9906-0105	●
434	00.683 HOUSING; CLU 4JH1 ENG(RJX)	8-97034-801-2	01	1	0106-		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97072-004-0	01	1	9812-9905	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97206-005-0	01	1	9906-0105	●		●
435	04.103 CASE; TRANS 4JH1 ENG(RJX)	8-97204-132-1	01	1	0106-		●
439	04.105 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-0105	●		●
446	04.105 PLUG; CASE,TRANS 4JG2 ENG(RJC) OD=16	9-09201-316-0	01	1	9906-9906	●
446	04.105 PLUG; CASE,TRANS 4JG2 ENG(RJC) OD=16	9-09201-316-0	01	1	9906-0105	●
446	04.105 PLUG; CASE,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> OD=16	9-09201-316-0	01	1	9906-0105	●
456	04.085 BOLT; STIFFENER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 07.068 M12X35 FLANGE	0-28081-235-0	03	1	9812-0105	●		●
456	04.085 BOLT; STIFFENER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 09.171 M12X40 FLANGE	0-28081-240-0	01	1	9812-0105	●		●
456	04.085 BOLT; STIFFENER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. PTO TRANSMISSION SIDE(V66) 07.068 M12X35 FLANGE	0-28081-235-0	04	1	9812-0105	●		●

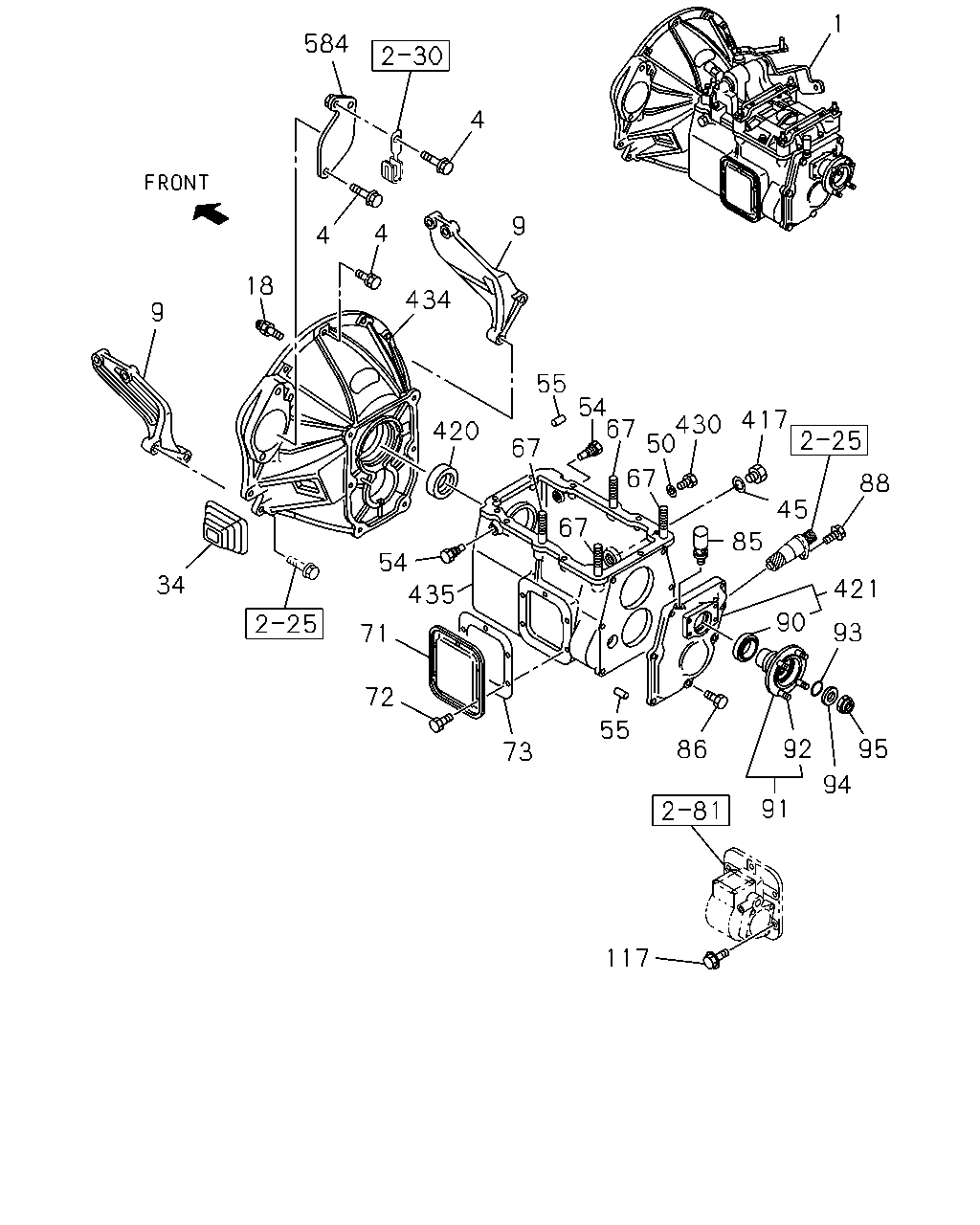

1 584 4 9 4 4 18 434 9 55 54 67 417 430 50 420 67 67 88 45 67 85 54 34 421 435 90 93 71 72 55 92 95 86 73 94 91 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97090-013-1	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97204-444-0	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>	8-97186-635-1	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-97090-011-1	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97106-340-0	01	1	9812-9905	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97204-113-0	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-97108-782-0	01	1	9812-9905	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-97204-115-0	01	1	9906-0105	●
1	04.003 TRANSMISSION ASM; MANUAL 4JH1 ENG(RJX)	8-97260-325-0	01	1	0106-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97205-047-1	01	1	9906-0105			●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-0105	●		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-0105	●		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9812-0105			●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9812-0105	●		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9906-0105	●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X140 FLANGE	0-28186-014-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M14X60 FLANGE	0-28981-460-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) M10X130 FLANGE	0-28186-013-0	02	1	0106-		●
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE	0-28186-012-0	02	1	0106-		●
9	04.083 STIFFENER; C/BL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97074-108-3	01	1	9812-0105	●		●
9	04.083 STIFFENER; C/BL 4JH1 ENG(RJX)	8-97240-036-0	01	1	0106-		●
9	04.083 STIFFENER; C/BL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97084-390-2	01	1	9812-0105	●		●
9	04.083 STIFFENER; C/BL 4JH1 ENG(RJX)	8-97240-035-0	01	1	0106-		●
18	00.683 SUPPORT; DRAW LEVER 4JG2 ENG(RJC) 00.796 L=47.5	5-31345-002-1	01	1	9812-9903	●
18	00.683 SUPPORT; DRAW LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) L=47.5	8-97225-469-1	01	1	9904-0105	●		●
18	00.683 SUPPORT; DRAW LEVER 4JH1 ENG(RJX) L=47.5	8-97225-469-1	01	1	0106-		●
34	00.686 COVER; DUST,SHIFT FORK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97034-880-0	01	1	9812-0105	●		●
34	00.686 COVER; DUST,SHIFT FORK 4JH1 ENG(RJX)	8-97017-333-0	01	1	0106-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3	8-94336-511-0	01	1	0106-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3	8-94336-511-0	01	1	9812-0105	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3	8-94336-511-0	01	1	0106-		●
54	04.105 BOLT; FULCRUM 4JH1 ENG(RJX)	8-97171-503-0	02	1	0106-		●
55	04.105 PIN; KNOCK,CASE,TRANS 4JH1 ENG(RJX)	9-08161-016-0	02	1	0106-		●
67	04.105 STUD; CASE TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-09631-004-0	06	1	9812-0105	●		●
67	04.105 STUD; CASE TRANS 4JH1 ENG(RJX)	5-09302-011-0	04	1	0106-		●
71	04.439 COVER; SIDE,TRANS CASE 4JG2 ENG(RJC)	8-97106-371-0	01	1	9812-9903	●
71	04.439 COVER; SIDE,TRANS CASE 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33141-601-2	01	1	9904-0105	●		●
71	04.439 COVER; SIDE,TRANS CASE 4JH1 ENG(RJX)	9-33141-601-2	01	1	0106-		●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9906-0105	●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9906-0105	●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) TURBOCHARGER<K51> 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9906-0105			●
72	04.439 BOLT; SIDE COVER 4JH1 ENG(RJX) 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0106-		●
72	04.439 BOLT; SIDE COVER 4JG2 ENG(RJC) 09.008 M10X20 FLANGE	0-28081-020-0	06	1	9812-9903	●
72	04.439 BOLT; SIDE COVER 4JG2 ENG(RJC) 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9904-9905	●
72	04.439 BOLT; SIDE COVER 4JG2 ENG(RJC) 09.008 M10X20 FLANGE	0-28081-020-0	06	1	9906-0105	●
72	04.439 BOLT; SIDE COVER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 09.008 M10X20 FLANGE	0-28081-020-0	06	1	9906-0105	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33142-601-0	01	1	9812-0105	●		●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX)	9-33142-601-0	01	1	0106-		●
85	04.104 BREATHER; RR COVER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-939-0	01	1	9812-0105	●		●
85	04.104 BREATHER; RR COVER 4JH1 ENG(RJX)	8-97165-939-0	01	1	0106-		●
86	04.317 BOLT; RR COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.105 M8X25	8-94128-786-0	07	1	9812-0105	●		●
86	04.317 BOLT; RR COVER 4JH1 ENG(RJX) 04.104 M10X50	8-94318-782-0	01	1	0106-		●
86	04.317 BOLT; RR COVER 4JH1 ENG(RJX) M10X30 FLANGE	8-94482-338-0	06	1	0106-		●
88	04.338 SCREW; SPEEDOMETER BUSHING 4JG2 ENG(RJC),4JB1 ENG(RLF) M8X12	8-94128-785-0	01	1	9812-0105	●		●
88	04.338 SCREW; SPEEDOMETER BUSHING 4JH1 ENG(RJX) M8X12	8-94128-785-0	01	1	0106-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK	8-97074-651-0	01	1	9812-0008	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK	8-97257-296-0	01	1	0009-0105	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK	8-97257-296-0	01	1	0106-		●
91	05.605 DRIVER; COUPLING 4JG2 ENG(RJC)	8-97011-346-2	01	1	9812-9905	●
91	05.605 DRIVER; COUPLING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-215-0	01	1	9906-0105	●		●
91	05.605 DRIVER; COUPLING 4JH1 ENG(RJX)	8-97212-108-0	01	1	0106-		●
92	05.605 BOLT; COUPLING DRIVER 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X33	8-97109-696-1	04	1	9812-0105	●		●
92	05.605 BOLT; COUPLING DRIVER 4JH1 ENG(RJX)	8-97109-697-1	04	1	0106-		●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC)	8-94421-576-0	01	1	9812-9905	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94178-725-0	01	1	9906-0105	●		●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX)	8-94178-725-0	01	1	0106-		●
94	05.595 WASHER; COUPLING DRIVER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94249-240-0	01	1	9812-0105	●		●
94	05.595 WASHER; COUPLING DRIVER 4JH1 ENG(RJX)	8-94249-240-0	01	1	0106-		●
95	05.595 NUT; MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.162 M24 FLANGE	8-97087-750-0	01	1	9812-0105	●		●
95	05.595 NUT; MAINSHAFT 4JH1 ENG(RJX) 04.162 M24 FLANGE	8-97087-750-0	01	1	0106-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9812-0105	●		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	0106-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9812-0105	●		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0106-		●
417	04.105 PLUG; OIL FILLER,TRANS 4JH1 ENG(RJX) M18	8-94337-946-1	01	1	0106-		●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK	8-94326-441-0	01	1	9812-0105	●		●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK	8-97017-350-0	01	1	0106-		●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97112-986-2	01	1	9812-0105	●		●
421	04.317 COVER; RR,TRANS 4JH1 ENG(RJX)	8-97249-001-1	01	1	0106-		●
430	04.105 PLUG; OIL DRAIN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94336-512-1	01	1	9812-0105	●		●
430	04.105 PLUG; OIL DRAIN 4JH1 ENG(RJX)	8-94336-512-1	01	1	0106-		●
434	00.683 HOUSING; CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97100-489-0	01	1	9906-0105	●
434	00.683 HOUSING; CLU 4JG2 ENG(RJC)	8-97034-879-2	01	1	9812-9905	●
434	00.683 HOUSING; CLU 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97034-879-2	01	1	9906-0105	●		●
434	00.683 HOUSING; CLU 4JG2 ENG(RJC)	8-97034-879-2	01	1	9906-0105	●
434	00.683 HOUSING; CLU 4JH1 ENG(RJX)	8-97034-801-2	01	1	0106-		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97072-004-0	01	1	9812-9905	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97206-005-0	01	1	9906-0105	●		●
435	04.103 CASE; TRANS 4JH1 ENG(RJX)	8-97204-132-1	01	1	0106-		●
584	04.317 COVER; STARTER HOLE 4JH1 ENG(RJX)	8-97260-364-1	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
