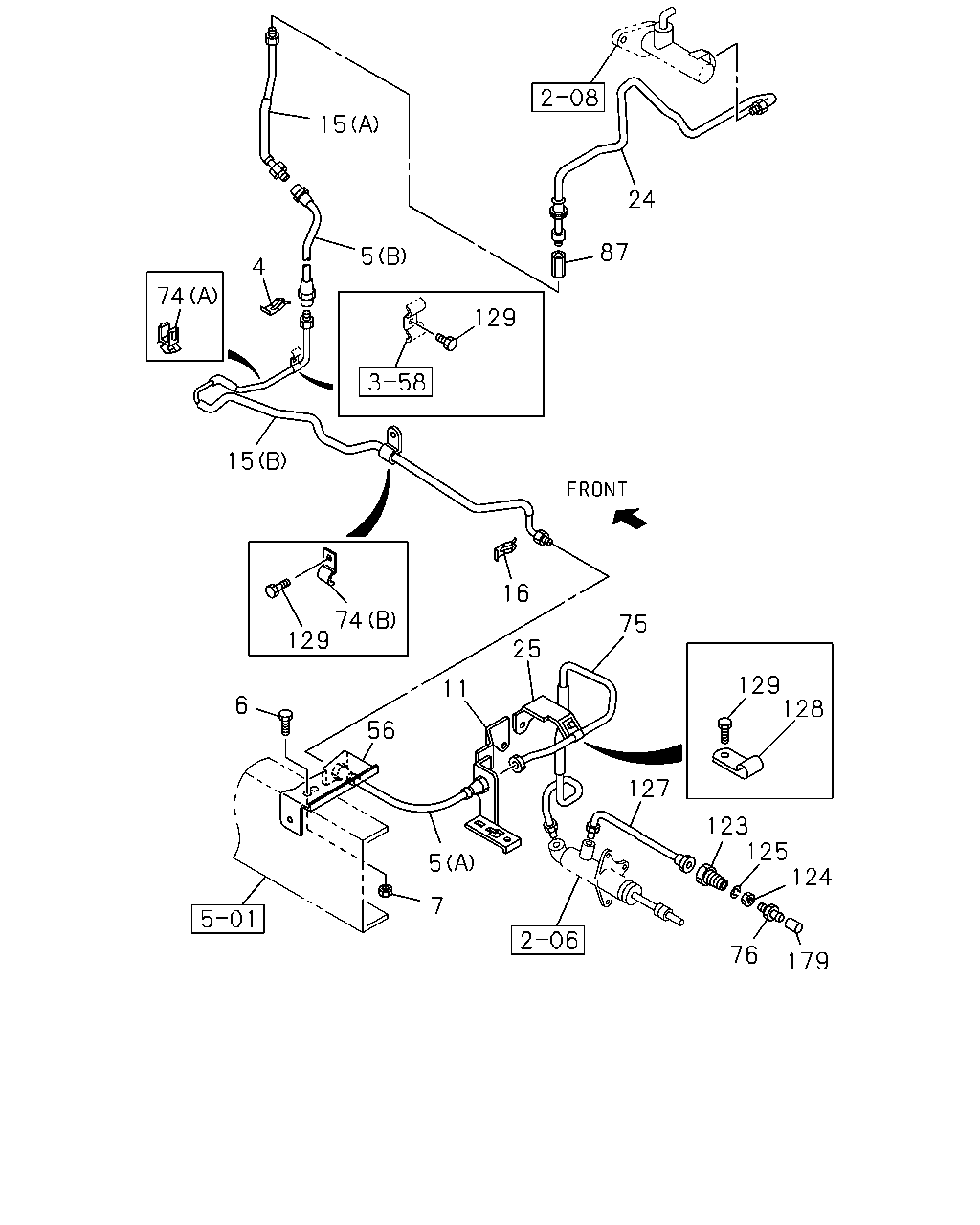

2-05 — CLUTCH PIPING (#34780) — 77 parça

15 24 4 5 87 15 129 74 74 20 19 18 5 20 19 177 3 3 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	00.785 GASKET; FLEX HOSE,CLU 4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-	●
4	00.785 CLIP; FLEX HOSE,CLU CONT	8-94167-006-0	02	1	9812-0105		●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT	8-94167-006-0	02	1	0106-	●
5	00.785 HOSE; FLEX,CLU PIPE (A)	8-94374-552-1	01	1	9812-0105		●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JH1 ENG(RJX) (C)	8-97304-979-0	01	1	0106-	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-94248-702-2	01	1	9812-0105		●	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-94248-702-2	01	1	0106-	●
15	00.785 PIPE; CLU,FLEX HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97185-249-0	01	1	9812-0105		●
15	00.785 PIPE; CLU,FLEX HOSE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97259-375-2	01	1	0106-	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97035-987-0	01	1	9812-0105		●	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97035-987-0	01	1	0106-	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97208-985-0	01	1	9906-0105		●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97259-517-1	01	1	0106-	●
18	00.830 DAMPER ASM; CLU OIL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97304-971-0	01	1	0106-	●
18	00.830 DAMPER ASM; CLU OIL 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97304-970-0	01	1	0106-	●
19	00.837 BOLT; CLU DAMPER 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●
20	00.837 NUT; CLU OIL DAMPER 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0202	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97035-986-0	01	1	9812-0105		●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97035-986-0	01	1	0106-	●
74	00.785 CLIP; CLU OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	9812-9905		●
74	00.785 CLIP; CLU OIL PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	9906-0105		●	●
74	00.785 CLIP; CLU OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	9906-0105		●
74	00.785 CLIP; CLU OIL PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	0106-	●
74	00.785 CLIP; CLU OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B)	9-09716-287-0	01	1	9812-0105		●	●
74	00.785 CLIP; CLU OIL PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C)	8-94363-358-0	01	1	0106-	●
74	00.785 CLIP; CLU OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C)	8-94363-358-0	01	1	0106-	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	9-99227-006-0	01	1	9812-0105		●	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	9-99227-006-0	01	1	0106-	●
129	00.785 BOLT; PIPE CLIP 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-0105		●	●
129	00.785 BOLT; PIPE CLIP 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-	●
129	00.785 BOLT; PIPE CLIP FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-	●
129	00.785 BOLT; PIPE CLIP FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE	0-28480-620-0	01	1	9812-0105		●	●
177	00.777 BOLT; EYE,FLEX HOSE TO M/CYL 4JH1 ENG(RJX) 04.665 M10X22	5-09675-017-0	01	1	0106-	●

15 24 87 5 4 74 129 15 16 74 129 75 25 129 128 11 6 56 127 123 125 124 5 7 76 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	00.785 CLIP; FLEX HOSE,CLU CONT	8-94167-006-0	02	1	9812-0105		●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT	8-94167-006-0	02	1	0106-	●
5	00.785 HOSE; FLEX,CLU PIPE (A)	8-94374-552-1	01	1	9812-0105		●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JH1 ENG(RJX) (C)	8-97304-979-0	01	1	0106-	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-94248-702-2	01	1	9812-0105		●	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-94248-702-2	01	1	0106-	●
6	00.785 BOLT; BRKT,FLEX HOSE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-0105		●	●
7	00.785 NUT; FLEX HOSE,CLU CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105		●	●
11	00.785 BRACKET; FLEX HOSE,CLU	8-97091-929-0	01	1	9812-0105		●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97185-249-0	01	1	9812-0105		●
15	00.785 PIPE; CLU,FLEX HOSE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97259-375-2	01	1	0106-	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97035-987-0	01	1	9812-0105		●	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97035-987-0	01	1	0106-	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97208-985-0	01	1	9906-0105		●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97259-517-1	01	1	0106-	●
16	00.785 CLIP; FLEX HOSE	8-94167-006-0	02	1	9812-0105		●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97035-986-0	01	1	9812-0105		●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97035-986-0	01	1	0106-	●
25	00.785 BRACKET; OIL PIPE 4JG2 ENG(RJC)	8-97013-211-1	01	1	9812-9905		●
25	00.785 BRACKET; OIL PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97013-211-1	01	1	9906-0105		●	●
25	00.785 BRACKET; OIL PIPE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97013-211-1	01	1	9906-0105		●	●
25	00.785 BRACKET; OIL PIPE 4JG2 ENG(RJC)	8-97013-211-1	01	1	9906-0105		●
56	00.785 BRACKET; FLEX HOSE	8-97090-299-0	01	1	9812-0105		●	●
74	00.785 CLIP; CLU OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	9812-9905		●
74	00.785 CLIP; CLU OIL PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	9906-0105		●	●
74	00.785 CLIP; CLU OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	9906-0105		●
74	00.785 CLIP; CLU OIL PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5	8-94486-808-0	01	1	0106-	●
74	00.785 CLIP; CLU OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B)	9-09716-287-0	01	1	9812-0105		●	●
74	00.785 CLIP; CLU OIL PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C)	8-94363-358-0	01	1	0106-	●
74	00.785 CLIP; CLU OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C)	8-94363-358-0	01	1	0106-	●
75	00.785 PIPE ASM; CLU,HSG	8-97063-756-2	01	1	9812-0105		●	●
76	00.785 SCREW; BREATHER 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X16.5	8-94115-113-0	01	1	9812-0105		●	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	9-99227-006-0	01	1	9812-0105		●	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	9-99227-006-0	01	1	0106-	●
123	00.785 UNION; AIR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97013-854-0	01	1	9812-0105		●	●
124	00.785 NUT; PIPE UNION 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16	9-99111-416-0	01	1	9812-0105		●	●
125	00.785 WASHER; LK,PIPE UNION 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2	9-09150-516-0	01	1	9812-0105		●	●
127	00.785 PIPE; AIR,UNION TO MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97062-512-1	01	1	9812-0105		●	●
128	00.785 CLIP; AIR PIPE 03.145 ID=7 L=16	9-09524-622-0	02	1	9812-0105		●	●
129	00.785 BOLT; PIPE CLIP 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-0105		●	●
129	00.785 BOLT; PIPE CLIP 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-	●
129	00.785 BOLT; PIPE CLIP FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-	●
129	00.785 BOLT; PIPE CLIP FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE	0-28480-620-0	01	1	9812-0105		●	●
179	00.785 CAP; BREATHER 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5	9-47619-005-0	01	1	9812-0105		●	●
