0-12B — CYLINDER BLOCK (#3478) — 161 parça

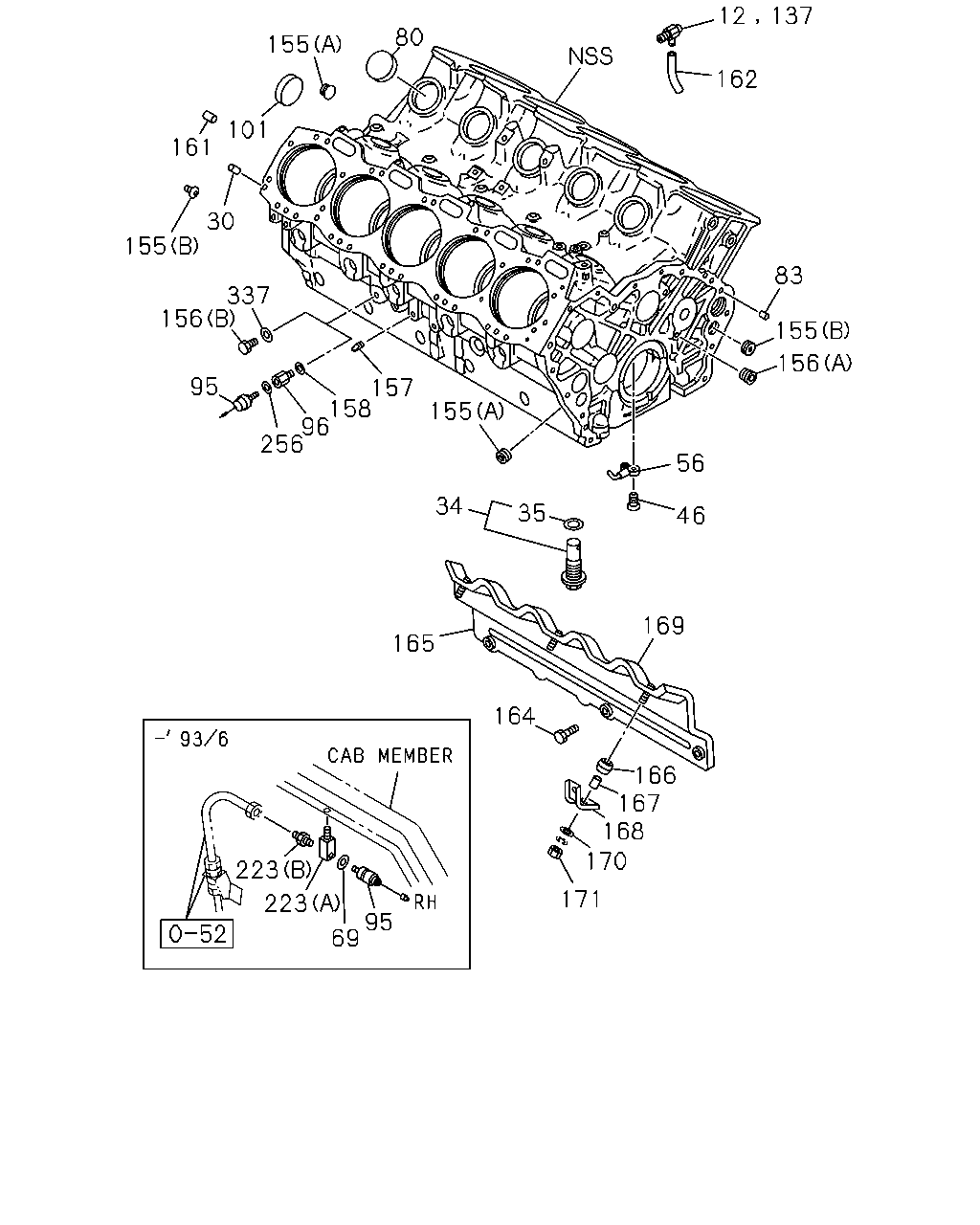

12 137 80 155 162 101 161 30 155 83 337 156 155 156 95 157 158 96 256 155 56 34 35 46 169 165 164 166 167 168 170 223 171 223 95 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	9002-9202	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9307-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9307-		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9307-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●
95	PRESSURE UNIT; OIL	1-83150-171-0	01	1	9002-9306	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-	●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-	●	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9307-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9307-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X28	0-28121-028-0	03	1	9002-9002	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X28 FLANGE	0-28181-028-0	03	1	9003-	●	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9002	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X16 W/LK WASHER	1-09033-012-0	03	1	9003-	●	●
165	COVER; C/BL SKIRT TAIWAN EQUIPMENT(WW5)	1-19381-226-1	01	1	9002-	●
165	COVER; C/BL SKIRT	1-19381-210-2	01	1	9307-		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5)	1-09337-020-0	06	1	9002-	●	●
167	TUBE; DIST,SIDE COVER TAIWAN EQUIPMENT(WW5)	5-23332-003-0	06	1	9002-	●	●
168	BRACKET; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19386-012-3	03	1	9002-	●	●
169	INSULATOR; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19389-066-3	01	1	9002-	●
169	INSULATOR; SIDE COVER	1-19389-067-0	01	1	9307-		●
170	WASHER; COVER TAIWAN EQUIPMENT(WW5) ID=10.5 OD=26	9-09160-710-0	06	1	9002-	●	●
171	NUT; COVER & BRKT TAIWAN EQUIPMENT(WW5) M10	9-09110-410-0	03	1	9002-	●	●
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306	●
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-	●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-		●

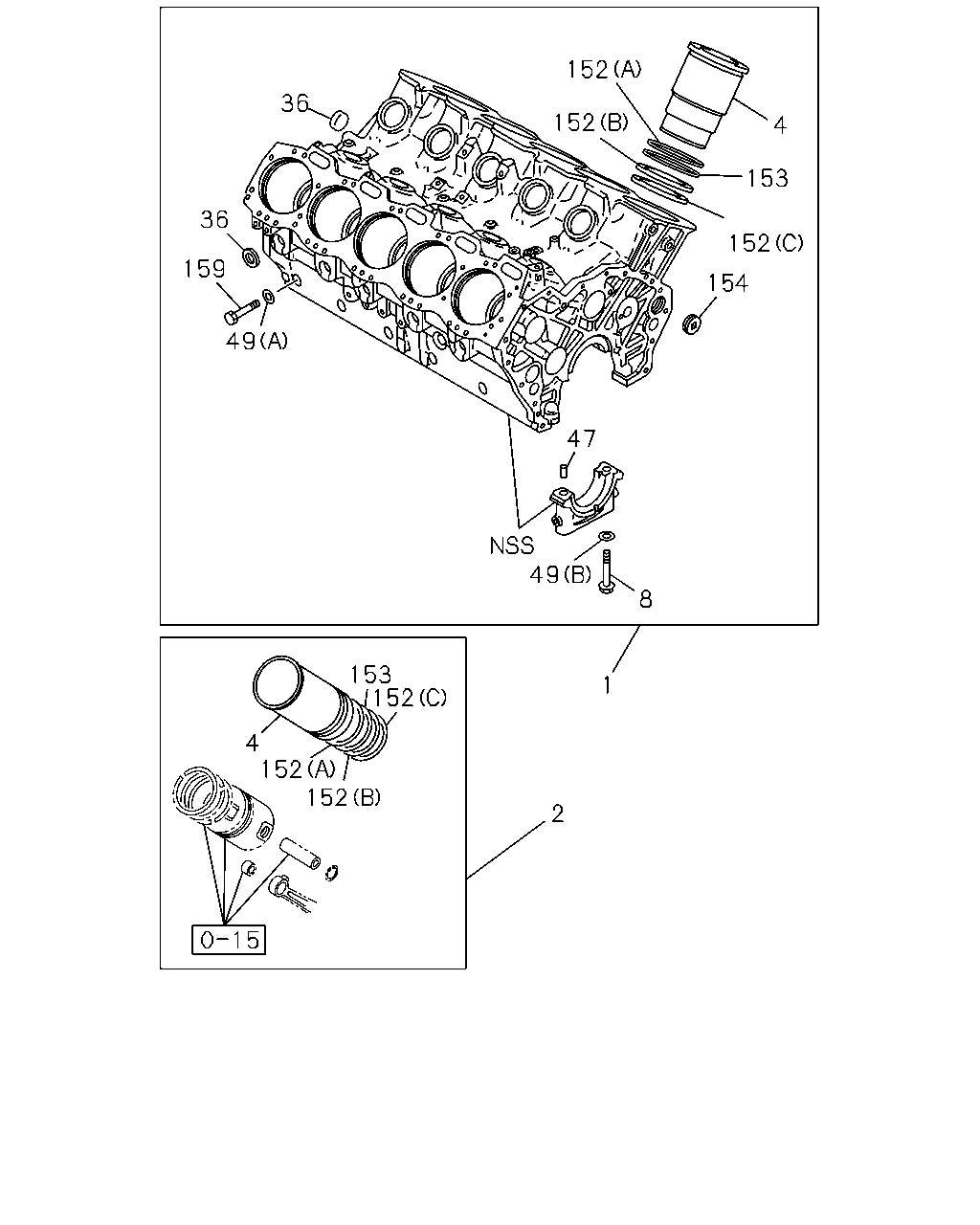

4 152 153 152 152 1 36 154 36 49 154 47 2 159 49 4 152 153 152 152 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9307-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5)	1-87810-781-2	10	1	9002-	●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9307-	●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5)	1-87810-835-0	10	1	9002-9306	●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9307-	●
2	LINER SET; ENG CYL NON GRADE	1-87811-390-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-161-2	10	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9307-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	14	1	9307-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9307-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9002-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	14	1	9307-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	14	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9307-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9307-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	14	1	9307-		●

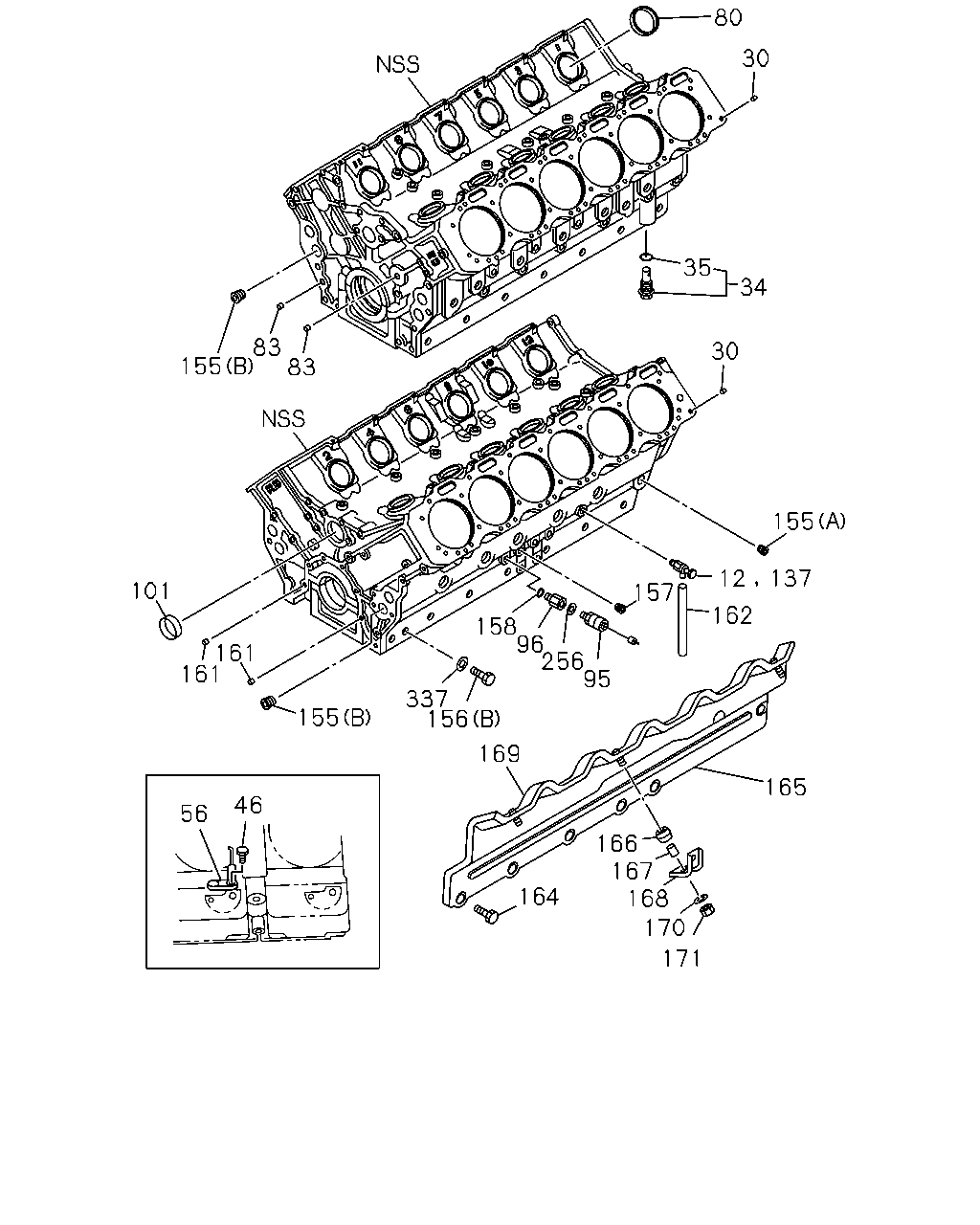

80 30 35 34 83 155 83 30 155 12 137 101 157 162 158 96 256 95 161 161 337 156 155 169 165 46 56 166 167 168 164 170 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	9002-9202	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9307-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9307-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9307-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●
95	PRESSURE UNIT; OIL	1-83150-171-0	01	1	9002-9306	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-	●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-	●	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9307-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9307-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X28	0-28121-028-0	03	1	9002-9002	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X28 FLANGE	0-28181-028-0	03	1	9003-	●	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9002	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) M10X16 W/LK WASHER	1-09033-012-0	03	1	9003-	●	●
165	COVER; C/BL SKIRT TAIWAN EQUIPMENT(WW5)	1-19381-226-1	01	1	9002-	●
165	COVER; C/BL SKIRT	1-19381-210-2	01	1	9307-		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5)	1-09337-020-0	06	1	9002-	●	●
167	TUBE; DIST,SIDE COVER TAIWAN EQUIPMENT(WW5)	5-23332-003-0	06	1	9002-	●	●
168	BRACKET; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19386-012-3	03	1	9002-	●	●
169	INSULATOR; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19389-066-3	01	1	9002-	●
169	INSULATOR; SIDE COVER	1-19389-067-0	01	1	9307-		●
170	WASHER; COVER TAIWAN EQUIPMENT(WW5) ID=10.5 OD=26	9-09160-710-0	06	1	9002-	●	●
171	NUT; COVER & BRKT TAIWAN EQUIPMENT(WW5) M10	9-09110-410-0	03	1	9002-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-	●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-		●

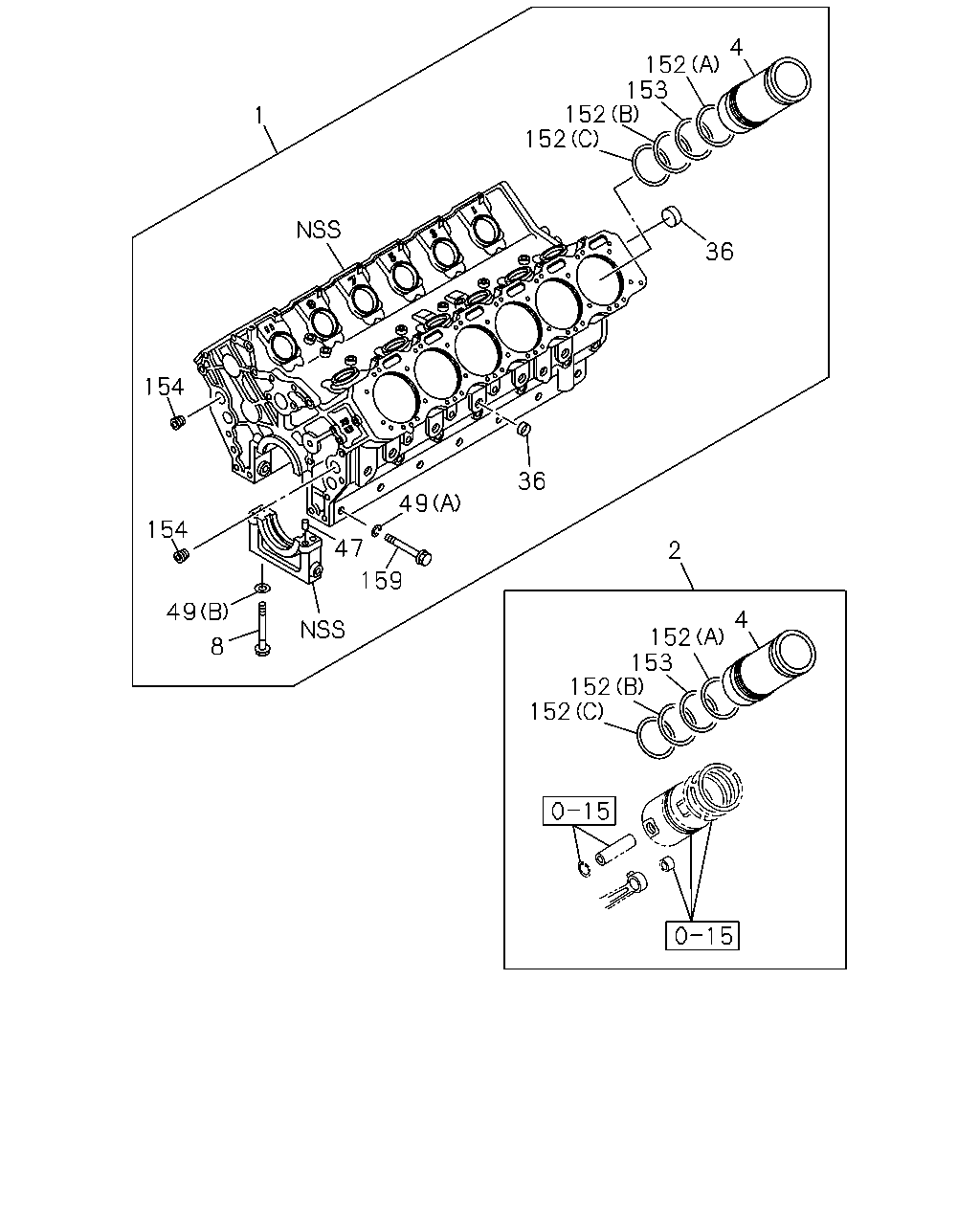

152 36 152 4 153 36 152 159 154 49 47 49 8 153 152 1 4 152 152 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9307-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5)	1-87810-781-2	10	1	9002-	●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9307-	●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5)	1-87810-835-0	10	1	9002-9306	●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9307-	●
2	LINER SET; ENG CYL NON GRADE	1-87811-390-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-161-2	10	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9307-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9307-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	14	1	9307-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9307-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9002-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	14	1	9307-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	14	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9307-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9307-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	14	1	9307-		●
