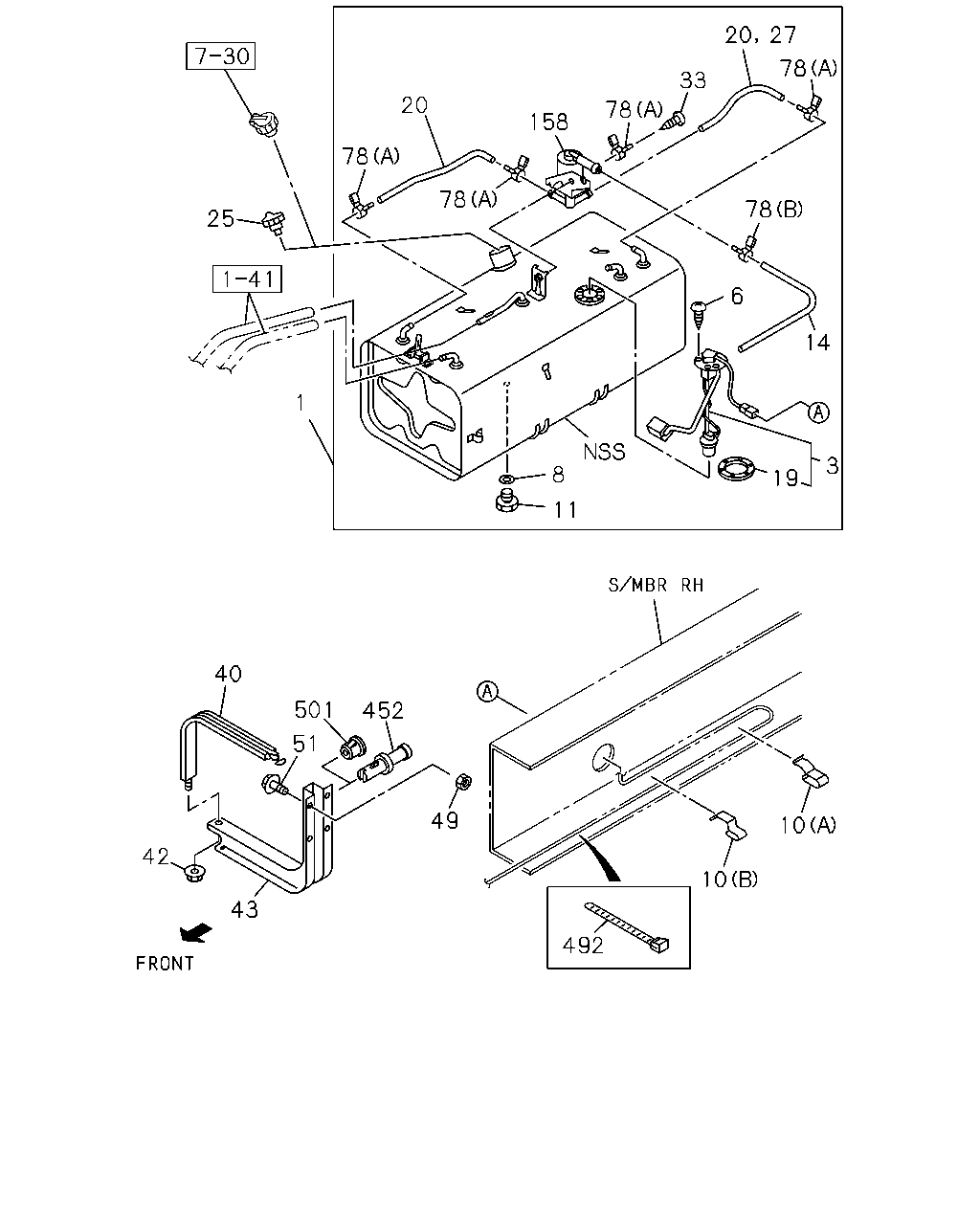

1-40 — FUEL TANK (#34772) — 49 parça

20 27 78 33 20 78 158 78 78 78 25 6 14 1 3 8 19 11 40 501 452 51 49 10 42 10 43 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 753X340X327 75L	8-97033-951-2	01	1	9812-0105	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 1000X340X327 100L	8-97259-658-1	01	1	0106-0205	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 1000X340X327 100L	8-97259-658-1	01	1	0206-0301	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 753X340X327 75L	8-97350-990-0	01	1	0302-	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 1000X340X327 100L	8-97259-661-1	01	1	0106-0301			●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 1000X340X327 100L	8-97350-993-0	01	1	0302-			●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9812-0105	●
3	03.107 UNIT; FUEL TANK,SUB 4JH1 ENG(RJX) 03.001	8-94316-190-0	01	1	0106-	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9812-0105	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1 ENG(RJX) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0106-	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9812-0105	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0106-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	9812-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	9812-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	9812-	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	9812-0105	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.453 M14X14	9-09862-156-0	01	1	0106-	●	●	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9812-0105	●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX) 00.034 L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0106-	●	●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0106-			●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9812-0105	●
19	03.112 GASKET; FUEL TANK UNIT 4JH1 ENG(RJX)	5-83148-001-0	01	1	0106-	●	●	●
20	03.163 HOSE; BREATHER L=380 SERVICED BY L=3000	8-94128-826-0	02	1	9812-0105	●
20	03.163 HOSE; BREATHER 4JH1 ENG(RJX) L=380 SERVICED BY L=3000	8-94128-826-0	02	1	0106-	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9812-0105	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97259-670-0	01	1	0106-	●	●	●
27	03.163 HOSE; BREATHER 4JH1 ENG(RJX) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0106-			●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9812-0105	●
33	03.162 SCREW; JOINT TO FUEL TANK 4JH1 ENG(RJX) 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0106-	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9812-0105	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0106-	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9812-	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9812-0004	●
43	03.015 BRACKET; FUEL TANK EXC. RR BODY FLAT BED<RS6>	8-97035-517-0	02	1	0005-	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0005-		●	●
43	03.015 BRACKET; FUEL TANK RR BODY FLAT BED<RS6>	8-97035-516-0	02	1	0005-	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9812-	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9812-	●	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 (A) ID=8.5	8-94166-071-0	04	1	9812-0105	●
78	03.003 CLIP; BREATHER HOSE 4JH1 ENG(RJX) 03.162 (A) ID=8.5	8-94166-071-0	04	1	0106-	●	●	●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=14	8-94238-572-0	01	1	9812-0105	●
78	03.003 CLIP; BREATHER HOSE 4JH1 ENG(RJX) 01.166 (B) ID=14	8-94238-572-0	01	1	0106-	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-94437-368-0	01	1	9812-0105	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1 ENG(RJX)	8-94437-368-0	01	1	0106-	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	9812-	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	9906-0105	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	0106-	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	9812-	●	●	●
