Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#34770) — 274 parça

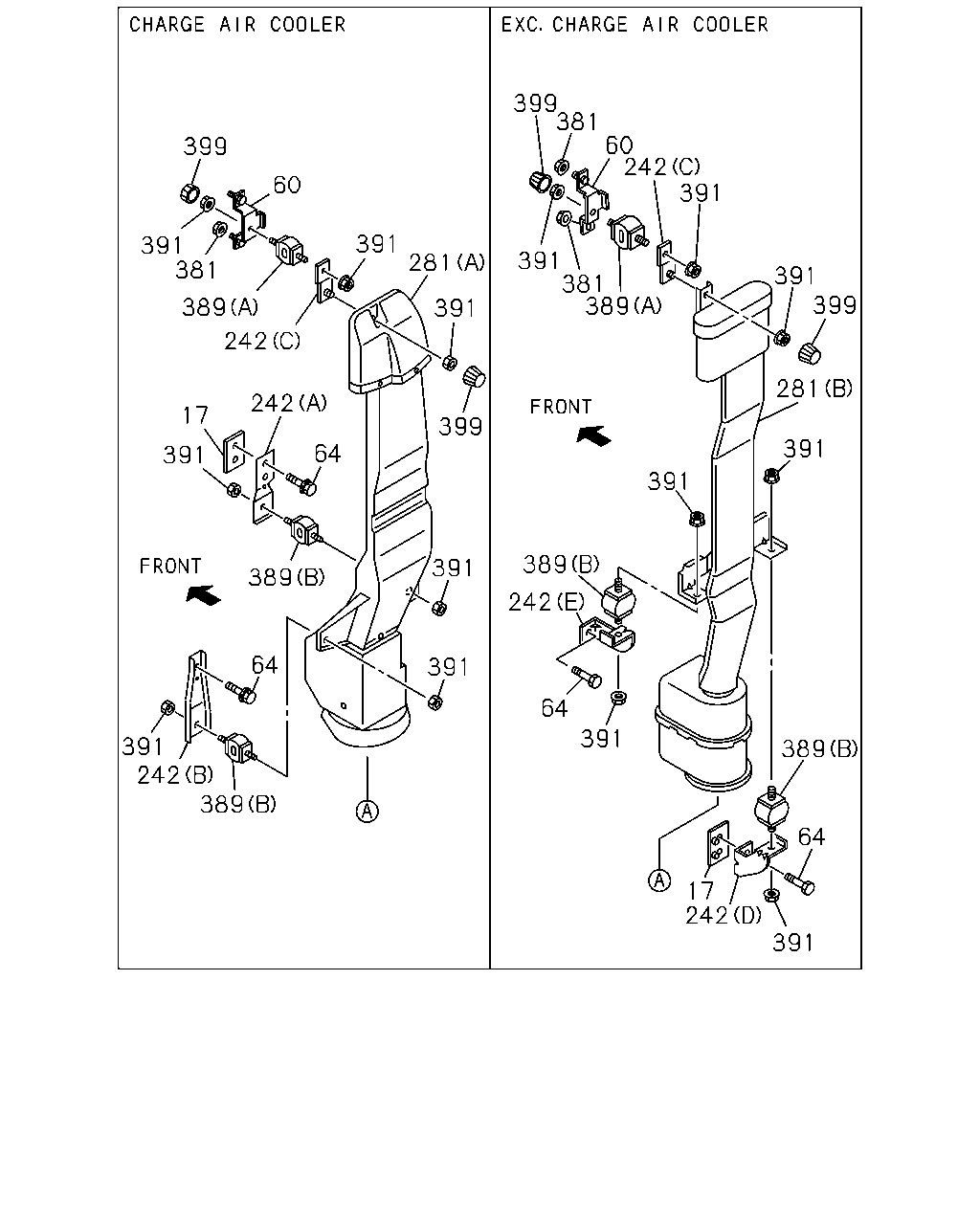

399 381 60 242 391 399 60 391 391 381 391 381 389 281 391 399 389 391 242 281 242 17 399 391 64 391 391 389 391 389 242 64 391 64 391 391 242 389 389 64 17 242 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9906-0105	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0106-	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9906-0105	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9906-0105	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97076-959-2	01	1	9906-0105	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0106-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9906-0103	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE(RBB)	8-94273-605-0	02	1	0104-0104	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0105-0105	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0106-	●	●	●

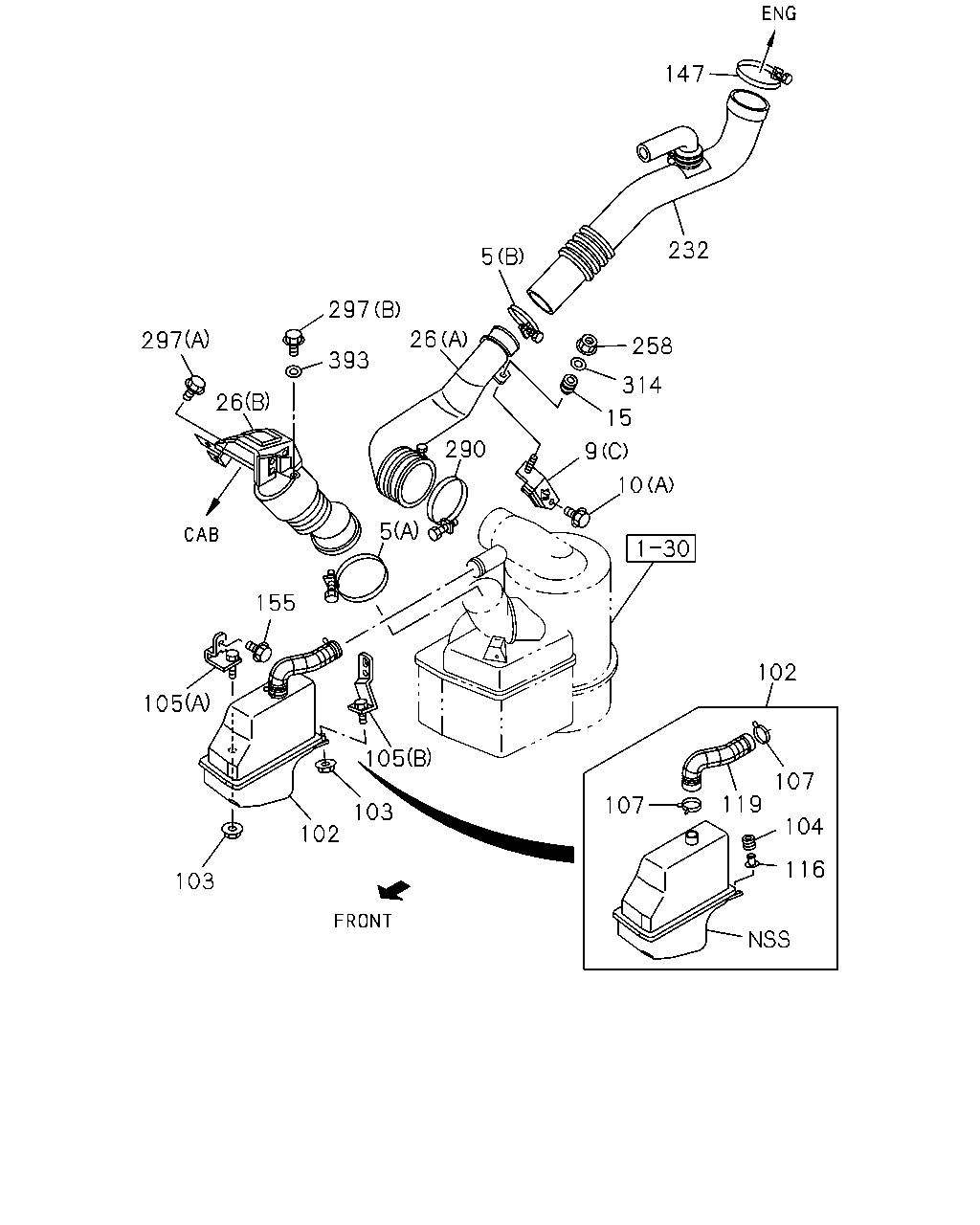

147 232 5 26 297 258 393 314 26 15 290 9 10 5 155 102 105 105 107 119 107 103 104 102 116 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) (A) ID=87	8-97087-432-0	01	1	9812-9903	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) 03.417 (A) ID=82	9-09915-511-1	01	1	9904-9905	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9906-0105	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) (B) ID=67	9-09915-069-1	01	1	9812-9905	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9906-0105	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (D) ID=112	9-09915-074-1	01	1	0106-	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=87	8-97087-432-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97226-060-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (E)	8-97300-771-1	01	1	0106-		●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) (C)	8-97089-655-0	01	1	9812-9905	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97089-655-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97240-850-0	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (D)	8-97312-472-0	01	1	0106-	●	●	●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
15	03.417 INSULATOR 4JG2 ENG(RJC)	8-94338-739-0	01	1	9812-9905	●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9906-0105	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) (A)	8-97091-273-1	01	1	9812-9905	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97091-273-1	01	1	9906-0105	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> (B)	8-97089-950-2	01	1	9812-9905	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-950-2	01	1	9906-0105	●
102	03.402 RESONATOR; AIR INT 4JG2 ENG(RJC)	8-97103-541-1	01	1	9812-9905	●
102	03.402 RESONATOR; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97103-541-1	01	1	9906-0105	●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9905	●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●
104	03.417 RUBBER; MOUNTING,RESONATOR 4JG2 ENG(RJC)	8-97095-600-0	02	1	9812-9905	●
104	03.417 RUBBER; MOUNTING,RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	9906-0105	●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC) (A)	8-97092-039-1	01	1	9812-9905	●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-039-1	01	1	9906-0105	●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC) (B)	8-97174-754-0	01	1	9812-9905	●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97174-754-0	01	1	9906-0105	●
107	03.417 CLIP; PROTECTOR 4JG2 ENG(RJC)	8-97095-785-0	02	1	9812-9905	●
107	03.417 CLIP; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	9906-0105	●
116	01.745 RETAINER; RESONATOR 4JG2 ENG(RJC)	8-97105-842-0	02	1	9812-9905	●
116	01.745 RETAINER; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	9906-0105	●
119	03.403 HOSE; RESONATOR 4JG2 ENG(RJC)	8-97109-542-0	01	1	9812-9905	●
119	03.403 HOSE; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97109-542-0	01	1	9906-0105	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) 03.407 ID=79	9-09915-734-1	01	1	9812-9905	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9906-0105	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9906-0105	●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC)	8-97096-429-1	01	1	9812-9905	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9906-0105	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	9906-0105	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) 03.407 ID=92	9-09915-072-1	01	1	9812-9905	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9906-0105	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (C) M10X12 FLANGE	0-28081-012-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9812-9905	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9812-9905	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9812-9905	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9906-0105	●
393	03.417 WASHER; LK,AIR DUCT 4JG2 ENG(RJC) 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9812-9905	●
393	03.417 WASHER; LK,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9906-0105	●

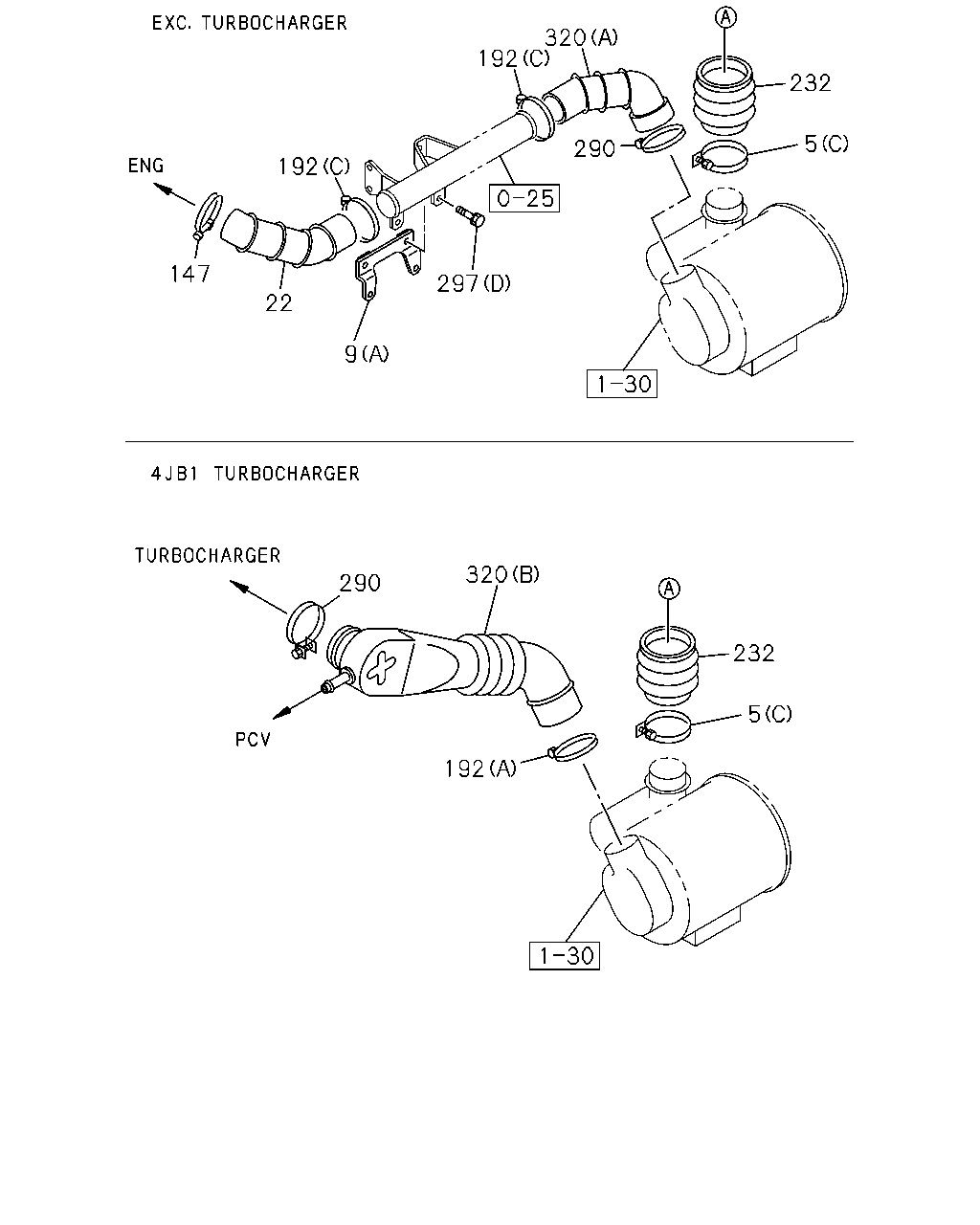

320 192 232 5 290 192 147 297 22 9 320 290 232 5 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) (A) ID=87	8-97087-432-0	01	1	9812-9903	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) 03.417 (A) ID=82	9-09915-511-1	01	1	9904-9905	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9906-0105	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) (B) ID=67	9-09915-069-1	01	1	9812-9905	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9906-0105	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (D) ID=112	9-09915-074-1	01	1	0106-	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=87	8-97087-432-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97226-060-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (E)	8-97300-771-1	01	1	0106-		●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) (C)	8-97089-655-0	01	1	9812-9905	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97089-655-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97240-850-0	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (D)	8-97312-472-0	01	1	0106-	●	●	●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>	8-97107-173-0	01	1	9906-0105	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) 03.407 ID=79	9-09915-734-1	01	1	9812-9905	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9906-0105	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9906-0105	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	01	1	9906-0105	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	9906-0105	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC)	8-97096-429-1	01	1	9812-9905	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9906-0105	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	9906-0105	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) 03.407 ID=92	9-09915-072-1	01	1	9812-9905	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9906-0105	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (C) M10X12 FLANGE	0-28081-012-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9812-9905	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9812-9905	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	9906-0105	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9906-0105	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (A)	8-94110-075-2	01	1	9906-0105	●

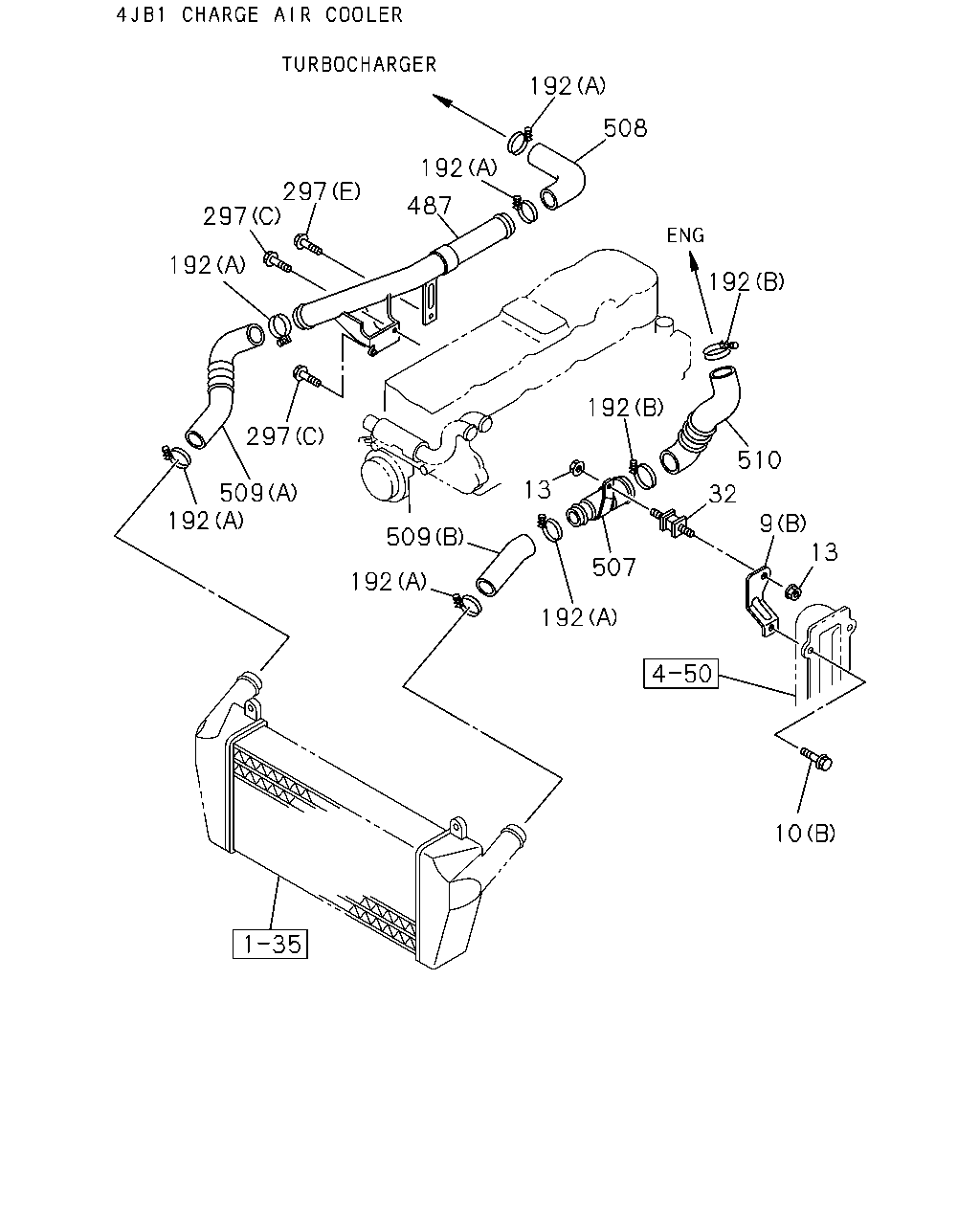

192 508 192 297 297 487 192 192 192 297 510 13 509 192 32 9 13 509 507 192 192 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97226-060-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (E)	8-97300-771-1	01	1	0106-		●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) (C)	8-97089-655-0	01	1	9812-9905	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97089-655-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97240-850-0	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (D)	8-97312-472-0	01	1	0106-	●	●	●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9906-0105	●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0106-	●	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	01	1	9906-0105	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	9906-0105	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (C) M10X12 FLANGE	0-28081-012-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9812-9905	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC) 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9812-9905	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9906-0105	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	9906-0105	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-536-0	01	1	0106-	●	●	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	9906-0105	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0106-	●	●	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	9906-0105	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0106-	●	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	9906-0105	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (C)	8-97260-314-4	01	1	0106-	●	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	9906-0105	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (D)	8-97300-859-2	01	1	0106-	●	●	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	9906-0105	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-2	01	1	0106-	●	●	●

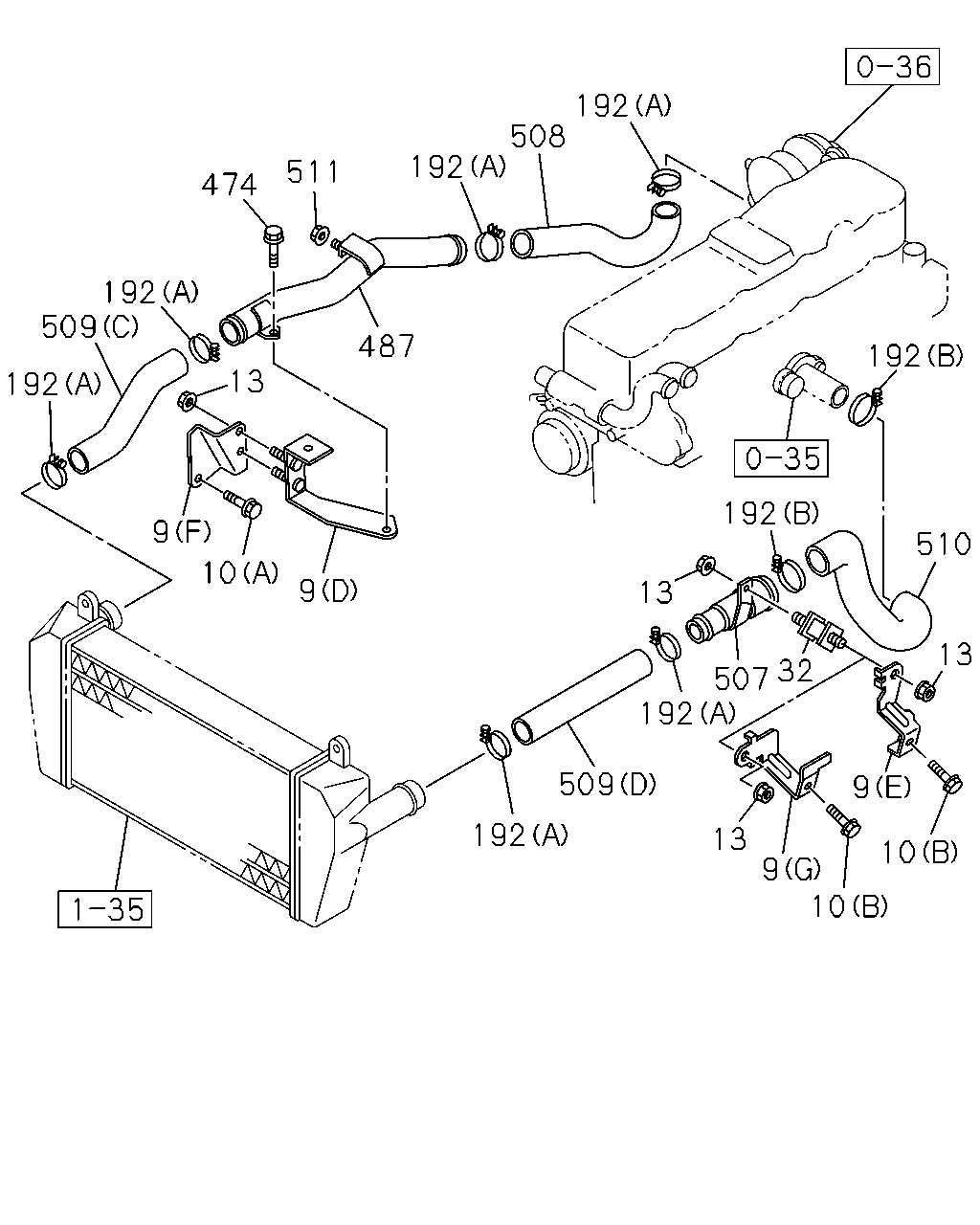

192 508 192 511 474 192 509 487 192 13 192 192 9 510 10 9 13 13 32 507 192 509 9 192 13 10 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97226-060-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (E)	8-97300-771-1	01	1	0106-		●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC) (C)	8-97089-655-0	01	1	9812-9905	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97089-655-0	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9906-0105	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97240-850-0	01	1	0106-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (D)	8-97312-472-0	01	1	0106-	●	●	●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC) 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9906-0105	●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0106-	●	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	01	1	9906-0105	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9906-0105	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-	●	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9906-0105	●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	9906-0105	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0106-	●	●	●
474	03.417 BOLT; PIPE 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	9906-0105	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-536-0	01	1	0106-	●	●	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	9906-0105	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0106-	●	●	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	9906-0105	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0106-	●	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	9906-0105	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (C)	8-97260-314-4	01	1	0106-	●	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	9906-0105	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (D)	8-97300-859-2	01	1	0106-	●	●	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	9906-0105	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-2	01	1	0106-	●	●	●
511	03.417 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●

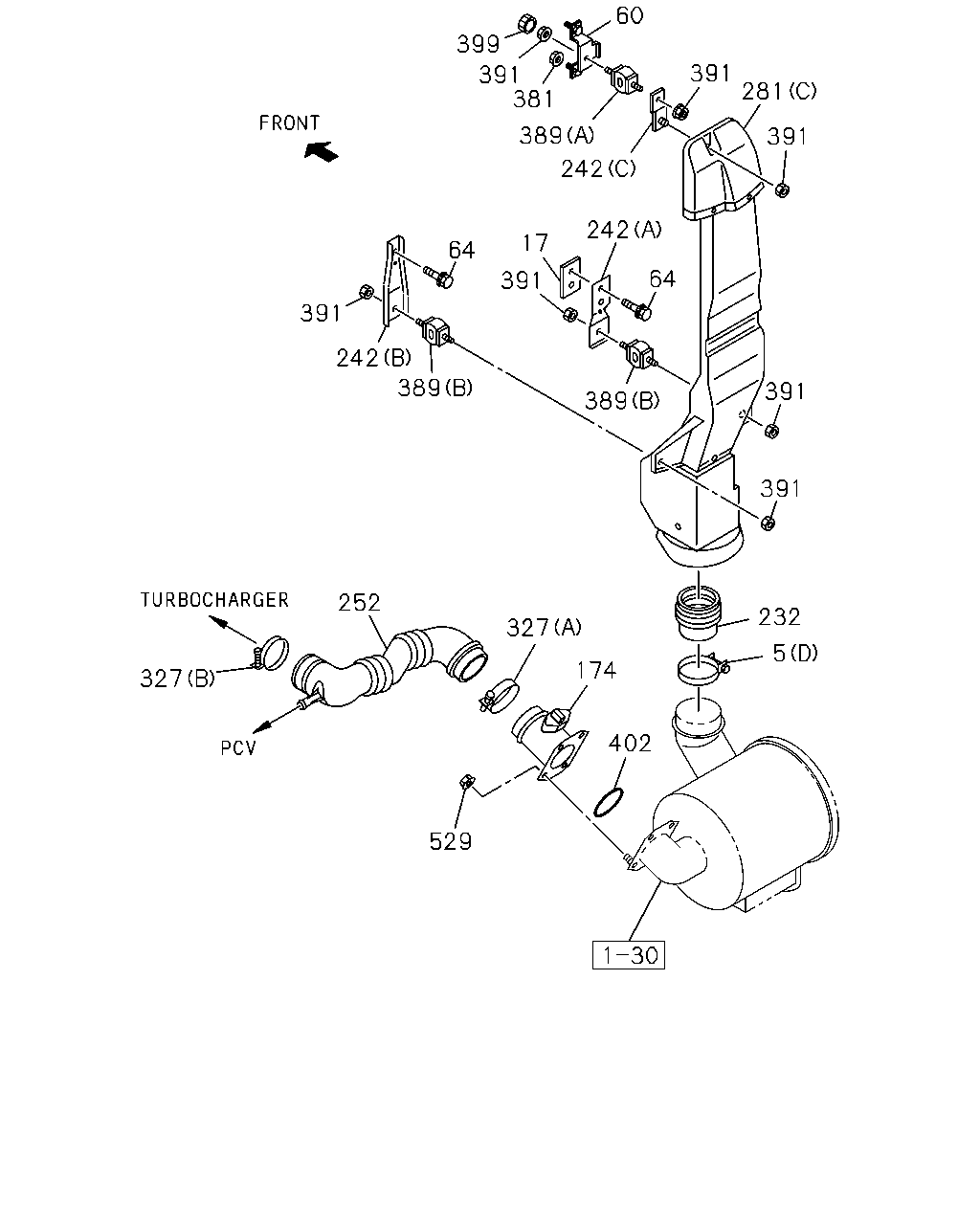

60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) (A) ID=87	8-97087-432-0	01	1	9812-9903	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) 03.417 (A) ID=82	9-09915-511-1	01	1	9904-9905	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9906-0105	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC) (B) ID=67	9-09915-069-1	01	1	9812-9905	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9906-0105	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (D) ID=112	9-09915-074-1	01	1	0106-	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=87	8-97087-432-0	01	1	9906-0105	●
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9906-0105	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0106-	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9906-0105	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0106-	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9906-0105	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●	●	●
174	03.682 SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0106-	●	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC)	8-97096-429-1	01	1	9812-9905	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9906-0105	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0106-	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0106-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9906-0105	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9906-0105	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-540-1	01	1	0106-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9906-0105	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97076-959-2	01	1	9906-0105	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0106-	●	●	●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-114-0	01	1	0106-	●	●	●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0106-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9906-0105	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9906-0105	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0106-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9906-0105	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0106-	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9906-0105	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0106-	●	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9906-0103	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE(RBB)	8-94273-605-0	02	1	0104-0104	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0105-0105	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0106-	●	●	●
402	03.417 GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0106-	●	●	●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 01.062 M6 FLANGE	0-91150-206-0	04	1	0106-0110	●		●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0111-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
