Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#34767) — 228 parça

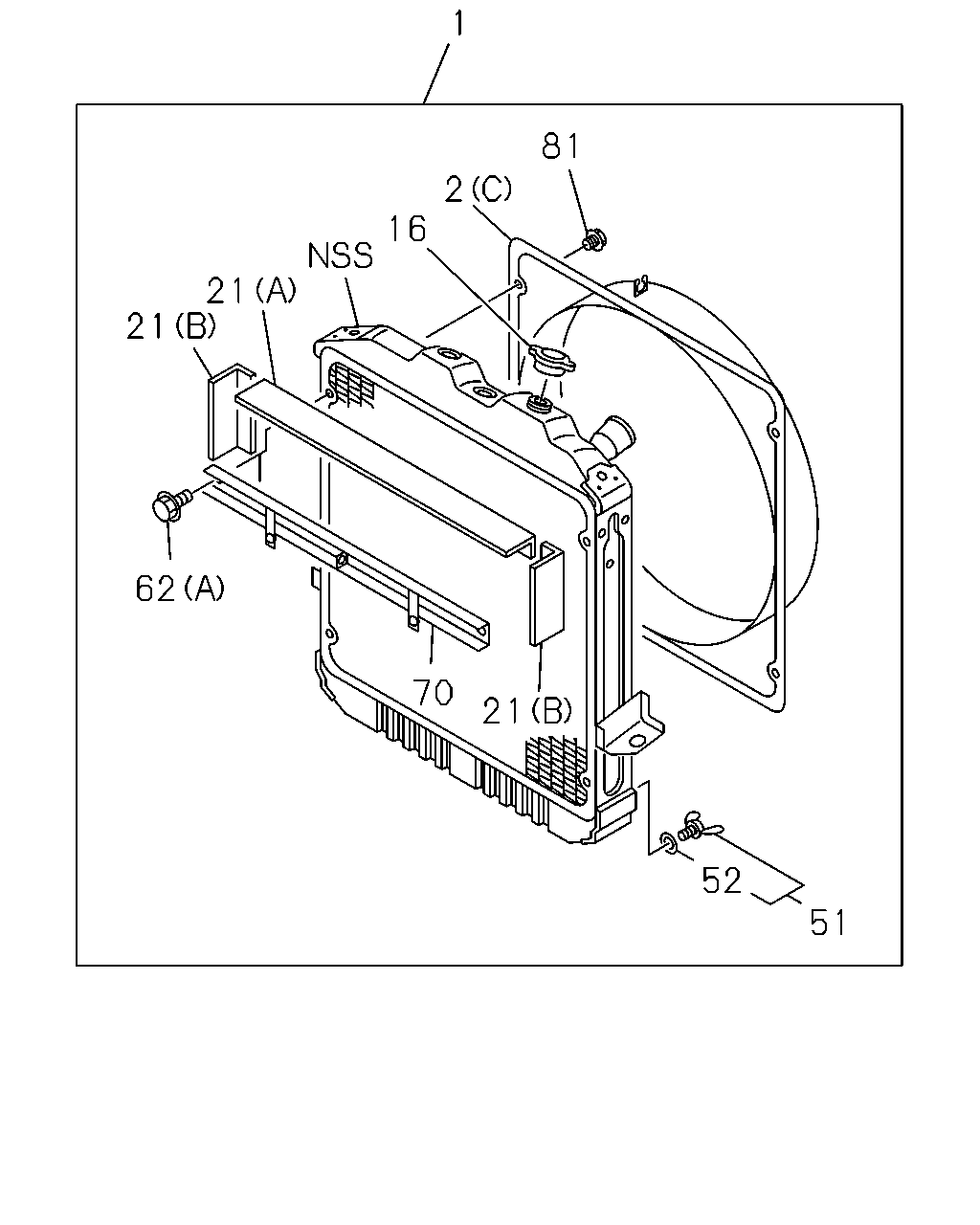

1 81 2 16 21 21 62 70 21 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97178-664-2	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97314-771-1	01	1	0106-	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9812-9905	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0106-0205		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0206-		●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97066-011-0	01	1	9812-9905	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97066-011-0	01	1	9906-0105	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-777-0	01	1	0106-	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-0205		●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0206-		●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97177-872-0	01	1	9906-0105	●
16	01.203 CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0106-0205	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0206-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97167-854-0	01	1	9812-9905	●
16	01.203 CAP; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97167-854-0	01	1	9906-0105	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97167-854-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97219-806-1	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9812-9905	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (A)	8-97085-689-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) (C)	8-97260-449-3	01	1	0106-0205	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (C)	8-97260-449-3	01	1	0206-	●	●	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9812-9905	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-690-0	02	1	9906-0105	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) 08.915 W/GASKET	8-94321-236-0	01	1	0106-0205	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0206-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) 01.203 ID=10	9-09720-557-0	01	1	0106-0205	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0206-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9905	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-899-0	01	1	9812-9905	●
70	01.271 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-899-0	01	1	9906-0105	●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0106-0205	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0206-	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97088-810-0	04	1	9812-9905	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97088-810-0	04	1	9906-0105	●

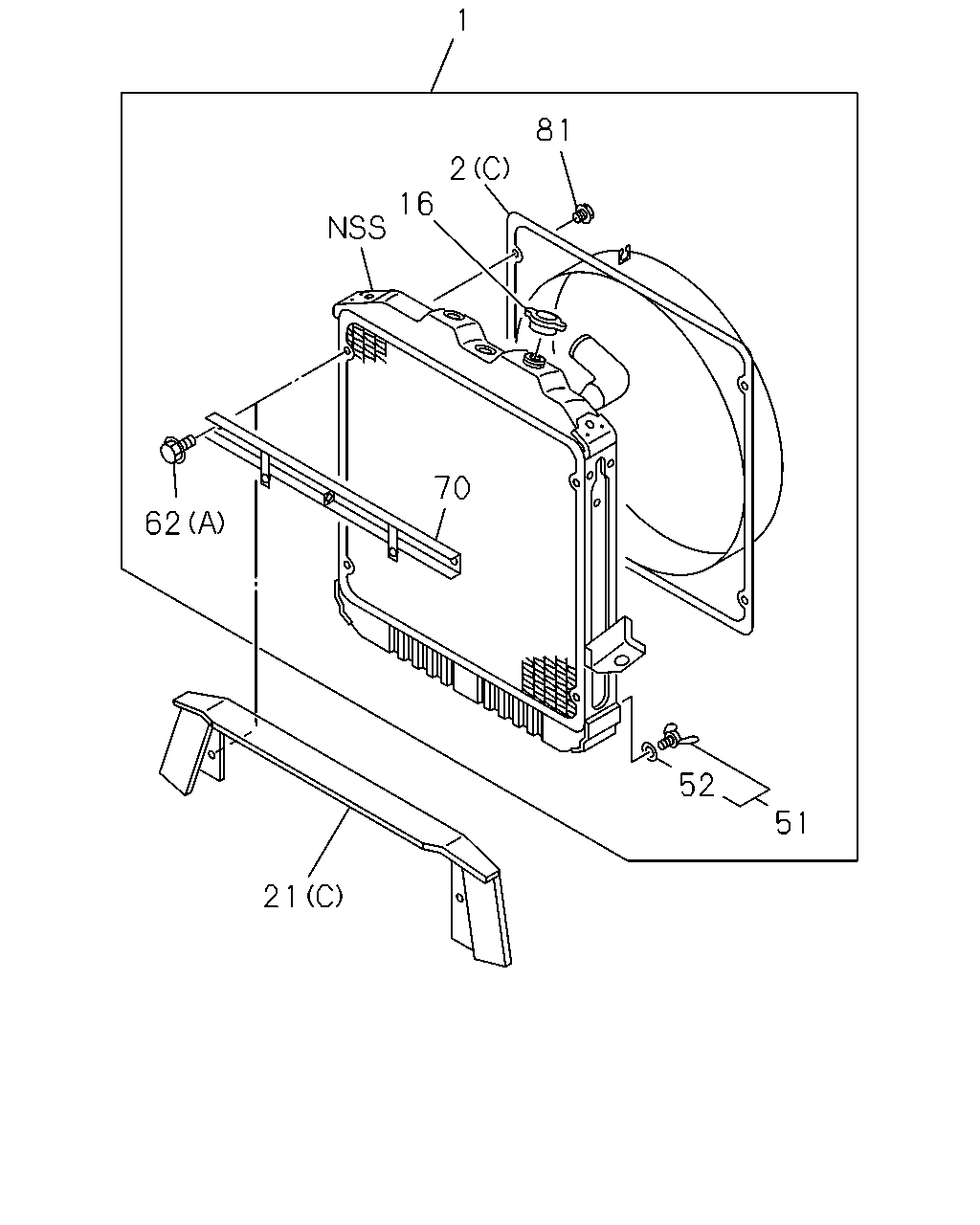

1 131 1 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97178-664-2	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97314-771-1	01	1	0106-	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9812-9905	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0106-0205		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0206-		●	●
131	01.166 CLIP; ENG SIDE TOP 4JG2 ENG(RJC) ID=42	5-09704-047-1	01	1	9812-9905	●
131	01.166 CLIP; ENG SIDE TOP 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=42	5-09704-047-1	01	1	9906-0105	●
131	01.166 CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0106-	●	●	●

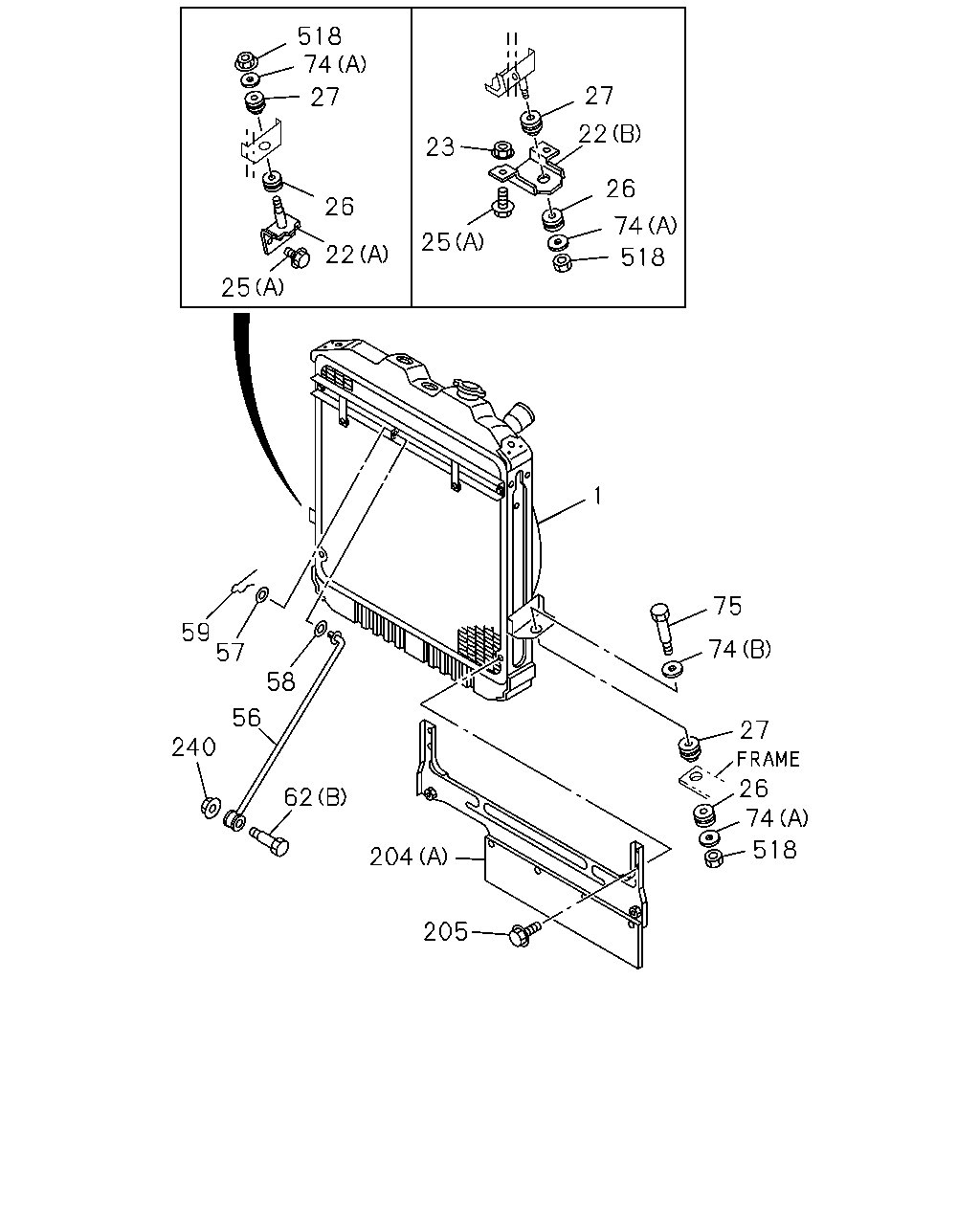

518 74 27 27 22 23 26 26 74 25 22 518 25 1 75 59 57 74 58 56 27 240 26 74 62 518 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97178-664-2	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97314-771-1	01	1	0106-	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9812-9905	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0106-0205		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0206-		●	●
22	01.270 BRACKET; RAD MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97072-647-1	01	1	9812-	●
22	01.270 BRACKET; RAD MTG (B)	8-94257-949-1	01	1	0106-		●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	0106-		●	●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	9812-0105	●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0205	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0205		●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0206-	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0206-		●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-0205		●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0206-		●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9812-	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9812-	●	●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97032-797-2	01	1	9812-9905	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97032-797-2	01	1	9906-0105	●
56	01.270 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97260-122-0	01	1	0106-	●
56	01.270 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-123-0	01	1	0106-0205		●
56	01.270 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-123-0	01	1	0206-		●	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9812-9905	●
57	01.271 WASHER; PL,STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9906-0105	●
57	01.271 WASHER; PL,STAY 4JH1 ENG(RJX) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0106-	●	●	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC) ID=12	8-97011-676-0	01	1	9812-9905	●
58	01.271 WASHER; CURVED,STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=12	8-97011-676-0	01	1	9906-0105	●
58	01.271 WASHER; CURVED,STAY 4JH1 ENG(RJX) ID=12	8-97011-676-0	01	1	0106-	●	●	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC) 03.452 L=32.6	8-94202-777-0	01	1	9812-9905	●
59	01.271 PIN; SNAP,STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.452 L=32.6	8-94202-777-0	01	1	9906-0105	●
59	01.271 PIN; SNAP,STAY 4JH1 ENG(RJX) 03.452 L=32.6	8-94202-777-0	01	1	0106-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9905	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10.5 OD=36	8-97031-437-0	01	1	9812-	●
74	01.270 WASHER; PL,CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	9812-	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0106-		●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0106-		●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9812-	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97035-512-3	01	1	9812-	●	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97260-121-0	01	1	0106-		●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9812-	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9812-	●	●	●
518	01.270 NUT FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE	5-09440-005-0	01	1	9812-	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-		●	●

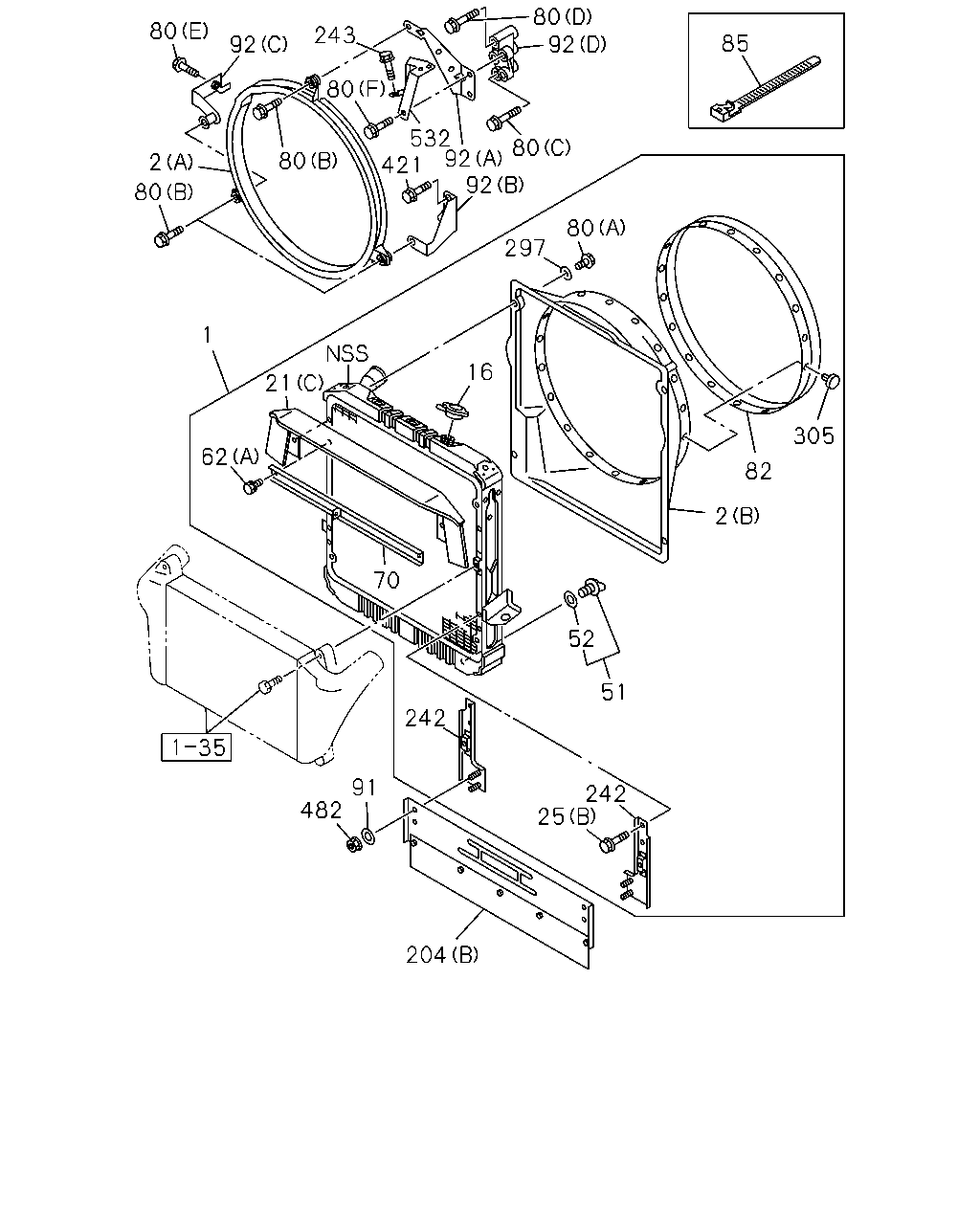

80 92 80 243 85 92 80 532 80 92 421 92 80 2 80 80 297 1 16 21 305 62 82 2 70 52 51 242 91 242 25 482 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97178-664-2	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97314-771-1	01	1	0106-	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9812-9905	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0106-0205		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0206-		●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97066-011-0	01	1	9812-9905	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97066-011-0	01	1	9906-0105	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-777-0	01	1	0106-	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-0205		●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0206-		●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97177-872-0	01	1	9906-0105	●
16	01.203 CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0106-0205	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0206-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97167-854-0	01	1	9812-9905	●
16	01.203 CAP; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97167-854-0	01	1	9906-0105	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97167-854-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97219-806-1	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9812-9905	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (A)	8-97085-689-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) (C)	8-97260-449-3	01	1	0106-0205	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (C)	8-97260-449-3	01	1	0206-	●	●	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9812-9905	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-690-0	02	1	9906-0105	●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	9812-0105	●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0205	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0205		●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0206-	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0206-		●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0106-0205		●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0206-		●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) 08.915 W/GASKET	8-94321-236-0	01	1	0106-0205	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0206-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) 01.203 ID=10	9-09720-557-0	01	1	0106-0205	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0206-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9905	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-899-0	01	1	9812-9905	●
70	01.271 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-899-0	01	1	9906-0105	●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0106-0205	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0206-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0106-0205	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0206-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0106-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0106-	●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0106-0205	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-451-0	01	1	0206-	●	●	●
85	01.277 CLIP 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0106-	●	●	●
91	01.277 WASHER; PL 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0106-		●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0106-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0106-	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97035-512-3	01	1	9812-	●	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97260-121-0	01	1	0106-		●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-453-0	01	1	0106-		●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-452-0	01	1	0106-		●	●
243	01.219 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●
297	01.277 WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0106-0205	●	●
297	01.277 WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0206-	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX)	1-09470-009-0	12	1	0106-0205	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0206-	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0106-	●	●	●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	04	1	0106-		●	●
532	01.219 BRACKET; HEATER PIPE 4JH1 ENG(RJX)	8-97302-265-1	01	1	0106-	●	●	●

1 81 2 16 70 62 52 51 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97178-664-2	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97314-771-1	01	1	0106-	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9812-9905	●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97162-128-1	01	1	9906-0105	●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0106-0205		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97314-773-1	01	1	0206-		●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97066-011-0	01	1	9812-9905	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97066-011-0	01	1	9906-0105	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0106-	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-777-0	01	1	0106-	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0106-0205		●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B)	8-97314-778-0	01	1	0206-		●	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97177-872-0	01	1	9906-0105	●
16	01.203 CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0106-0205	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0206-	●	●	●
16	01.203 CAP; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97167-854-0	01	1	9812-9905	●
16	01.203 CAP; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97167-854-0	01	1	9906-0105	●
16	01.203 CAP; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97167-854-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97219-806-1	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9812-9905	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (A)	8-97085-689-0	01	1	9906-0105	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) (C)	8-97260-449-3	01	1	0106-0205	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (C)	8-97260-449-3	01	1	0206-	●	●	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9812-9905	●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9906-0105	●
21	01.276 SEAL; RAD 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-690-0	02	1	9906-0105	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.915 W/GASKET	8-94321-236-0	01	1	9812-9905	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.915 W/GASKET	8-94321-236-0	01	1	9906-0105	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) 08.915 W/GASKET	8-94321-236-0	01	1	0106-0205	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0206-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 01.203 ID=10	9-09720-557-0	01	1	9812-9905	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.203 ID=10	9-09720-557-0	01	1	9906-0105	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) 01.203 ID=10	9-09720-557-0	01	1	0106-0205	●	●
52	08.951 GASKET; DRAIN PLUG 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0206-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9812-	●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-9905	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-899-0	01	1	9812-9905	●
70	01.271 STAY; RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-899-0	01	1	9906-0105	●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0106-0205	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97047-899-0	01	1	0206-	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97088-810-0	04	1	9812-9905	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97088-810-0	04	1	9906-0105	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
