1-01 — ACCELERATOR PEDAL AND CONTROL (#34766) — 75 parça

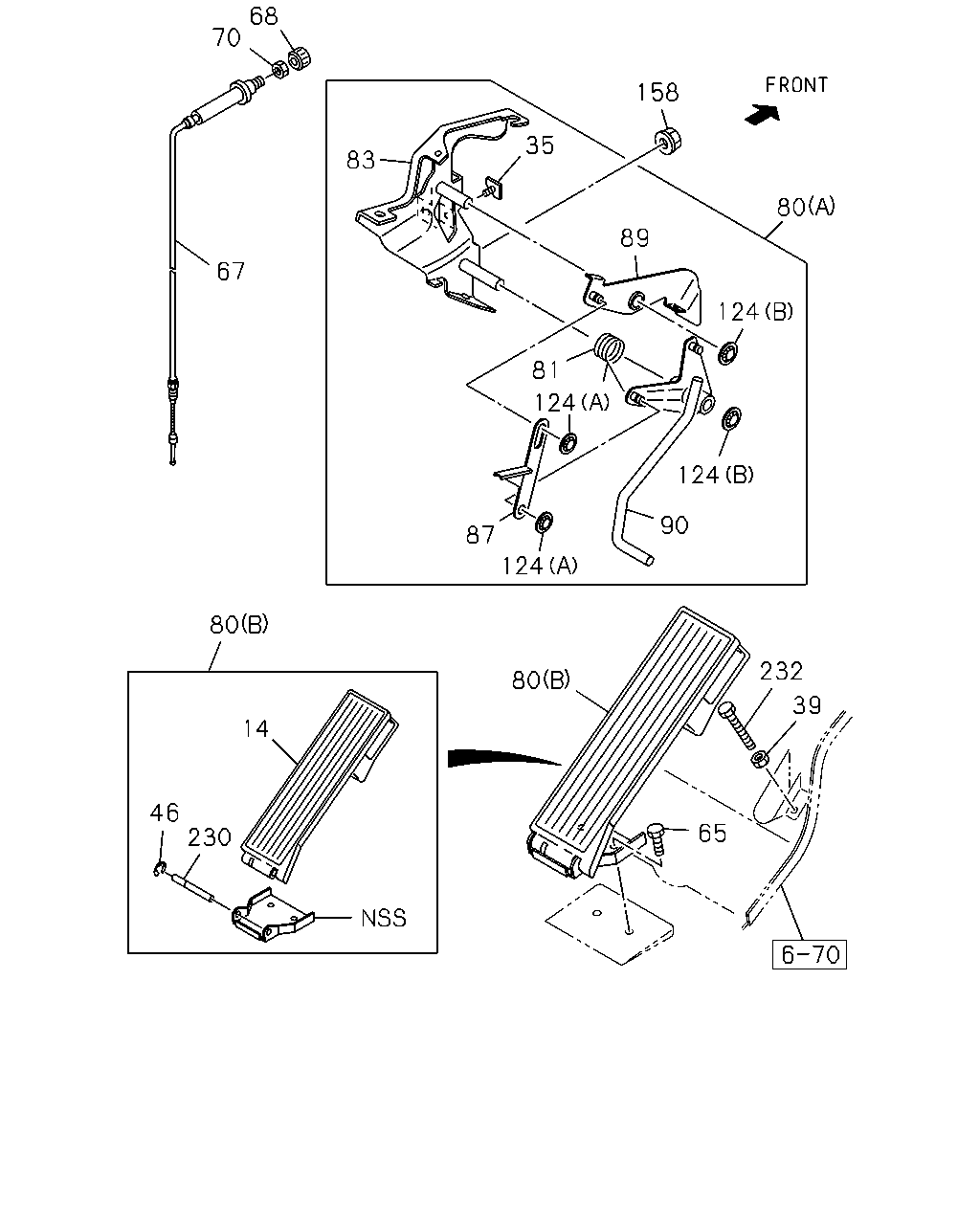

68 70 158 35 83 80 89 67 124 81 124 124 90 87 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9812-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9812-0012	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-0105	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9812-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9812-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9812-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9812-0105	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9812-0105	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9812-0105	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9812-0105	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-7	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9812-	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9812-0105	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0106-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9812-0105	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-2	01	1	0106-	●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9812-0105	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9812-0105	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9812-0105	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-2	01	1	0106-	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9812-0105	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9812-0105	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9812-0105	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0106-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9812-	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9812-	●	●	●

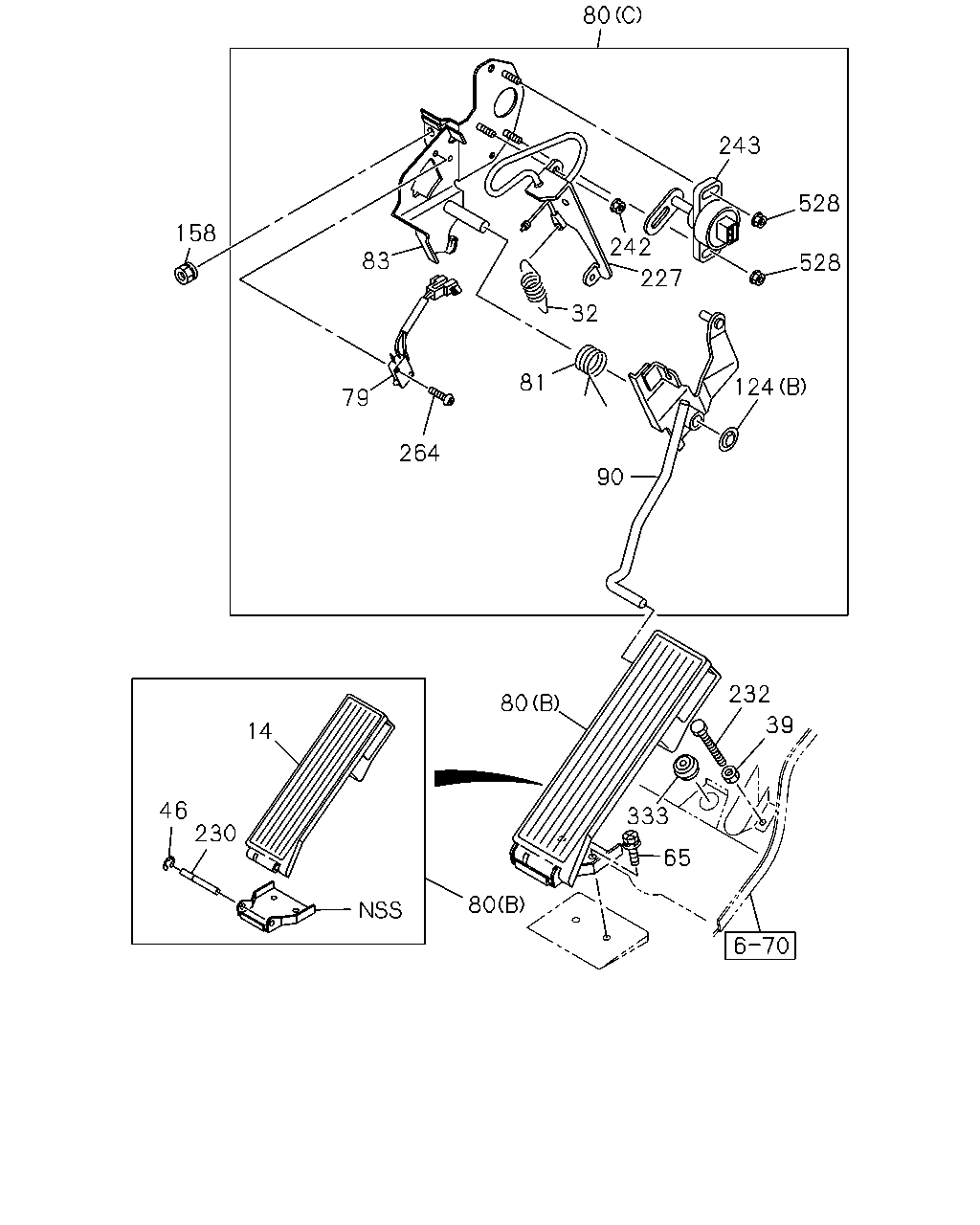

80 243 528 158 242 83 528 227 32 81 124 79 264 90 232 80 39 14 46 230 333 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9812-	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0106-	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9812-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9812-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9812-	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9812-0105	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-7	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9812-	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9812-0105	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0106-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9812-0105	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-2	01	1	0106-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9812-0105	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-2	01	1	0106-	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9812-0105	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9812-0105	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9812-0105	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0106-	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0106-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9812-	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9812-	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0106-	●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0106-	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0106-	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0106-	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0106-	●	●	●

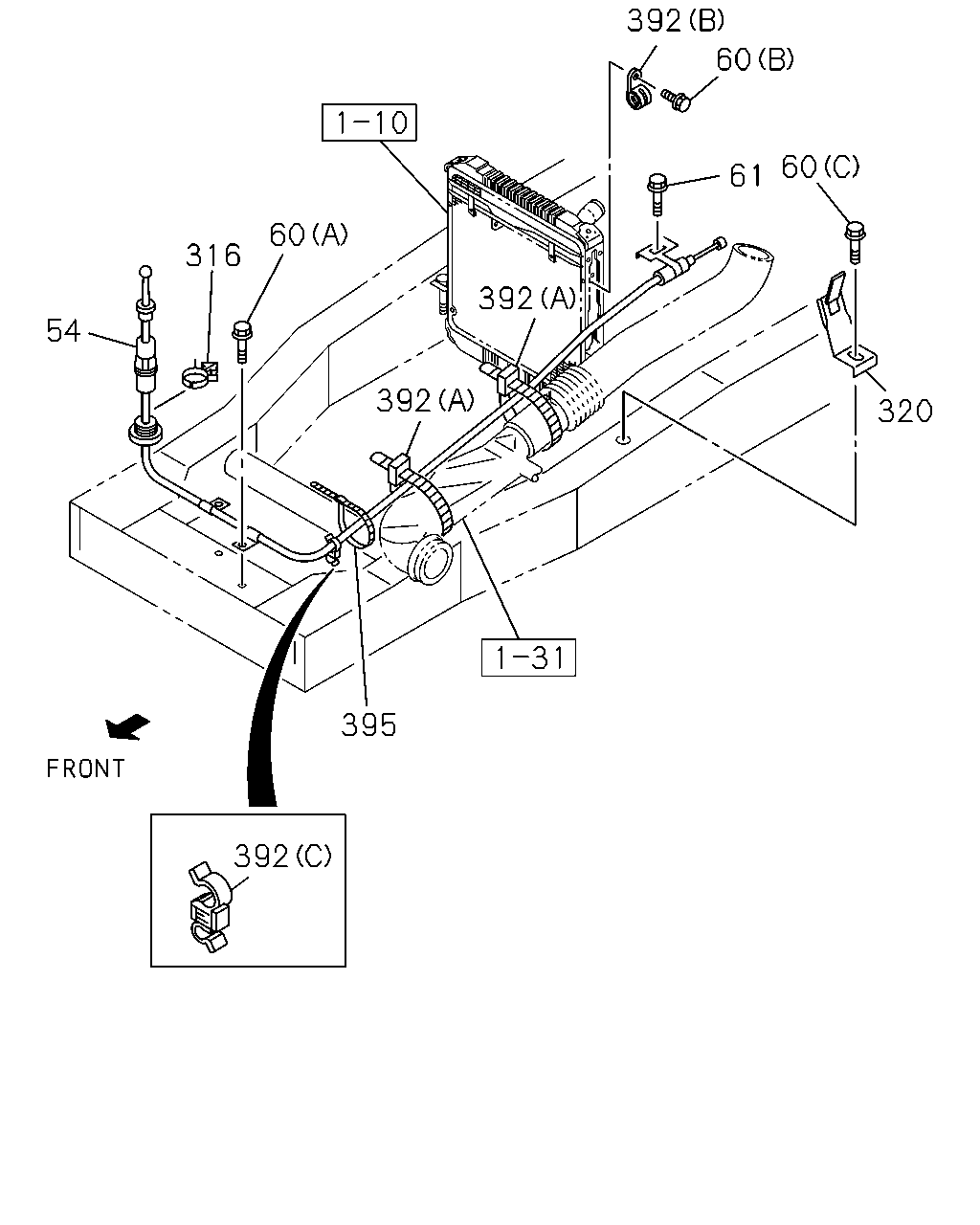

392 60 60 61 60 316 392 54 392 320 395 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=2330	8-97208-002-0	01	1	9906-0105	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) L=2300	8-97046-362-3	01	1	9812-9905	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=2300	8-97046-362-3	01	1	9906-9911	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=2300	8-97046-362-3	01	1	9912-0105	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 (C) M8X20 FLANGE	0-28680-820-0	01	1	9906-9911	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 (C) M8X20 FLANGE	0-28680-820-0	01	1	9912-0105	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9812-0105	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	9906-9911	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	9912-0105	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	9906-0105	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC) 03.008 (A) L=330	5-09709-118-0	02	1	9812-9905	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 (A) L=330	5-09709-118-0	02	1	9906-0105	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 10.5	1-09709-218-0	01	1	0101-0105	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	9906-9911	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	9912-0105	●
