0-11B — CYLINDER HEAD (#3476) — 98 parça

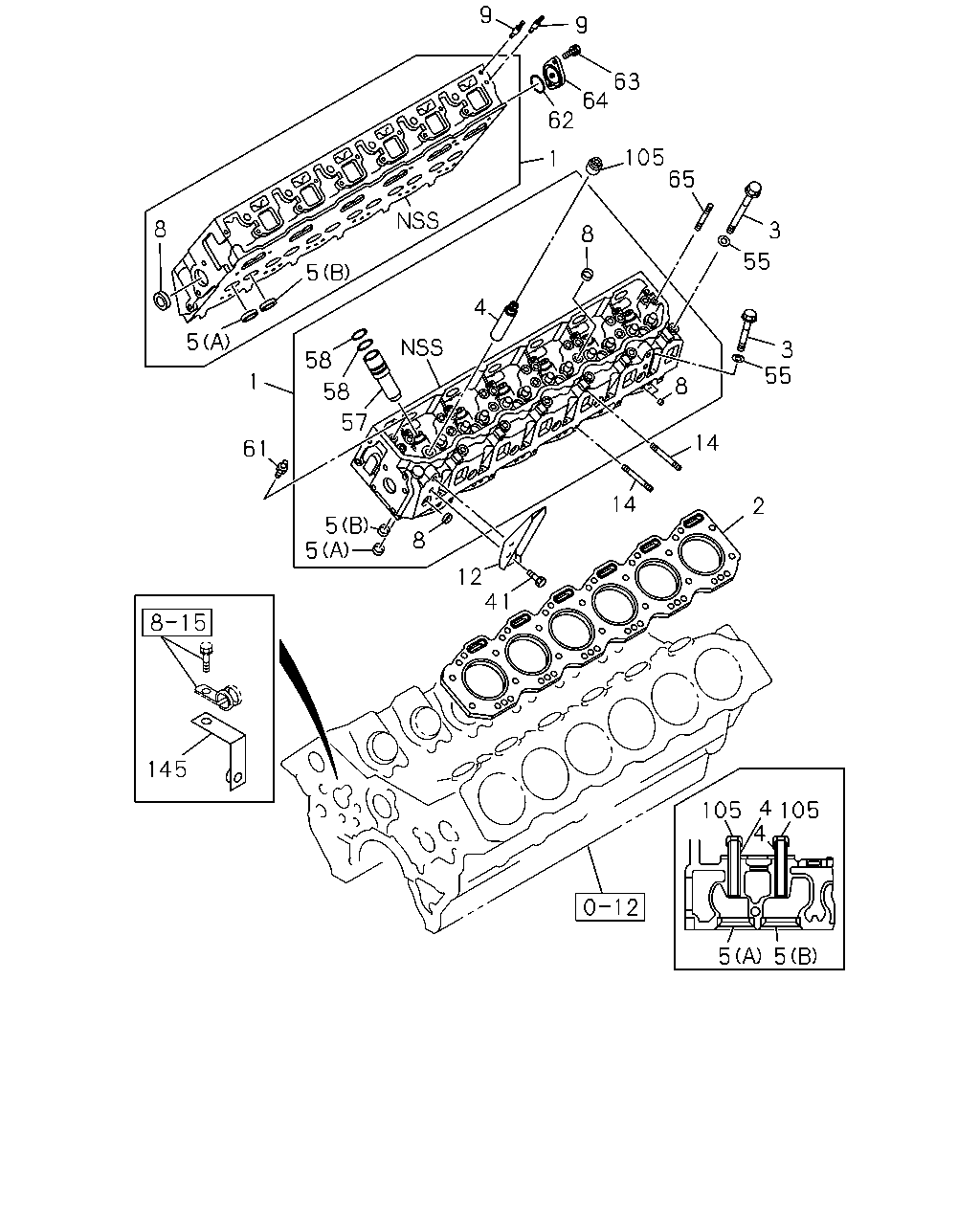

9 9 63 64 62 105 65 1 8 3 8 55 5 4 5 3 55 58 1 8 58 57 14 61 14 2 5 5 8 12 41 145 4 105 4 105 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL LH BANK	1-11110-687-3	01	1	9002-	●
1	HEAD ASM; CYL RH BANK	1-11110-686-3	01	1	9002-	●
1	HEAD ASM; CYL LH BANK	1-11110-691-3	01	1	9307-		●
1	HEAD ASM; CYL RH BANK	1-11110-690-3	01	1	9307-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-190-1	02	1	9002-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-191-1	02	1	9307-		●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	20	1	9002-	●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	24	1	9002-	●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	24	1	9307-		●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	28	1	9307-		●
4	GUIDE; VLV	1-11721-004-0	20	1	9002-	●
4	GUIDE; VLV	1-11721-004-0	24	1	9307-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	10	1	9002-9503	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9504-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9002-	●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	12	1	9307-9503		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	12	1	9504-		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	12	1	9307-		●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	20	1	9002-	●
8	CUP; SEALING,WATER JACKET OD=22	1-09600-011-2	28	1	9002-	●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	10	1	9002-	●
8	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	24	1	9307-		●
8	CUP; SEALING,WATER JACKET OD=22	1-09600-011-2	46	1	9307-		●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	12	1	9307-		●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	20	1	9002-	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	24	1	9307-		●
12	HANGER; ENG,RR	1-11777-164-0	03	1	9002-9103	●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9104-	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9002-	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	24	1	9307-		●
41	BOLT; ENG HANGER M12X26	1-09000-535-0	06	1	9002-9203	●
41	BOLT; ENG HANGER M12X26	1-09000-535-1	04	1	9204-	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9002-	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	52	1	9307-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9002-	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	12	1	9307-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	20	1	9002-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	24	1	9307-		●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9002-	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9002-	●	●
63	BOLT; CVR,WATER JACKET M10X25	0-28121-025-0	02	1	9002-9002	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9003-	●	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9002-	●	●
65	STUD; ROCKER OIL FEED	1-09300-025-0	02	1	9002-	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	20	1	9002-9106	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9107-	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	24	1	9307-		●
145	BRACKET	1-09709-072-0	01	1	9206-	●	●

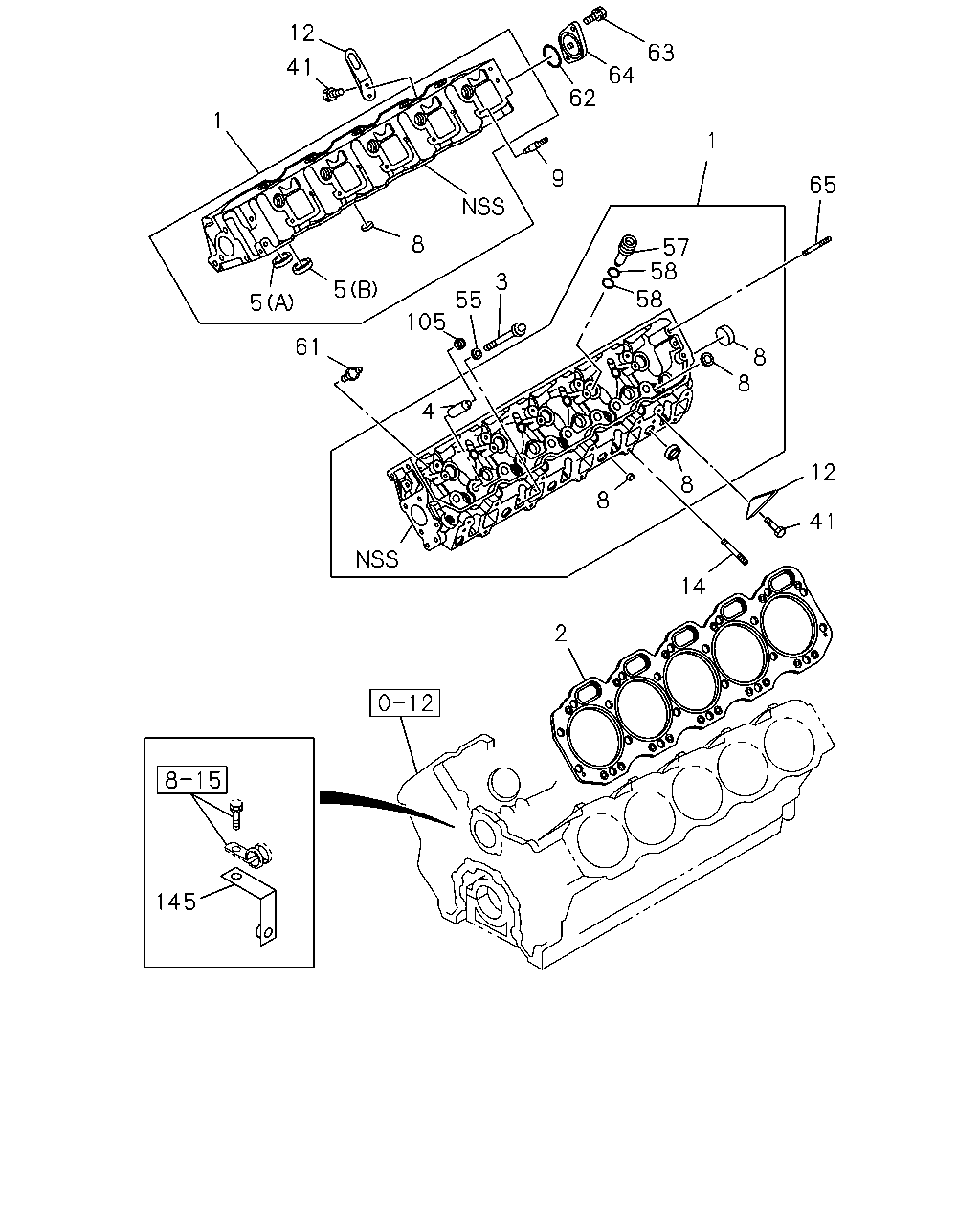

12 63 41 64 62 1 1 9 65 8 57 58 58 3 5 55 105 5 61 8 8 4 12 8 8 41 14 2 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL LH BANK	1-11110-687-3	01	1	9002-	●
1	HEAD ASM; CYL RH BANK	1-11110-686-3	01	1	9002-	●
1	HEAD ASM; CYL LH BANK	1-11110-691-3	01	1	9307-		●
1	HEAD ASM; CYL RH BANK	1-11110-690-3	01	1	9307-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-190-1	02	1	9002-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-191-1	02	1	9307-		●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	20	1	9002-	●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	24	1	9002-	●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	24	1	9307-		●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	28	1	9307-		●
4	GUIDE; VLV	1-11721-004-0	20	1	9002-	●
4	GUIDE; VLV	1-11721-004-0	24	1	9307-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	10	1	9002-9503	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9504-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9002-	●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	12	1	9307-9503		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	12	1	9504-		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	12	1	9307-		●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	20	1	9002-	●
8	CUP; SEALING,WATER JACKET OD=22	1-09600-011-2	28	1	9002-	●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	10	1	9002-	●
8	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	24	1	9307-		●
8	CUP; SEALING,WATER JACKET OD=22	1-09600-011-2	46	1	9307-		●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	12	1	9307-		●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	20	1	9002-	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	24	1	9307-		●
12	HANGER; ENG,RR	1-11777-164-0	03	1	9002-9103	●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9104-	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9002-	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	24	1	9307-		●
41	BOLT; ENG HANGER M12X26	1-09000-535-0	06	1	9002-9203	●
41	BOLT; ENG HANGER M12X26	1-09000-535-1	04	1	9204-	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9002-	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	52	1	9307-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9002-	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	12	1	9307-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	20	1	9002-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	24	1	9307-		●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9002-	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9002-	●	●
63	BOLT; CVR,WATER JACKET M10X25	0-28121-025-0	02	1	9002-9002	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9003-	●	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9002-	●	●
65	STUD; ROCKER OIL FEED	1-09300-025-0	02	1	9002-	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	20	1	9002-9106	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9107-	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	24	1	9307-		●
145	BRACKET	1-09709-072-0	01	1	9206-	●	●
