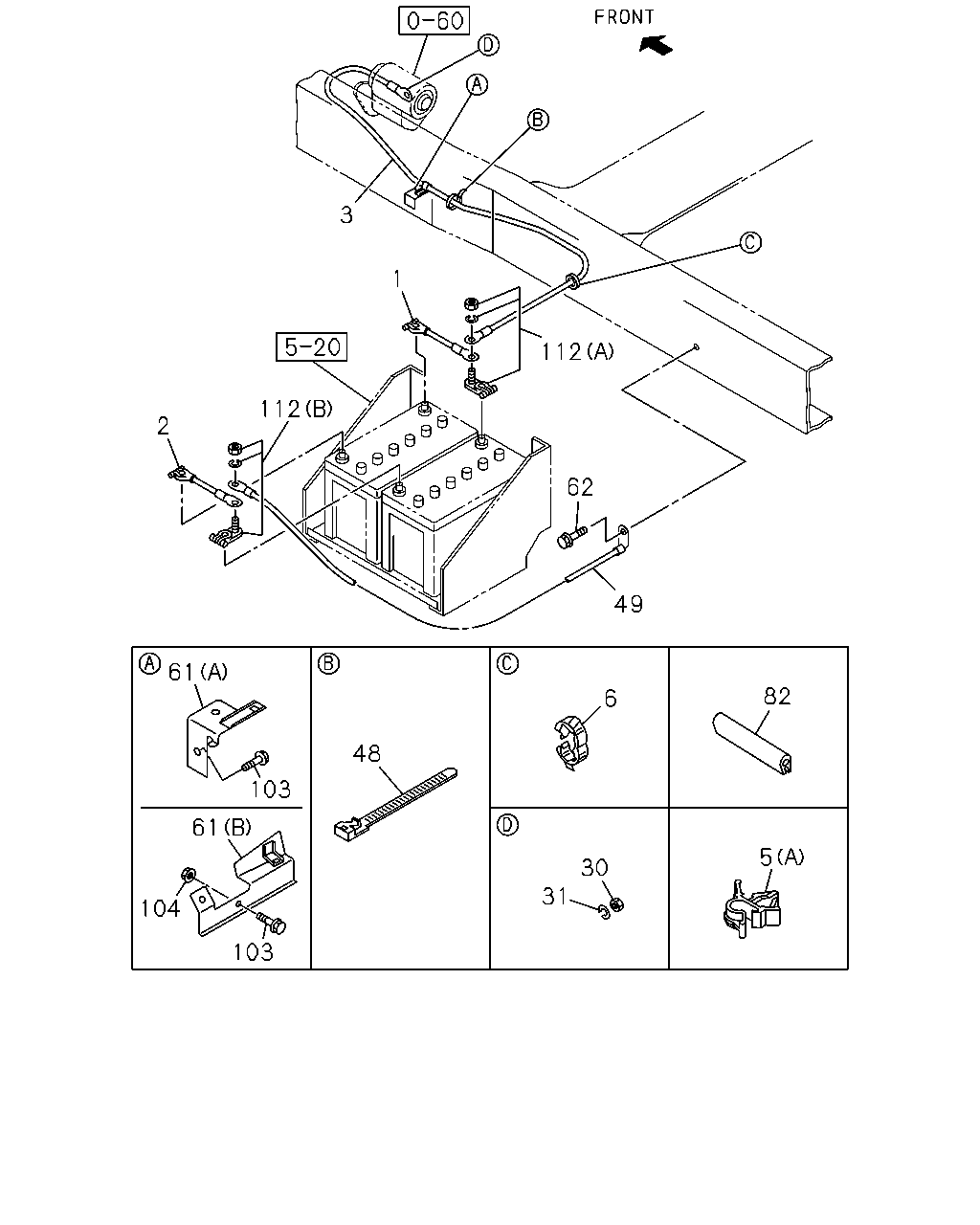

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#34755) — 85 parça

6 3 62 30 112 31 49 1 112 2 104 61 5 48 5 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.341 CABLE; BATTERY L=180	8-97033-975-1	01	1	9812-0105	●	●
1	02.341 CABLE; BATTERY L=180	8-97230-530-2	01	1	0106-			●
2	02.341 CABLE; BATTERY L=180	8-97034-115-1	01	1	9812-0105	●	●
2	02.341 CABLE; BATTERY L=180	8-97230-538-1	01	1	0106-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97068-729-1	01	1	9812-9903	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97214-185-0	01	1	9904-0105	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL TIRE(NKB***)	8-97313-565-0	01	1	0106-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F)	8-97260-483-0	01	1	0106-0205			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DUAL RR TIRE(NKC***)	8-97260-483-0	01	1	0206-			●
5	02.559 CLIP; BATTERY CABLE TO BODY 04.342 (A) ID=14-12	8-94379-592-0	01	1	9812-0105	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 04.342 (A) ID=14-12	8-94379-592-0	01	1	0106-0106			●
5	02.559 CLIP; BATTERY CABLE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.430 (B) ID=13 H=15 L=25	1-09700-888-0	01	1	9812-0105	●	●
6	02.343 GROMMET; BATTERY CABLE ID=17	8-94128-319-2	01	1	9812-0105	●	●
6	02.343 GROMMET; BATTERY CABLE ID=17	8-94128-319-2	01	1	0106-			●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9812-0105	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0106-			●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9812-0105	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0106-			●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	9812-0105	●	●
48	02.343 CLIP; CABLE MIDDLE(NK***F) 02.559 L=250	5-09707-030-1	02	1	0106-0205			●
48	02.343 CLIP; CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC*SC) REAR WIDE TREAD(V4T) 02.559 L=250	5-09707-030-1	02	1	0206-			●
48	02.343 CLIP; CABLE MIDDLE(NK***F) 02.559 L=250	5-09707-030-1	02	1	0206-			●
48	02.343 CLIP; CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC*SC) EXC. REAR WIDE TREAD(V4T) 02.559 L=250	5-09707-030-1	01	1	0206-			●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=500	8-97035-845-3	01	1	9812-0105	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=500	8-97035-845-3	01	1	0106-			●
61	02.333 BRACKET; BATTERY CABLE FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97062-179-3	01	1	9812-0105	●	●
61	02.333 BRACKET; BATTERY CABLE SGL TIRE(NKB***) (B)	8-97313-404-0	01	1	0106-			●
61	02.333 BRACKET; BATTERY CABLE MIDDLE(NK***F) (A)	8-97312-657-0	01	1	0106-0205			●
61	02.333 BRACKET; BATTERY CABLE DUAL RR TIRE(NKC***) (A)	8-97312-657-0	01	1	0206-			●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9812-0105	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0106-			●
103	02.343 BOLT; BATTERY CABLE FRT INDEPENDENT SUSPENSION(6PP) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-0105	●	●
103	02.343 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-0205			●
103	02.343 BOLT; BATTERY CABLE SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0206-			●
103	02.343 BOLT; BATTERY CABLE DUAL RR TIRE(NKC***) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0206-			●
104	02.343 NUT; BATTERY CABLE FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-0105	●	●
104	02.343 NUT; BATTERY CABLE MIDDLE(NK***F) 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-0205			●
104	02.343 NUT; BATTERY CABLE DUAL RR TIRE(NKC***) 04.594 M6 FLANGE	0-91150-106-0	01	1	0206-			●
112	02.343 TERMINAL; BATTERY (A) <+>	8-94361-935-0	01	1	9812-0105	●	●
112	02.343 TERMINAL; BATTERY (A) <+>	8-94361-935-0	01	1	0106-			●
112	02.343 TERMINAL; BATTERY (B) <->	8-97035-508-0	01	1	9812-0105	●	●
112	02.343 TERMINAL; BATTERY (B) <->	8-97035-508-0	01	1	0106-			●

3 1 112 112 2 62 49 61 82 6 48 103 61 5 30 31 104 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.341 CABLE; BATTERY L=180	8-97033-975-1	01	1	9812-0105	●	●
1	02.341 CABLE; BATTERY L=180	8-97230-530-2	01	1	0106-			●
2	02.341 CABLE; BATTERY L=180	8-97034-115-1	01	1	9812-0105	●	●
2	02.341 CABLE; BATTERY L=180	8-97230-538-1	01	1	0106-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97068-729-1	01	1	9812-9903	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97214-185-0	01	1	9904-0105	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SGL TIRE(NKB***)	8-97313-565-0	01	1	0106-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F)	8-97260-483-0	01	1	0106-0205			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DUAL RR TIRE(NKC***)	8-97260-483-0	01	1	0206-			●
5	02.559 CLIP; BATTERY CABLE TO BODY 04.342 (A) ID=14-12	8-94379-592-0	01	1	9812-0105	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 04.342 (A) ID=14-12	8-94379-592-0	01	1	0106-0106			●
5	02.559 CLIP; BATTERY CABLE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.430 (B) ID=13 H=15 L=25	1-09700-888-0	01	1	9812-0105	●	●
6	02.343 GROMMET; BATTERY CABLE ID=17	8-94128-319-2	01	1	9812-0105	●	●
6	02.343 GROMMET; BATTERY CABLE ID=17	8-94128-319-2	01	1	0106-			●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9812-0105	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0106-			●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9812-0105	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0106-			●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	9812-0105	●	●
48	02.343 CLIP; CABLE MIDDLE(NK***F) 02.559 L=250	5-09707-030-1	02	1	0106-0205			●
48	02.343 CLIP; CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC*SC) REAR WIDE TREAD(V4T) 02.559 L=250	5-09707-030-1	02	1	0206-			●
48	02.343 CLIP; CABLE MIDDLE(NK***F) 02.559 L=250	5-09707-030-1	02	1	0206-			●
48	02.343 CLIP; CABLE DUAL RR TIRE&SGL CAB&SHORT(NKC*SC) EXC. REAR WIDE TREAD(V4T) 02.559 L=250	5-09707-030-1	01	1	0206-			●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=500	8-97035-845-3	01	1	9812-0105	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=500	8-97035-845-3	01	1	0106-			●
61	02.333 BRACKET; BATTERY CABLE FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97062-179-3	01	1	9812-0105	●	●
61	02.333 BRACKET; BATTERY CABLE SGL TIRE(NKB***) (B)	8-97313-404-0	01	1	0106-			●
61	02.333 BRACKET; BATTERY CABLE MIDDLE(NK***F) (A)	8-97312-657-0	01	1	0106-0205			●
61	02.333 BRACKET; BATTERY CABLE DUAL RR TIRE(NKC***) (A)	8-97312-657-0	01	1	0206-			●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9812-0105	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0106-			●
82	03.602 PROTECTOR; HEAT,BATTERY CABLE SGL TIRE(NKB***) 02.343 L=120	8-97117-880-0	01	1	0106-0106			●
103	02.343 BOLT; BATTERY CABLE FRT INDEPENDENT SUSPENSION(6PP) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-0105	●	●
103	02.343 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-0205			●
103	02.343 BOLT; BATTERY CABLE SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0206-			●
103	02.343 BOLT; BATTERY CABLE DUAL RR TIRE(NKC***) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0206-			●
104	02.343 NUT; BATTERY CABLE FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-0105	●	●
104	02.343 NUT; BATTERY CABLE MIDDLE(NK***F) 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-0205			●
104	02.343 NUT; BATTERY CABLE DUAL RR TIRE(NKC***) 04.594 M6 FLANGE	0-91150-106-0	01	1	0206-			●
112	02.343 TERMINAL; BATTERY (A) <+>	8-94361-935-0	01	1	9812-0105	●	●
112	02.343 TERMINAL; BATTERY (A) <+>	8-94361-935-0	01	1	0106-			●
112	02.343 TERMINAL; BATTERY (B) <->	8-97035-508-0	01	1	9812-0105	●	●
112	02.343 TERMINAL; BATTERY (B) <->	8-97035-508-0	01	1	0106-			●
