Sayfa 0-10B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10B - CYLINDER HEAD COVER ▶

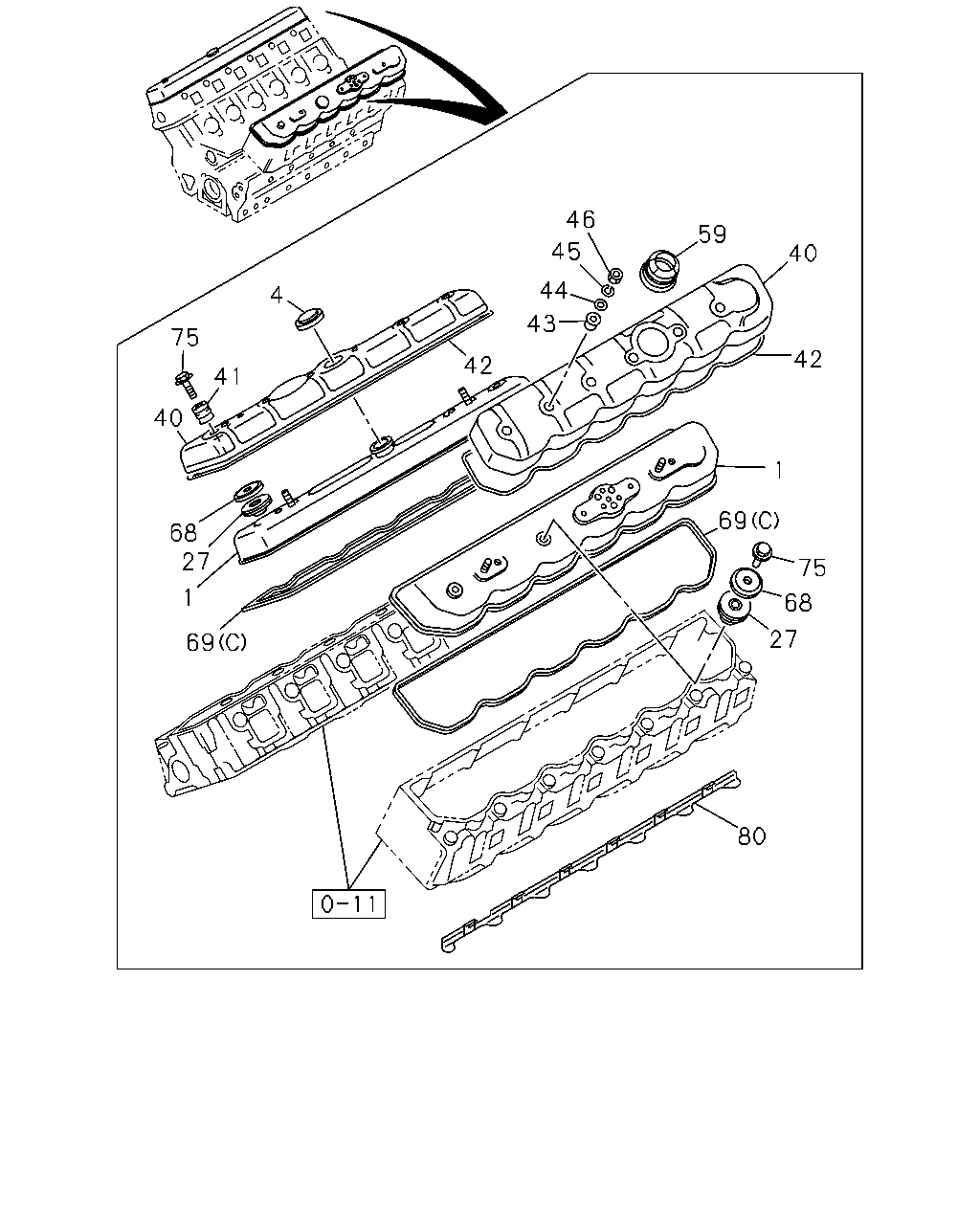

0-10B — CYLINDER HEAD COVER (#3474) — 81 parça

46 59 45 40 44 4 43 75 42 42 41 40 1 69 68 27 75 1 68 27 69 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD TAIWAN EQUIPMENT(WW5) LH BANK	1-11171-341-2	01	1	9002-	●
1	COVER; CYL HD TAIWAN EQUIPMENT(WW5) RH BANK	1-11171-340-2	01	1	9002-9504	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9505-	●
1	COVER; CYL HD EXC. TAIWAN EQUIPMENT(WW5) LH BANK	1-11171-345-2	01	1	9002-	●
1	COVER; CYL HD EXC. TAIWAN EQUIPMENT(WW5) RH BANK	1-11171-344-1	01	1	9002-9504	●
1	COVER; CYL HD LH BANK	1-11171-337-3	01	1	9307-		●
1	COVER; CYL HD RH BANK	1-11171-336-3	01	1	9307-9504		●
1	COVER; CYL HD RH BANK	1-11171-403-0	01	1	9505-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9002-	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EQUIPMENT(WW5)	1-09639-031-0	10	1	9002-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	12	1	9307-		●
40	COVER TAIWAN EQUIPMENT(WW5) LH BANK	1-19381-203-2	01	1	9002-	●
40	COVER TAIWAN EQUIPMENT(WW5) RH BANK	1-19381-202-1	01	1	9002-9504	●
40	COVER TAIWAN EQUIPMENT(WW5) RH BANK	1-19381-341-0	01	1	9505-	●
40	COVER LH BANK	1-19381-209-3	01	1	9307-		●
40	COVER RH BANK	1-19381-208-2	01	1	9307-9504		●
40	COVER RH BANK	1-19381-336-1	01	1	9505-		●
41	GROMMET; HD COVER,OUTER TAIWAN EQUIPMENT(WW5)	1-19389-004-0	10	1	9002-	●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	12	1	9307-		●
42	SEAL; RUBBER,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) L=1820	1-19387-007-0	02	1	9002-9504	●	●
42	SEAL; RUBBER,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) L=1820	1-19387-007-0	02	1	9505-	●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	01	1	9505-		●
42	SEAL; RUBBER,HD COVER,OUTER L=2120	1-19387-006-0	01	1	9505-		●
43	RUBBER; MTG,HD COVER,OUTER TAIWAN EQUIPMENT(WW5)	1-09337-006-0	08	1	9002-9307	●	●
43	RUBBER; MTG,HD COVER,OUTER TAIWAN EQUIPMENT(WW5)	1-09337-027-0	08	1	9308-	●	●
44	WASHER; PL,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) ID=8.4 OD=18	9-09160-608-0	04	1	9002-	●	●
45	WASHER; LK,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) ID=8.2	9-09150-508-0	04	1	9002-	●	●
46	NUT; HD COVER,OUTER TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	04	1	9002-	●	●
59	GROMMET; OIL FILLER TAIWAN EQUIPMENT(WW5)	1-09333-071-0	01	1	9002-	●	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9002-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	12	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-065-0	02	1	9002-9405	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-089-0	02	1	9406-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EQUIPMENT(WW5) (A)	1-09639-031-0	10	1	9002-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	1-11173-067-0	02	1	9307-9405		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	1-11173-088-0	02	1	9406-		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9002-	●
75	NUT; CAP,HD COVER	1-11175-008-0	12	1	9307-		●
80	PROTECTOR; HEAT,SEAL RUBBER TAIWAN EQUIPMENT(WW5)	1-14181-183-1	02	1	9002-	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-182-1	02	1	9307-		●

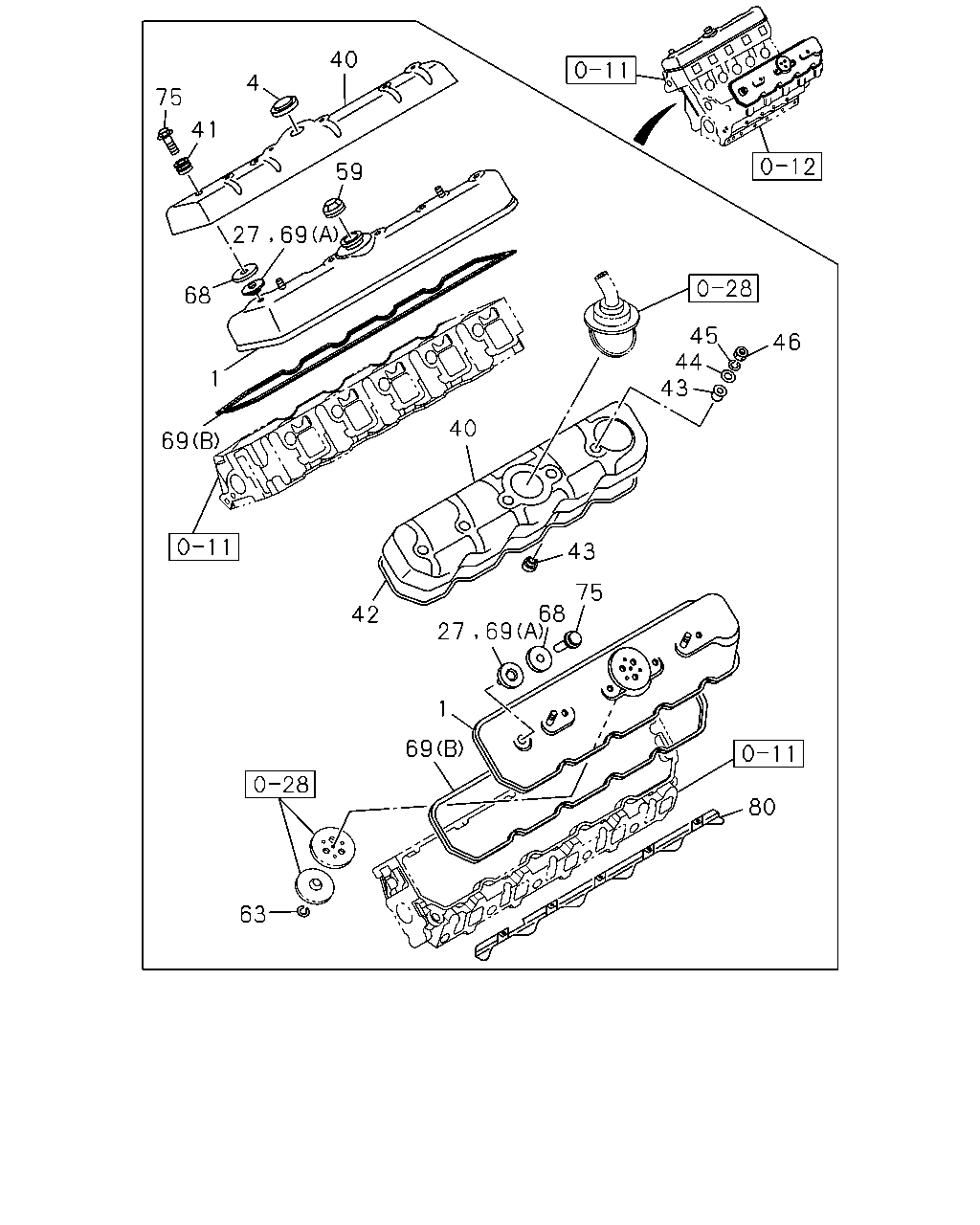

40 4 75 41 59 68 45 44 43 46 1 40 69 43 75 68 42 1 69 80 63 27 69 27 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD TAIWAN EQUIPMENT(WW5) LH BANK	1-11171-341-2	01	1	9002-	●
1	COVER; CYL HD TAIWAN EQUIPMENT(WW5) RH BANK	1-11171-340-2	01	1	9002-9504	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9505-	●
1	COVER; CYL HD EXC. TAIWAN EQUIPMENT(WW5) LH BANK	1-11171-345-2	01	1	9002-	●
1	COVER; CYL HD EXC. TAIWAN EQUIPMENT(WW5) RH BANK	1-11171-344-1	01	1	9002-9504	●
1	COVER; CYL HD LH BANK	1-11171-337-3	01	1	9307-		●
1	COVER; CYL HD RH BANK	1-11171-336-3	01	1	9307-9504		●
1	COVER; CYL HD RH BANK	1-11171-403-0	01	1	9505-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9002-	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EQUIPMENT(WW5)	1-09639-031-0	10	1	9002-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	12	1	9307-		●
40	COVER TAIWAN EQUIPMENT(WW5) LH BANK	1-19381-203-2	01	1	9002-	●
40	COVER TAIWAN EQUIPMENT(WW5) RH BANK	1-19381-202-1	01	1	9002-9504	●
40	COVER TAIWAN EQUIPMENT(WW5) RH BANK	1-19381-341-0	01	1	9505-	●
40	COVER LH BANK	1-19381-209-3	01	1	9307-		●
40	COVER RH BANK	1-19381-208-2	01	1	9307-9504		●
40	COVER RH BANK	1-19381-336-1	01	1	9505-		●
41	GROMMET; HD COVER,OUTER TAIWAN EQUIPMENT(WW5)	1-19389-004-0	10	1	9002-	●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	12	1	9307-		●
42	SEAL; RUBBER,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) L=1820	1-19387-007-0	02	1	9002-9504	●	●
42	SEAL; RUBBER,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) L=1820	1-19387-007-0	02	1	9505-	●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	01	1	9505-		●
42	SEAL; RUBBER,HD COVER,OUTER L=2120	1-19387-006-0	01	1	9505-		●
43	RUBBER; MTG,HD COVER,OUTER TAIWAN EQUIPMENT(WW5)	1-09337-006-0	08	1	9002-9307	●	●
43	RUBBER; MTG,HD COVER,OUTER TAIWAN EQUIPMENT(WW5)	1-09337-027-0	08	1	9308-	●	●
44	WASHER; PL,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) ID=8.4 OD=18	9-09160-608-0	04	1	9002-	●	●
45	WASHER; LK,HD COVER,OUTER TAIWAN EQUIPMENT(WW5) ID=8.2	9-09150-508-0	04	1	9002-	●	●
46	NUT; HD COVER,OUTER TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	04	1	9002-	●	●
59	GROMMET; OIL FILLER TAIWAN EQUIPMENT(WW5)	1-09333-071-0	01	1	9002-	●	●
63	WASHER; LK,BAFFLE PLATE EXC. TAIWAN EQUIPMENT(WW5) ID=6.1	9-09150-506-0	04	1	9002-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9002-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	12	1	9307-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-065-0	02	1	9002-9405	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-089-0	02	1	9406-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EQUIPMENT(WW5) (A)	1-09639-031-0	10	1	9002-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	1-11173-067-0	02	1	9307-9405		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	1-11173-088-0	02	1	9406-		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9002-	●
75	NUT; CAP,HD COVER	1-11175-008-0	12	1	9307-		●
80	PROTECTOR; HEAT,SEAL RUBBER TAIWAN EQUIPMENT(WW5)	1-14181-183-1	02	1	9002-	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-182-1	02	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
