Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#34734) — 202 parça

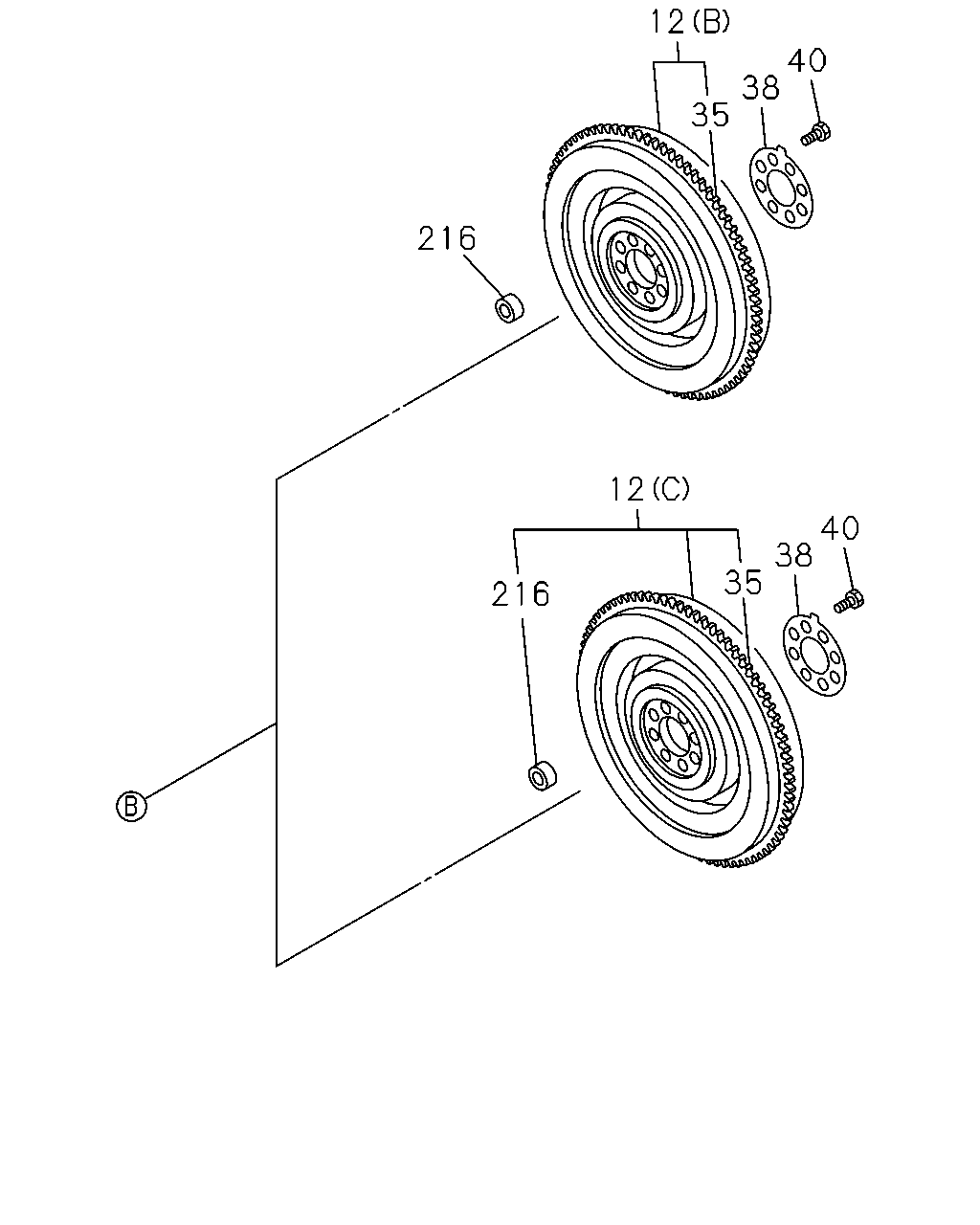

12 40 38 35 216 12 40 38 35 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9812-0105	●	●
12	00.666 FLYWHEEL (B)	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL (C)	8-97333-110-0	01	1	0203-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
216	00.293 DOWEL	8-97259-856-0	01	1	0106-			●

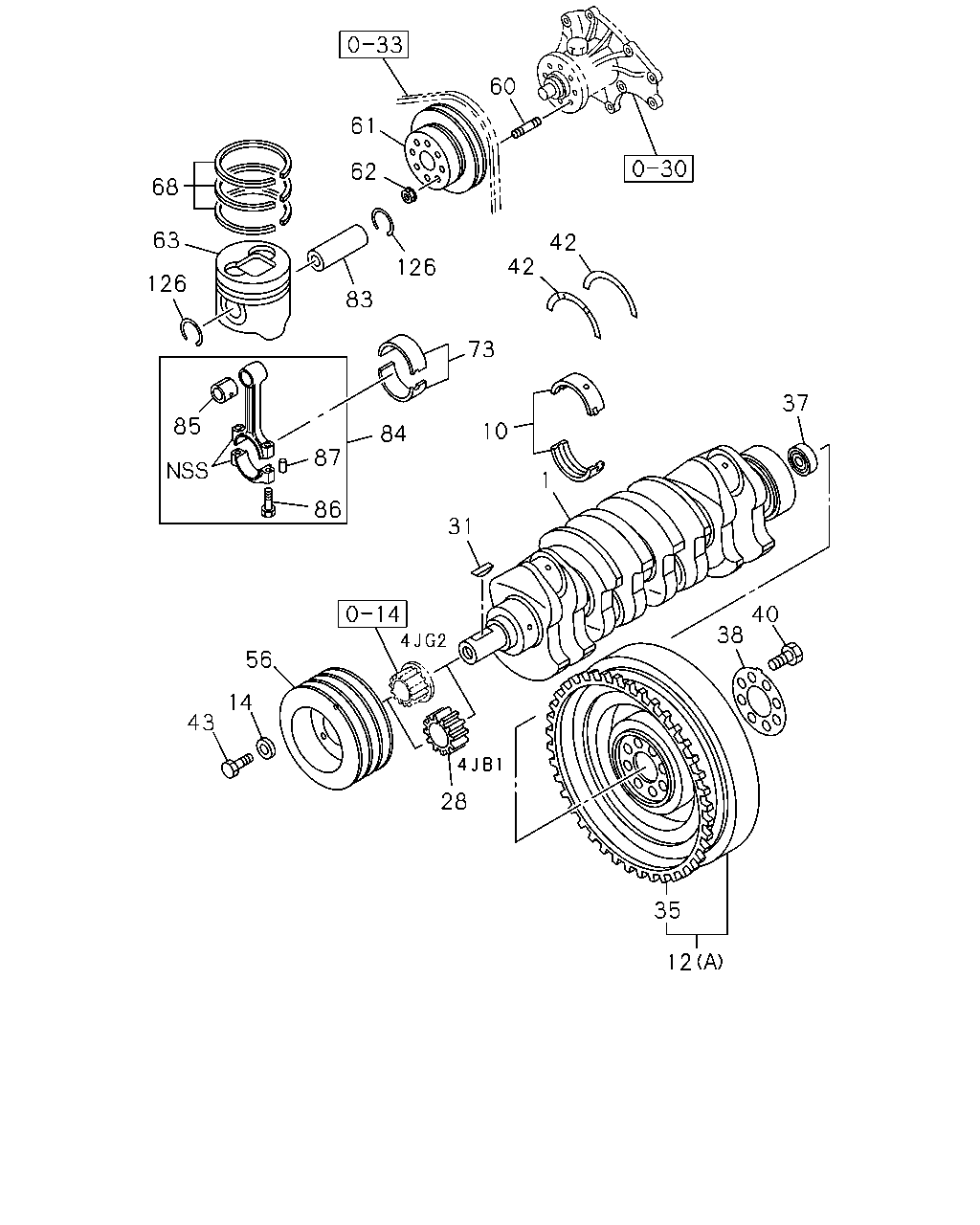

60 61 62 68 63 42 42 126 126 83 73 37 85 10 84 87 1 86 31 40 38 56 14 43 28 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9812-0105	●	●
12	00.666 FLYWHEEL (B)	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL (C)	8-97333-110-0	01	1	0203-			●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> Z=21	8-97229-593-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9812-0105	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-0105	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94247-867-1	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-0105	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-0105	●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-0105	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-0105	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-0105	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-0105	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●

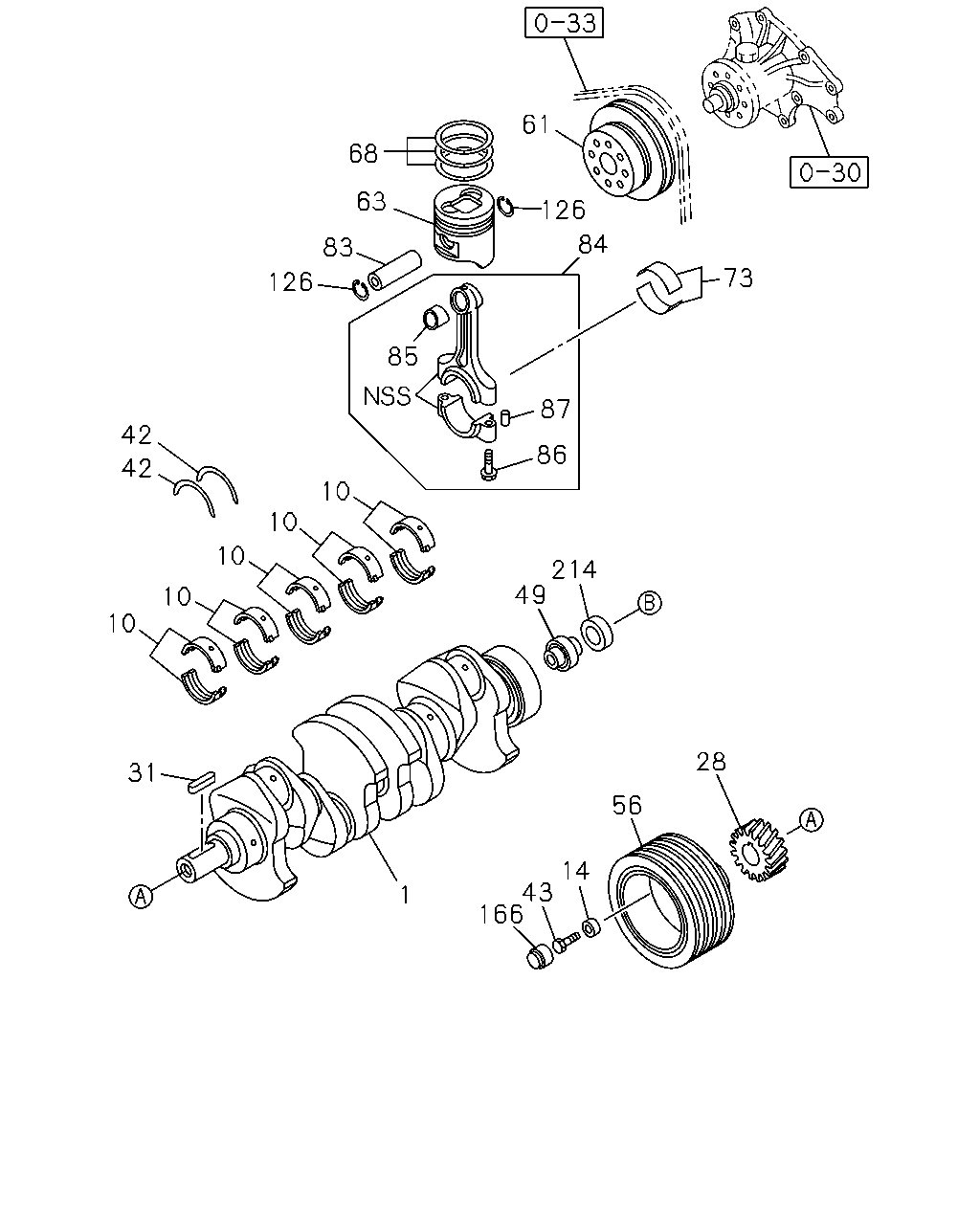

61 68 63 126 84 83 73 126 85 87 42 86 42 10 10 10 214 49 10 10 28 31 56 14 43 166 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> Z=21	8-97229-593-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-0105	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94247-867-1	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-0105	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-0105	●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-0105	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-0105	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-0105	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-0105	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●
166	00.659 RUBBER; SPACE,PULLEY	8-97231-528-0	01	1	0106-			●
214	00.724 STOPPER; BEARING	8-97240-620-0	01	1	0106-			●

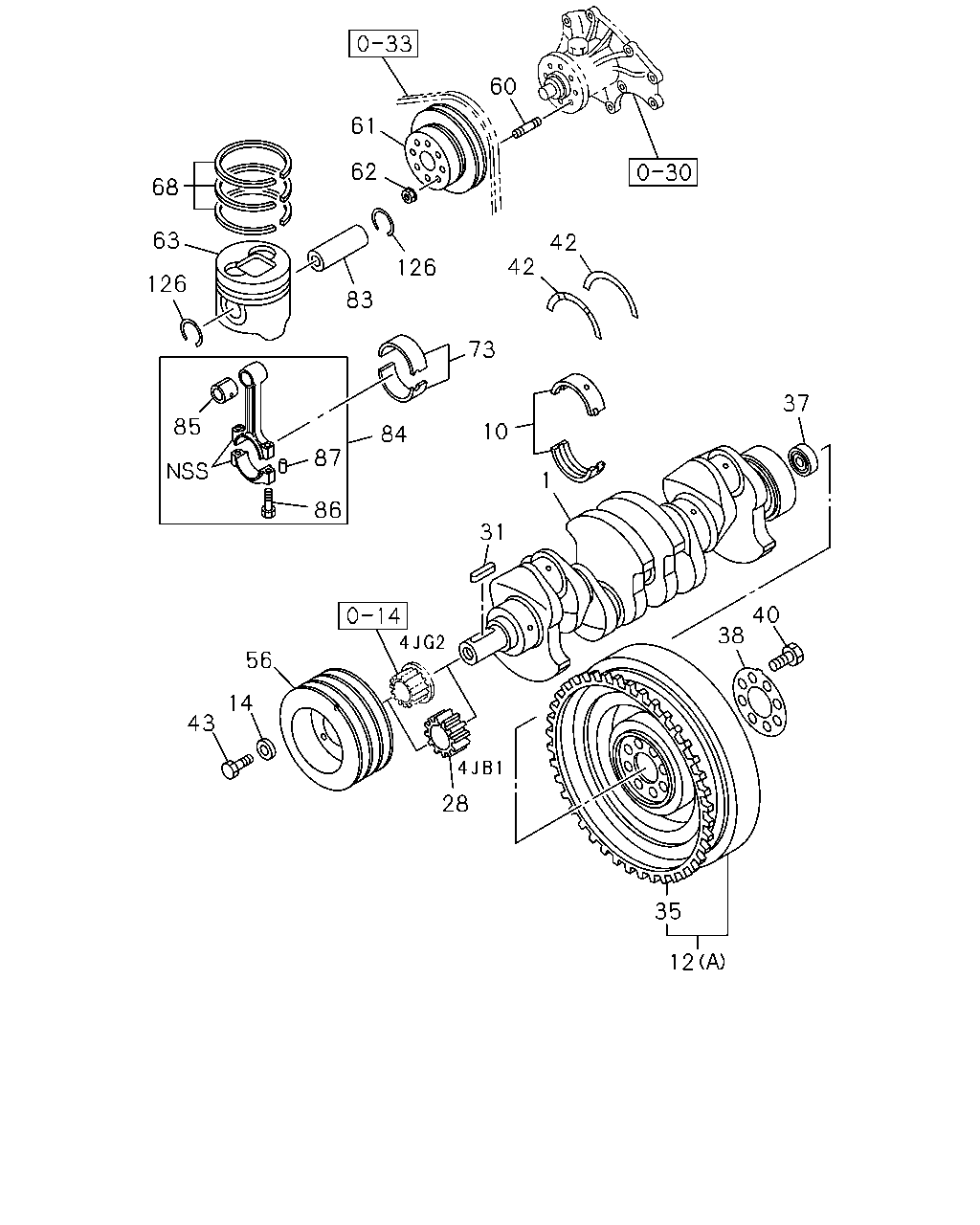

60 61 62 68 63 42 42 126 126 83 73 37 85 10 84 87 1 86 31 40 38 56 14 43 28 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9812-0105	●	●
12	00.666 FLYWHEEL (B)	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL (C)	8-97333-110-0	01	1	0203-			●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> Z=21	8-97229-593-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9812-0105	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-0105	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94247-867-1	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-0105	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-0105	●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-0105	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-0105	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-0105	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-0105	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
