0-10A — CYLINDER HEAD COVER (#3473) — 28 parça

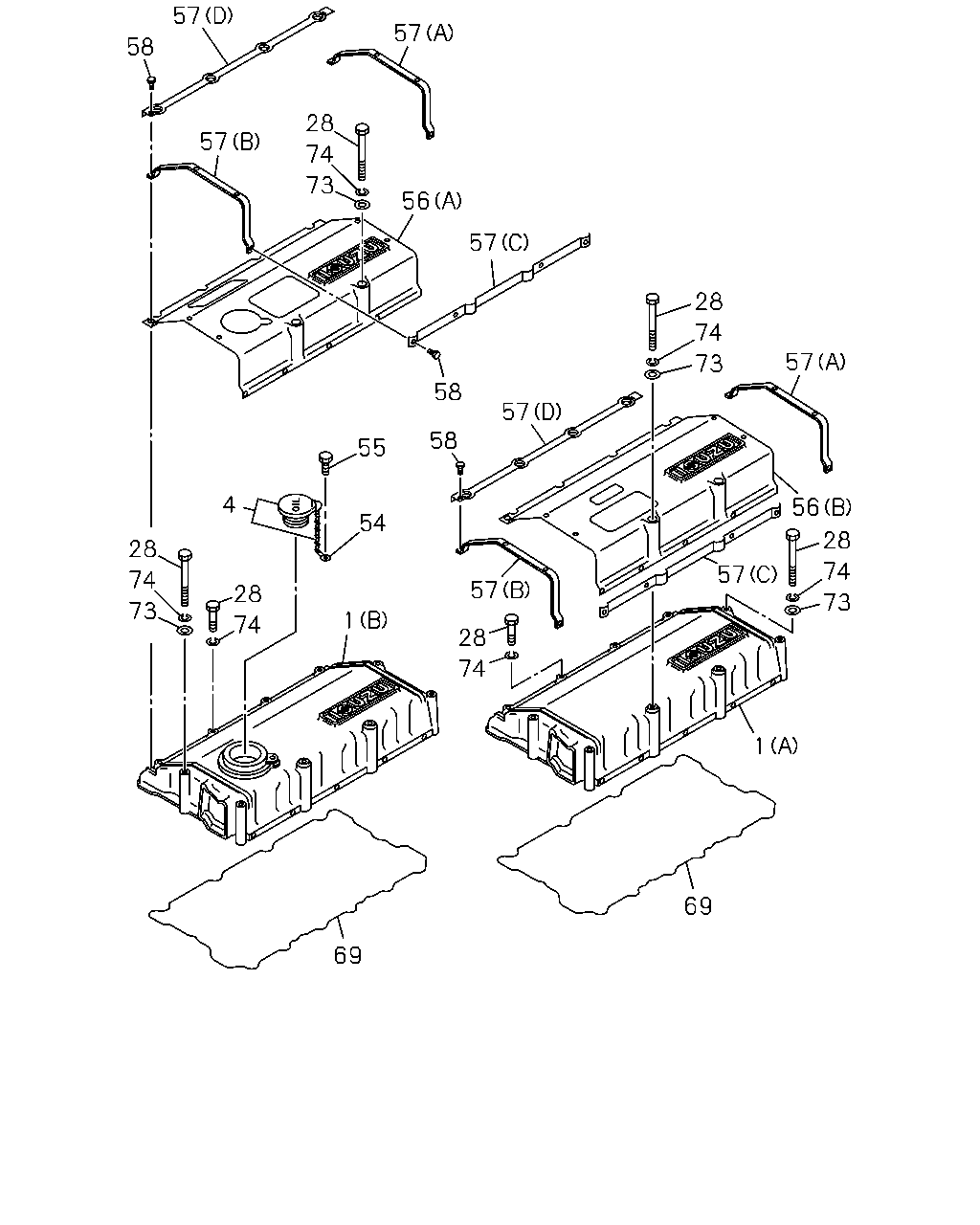

çizim 3910
57 57 58 28 57 74 73 56 57 28 74 57 73 58 57 58 55 4 56 54 28 28 74 57 74 57 28 73 73 1 74 28 74 1 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD
(B) 		1-11171-086-4 01 1 9002- ● ●
1 COVER; CYL HD
(A) 		1-11171-239-0 01 1 9002- ● ●
4 CAP; OIL FILLER
W/WHITE MARK 		1-11750-017-0 01 1 9307- ●
4 CAP; OIL FILLER
TROPICAL ZONE KIT(WB6) W/WHITE MARK 		1-11750-017-0 01 1 9002-9303 ●
4 CAP; OIL FILLER
W/WHITE MARK 		1-11750-017-0 01 1 9304-9306 ● ●
4 CAP; OIL FILLER
EXC. TROPICAL ZONE KIT(WB6) 		9-11750-050-0 01 1 9002-9303 ● ●
4 CAP; OIL FILLER 9-11750-050-1 01 1 9307- ●
28 BOLT; HD COVER
M10X100 		9-01656-000-0 08 1 9002-9004 ●
28 BOLT; HD COVER
M10X100 		0-16806-000-0 08 1 9005- ● ●
28 BOLT; HD COVER
M10X50 		9-01656-050-0 08 1 9002-9004 ●
28 BOLT; HD COVER
M10X50 		0-16806-050-0 08 1 9005- ● ●
28 BOLT; HD COVER
M10X110 		9-09804-143-1 04 1 9002- ● ●
54 BRACKET; CHAIN HD COVER FRT 9-11759-014-0 01 1 9002- ● ●
55 BOLT; BRKT CHAIN FRT COVER
M8X14 W/LK WASHER 		9-01900-814-0 01 1 9002-9204 ● ●
55 BOLT; BRKT CHAIN FRT COVER
M8X14 W/LK WASHER 		0-50040-814-0 01 1 9205- ● ●
56 COVER ASM; NOISE SHIELD
(B) REAR 		1-19381-110-1 01 1 9307- ●
56 COVER ASM; NOISE SHIELD
(A) FRONT 		1-19381-178-0 01 1 9307- ●
57 FLANGE; NOISE SHIELD COVER
(A) 		1-11179-050-2 02 1 9307- ●
57 FLANGE; NOISE SHIELD COVER
(B) 		1-11179-051-2 02 1 9307- ●
57 FLANGE; NOISE SHIELD COVER
(C) 		1-11179-052-0 02 1 9307- ●
57 FLANGE; NOISE SHIELD COVER
(D) 		1-11179-053-1 02 1 9307- ●
58 SCREW; NOISE SHIELD COVER
M4X12 TAPPING 		9-07077-412-0 22 1 9307- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-010-1 02 1 9002- ● ●
73 WASHER; PL,HD COVER
ID=10.5 OD=18 		9-09160-510-0 18 1 9002-9306 ● ●
73 WASHER; PL,HD COVER
ID=10.5 OD=18 		9-09160-510-0 18 1 9307- ●
73 WASHER; PL,HD COVER
ID=10.5 OD=18 		9-09160-510-0 06 1 9307- ●
73 WASHER; PL,HD COVER
ID=10 		9-09160-710-0 04 1 9307- ●
74 WASHER; LK,HD COVER
ID=10.2 		9-09150-510-0 20 1 9002- ● ●
