◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#34728) — 36 parça

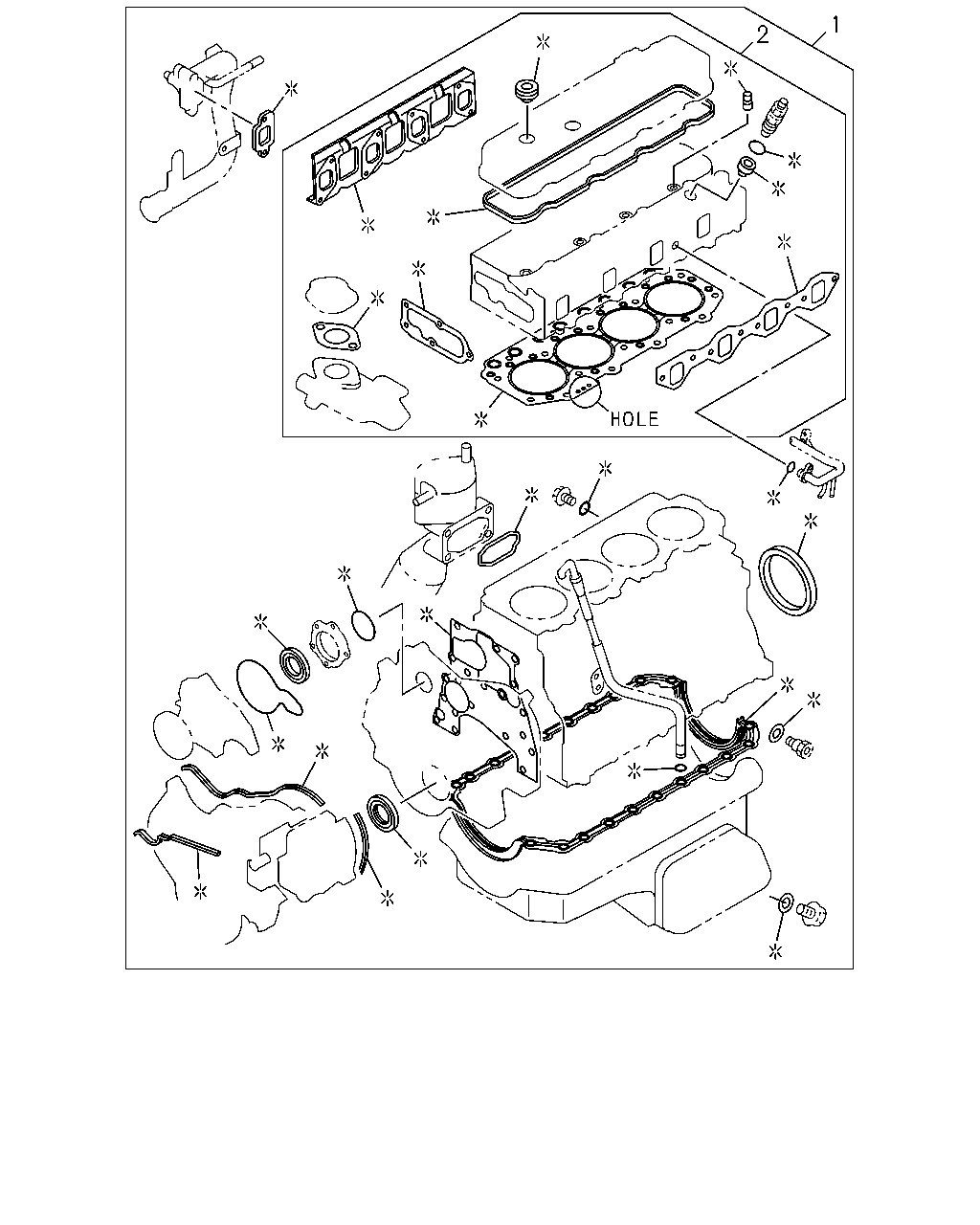

çizim 9344
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-084-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-085-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-086-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-708-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-709-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-710-2 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-711-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-712-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-713-1 01 1 9906-0105 ●

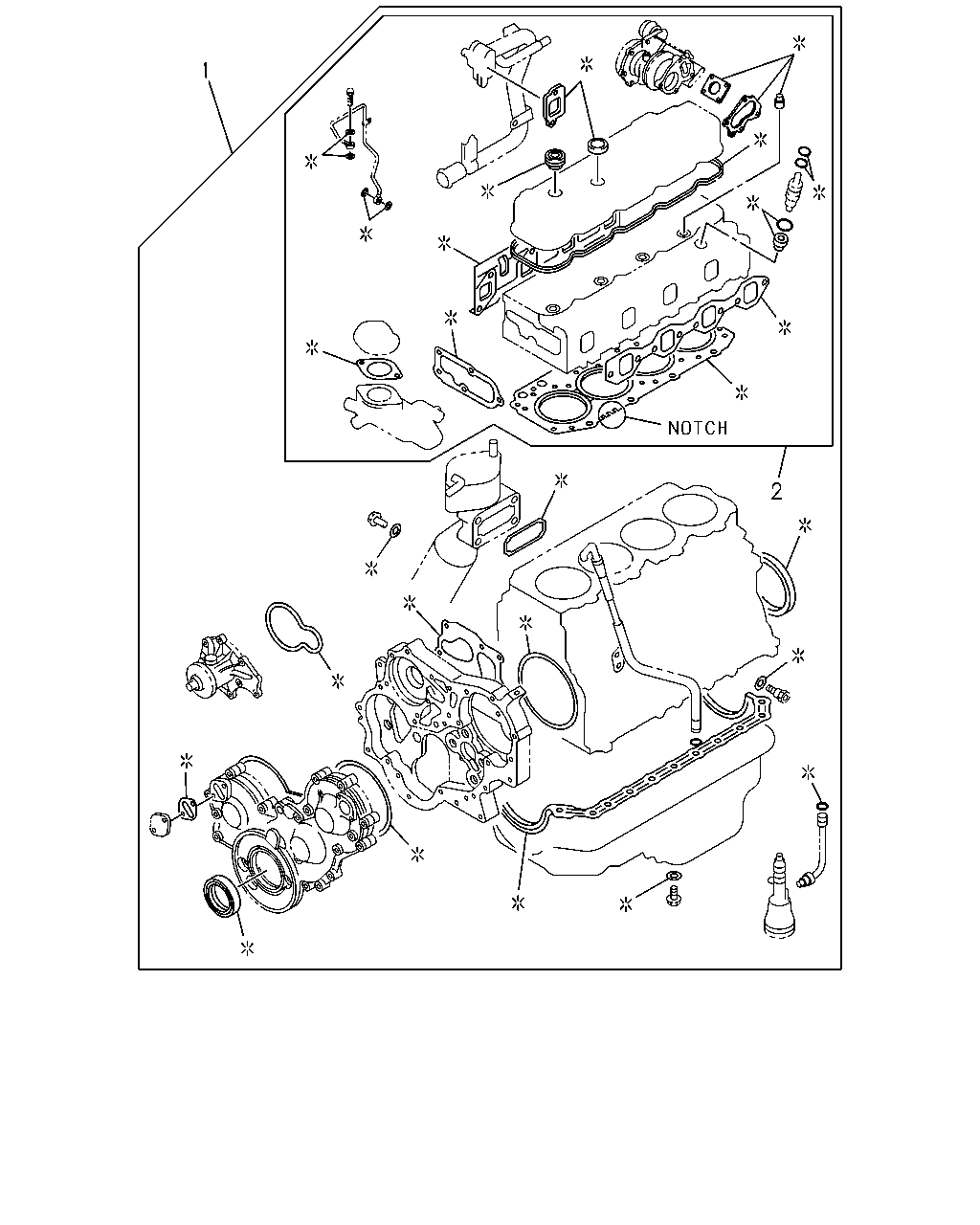

çizim 11154
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-084-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-085-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-086-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-708-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-709-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-710-2 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-711-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-712-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-713-1 01 1 9906-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
