Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#34721) — 116 parça

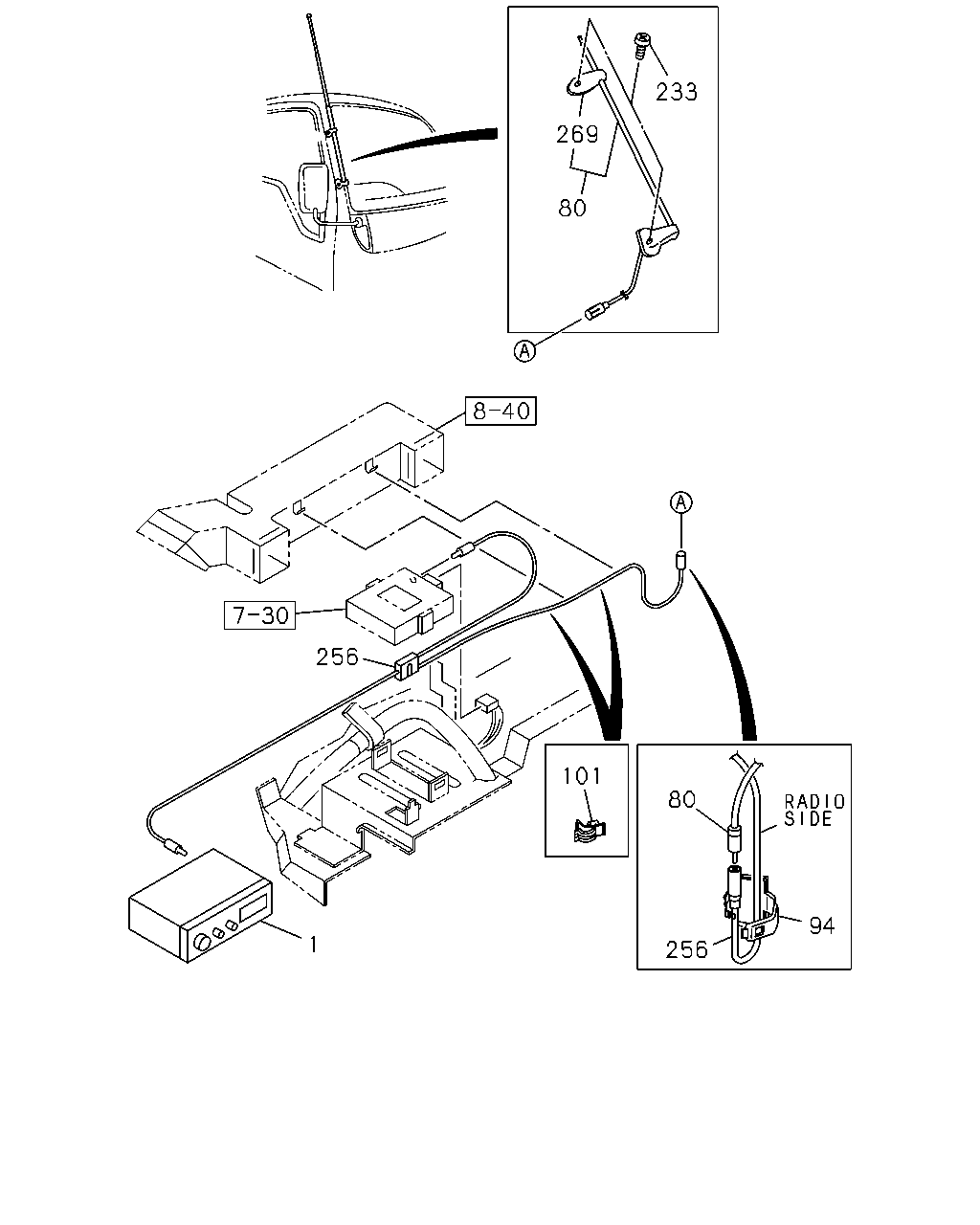

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9811-	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97207-696-0	02	1	9811-9901	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97223-099-0	02	1	9902-0105	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97223-099-0	02	1	0106-0204	●	●	●	●		●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97317-000-0	02	1	0205-	●	●	●	●		●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97207-695-0	02	1	9811-9902	●		●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97223-098-0	02	1	9903-0204	●		●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-001-0	02	1	0205-	●		●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9811-	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9811-	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9811-	●	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9811-	●	●	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9811-	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-4	02	1	9811-	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9811-	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9811-	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9811-	●	●	●	●	●	●

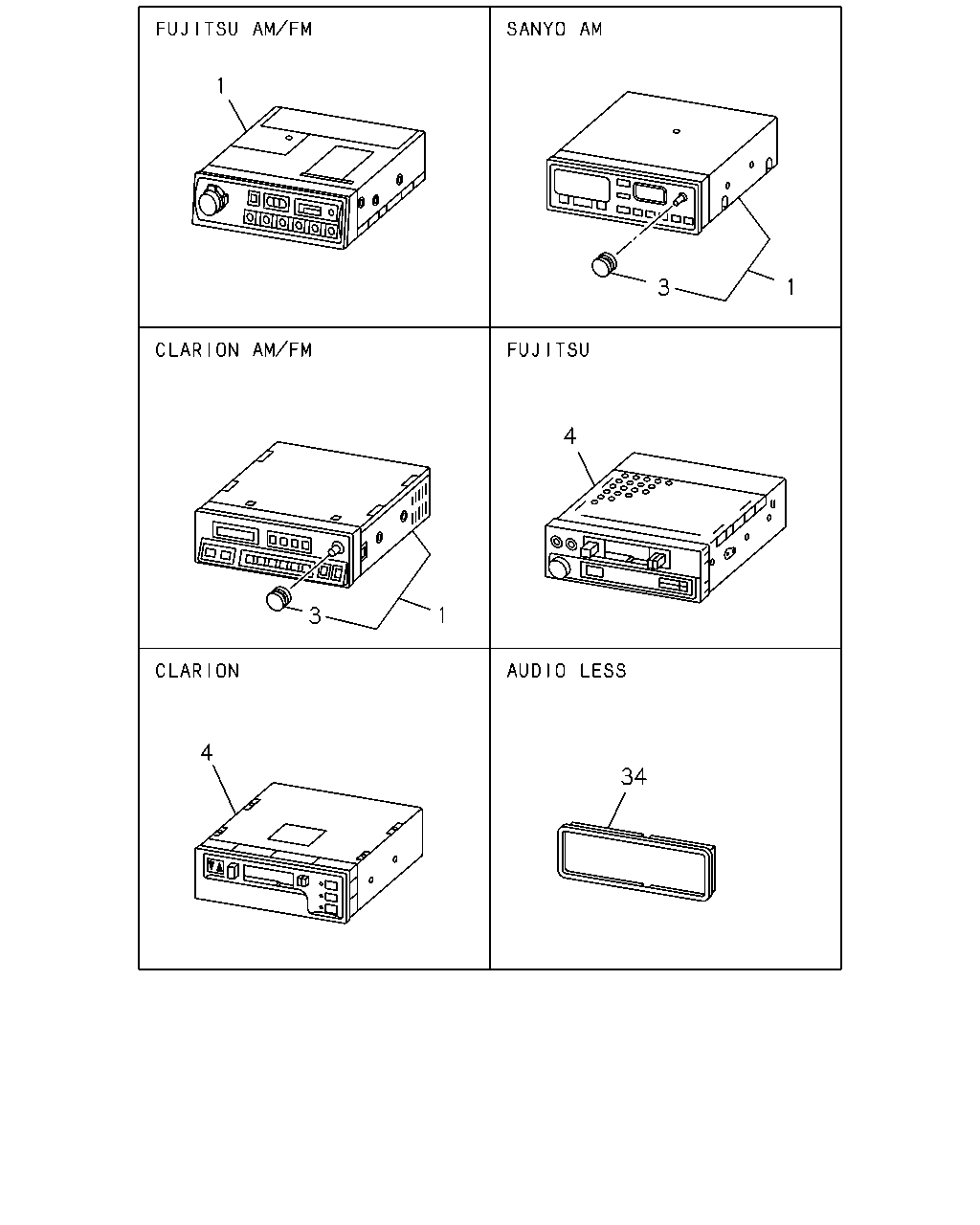

1 3 1 4 3 1 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97088-264-0	01	1	9811-0004	●	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0005-0105	●		●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0005-0105		●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	9811-0105	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	9811-	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9811-9911	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-	●		●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO	8-97093-557-0	01	1	9811-0105	●	●	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO	8-97093-557-0	01	1	0106-	●	●	●	●		●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION	8-97093-559-0	01	1	9811-	●		●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU	8-97088-290-0	01	1	9811-0105	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU	8-97088-290-0	01	1	0106-	●	●	●	●		●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	8-97088-291-0	01	1	9811-	●		●	●	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9811-	●	●	●	●	●	●

233 269 80 256 101 80 94 1 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97088-264-0	01	1	9811-0004	●	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0005-0105	●		●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0005-0105		●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	9811-0105	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	9811-	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9811-9911	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-	●		●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97210-546-0	01	1	9811-9903	●	●	●	●	●	●
80	09.645 ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97210-546-0	01	1	9904-	●		●	●		●
80	09.645 ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97211-564-0	01	1	9904-	●	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	9811-	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	03	1	0112-	●		●	●		●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0112-		●			●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	9811-0111	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	02	1	0112-	●		●	●		●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	9811-	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	9811-	●	●	●	●	●	●
256	09.647 DISTRIBUTOR UNIT; FEEDER REMOTE CONT DOOR LOCK<6NF>	8-97256-812-0	01	1	0112-	●		●	●		●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-183-0	01	1	9811-9903	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97108-183-0	01	1	9904-	●		●	●		●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97219-079-0	01	1	9904-	●	●	●	●	●	●

6 1 7 7 7 6 7 7 1 7 6 226 6 226 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97088-264-0	01	1	9811-0004	●	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0005-0105	●		●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0005-0105		●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	9811-0105	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	9811-	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9811-9911	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-	●		●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU	8-97088-290-0	01	1	9811-0105	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU	8-97088-290-0	01	1	0106-	●	●	●	●		●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	8-97088-291-0	01	1	9811-	●		●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9811-9908	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9909-9909	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (A)	8-97853-615-2	01	1	9909-9909	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9910-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9811-9908	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9909-9909	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (A)	8-97853-614-2	01	1	9909-9909	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9910-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	9811-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	9811-	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9811-9908	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9909-9909	●	●	●	●	●	●
7	09.650 SCREW; RADIO EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9909-9909	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9910-	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9811-	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9811-9908	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9909-9909	●	●	●	●	●	●
226	09.647 BOLT; BRKT EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9909-9909	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9910-	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-	●	●	●	●	●	●

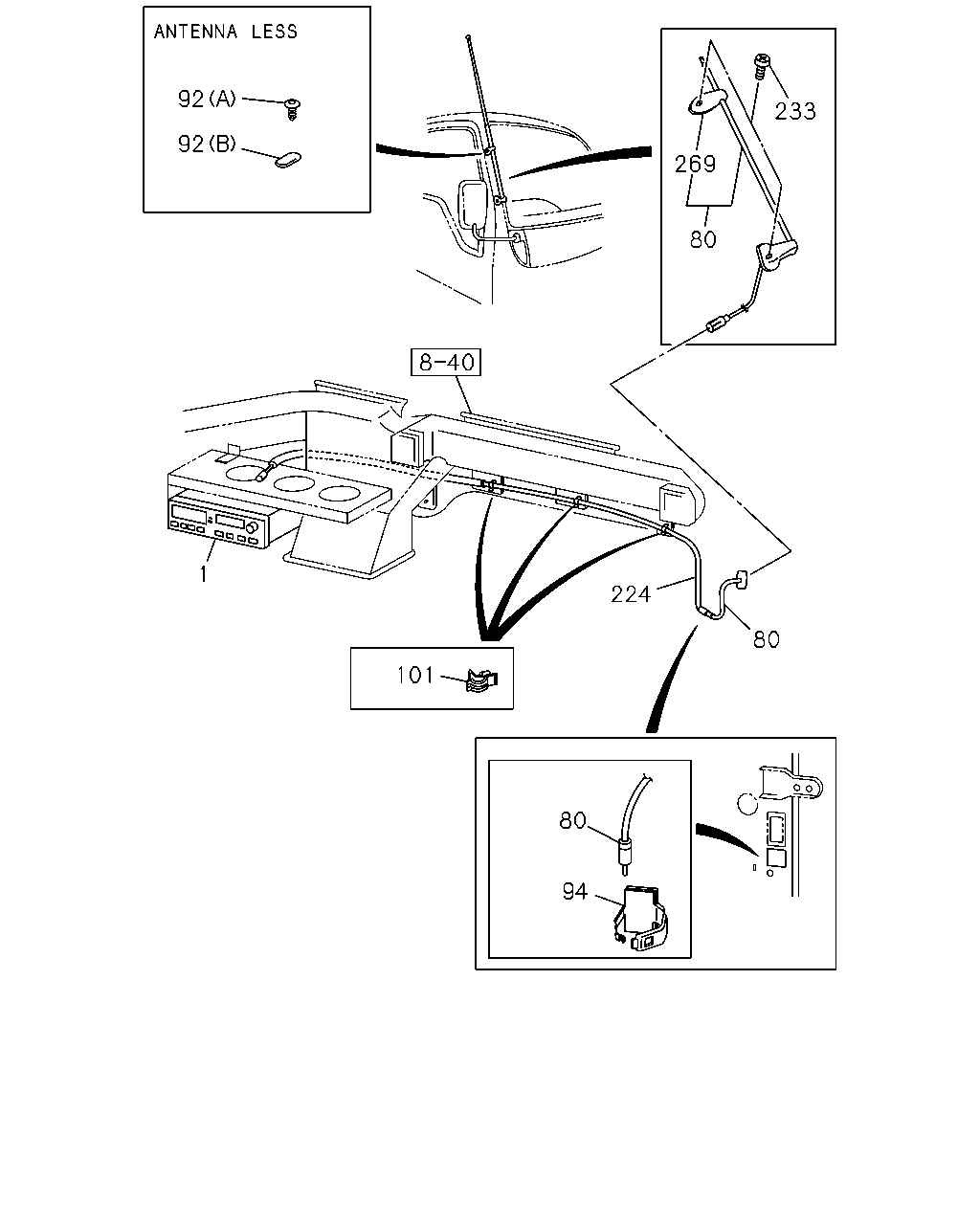

92 233 92 269 80 1 224 80 101 80 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97088-264-0	01	1	9811-0004	●	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0005-0105	●		●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0005-0105		●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM	8-97241-543-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	9811-0105	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM	8-97088-266-0	01	1	0106-	●	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	9811-	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9811-9911	●		●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-	●		●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97210-546-0	01	1	9811-9903	●	●	●	●	●	●
80	09.645 ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97210-546-0	01	1	9904-	●		●	●		●
80	09.645 ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97211-564-0	01	1	9904-	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9811-	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9811-	●	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	9811-	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	03	1	0112-	●		●	●		●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0112-		●			●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	9811-0111	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	02	1	0112-	●		●	●		●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9811-9811	●	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	9812-0111	●	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97213-766-0	01	1	0112-	●		●	●		●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	0112-		●			●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	9811-	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	9811-	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-183-0	01	1	9811-9903	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97108-183-0	01	1	9904-	●		●	●		●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97219-079-0	01	1	9904-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
