Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#34715) — 142 parça

35 35 25 35 35 73 27 48 73 35 48 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) EXC. FAN FLUID DRIVE<KA3>	8-97129-200-0	01	1	9811-0105	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF>	8-97129-200-0	01	1	9811-0105			●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51>	8-97129-200-0	01	1	0106-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97187-049-0	01	1	9811-0105	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97187-049-0	01	1	0106-	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) EXC. FAN FLUID DRIVE<KA3> (A)	8-97129-201-0	01	1	9811-0105	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (A)	8-97129-201-0	01	1	9811-0105			●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97129-201-0	01	1	0106-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	9811-0107	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0108-	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97187-050-0	01	1	9811-0105	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97187-050-0	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-0107	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0108-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	01	1	9811-9904	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	9905-0105	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●		●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0106-	●		●	●

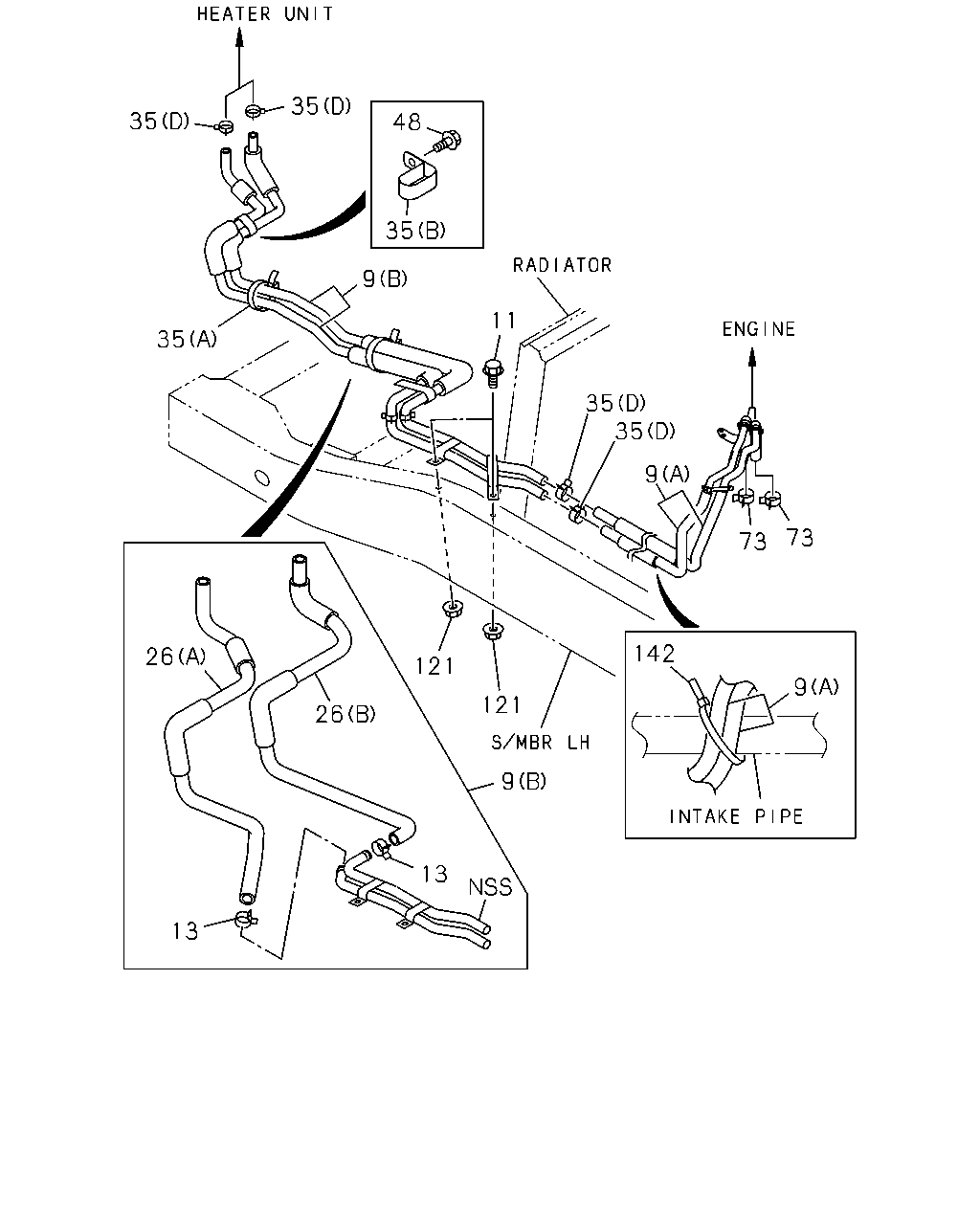

35 35 48 35 9 11 35 35 35 9 73 73 142 26 121 9 121 26 9 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97205-282-1	01	1	0106-	●		●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (A)	8-97261-456-3	01	1	0106-	●		●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-267-3	01	1	0106-	●		●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0107	●		●	●	●	●
11	08.845 BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●		●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-082-0	01	1	0106-	●		●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-083-0	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-0107	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0108-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	01	1	9811-9904	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	9905-0105	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●		●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0106-	●		●	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●		●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 L=450	1-09707-142-1	01	1	0106-	●		●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.852 L=350	8-94152-256-1	01	1	0106-	●		●	●

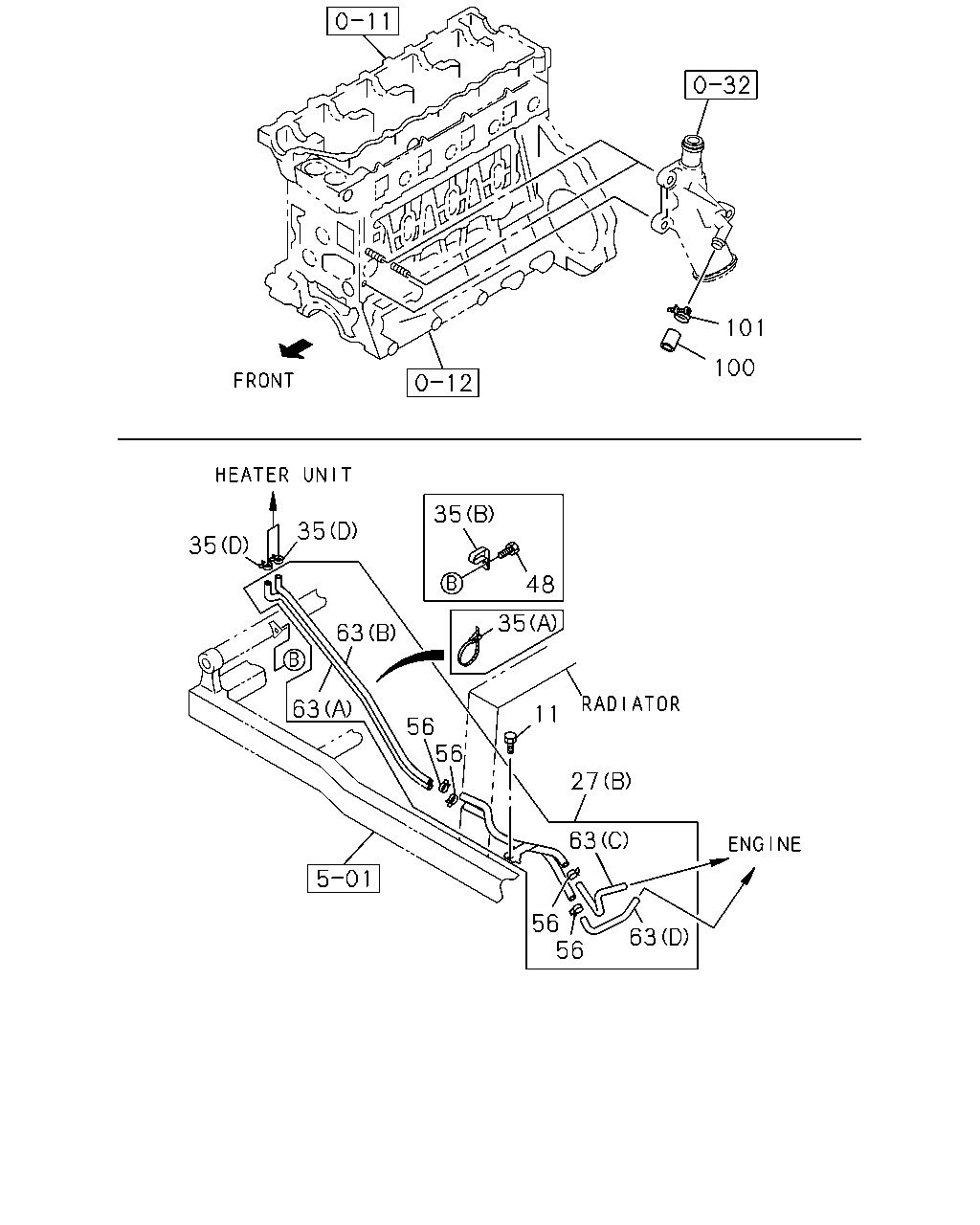

101 100 35 35 35 48 35 63 63 11 56 56 27 63 56 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0107	●		●	●	●	●
11	08.845 BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) EXC. FAN FLUID DRIVE<KA3> (A)	8-97129-201-0	01	1	9811-0105	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (A)	8-97129-201-0	01	1	9811-0105			●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97129-201-0	01	1	0106-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	9811-0107	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0108-	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97187-050-0	01	1	9811-0105	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97187-050-0	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-0107	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0108-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	01	1	9811-9904	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	9905-0105	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●		●	●
56	08.846 CLAMP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9811-0107	●		●	●	●	●
56	08.846 CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0108-	●		●	●	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	9811-0107	●		●	●	●	●
63	08.846 HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	0108-	●		●	●	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	9811-0107	●		●	●	●	●
63	08.846 HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	0108-	●		●	●	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	9811-0107	●		●	●	●	●
63	08.846 HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	0108-	●		●	●	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	9811-0107	●		●	●	●	●
63	08.846 HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	0108-	●		●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	9811-9902	●	●	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	9903-0105	●	●	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	0106-	●		●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	9903-0105	●	●	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	0106-0107	●		●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	0108-	●		●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	9811-9902	●	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	9903-0105	●	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	0106-	●		●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	9903-0105	●	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	0106-0107	●		●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	0108-	●		●	●	●	●

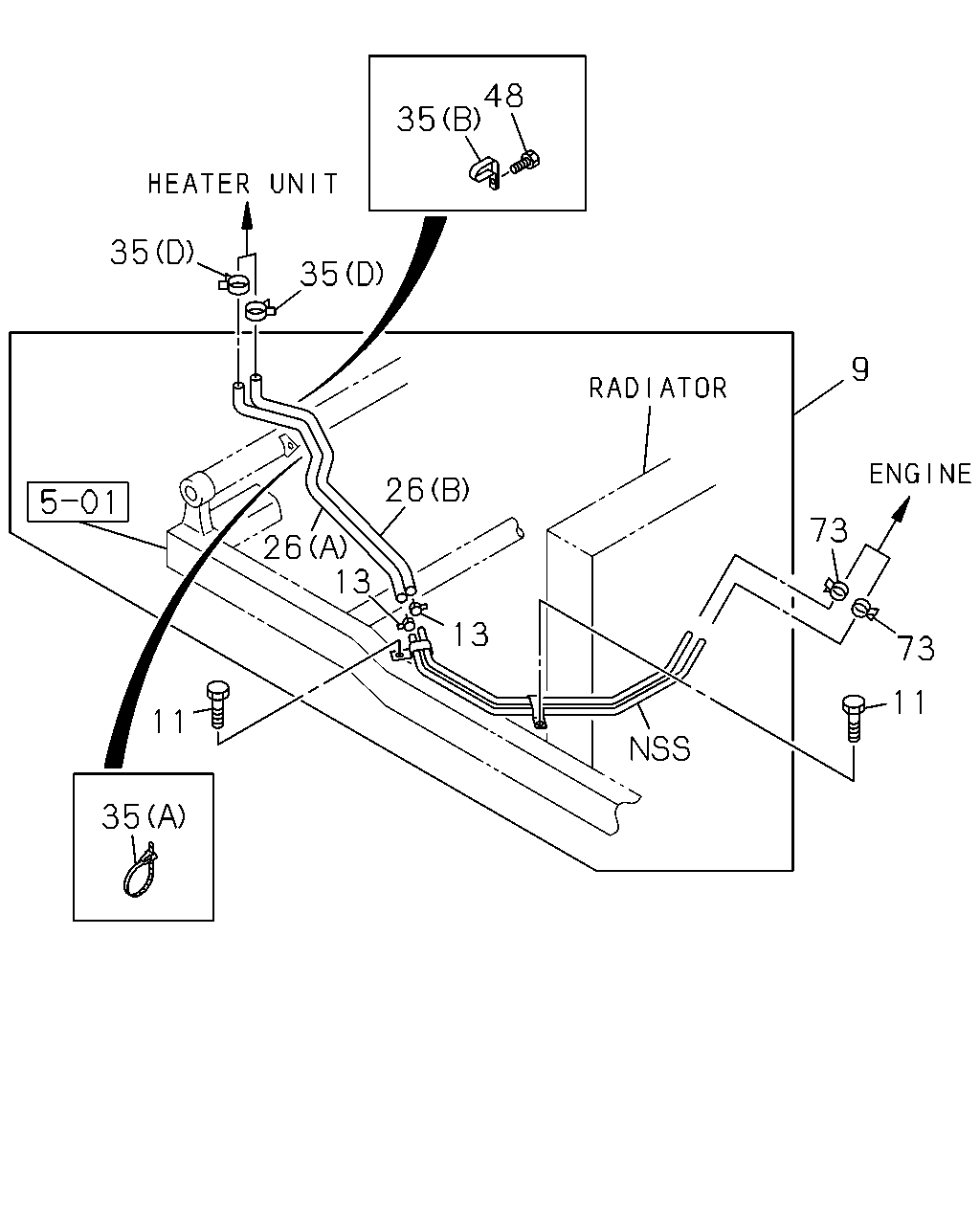

48 35 35 35 26 73 26 13 13 73 11 11 35 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97205-282-1	01	1	0106-	●		●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (A)	8-97261-456-3	01	1	0106-	●		●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-267-3	01	1	0106-	●		●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0107	●		●	●	●	●
11	08.845 BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●		●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-082-0	01	1	0106-	●		●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-083-0	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-0107	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0108-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-003-0	01	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	01	1	9811-9904	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	9905-0105	●		●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●		●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9811-0105	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0106-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0106-	●		●	●
