◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#34713) — 114 parça

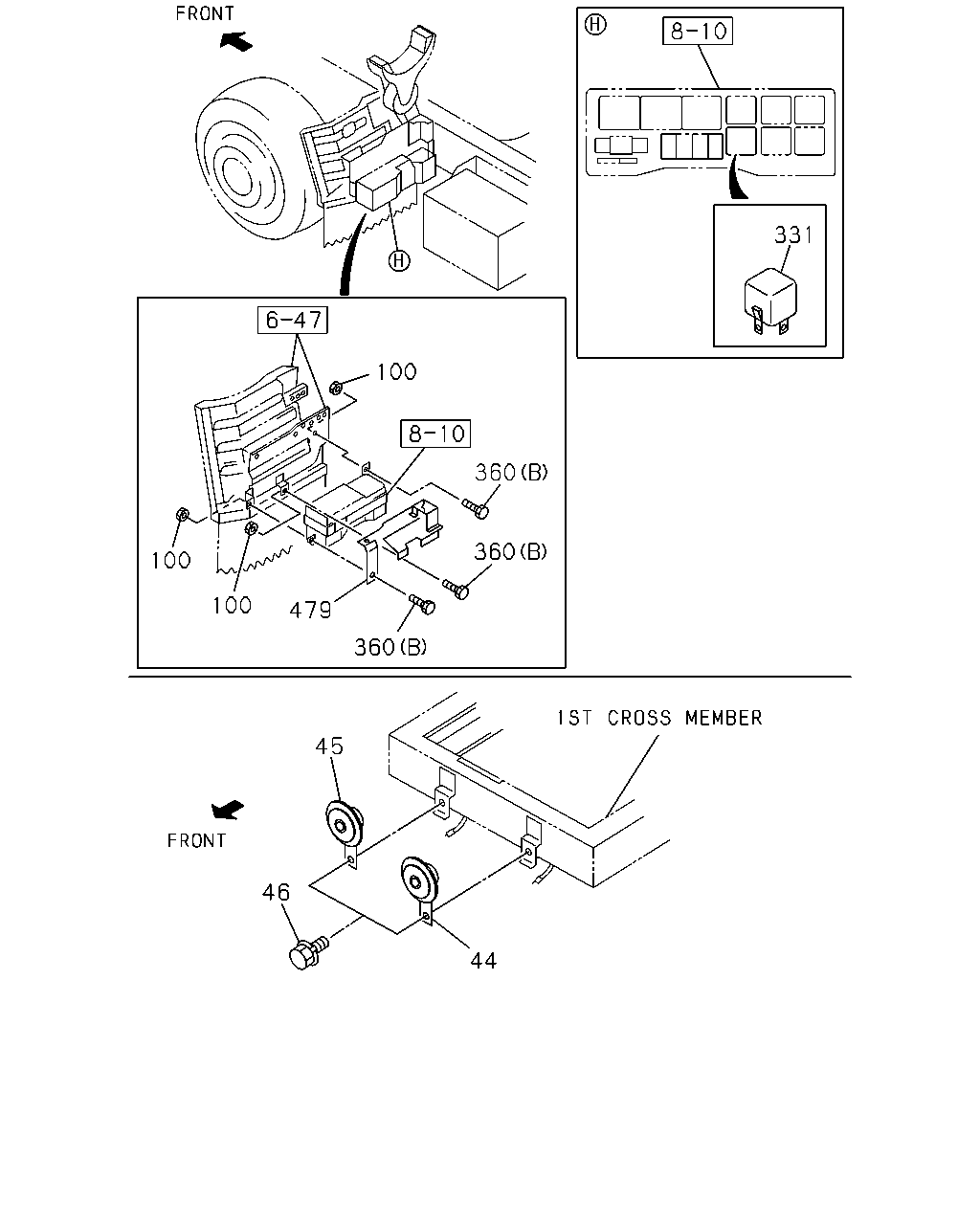

çizim 45784
331 100 360 360 100 100 479 360 45 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9811-9811 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) VOLTAGE 24V<7AE> 		8-97211-741-1 01 1 9812- ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9905- ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9811-9811 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-97109-361-0 01 1 9811-9811 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) EXC. VOLTAGE 24V<7AE> 		8-97211-743-0 01 1 9812-0105 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-743-0 01 1 9812-0105 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) EXC. VOLTAGE 24V<7AE> 		8-97211-743-1 01 1 0106- ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9905-0105 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-97109-361-0 01 1 9905-0105 ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 0106- ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9811-9811 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9812-9904 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9905- ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9811-9811 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 		8-97109-362-1 01 1 9811-9811 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9812-9904 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-362-1 01 1 9812-9904 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9905-0105 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 		8-97109-362-1 01 1 9905-0105 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 0106- ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG), VOLTAGE 24V<7AE> 		8-97211-744-0 01 1 9812-9904 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-744-0 01 1 9812-9904 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG), DUALHEAVY DUTY HORN(6KK),VOLTAGE 24V<7AE> 		8-97211-744-0 01 1 9905-0105 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG), DUALHEAVY DUTY HORN(6KK) 		8-97211-744-0 01 1 9905-0105 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG), DUALHEAVY DUTY HORN(6KK),VOLTAGE 24V<7AE> 		8-97211-744-1 01 1 0106- ● ● ● ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-740-0 01 1 9812-9904 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN(6HG), DUALHEAVY DUTY HORN(6KK) 		8-97211-740-0 01 1 9905-0105 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN(6HG), DUALHEAVY DUTY HORN(6KK) 		8-97211-740-1 01 1 0106- ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-9811 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-9811 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9812-9904 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9905- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9812-9904 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905- ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9811-0105 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JH1 ENG(RJX),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ● ● ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
100 09.277 NUT; RELAY BOX COVER
4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0107 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0107 ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
331 02.510 RELAY; A/C
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9811- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9811-0105 ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0106- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811-0105 ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811-0105 ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0107 ● ● ● ●
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0107 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0108- ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0108- ●
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0108- ●
479 09.277 PROTECTOR; RELAY BOX
DUMP CHASSIS(V4D) 		8-97114-263-0 01 1 9811-9901 ●

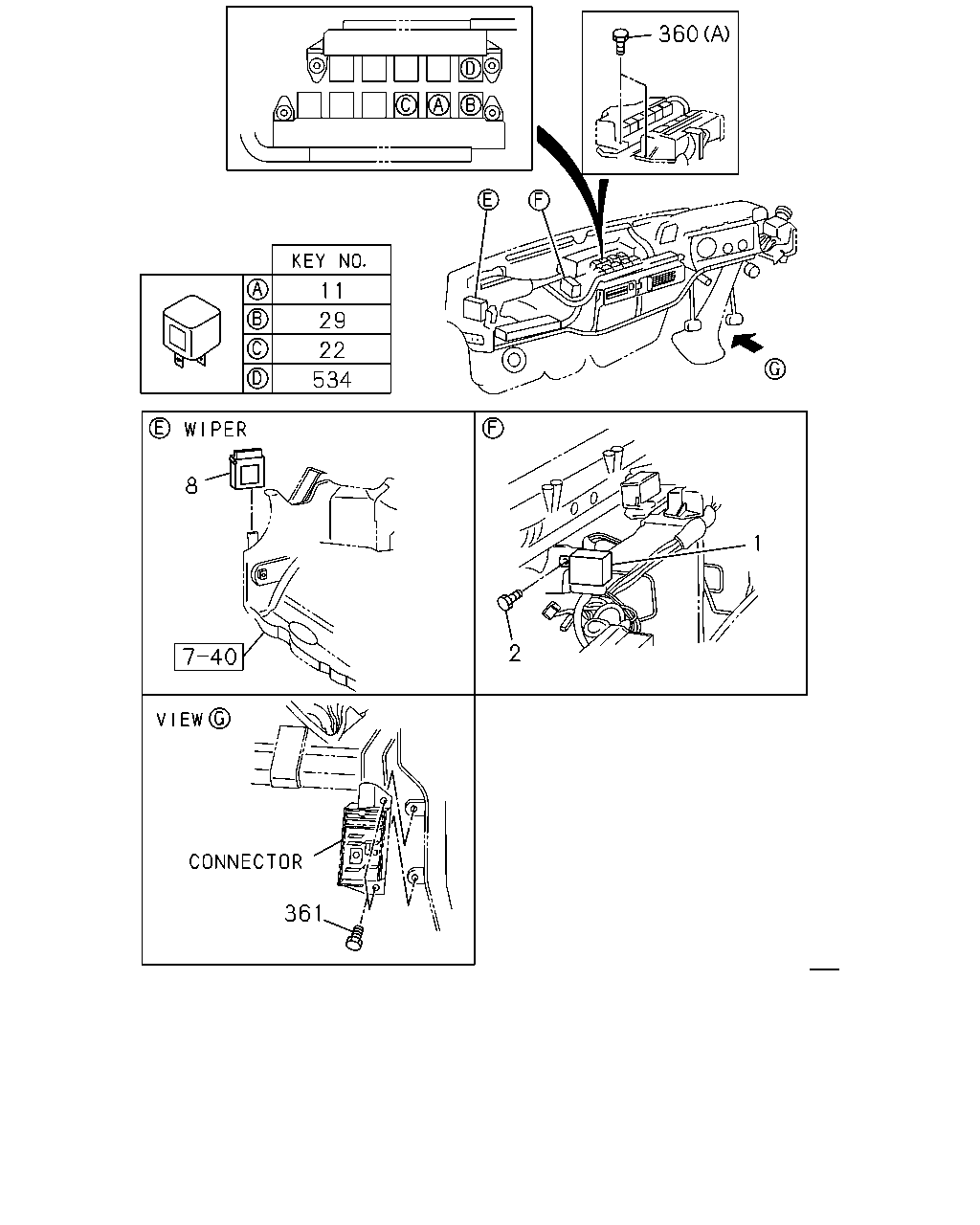

çizim 48465
360 11 29 22 534 8 1 2 361
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 9811-0105 ● ● ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 0106-0212 ● ● ● ●
1 02.575 UNIT; FLASHER 8-97086-508-1 01 1 0106-0212 ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-0 01 1 0301- ● ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-0 01 1 0301- ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97086-509-1 01 1 9811-0003 ● ● ● ● ●
1 02.575 UNIT; FLASHER 8-97086-509-1 01 1 9811-0003 ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0004-0105 ● ● ● ● ●
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0004-0105 ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0106- ● ● ● ●
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0106- ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9811- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97184-233-0 01 1 9811-0105 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97184-233-0 01 1 0106- ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0106- ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-186-0 01 1 9811-0105 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 9811-0105 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-186-0 01 1 0106- ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 0106- ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ● ● ● ● ●
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ● ●
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9811- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9811-0105 ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0106- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811-0105 ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811-0105 ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0107 ● ● ● ●
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0107 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0108- ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0108- ●
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0108- ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9811- ● ● ● ● ● ●
534 02.485 RELAY; FUEL FILTER
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●
