◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#34712) — 49 parça

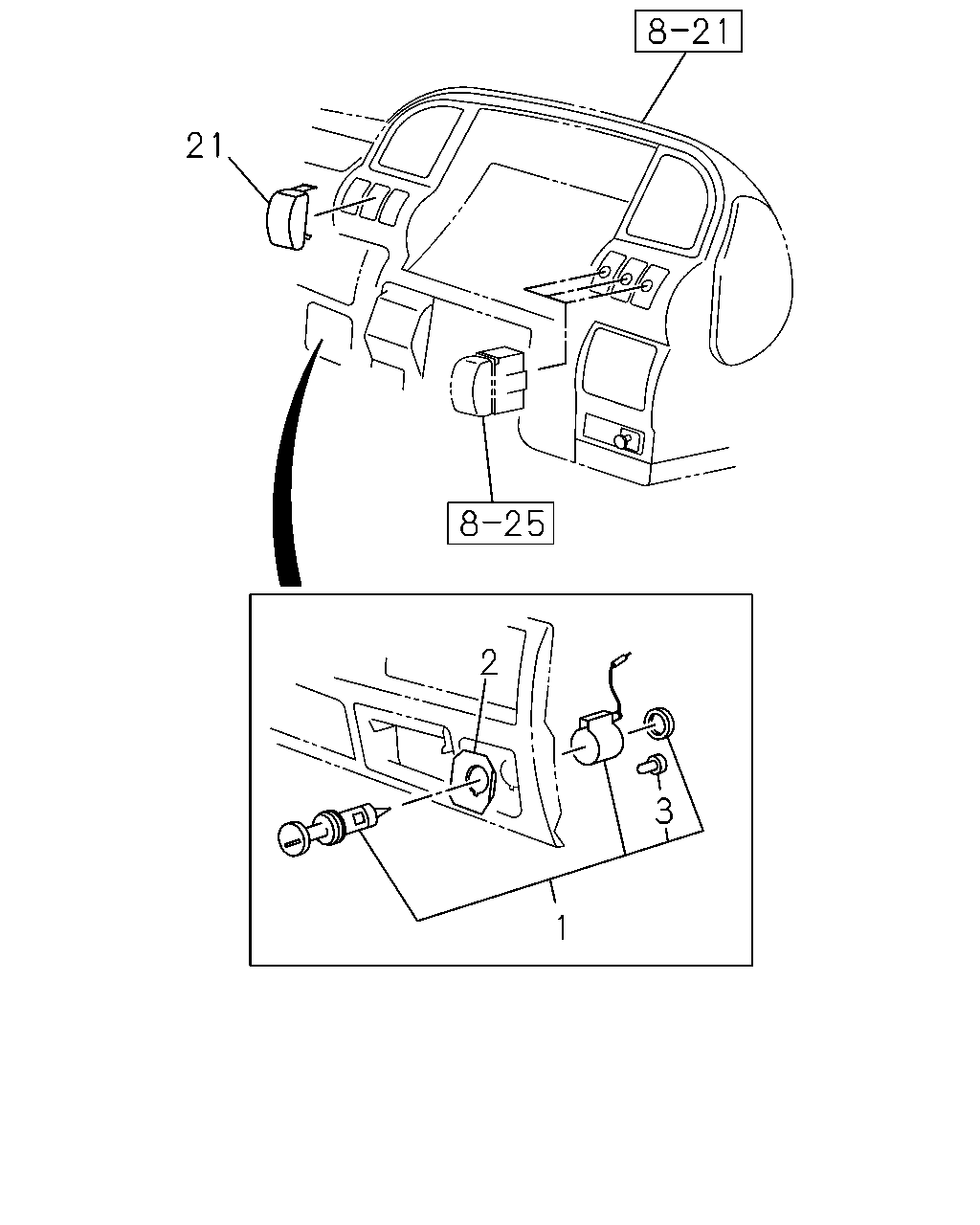

çizim 8820
21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9811-0105 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 0106-0108 ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97064-970-1 01 1 0106-0108 ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0109- ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9811-0105 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97073-936-1 01 1 9811-0105 ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 0106-0108 ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97073-936-1 01 1 0106-0108 ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0109- ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0109- ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9811- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 9811-0105 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0106- ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0106- ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9811-0105 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 9811-0105 ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0106- ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0106- ●
21 09.744 COVER; HOLE 8-97136-694-0 02 1 9811- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 9811-0105 ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 9811-0105 ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) 		8-97136-694-0 01 1 9811-0105 ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 9811-0105 ●
21 09.744 COVER; HOLE
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 0106-0107 ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0106-0107 ● ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 0106-0107 ●
21 09.744 COVER; HOLE
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 0108- ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0108- ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 0108- ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97136-694-0 01 1 0108- ●

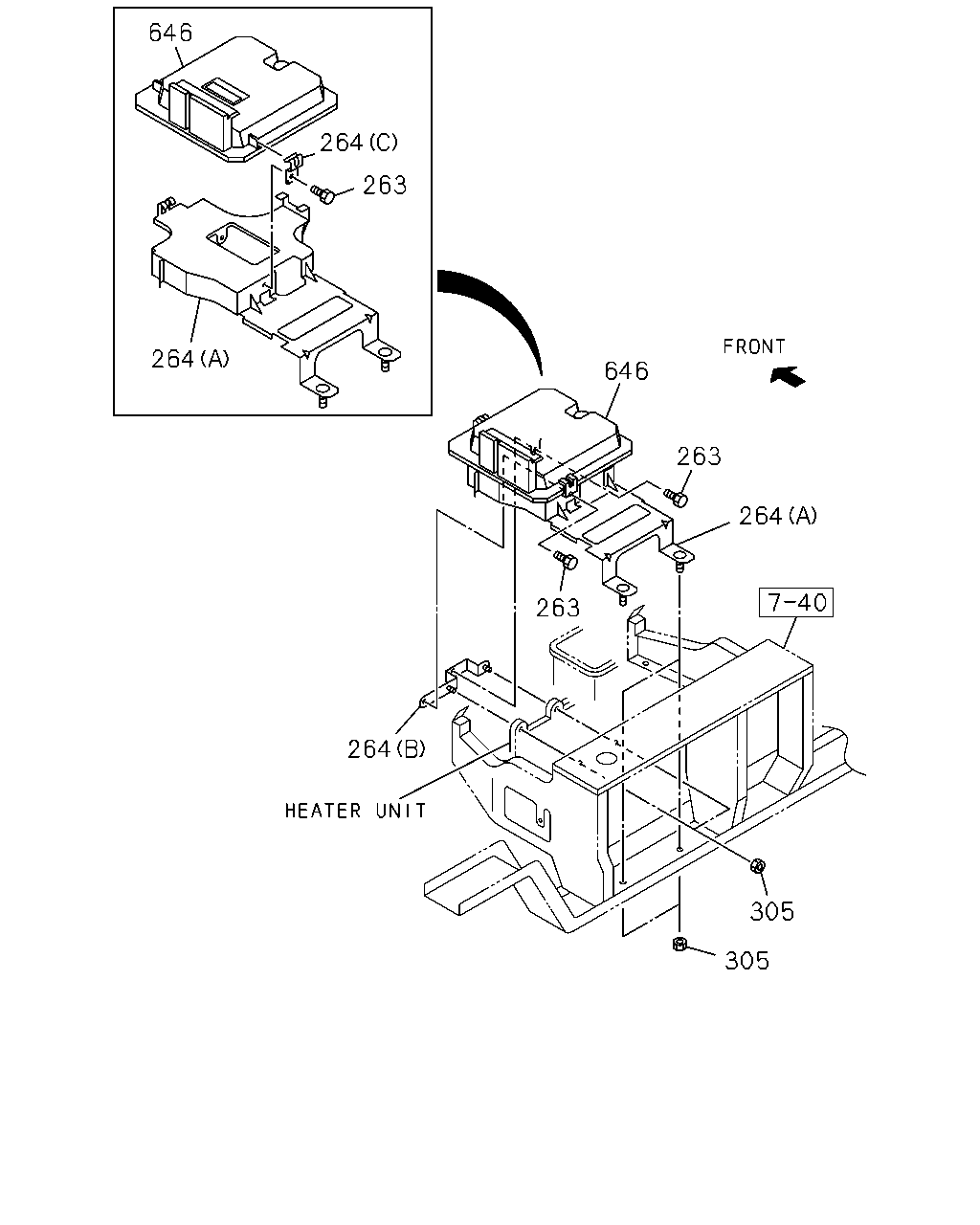

çizim 9752
646 264 263 264 646 263 264 263 264 305 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
263 04.115 BOLT; CONT UNIT
4JH1 ENG(RJX) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0106- ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (C) 		8-97240-154-1 01 1 0106- ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (A) 		8-97309-166-4 01 1 0106- ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (B) 		8-97312-797-2 01 1 0106- ● ● ●
305 08.915 NUT; CONT UNIT
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0106- ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97288-153-3 01 1 0106- ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97260-385-4 01 1 0106- ● ● ●

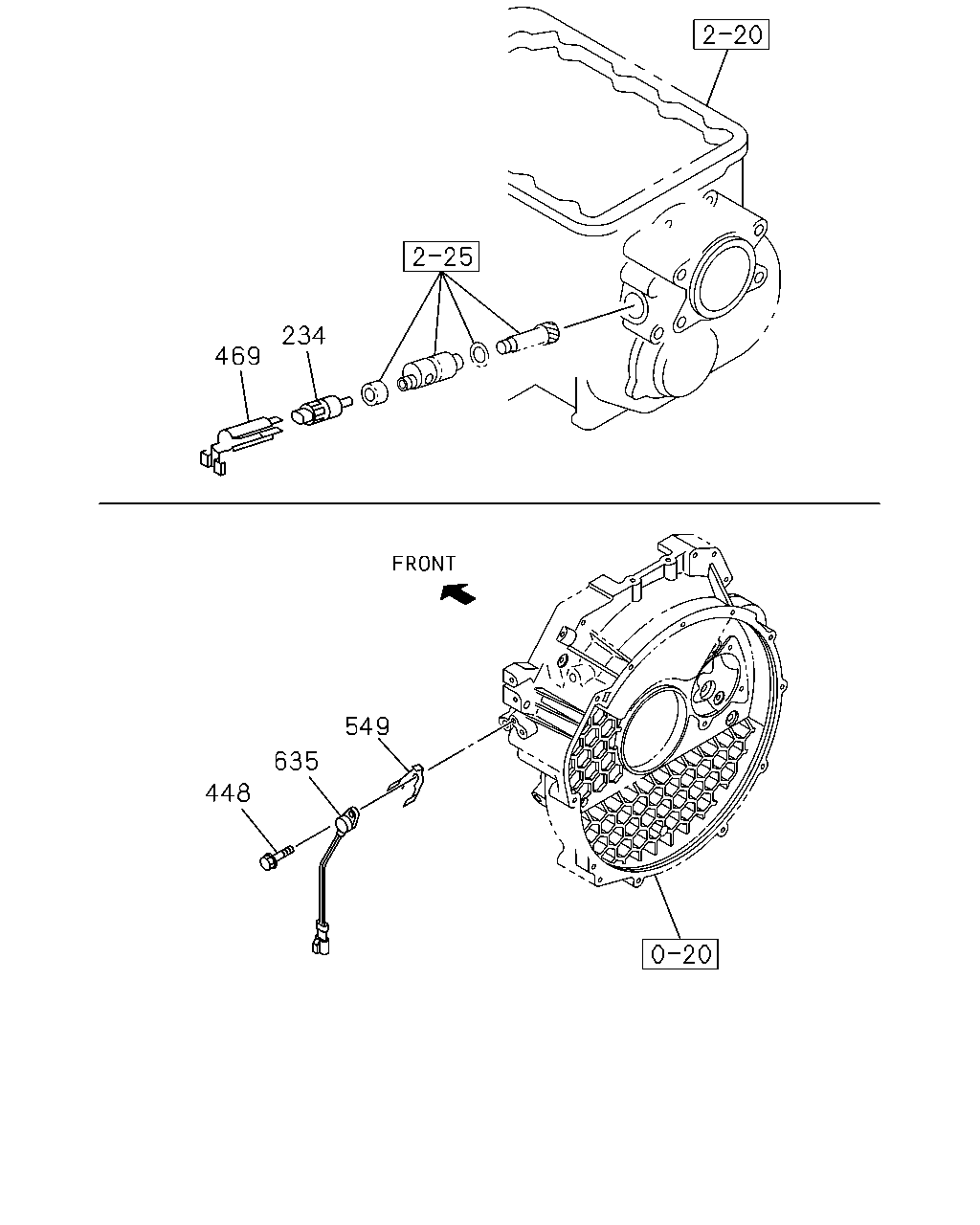

çizim 10813
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9811-0006 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0007- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1 ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9811-0107 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0108- ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 9811-0105 ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
4JH1 ENG(RJX),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 0106-0107 ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 0108- ● ● ● ● ●
549 02.510 SHEET
4HF1 ENG(RLS) 09.743 		8-97161-633-2 01 1 9811-0107 ● ● ● ● ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1 ENG(RLS) 09.743 		8-97161-633-2 01 1 0108- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) KANSEI 		8-97163-104-0 01 1 9811-0107 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) KANSEI 		8-97163-104-0 01 1 0108- ● ● ● ● ●
