◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#34710) — 206 parça

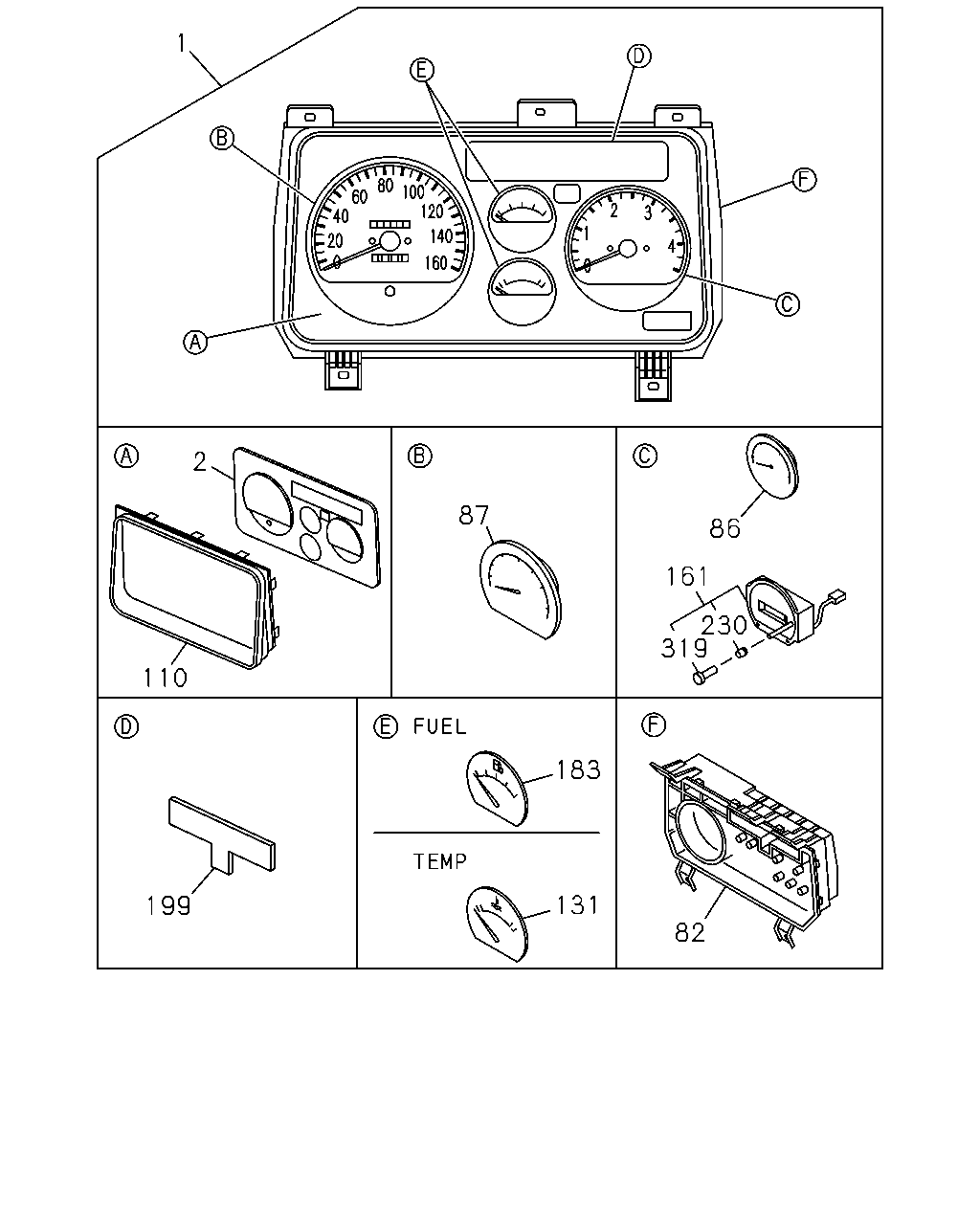

çizim 10477
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97172-143-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SOUTH AFRICA EQUIPMENT(SW2), TACHOMETER<U16> 		8-97172-142-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97260-648-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 9811-0107 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97249-244-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97249-245-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97249-242-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97249-243-0 01 1 0106- ●
2 09.735 PANEL; CLUSTER 8-97185-443-0 01 1 9811- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 9811- ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> 		8-97185-467-0 01 1 9811-0105 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JB1 ENG(RLF) TACHOMETER<U16> 		8-97185-467-0 01 1 0106- ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97307-050-0 01 1 0106- ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97185-470-0 01 1 9811-0107 ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> 		8-97185-470-0 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> 		8-97185-458-0 01 1 9811-0105 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-458-0 01 1 0106-0107 ● ● ● ● ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-458-0 01 1 0106-0107 ● ● ● ● ●
87 09.761 SPEEDOMETER
4HG1 ENG(RJH),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-458-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-458-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> 		8-97185-458-0 01 1 0108- ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 9811-0105 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0106-0107 ● ● ● ● ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0106-0107 ● ● ● ● ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0106-0107 ● ● ● ●
87 09.761 SPEEDOMETER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97185-457-0 01 1 0106-0107 ● ● ●
87 09.761 SPEEDOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97185-457-0 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97185-457-0 01 1 0108- ● ● ●
87 09.761 SPEEDOMETER
EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0108- ● ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> 		8-97185-455-0 01 1 0106- ●
87 09.761 SPEEDOMETER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) EXC. SPEEDOMETER MILE<UC1> 		8-97185-456-0 01 1 0106- ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) TACHOMETER<U16> 		8-97185-452-0 01 1 9811-0105 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97185-452-0 01 1 0106- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 9811-0105 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0106- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97185-476-0 01 1 9811-0105 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JB1 ENG(RLF) 		8-97185-476-0 01 1 0106- ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97185-476-0 01 1 0106- ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HF1 ENG(RLS) 		8-97185-475-0 01 1 9811-0107 ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97185-475-0 01 1 0108- ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 9811-0105 ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0106- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 9811- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97185-481-0 01 1 9811-0105 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-481-0 01 1 9811-0105 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-481-0 01 1 0106-0107 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-481-0 01 1 0106-0107 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-481-0 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-481-0 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97210-305-0 01 1 0106- ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) 		8-97210-305-0 01 1 0106- ●
199 09.772 LENS; WARNING LAMP
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-483-0 01 1 9811-0107 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-483-0 01 1 0108- ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 9811-0105 ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0106- ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 9811-0105 ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0106- ● ● ● ● ● ●

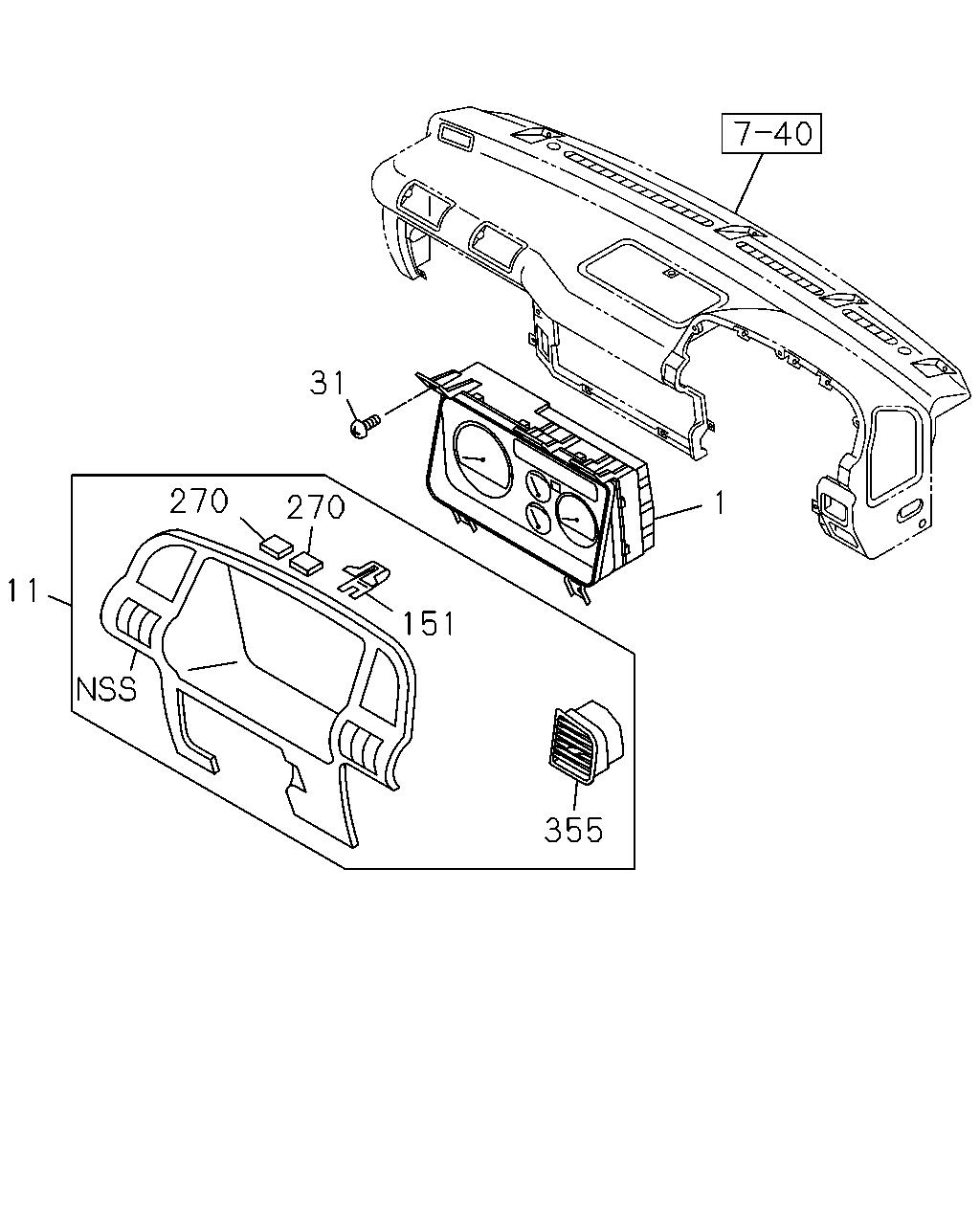

çizim 10952
31 270 1 270 11 151 355
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97172-143-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SOUTH AFRICA EQUIPMENT(SW2), TACHOMETER<U16> 		8-97172-142-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97260-648-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 9811-0107 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97249-244-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97249-245-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97249-242-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97249-243-0 01 1 0106- ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-964-2 01 1 9811- ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9811- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97853-939-4 07 1 9811-9902 ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 9903- ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 02 1 9811- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 9811- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 9811- ● ● ● ● ● ●

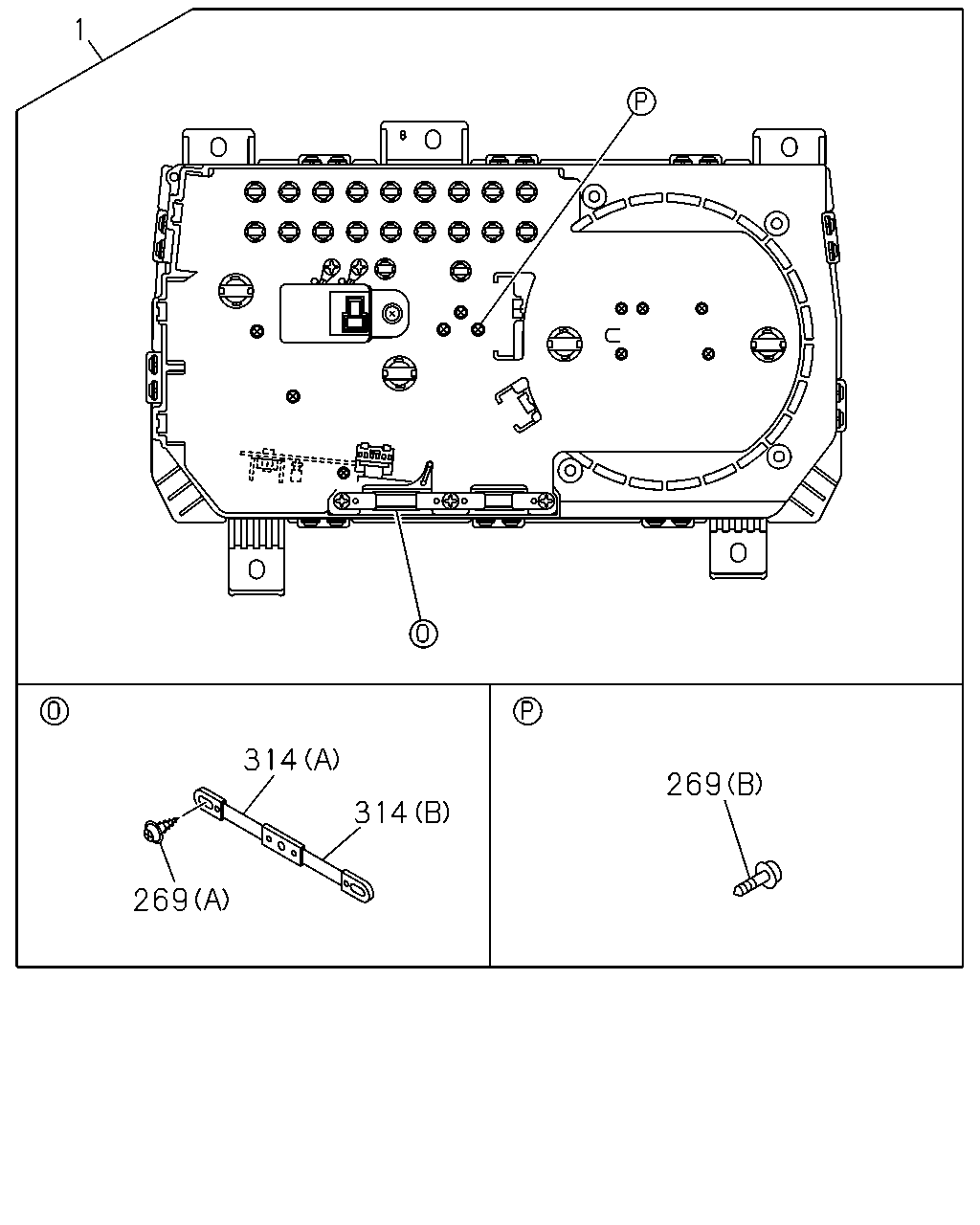

çizim 45384
1 314 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97172-143-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SOUTH AFRICA EQUIPMENT(SW2), TACHOMETER<U16> 		8-97172-142-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97260-648-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 9811-0107 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97249-244-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97249-245-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97249-242-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97249-243-0 01 1 0106- ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-525-0 06 1 9811- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97185-528-0 02 1 9811-0105 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1 ENG(RLF) (A) 		8-97185-528-0 02 1 0106- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> (A) 		8-97185-528-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) TACHOMETER<U16> (B) 		8-97185-524-0 08 1 9811-0105 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0106- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 9811-0105 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0106- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (D) 		8-97185-523-0 01 1 9811-0107 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) 		8-97185-523-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-528-0 05 1 9811-0107 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97185-528-0 05 1 0108- ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HF1 ENG(RLS) (A) 		8-97185-515-0 01 1 9811-0107 ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97185-515-0 01 1 0108- ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HF1 ENG(RLS) (B) 		8-97185-516-0 01 1 9811-0107 ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97185-516-0 01 1 0108- ● ● ● ● ●

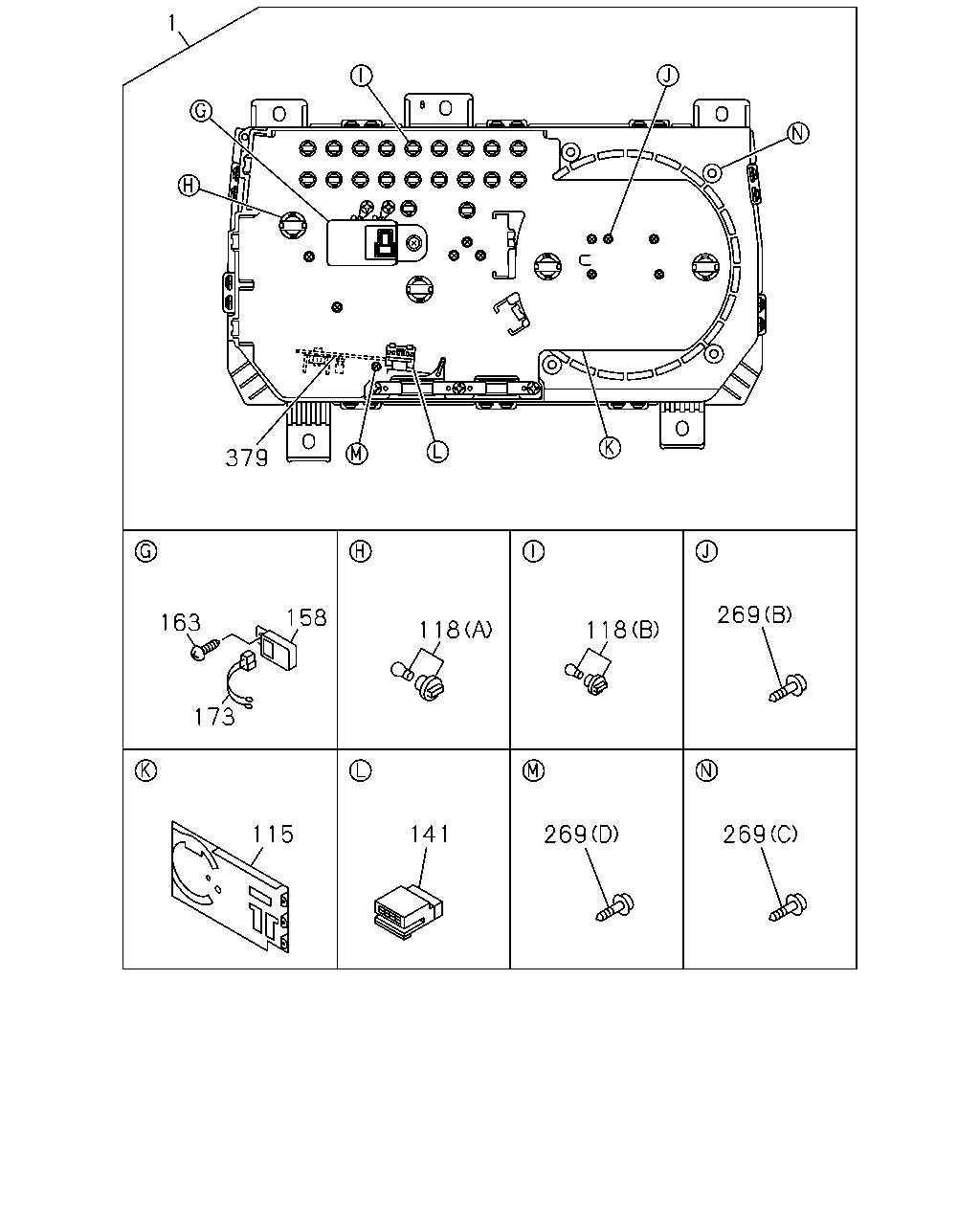

çizim 47868
1 379 269 158 163 118 118 173 115 269 269 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97172-143-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SOUTH AFRICA EQUIPMENT(SW2), TACHOMETER<U16> 		8-97172-142-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9811-0105 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0106- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97260-648-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-596-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97170-607-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-609-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 9811-0107 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97170-600-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 9811-0107 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97170-601-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97249-244-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97249-245-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97249-242-0 01 1 0106- ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97249-243-0 01 1 0106- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> 		8-97185-506-0 01 1 9811-0105 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-506-0 01 1 0106- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-499-0 01 1 9811-0105 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2), TACHOMETER<U16> 		8-97185-499-0 01 1 0106- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97307-051-0 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-489-0 01 1 9811-0107 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-489-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97185-507-0 01 1 9811-0107 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1 ENG(RLS) TACHOMETER<U16> 		8-97185-507-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) TACHOMETER<U16> 		8-97210-309-0 01 1 0106- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) EXC. TACHOMETER<U16> 		8-97210-308-0 01 1 0106- ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 AR 1 9811- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 AR 1 9811- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 AR 1 9811- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 9811- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 9811- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 9811- ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HF1 ENG(RLS) 		8-97185-513-0 01 1 9811-0107 ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97185-513-0 01 1 0108- ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JG2 ENG(RJC),4JB1 ENG(RLF) 12V 		8-97185-520-0 01 1 9811-0105 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JB1 ENG(RLF) 12V 		8-97185-520-0 01 1 0106- ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) TACHOMETER<U16> 12V 		8-97185-520-0 01 1 0106- ● ● ●
158 09.765 BUZZER; VAC WARNING
4HF1 ENG(RLS) 24V 		8-97185-519-0 01 1 9811-0107 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HG1 ENG(RJH),4HF1 ENG(RLS) 24V 		8-97185-519-0 01 1 0108- ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 9811- ● ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 9811- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-525-0 06 1 9811- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97185-528-0 02 1 9811-0105 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1 ENG(RLF) (A) 		8-97185-528-0 02 1 0106- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> (A) 		8-97185-528-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) TACHOMETER<U16> (B) 		8-97185-524-0 08 1 9811-0105 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0106- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 9811-0105 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0106- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (D) 		8-97185-523-0 01 1 9811-0107 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) 		8-97185-523-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-528-0 05 1 9811-0107 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97185-528-0 05 1 0108- ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HF1 ENG(RLS) 		8-97185-512-0 01 1 9811-0107 ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97185-512-0 01 1 0108- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
